5 Inch 480×272 High Brightness TFT LCD Module for Compact Outdoor Terminals

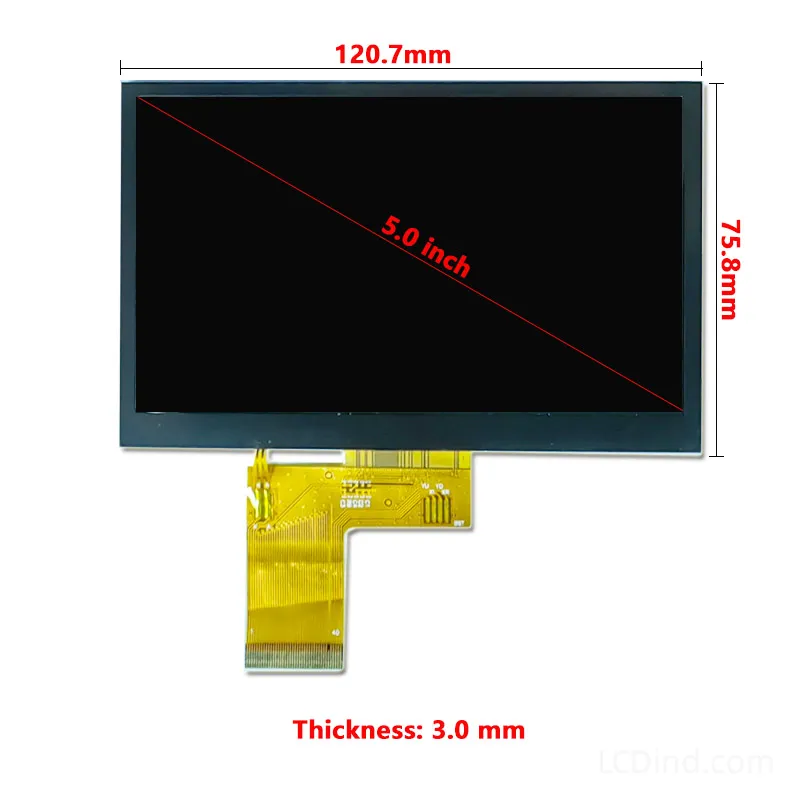

This 5 inch TFT LCD module is positioned for compact outdoor terminals where the enclosure cannot support a larger 7 inch display but the interface still needs clear status, setup, and operator feedback. The current public page confirms 5.0 inch size, 480×272 resolution, high-brightness 500 to 900 nit class with a 500-nit headline, industrial -20 ℃ to +70 ℃ operating range, and no touch in the standard configuration. The summary refers to RGB 480×272, but the attribute table leaves the interface field blank, so the exact RGB pinout and timing should be confirmed before design lock.

Confirmed Product Specifications

Compact Outdoor Terminal Fit

The module is relevant for EV charger sub-panels, access-control terminals, meter displays, outdoor sensor boxes, handheld service equipment, and cabinet-mounted controls that need a simple landscape UI. The 480×272 resolution is lower than 800×480, so it works best for clear menus, status values, icons, and warning prompts rather than dense graphics. Its advantage is a compact cost-controlled display area for equipment where the screen is functional rather than media-heavy.

Brightness Boundary

A 500-nit headline is useful for bright indoor or protected outdoor use, but it should not automatically be treated as full direct-sunlight performance. If the terminal is installed under a roof, in a shaded cabinet, or in temporary daylight exposure, 500 nits may be sufficient. If it faces strong sun for long periods, compare 800 or 1000-nit options and review optical bonding, anti-glare treatment, and heat.

Interface and Host Review

Because the interface field is blank in the product table, the RFQ must close the display driving method. If the project title or summary indicates RGB, confirm the FPC pin count, voltage, pixel clock, sync signals, backlight circuit, and any controller requirement. For a replacement display, send photos and the original drawing so LCDind can compare more than size and resolution.

No-Touch Standard Design

The public table lists no touch. This makes the module suitable for devices that use buttons, membrane keys, rotary encoders, or external controls. If the buyer later adds touch, the front lens, touch controller, thickness, bezel opening, and firmware behavior must be reviewed again. A no-touch display should not be quoted as if a touch panel is included.

Mechanical Planning

Compact outdoor terminals need careful front-window design. The bezel should protect the display, control dust and water exposure, and avoid pressure on the LCD edge. The buyer should provide the enclosure drawing, visible area, FPC route, gasket plan, and expected service access. Small displays often fail assembly review because the cable route or lens border was not considered early.

Procurement and Lifecycle

For B2B purchasing, this module should be approved with application context, not only by price. Define annual volume, production lifetime, acceptable substitutes, brightness requirement, inspection limits, and packaging. If the device is installed outdoors, confirm whether LCDind should recommend a higher-brightness or optically bonded alternative before the first tooling decision.

480×272 UI Planning

The 480×272 resolution should be used deliberately. It is strong for status screens, clear icons, large numerals, menu lists, and warning prompts, but it is not intended for dense dashboards or fine text. Before sample approval, the buyer should render the actual UI at native resolution and confirm that labels remain readable at the expected viewing distance.

Outdoor Terminal Installation Review

Compact outdoor terminals often sit in wall boxes, charging equipment, access posts, and sensor cabinets. The display should be tested with the final shade, lens, gasket, and installation height. If condensation, dust, or cleaning chemicals are expected, specify surface treatment and sealing early. These conditions matter as much as the LCD brightness value in real use.

Cost-Controlled Engineering Choice

This module can be a practical choice when the buyer needs a brighter 5 inch display but does not need high pixel density or touch by default. That can simplify procurement and reduce unnecessary cost. LCDind should still confirm interface, backlight, and environmental limits so the cost saving does not create a later redesign problem.

Decision Boundary

Select this module when the terminal needs compact landscape status display, moderate high brightness, and button-based operation. Do not select it only because it is 5 inch; if the UI needs fine text, maps, camera preview, or multi-page diagnostics, an 800×480 or 720×1280 module should be reviewed before enclosure tooling starts.

RFQ Checklist

• Host display interface, expected RGB timing if applicable, connector, FPC direction, and backlight control.
• Outdoor condition, shade/direct-sun exposure, enclosure drawing, cover lens, sealing and viewing distance.
• No-touch or optional touch requirement, keypad/encoder layout, UI type, and operating temperature.
• Sample quantity, annual forecast, target cost boundary, replacement model if any, and inspection standard.

Engineering Review Note

Use the public specifications above as the starting point for selection, not as final system approval. Before sample purchase or batch order, confirm the host interface, drawing, optical stack, touch or no-touch requirement, operating environment, controller board scope, and annual quantity with LCDind. This keeps the product URL unchanged while turning a thin catalog page into a useful engineering selection page for B2B buyers.

Engineering FAQ

Is this a high-brightness module?

Yes. The page positions it as a 500-nit high-brightness 5 inch TFT module.

Is touch included by default?

No. The public table lists no touch in the standard configuration.

Is the interface fully confirmed?

No. The summary mentions RGB, but the table leaves interface blank; pinout and timing should be confirmed before approval.
