2.4 Inch TFT LCD Module for Instrument Display Panels

2.4 Inch 240×320 MCU TFT LCD Module for Instrument Display Panels

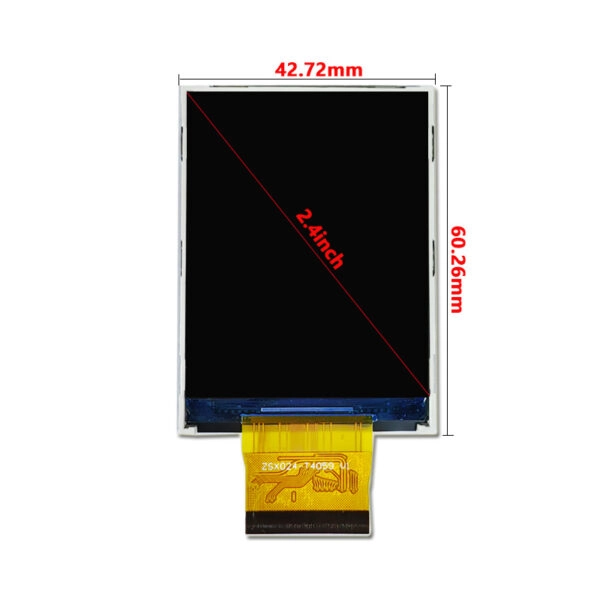

This 2.4 inch TFT LCD module is a 300-nit MCU-interface option for instrument display panels where a compact screen is needed for values, operating modes, and service information. The confirmed specification lists 2.4 inch size, 240×320 resolution, MCU interface, 300 nits brightness, no touch panel in standard configuration, -20 to +70 C operating range, 42.72 x 60.26 x 2.35 mm outline dimension, 36.72 x 48.96 mm active area, 3.3v power supply, 20000 LED lifetime, and panel model 90-02405-001. It is best evaluated as a controlled-light instrument module rather than a high-brightness display.

Confirmed Product Specifications

Instrument Display Role

This module can support compact instruments, test fixtures, battery equipment, sensor displays, service tools, small controllers, and OEM panels that need simple graphical information. The 240×320 portrait layout works for numerical readings, status labels, icons, parameter lists, and warning messages. Because brightness is listed at 300 nits, the UI should use strong contrast, clear typography, and simple layouts rather than relying on visual effects.

Cost and Power Positioning

A 300-nit small TFT can be the right engineering choice when the product is used indoors, battery life matters, or the display sits close to the operator. Higher brightness is not always better if it increases heat, power consumption, or cost without improving actual usability. Procurement should compare this option with the 350, 500, and 600 nit 2.4 inch pages only after defining the lighting condition and cover-lens stack.

MCU Interface and Firmware

The MCU interface should be matched to the host processor, available pins, voltage, and firmware library. For instrument panels, stable updates and predictable startup are usually more important than high frame rate. The buyer should confirm display controller commands, initialization sequence, color format, orientation, and whether the device needs partial-screen updates for alarms or changing values.

Mechanical and Replacement Review

The outline dimension of 42.72 x 60.26 x 2.35 mm and active area of 36.72 x 48.96 mm should be checked against the front window and PCB stack. The listed panel model 90-02405-001 is useful for matching and procurement control. If this product is used as a replacement or second-source candidate, share photos, old panel markings, cable details, and the original drawing so LCDind can verify compatibility instead of relying on size alone.

Production Planning

The standard configuration has no touch panel, which is suitable for many instruments with buttons or rotary input. If a later product revision requires touch, lens branding, different FPC direction, or anti-glare surface, those items should be discussed before tooling. For batch purchasing, define incoming inspection, brightness tolerance, packaging, and revision notification requirements.

Readability Strategy

For a 300-nit instrument display, readability should come from disciplined interface design. Use high-contrast colors, short labels, stable icons, and generous spacing. Avoid placing critical warnings in small text or low-contrast colors. If the front panel uses smoked acrylic, ask whether the optical loss makes a brighter version necessary. The display should be evaluated with the actual overlay, not only as an uncovered sample.

Replacement and Revision Control

Because the page lists panel model 90-02405-001, the RFQ can reference that model for matching. Still, replacement success depends on more than the model name. Confirm the drawing, FPC direction, pin assignment, initialization code, brightness class, and approved revision. If the product has a long service life, ask LCDind about lifecycle notice and alternative approval so future repairs or repeat builds are not blocked by a panel change.

Selection Boundary

This 300-nit version is appropriate for controlled-light instruments, low-power panels, and products where the screen is read close to the operator. It is not the right default for bright workshops, outdoor service tools, or front panels behind dark cover glass. When comparing 2.4 inch MCU modules, separate brightness need, mechanical drawing, firmware compatibility, and panel-model matching. That prevents procurement from choosing a cheaper module that later fails usability or replacement requirements. If cost control is important, validate readability first, then negotiate the production configuration.

RFQ Checklist

• Instrument housing drawing, active-area position, front-lens or overlay material, and cable route.
• Host MCU, voltage, pinout, initialization code, orientation, and required refresh behavior.
• Lighting condition and decision on whether 300 nits is acceptable or a brighter 2.4 inch variant is needed.
• Panel model 90-02405-001 matching need, annual forecast, sample quantity, and inspection standard.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as a final integration approval. Before sample purchase or batch order, LCDind should review the drawing, host interface, optical stack, operating environment, quantity plan, and any customization request. This reduces the risk of selecting a display that matches the headline but fails the enclosure, firmware, brightness, or supply requirements of the finished equipment.

Engineering FAQ

Is this a high-brightness option?

No. The confirmed brightness is 300 nits, suitable for controlled-light instrument panels.

What does panel model 90-02405-001 help with?

It gives procurement and engineering teams a reference for matching, revision control, and sample approval.

Can it be swapped with the 500 or 600 nit versions?

Only after checking drawing, thickness, FPC, interface, firmware, brightness target, and sample performance.
