3.5 Inch TFT LCD Module for RGB Equipment Displays

3.5 Inch 320×480 RGB TFT LCD Module for Equipment Display Panels

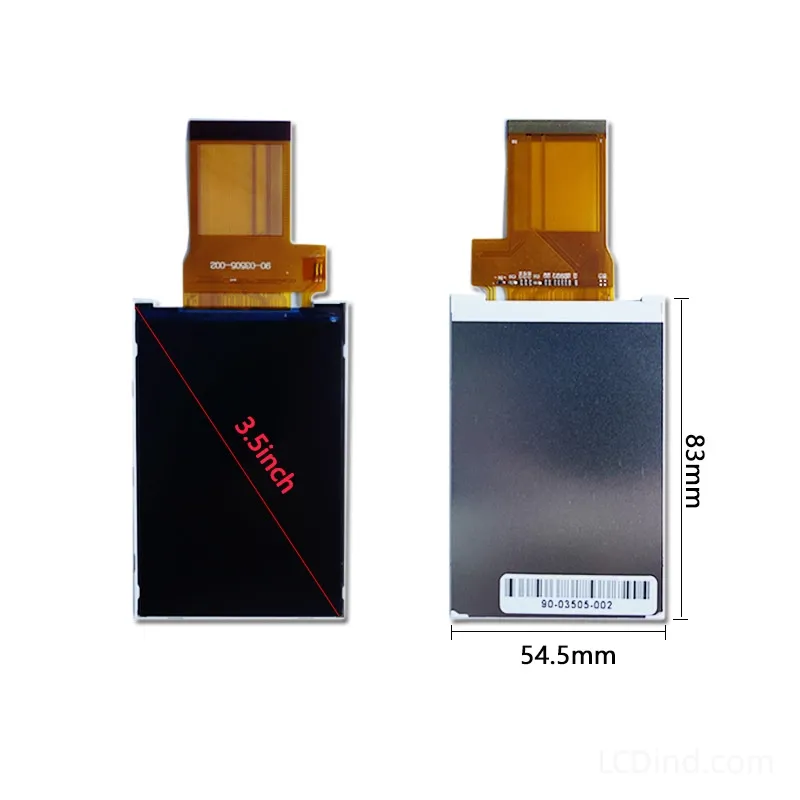

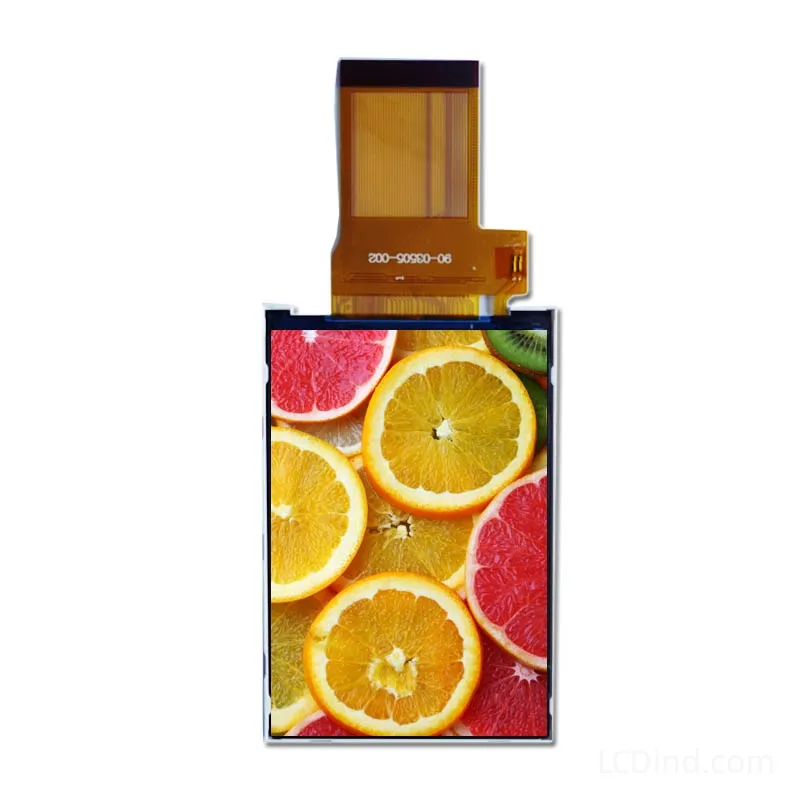

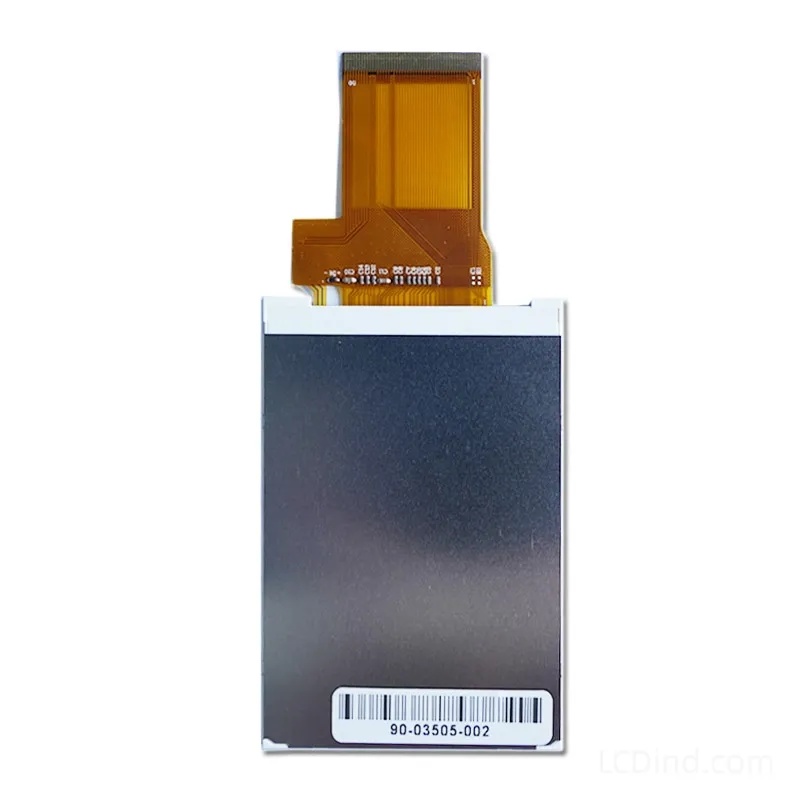

This 3.5 inch TFT LCD module is a portrait RGB display for embedded equipment graphics and control panels. The confirmed specification lists 3.5 inch size, 320×480 resolution, RGB interface, 350 nits brightness, no touch panel in standard configuration, -20 to +70 C operating range, 54.5 x 83.2 x 2.15 mm outline dimension, 48.96 x 73.44 mm active area, 3.3V power supply, and 20000 LED lifetime. It is best treated as a display component for host boards that can already generate RGB timing.

Confirmed Product Specifications

Equipment Graphics Fit

The 320×480 portrait canvas can support multi-line readings, icons, setup screens, basic graphs, alarms, and navigation elements in compact equipment. It offers more UI room than 2.4 or 2.8 inch displays while staying small enough for handheld instruments, compact controllers, and embedded panels.

RGB Interface Review

The RGB interface requires the host processor or display controller to provide pixel timing. Engineers should confirm clock, sync signals, color depth, voltage, connector, FPC direction, and initialization requirements. RGB can provide responsive graphics, but it demands more signal planning than simple MCU or SPI modules.

No-Touch Interface Strategy

The standard configuration has no touch panel. This makes the module suitable for products that use physical buttons, keypads, encoders, or external controls. If future touch is likely, the cover lens, controller, firmware, and enclosure thickness should be planned before the design is frozen.

Brightness and Environment

The confirmed 350 nits brightness is appropriate for controlled indoor equipment. It should be tested through the final lens and with the actual UI colors. If the display is used in bright workshops, outdoor service tools, or behind dark cover material, consider higher-brightness alternatives.

Mechanical Integration

The 54.5 x 83.2 x 2.15 mm outline and 48.96 x 73.44 mm active area should be reviewed against the front opening, PCB stack, cable route, and mounting pressure. The thin module depth is useful for compact designs, but uneven pressure or poor FPC routing can create assembly risk.

Selection Boundary

Choose this display when the product needs a 3.5 inch portrait RGB panel without touch. If the host board only supports MCU or SPI, use a different module. If the product needs a finished HMI with touch input, this page should not be treated as a drop-in terminal solution.

Procurement Decision Summary

This module should be selected when the host system already supports RGB timing and the equipment needs a 3.5 inch 320×480 portrait display without touch. It is a better fit for embedded graphics than for simple status-only products. If the buyer needs touch, HDMI, MIPI, or a complete Linux HMI terminal, the project should be reviewed against a different product path before pricing.

Common Mismatch Risks

A 3.5 inch display can look standard, but RGB modules are not interchangeable with MCU, SPI, or MIPI modules. The connector, timing, FPC direction, active area, and driver behavior must match the host board. Another risk is using a 350-nit module behind a dark lens and then discovering the UI is not readable. Optical testing should be part of sample approval.

Production Acceptance Tests

Validate RGB timing, color depth, sync stability, UI refresh, brightness, mechanical fit, cable route, and no-touch input workflow. Test alarm screens, setting pages, and any graph views that the equipment will show. The sample approval should lock drawing, connector, brightness, and firmware configuration so production purchasing does not substitute a visually similar but electrically different module.

RFQ Interpretation

A useful RFQ should include the host processor, RGB timing support, desired orientation, front-panel drawing, and whether the product will ever require touch. If the equipment already has buttons, a no-touch display can simplify the stack. If the operator expects direct screen input, the project should move to a touch-enabled design instead of adding touch late. Also confirm whether the 350-nit brightness is acceptable behind the final cover lens.

Alternative Selection Boundary

If the product needs a smaller, lower-cost display, compare 2.8 inch RGB modules. If it needs more detailed terminal-style pages, compare 3.97 inch 480×800 modules. If it needs touch, do not use this no-touch page as the final selection. This 3.5 inch RGB module sits in the middle: enough screen area for equipment graphics, but still compact for embedded control hardware.

RFQ Checklist

• Host RGB timing, voltage, connector, pinout, color depth, FPC direction, and firmware or controller support.
• Mechanical drawing, front-window size, active-area alignment, PCB clearance, and input-control layout.
• Brightness target, cover lens, operating environment, and whether future touch customization is required.
• Sample quantity, forecast, packaging, inspection criteria, and repeat-production control requirements.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, operating environment, accessory requirement, and quantity plan. This avoids selecting a display that matches the headline but fails the enclosure, firmware, brightness, thermal, or supply requirements of the finished equipment.
