3.5 Inch TFT LCD Module for Embedded Control Devices

3.5 Inch 320×480 MCU TFT for Embedded Control Devices

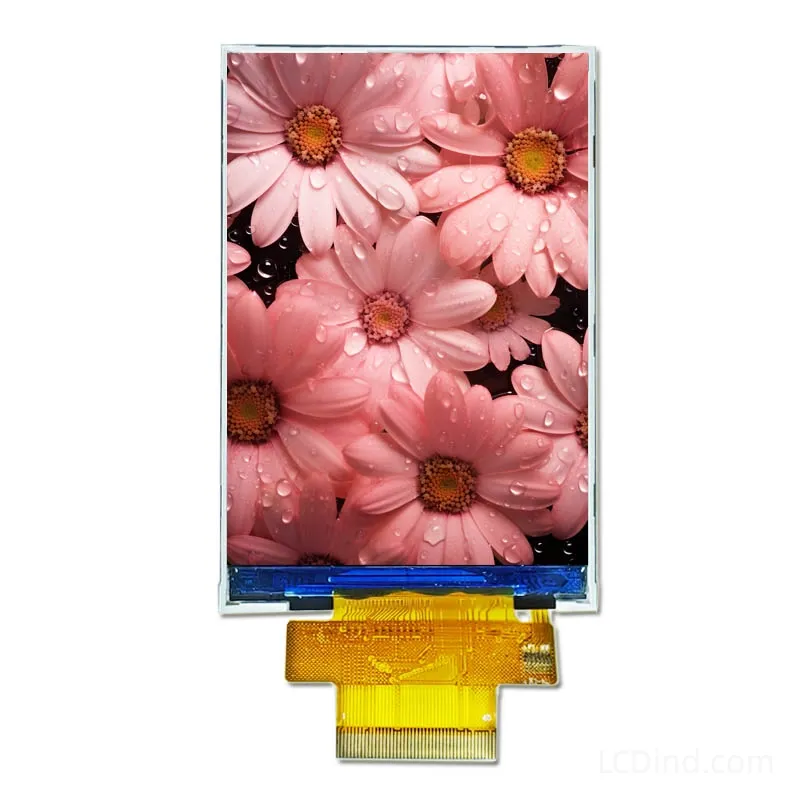

This 3.5 inch MCU TFT LCD module is designed for embedded control devices that need a compact portrait display for status, setup and service information. The public facts list 320×480 resolution, MCU interface, 300 nits brightness, 3.3V supply, -20°C to +70°C operation, 55.5×84.9×2.5 mm outline, 48.96×73.44 mm active area, 20000-hour LED lifetime and no touch panel in the standard configuration. It is relevant for small controllers, access devices, embedded instruments and service terminals where the host does not need a full RGB or MIPI display pipeline.

The MCU interface should be evaluated against display update requirements. Embedded control devices often show stable values, icons, alarms and short menus, which can fit MCU control well. If the customer expects fast animation, live charts or frequent full-screen transitions, the host firmware and bus speed need review. The RFQ should include the host MCU, voltage, interface timing, initialization sequence, connector and expected UI refresh behavior.

The 300-nit brightness is appropriate for controlled indoor environments. A dark enclosure window, protective lens or printed overlay can reduce brightness, so the final front assembly should be tested. The display should not be selected for direct sunlight based only on size and resolution. If the device may be used outdoors or in a bright vehicle cabin, state that early so LCDind can review another brightness class.

No touch is listed for the standard module. For embedded control devices with fixed operating steps, physical keys or remote configuration, no-touch operation can reduce stack height and integration work. If touch is required, define resistive or capacitive type, cover lens, controller interface, bonding method, ESD requirement and glove or wet behavior. Treat the touch version as a separate assembly, not a late accessory.

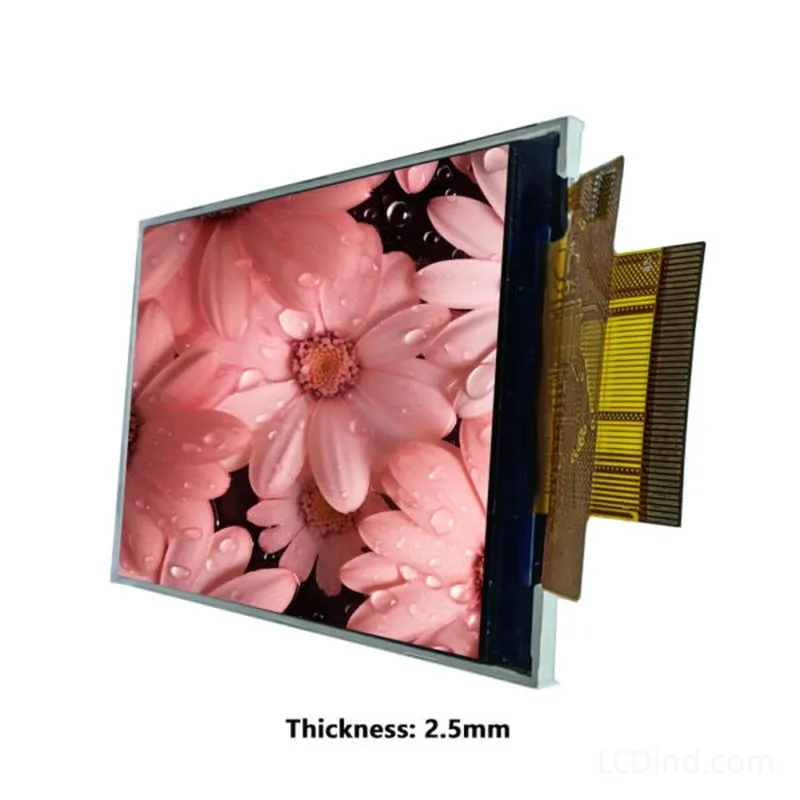

Mechanically, the 55.5×84.9×2.5 mm outline is relatively compact. The design should still check visible-window alignment, FPC bend radius, PCB position, connector clearance and housing pressure. For production, approve the sample with the actual board and enclosure, not only a loose display. Keep drawing, firmware settings and inspection criteria with the purchasing record.

RFQ Checklist

• Host MCU, interface timing, voltage and initialization sequence.
• Expected UI behavior: values, icons, alarms, menus or charts.
• Enclosure drawing, front window, FPC route and PCB position.
• Brightness target, cover lens and operating environment.
• No-touch baseline or requested touch assembly.
• Sample quantity, annual forecast and qualification plan.

Engineering FAQ

Is this for RGB hosts? The public facts identify MCU interface; RGB use should not be assumed.

Can it show fast graphics? Only after host bandwidth and firmware strategy are checked.

Is touch included? No touch panel is listed in the standard configuration.

Is 300 nits enough? It can suit indoor devices, but the final cover window must be tested.

What should be frozen? Freeze host interface, drawing, cable route, front stack and approved sample.

Engineering Review Note

Use this 3.5 inch MCU module for embedded control devices that need a compact status and setup display. Send LCDind host-interface and mechanical details before quotation.

Prototype Validation and Embedded Firmware Control

For embedded control devices, firmware and hardware approval should be performed together. Test initialization, screen clear, partial update, full-page update, sleep or standby, reset recovery and operation at the specified voltage. If the host MCU has limited RAM, confirm the font and image-buffer strategy before the UI is finalized. A module can meet the electrical specification while still causing poor user experience if the firmware refresh method is not designed for the display.

Application fit should be reviewed from the operator’s task. A compact embedded controller may need only status and settings, while a service terminal may need warnings, fault codes and short instructions. Keep the UI hierarchy simple. If the device is safety-related, alarm text, icons and color contrast should be tested under the worst expected lighting condition.

For production, approve the PCB footprint, FPC route, mounting pressure, front-window opening and sample appearance. If a future version requires RGB, MIPI or touch, do not reuse the same approval record. Treat each electrical and front-stack change as a new engineering configuration.

For purchasing, keep the embedded device category visible in the approval file. A module suitable for a compact controller may not be right for a portable device, even if the display size is the same. The approved use case should mention host MCU, enclosure type, viewing distance and whether the display is operated by keys, encoder or remote software. This prevents later teams from reusing the part outside its validated environment.

If the product needs regulatory or safety approval, record display changes as engineering changes. A different interface, front window or firmware initialization can affect EMC, usability and service diagnostics. LCDind should be told whether the project is prototype-only, volume production or service replacement.

For embedded devices with long service lives, define whether LCDind should quote exact supply or acceptable alternates. If alternates are allowed, list the non-negotiable items: MCU interface, active area, outline, brightness, voltage and no-touch baseline. This gives engineering control while still allowing sourcing flexibility.

For an embedded control device, the display decision should be documented together with the enclosure and mainboard revision. A 3.5 inch MCU panel may look like a simple commodity item, but the real approval boundary is the complete display path: LCD, FPC, connector, initialization code, bezel opening and operator viewing angle. If any of those items change during sourcing, the purchasing team should return the project to engineering review instead of treating the replacement as a drop-in commercial substitute.
