VLARE CORE Controller Board | Universal MSLA 3D Printer Motherboard
VLARE CORE Controller Board is the ultimate central processing unit for custom and upgraded MSLA resin 3D printers. Weighing just 60g with a compact 120x85x18mm footprint, this highly integrated motherboard offers unprecedented display compatibility, driving everything from 5.5-inch 2K panels up to massive 15.6-inch 4K and 10.1-inch 8K screens. Designed for seamless integration with the powerful VlareSlicer software (.vlr, .osf formats), it handles a robust 12/24V 5-15A power input while offering precise 1KHz 5V PWM dimming for your UV LED array. Equipped with onboard WiFi, USB 2.0, and dedicated ports for Z-axis control and dual touch screen types. Unlock your printer’s true potential. Click “Inquire Now” for firmware configurations tailored to your LCD.
Product Attributes
| Brand | LCDind |
|---|---|
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |

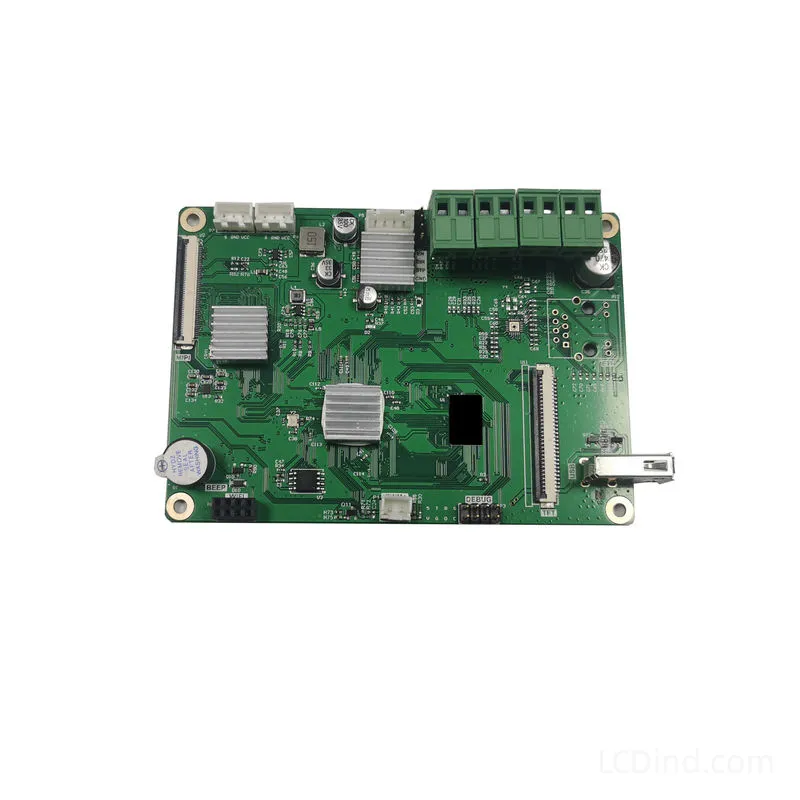

Universal MSLA Architecture: VLARE CORE Controller Board

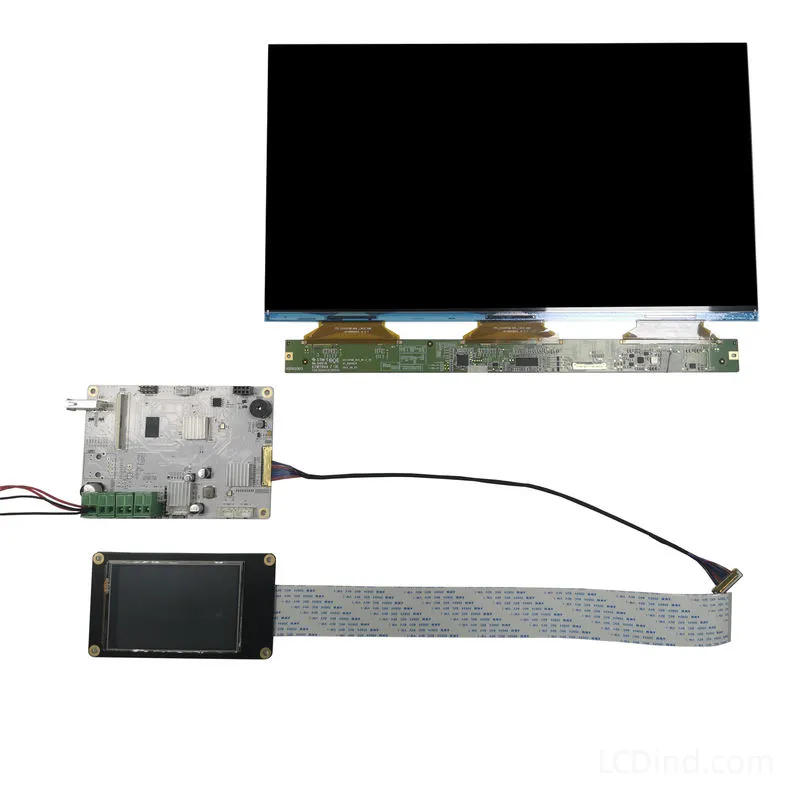

Hardware fragmentation is the biggest hurdle in custom 3D printer development. The VLARE CORE Controller Board solves this by acting as a universal hub. Instead of being locked into proprietary hardware, this mainboard is engineered to drive a massive spectrum of masking LCDs. Whether you are building a small jewelry printer utilizing a 5.96″ 2K screen, or a large-format industrial rig requiring a 13.6″ 7K or 10.1″ 8K panel, this single motherboard natively supports your configuration.
Advanced Hardware Connectivity

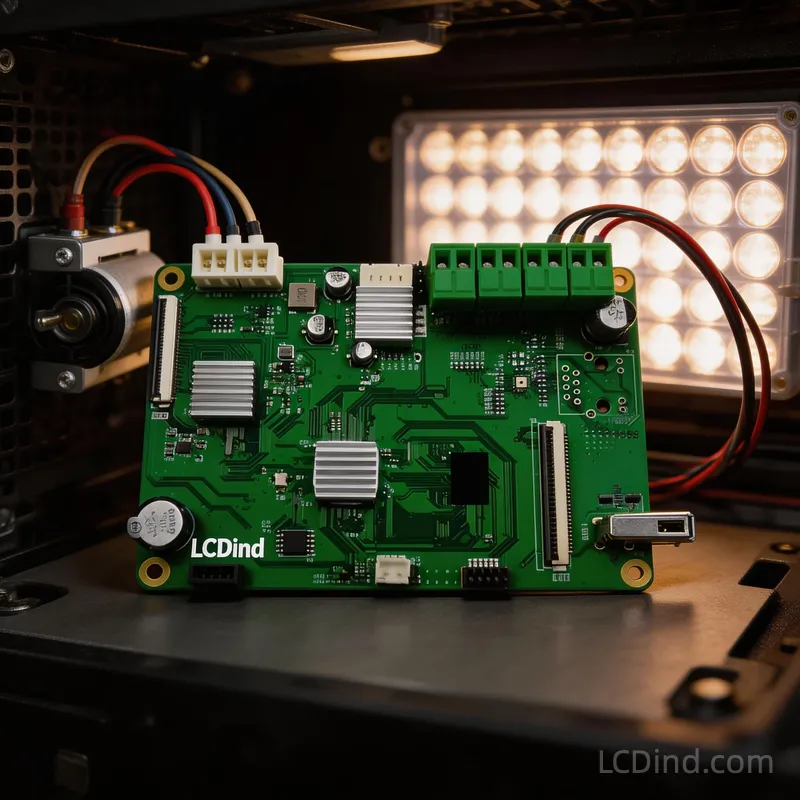

Every terminal on this board is strategically placed for builder convenience. It operates safely on a 12V/24V DC input (5-15A) via secure KF2EDGK-5.08 terminal blocks. The physical layout includes dedicated interfaces for:
- Z-Axis Motion: Z-Motor (4-Pin) and dual Z-Limit switch ports.

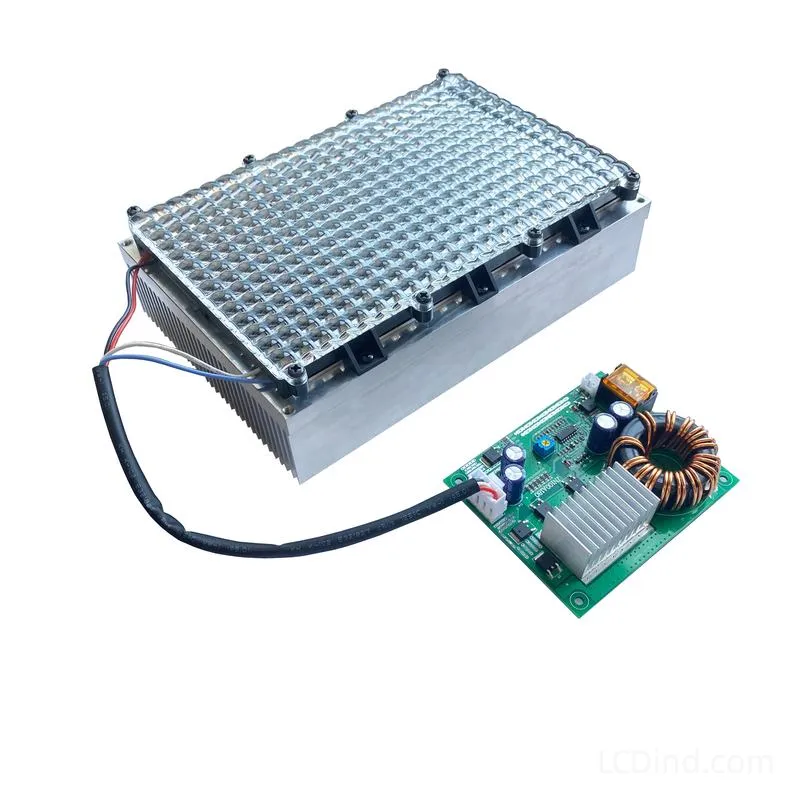

- Thermal & Optical Control: Main board fan, LED fan, and dedicated LED Bulb power.
- Precision Exposure: A dedicated PWM dimming port (1KHz, 5V) allows for microscopic adjustments to UV light intensity, extending screen life and perfecting resin curing.

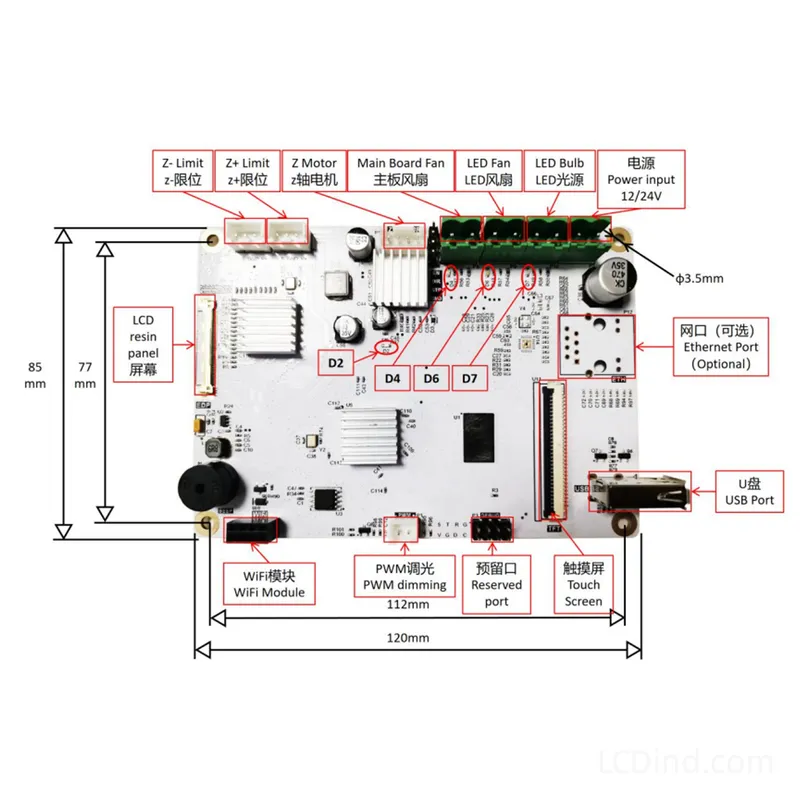

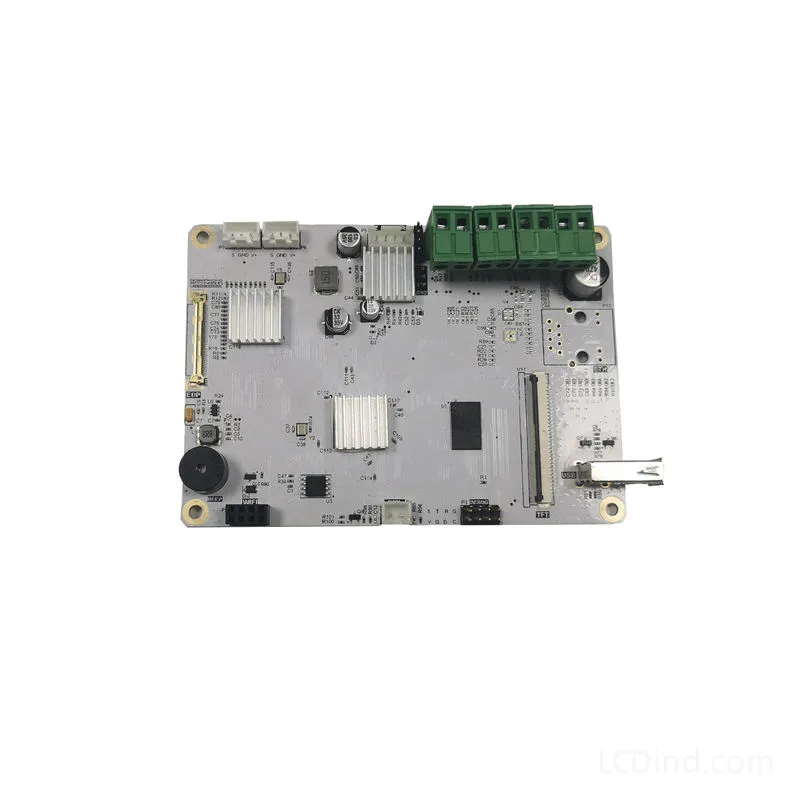

To streamline the troubleshooting process for builders, the board features built-in diagnostic indicator lights (D2 System, D4 Board Fan, D6 LED Fan, D7 LED Indicator).
VlareSlicer & Smart UI Integration

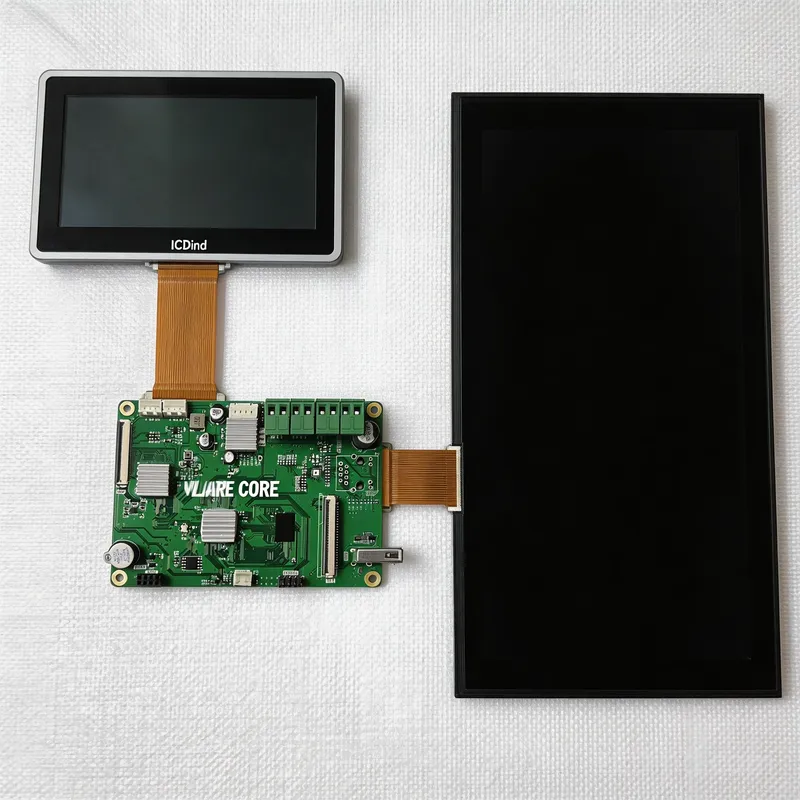

Hardware is only as good as the software driving it. This board is the native hardware platform for VlareSlicer, providing flawless execution of high-efficiency .vlr and .osf file formats. For user interfacing, it natively supports both Resistive (3.5″, 4.3″) and Capacitive (4.3″, 5″, 7″) touch screens, while offering built-in WiFi and USB 2.0 for seamless remote file transfers and OTA firmware updates.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo silk-screening (Min. order: 1,000 pieces)
- Graphic and cover glass customization (Min. order: 1,000 pieces)

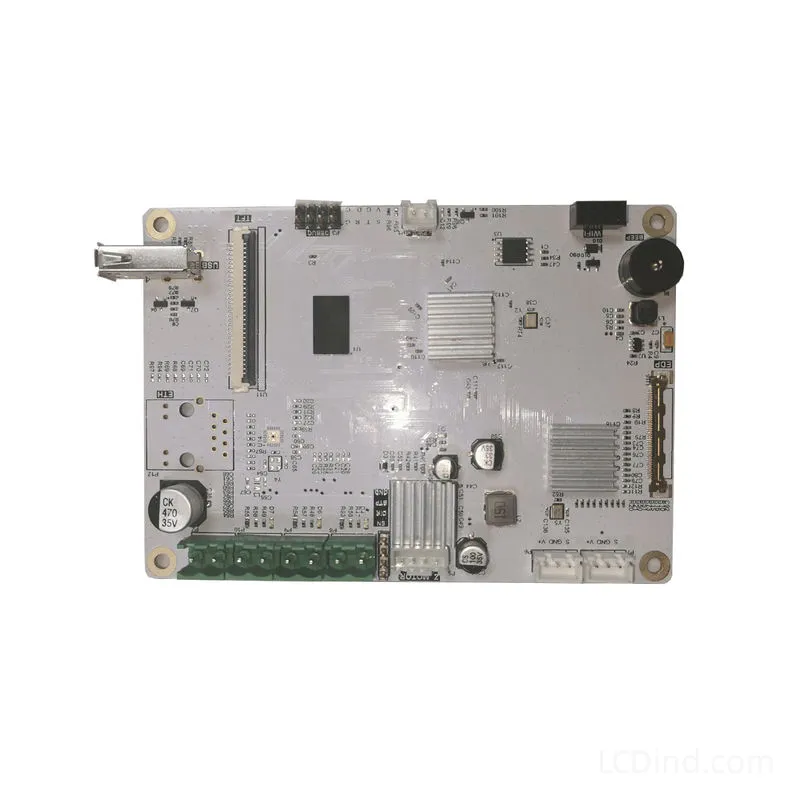

Technical Specifications
| Brand / Model | VLARE CORE |
| Outline Dimensions | 120 x 85 x 18 mm |
| Weight | 60g |
| Power Input | 12/24V, 5-15A (KF2EDGK-5.08 2Pin) |
| PWM Specification | 1KHz, 5V (XH2.54 2Pin) |
| Data Interfaces | 1x USB 2.0, 1x WiFi Module |
| Recommended Slicer | VlareSlicer (Supported Formats: .vlr, .osf) |
| Supported Touch Screens | Resistive (3.5″, 4.3″) / Capacitive (4.3″, 5″, 7″) |
| Supported 2K-4K LCDs | 2K (5.96″, 6.08″) / 4K (5.5″, 6.23″, 6.6″, 8.9″, 9.1″, 13.3″, 15.6″) |
| Supported 5K-8K LCDs | 5K (10.1″) / 6K (8.9″, 9.25″, 12.8″, 13.3″) / 7K (13.6″) / 8K (7.1″, 10.1″) |
Engineering FAQ
Q: Do I need to flash different firmware if I change my LCD screen size?
A: Yes. While the VLARE CORE board physically supports screens ranging from 5.5-inch 2K up to 10.1-inch 8K, the motherboard’s firmware must be configured to output the exact resolution and timing required by your specific LCD panel. Please let us know which screen you intend to use when placing your order, and we can guide you on the firmware configuration.
Q: What slicing software is compatible with this board?
A: The VLARE CORE motherboard is highly optimized for VlareSlicer. It natively reads and processes .vlr and .osf file formats, ensuring optimal print pathing, anti-aliasing generation, and highly efficient light control algorithms.
Q: Can I use my existing 12V power supply, or do I need 24V?
A: The board features a versatile power delivery circuit that accepts both 12V and 24V DC inputs (5-15A). Your choice of power supply should match the voltage requirements of your connected peripherals, specifically your UV LED array and Z-axis stepper motor.
Q: What do the indicator lights on the board mean?
A: The board includes four status lights for easy diagnostics: D2 (System indicator), D4 (Motherboard fan indicator), D6 (LED fan indicator), and D7 (LED indicator). Note: Always remove the power supply before connecting or disconnecting hardware to avoid shorting the board.
