2.4 Inch TFT LCD Module for Bright Handheld Devices

2.4 Inch 240×320 MCU TFT LCD Module for Bright Handheld Devices

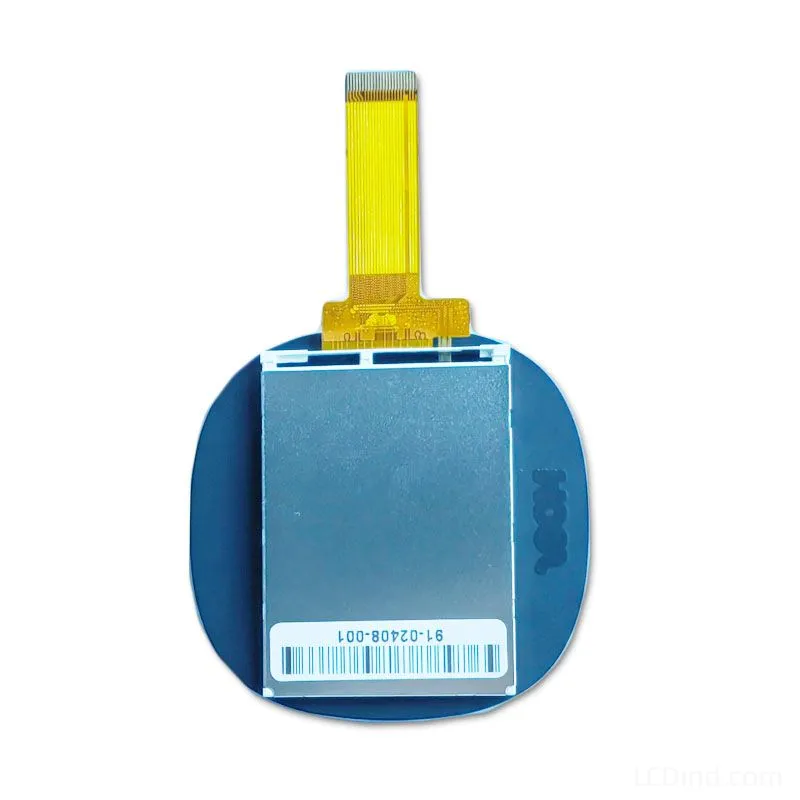

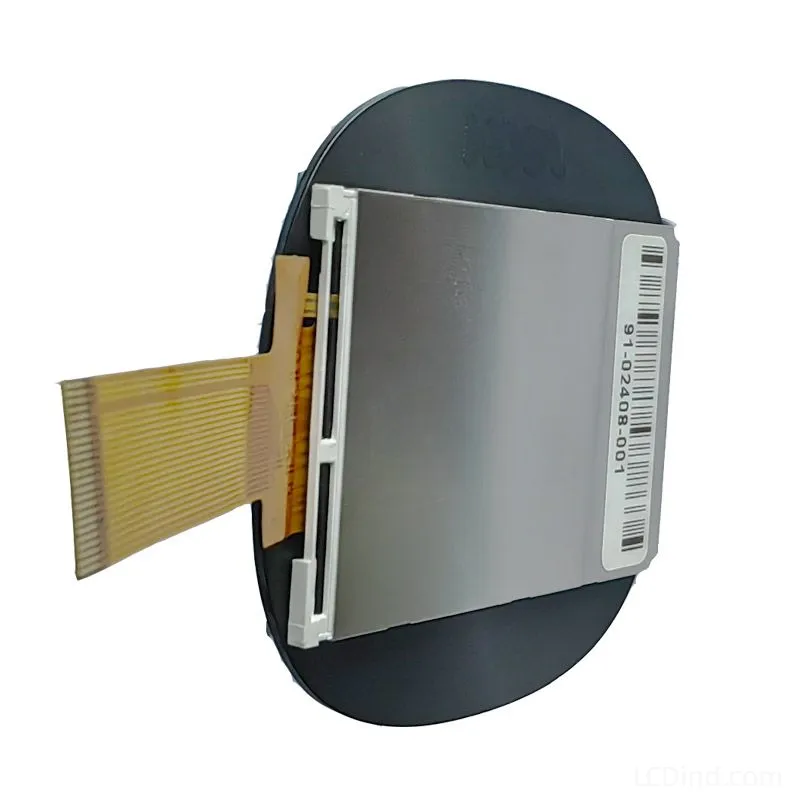

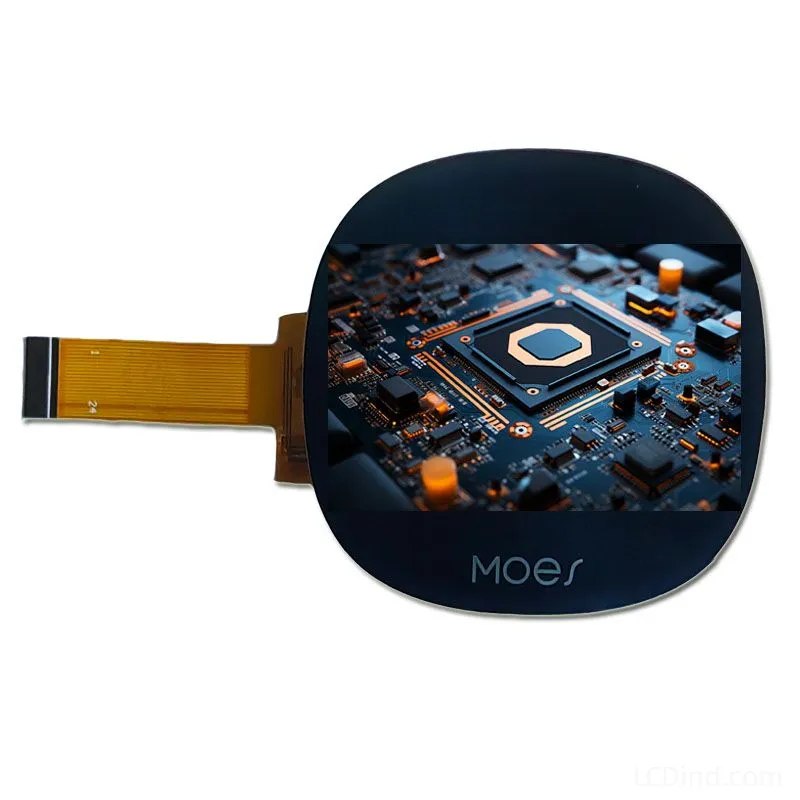

This 2.4 inch TFT LCD module is prepared for handheld devices where a compact portrait display must remain readable under brighter working conditions. The confirmed specification lists 2.4 inch size, 240×320 resolution, MCU interface, 500 nits brightness, no touch panel in standard configuration, -20 to +70 C operating range, 42.72 x 60.26 x 2.3 mm outline dimension, 36.72 x 48.96 mm active area, 3.3V power supply, and 20000 LED lifetime. It should be evaluated as a display component for OEM handheld equipment rather than a consumer add-on screen.

Confirmed Product Specifications

Handheld Equipment Fit

The 2.4 inch portrait size is practical for barcode tools, measurement instruments, maintenance terminals, battery-powered controllers, medical accessories, portable analyzers, and field-service devices where the screen must show values, prompts, icons, and short menus. The 240×320 resolution keeps firmware and memory requirements controlled while providing enough detail for structured industrial UI pages. Because the standard product has no touch, the interface can be paired with keypad, function buttons, encoder, or external controls.

Brightness and Power Balance

The 500 nits brightness is useful when a handheld device is used in workshops, vehicles, warehouses, and field environments with changing light. At the same time, portable equipment needs careful power management. Engineers should review dimming range, backlight duty cycle, battery capacity, heat buildup, and readability through the final cover lens. A brighter screen can improve usability, but it must not shorten operating time beyond the device requirement.

MCU Interface Planning

The MCU interface should be checked against the host processor, command set, timing, voltage, connector, and firmware resources. For handheld products, screen-update behavior is often more important than peak display performance: boot status, menu transitions, warnings, and measurement refresh should feel stable. Confirm the controller initialization code, FPC direction, pin assignment, and whether the device will need future touch or cover-glass customization.

Mechanical Protection

The 42.72 x 60.26 x 2.3 mm outline and 36.72 x 48.96 mm active area should be reviewed with the enclosure, lens opening, gasket, drop-protection structure, and connector strain relief. Handheld products experience repeated handling, vibration, cleaning, and accidental pressure. The display should be tested in the final housing rather than approved only from bare-module inspection.

Production Readiness

For procurement, confirm cosmetic standard, backlight lifetime, operating temperature, packaging method, and whether the 500-nit brightness is required for every batch. If the product will later need touch, logo printing, anti-glare lens, or an adjusted FPC, those items should be discussed before tooling. LCDind can review drawings and sample requirements so the module choice supports both prototype and repeat production.

Operator Workflow

A handheld display must support fast decisions with limited screen space. The UI should prioritize battery state, connection status, measurement value, warning condition, and the next operator action. Long paragraphs or dense tables are not appropriate on a 2.4 inch screen. If the device is used by technicians, design the screen so a user can read the important value at arm's length while wearing gloves or standing in a poorly lit service area.

Handheld Validation

Sample validation should include drop-related enclosure stress, cable movement, keypad interaction, backlight dimming, battery runtime, and readability through the final lens. If the device will be used outdoors only briefly, test that actual condition instead of assuming full sunlight-readable performance. The buyer should also confirm packaging protection for the LCD during assembly, because small modules can be damaged before they ever reach the finished product.

Selection Boundary

Choose this 500-nit handheld version when the product needs more brightness than a normal indoor 2.4 inch TFT but does not justify the power and thermal tradeoffs of the 600-nit instrument-panel option. If battery runtime is the highest priority, compare it with the 350-nit or 300-nit variants. If the operator must input data on the display, add touch review early rather than trying to retrofit touch after the enclosure and firmware are fixed. Also confirm whether the same product line may later need a brighter SKU, because shared firmware and window design can reduce future redesign work.

RFQ Checklist

• Handheld enclosure drawing, lens opening, keypad or button plan, FPC direction, and available internal clearance.
• Host MCU model, voltage, initialization support, update-speed requirement, and display orientation.
• Battery and brightness target, including dimming range, use environment, and cover-lens material.
• Forecast quantity, sample timing, inspection standard, packaging requirement, and customization needs.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as a final integration approval. Before sample purchase or batch order, LCDind should review the drawing, host interface, optical stack, operating environment, quantity plan, and any customization request. This reduces the risk of selecting a display that matches the headline but fails the enclosure, firmware, brightness, or supply requirements of the finished equipment.

Engineering FAQ

Is touch included?

No. The confirmed standard configuration has no touch panel.

Why choose this over the 350 nit or 300 nit 2.4 inch options?

The 500 nit version is better when handheld readability in brighter indoor or protected field environments matters.

What should be tested before approval?

Test brightness, power draw, firmware initialization, menu refresh, enclosure fit, and readability through the final lens.
