1080p LVDS Controller Board for Panel Bring-Up, Repair and Monitor Builds

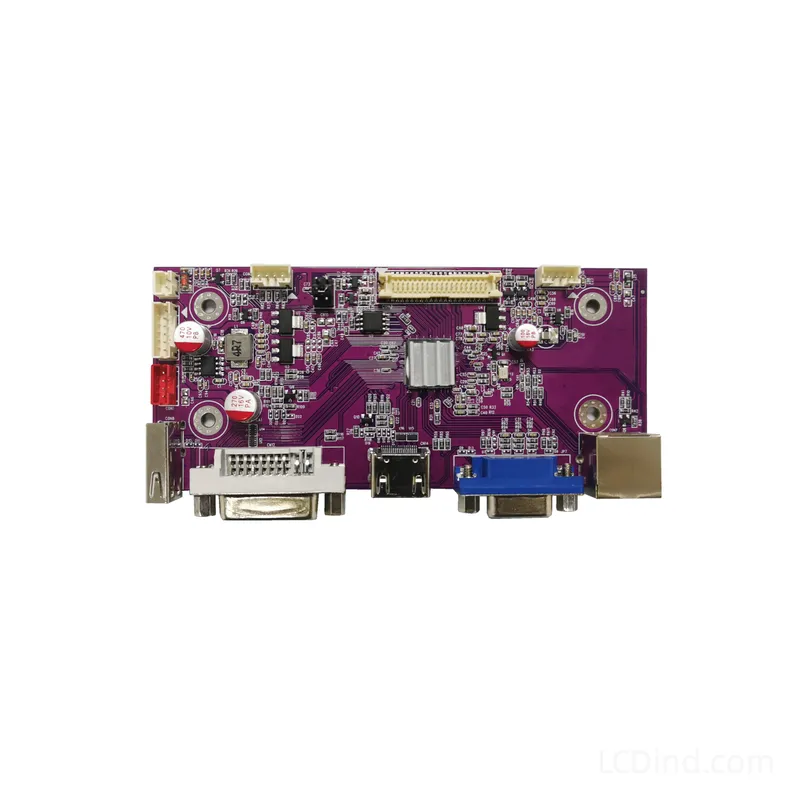

This 1080p LVDS controller board is an accessory product, not a TFT LCD panel. The live specification identifies it as an LCD monitor controller board using an MSTAR single-chip TV processing IC, with maximum 1920 x 1080 resolution, support for 32 inch and below LCD/LED/Plasma screens, VGA, DVI, high-definition signal and USB inputs, dual 6/8/10-bit LVDS panel output, 12V DC main board power input, selectable 3.3V / 5V / 12V panel supply through jumper, 12V backlight voltage, USB video decoding at 1080p@30fps, and 50–60Hz / 50–67.5KHz field and line frequency support. It should be sold through compatibility review, not as a universal board for every panel.

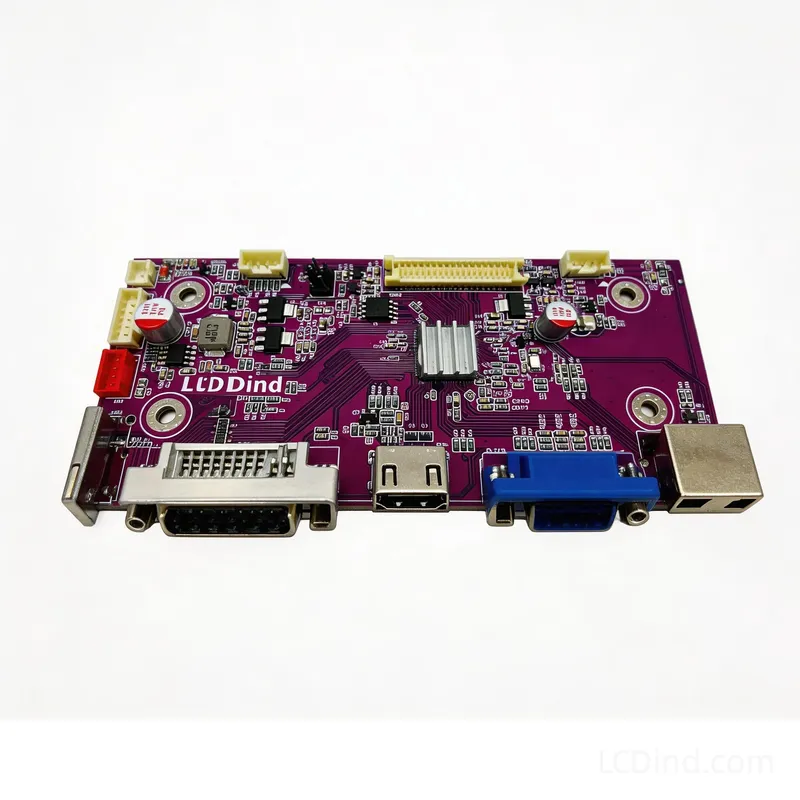

Where This Board Adds Value
A LVDS controller board is useful for panel bring-up, monitor conversion, repair programs, demo fixtures, test benches, and low-volume display assemblies. It can help engineers power an existing LCD panel from common video inputs without designing a full custom mainboard. For service companies, it can also be used to validate whether a panel is still functional before a replacement decision is made. The strongest use case is controlled engineering work where the target panel model is known.

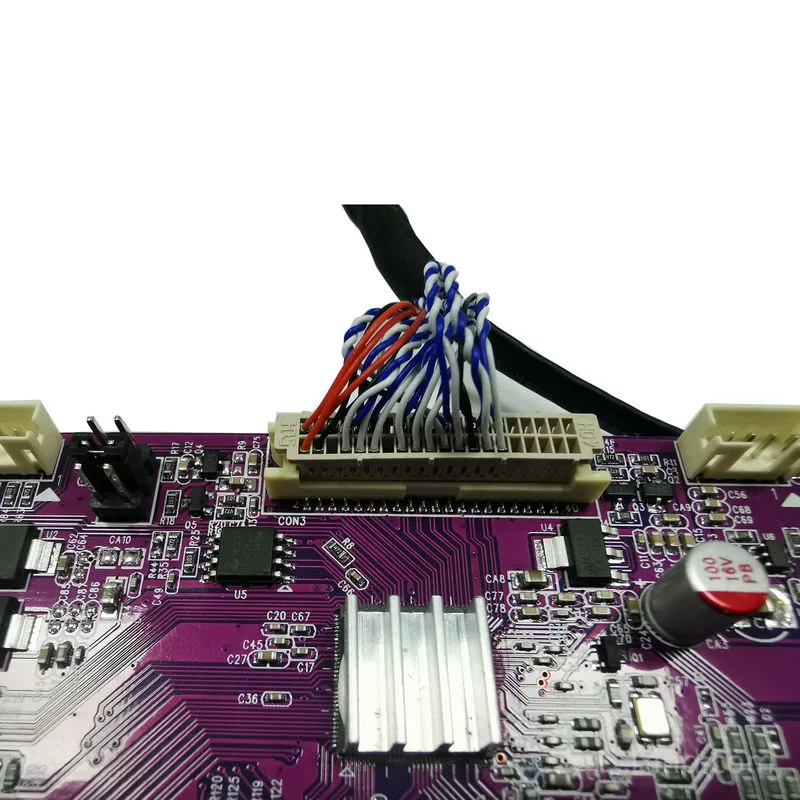

Compatibility Is Panel-Specific
The product supports dual 6/8/10-bit LVDS output and selectable panel voltage, but those features do not guarantee compatibility with every LVDS panel. The buyer must confirm panel resolution, LVDS channel count, bit depth, JEIDA or VESA mapping, timing, backlight requirement, connector pinout, cable orientation, and panel voltage before connecting hardware. Selecting the wrong jumper voltage or cable can damage the panel, so the RFQ should include a clear photo of the panel label and the original cable if available.

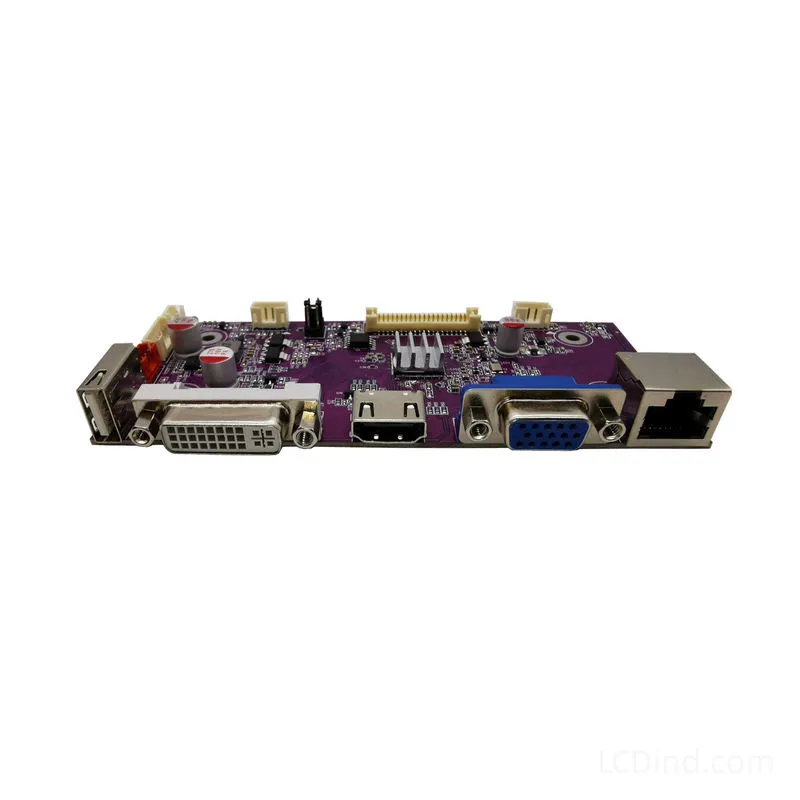

Input and Media Function Review
The VGA, DVI, high-definition signal, and USB inputs make the board useful for monitor-style projects and demonstration systems. USB decoding support can be helpful for standalone media playback, but industrial projects should still verify startup behavior, input priority, OSD settings, resolution scaling, and whether the board returns to the required mode after power loss. For equipment use, reliability under repeated power cycles is more important than consumer-style multimedia features.
Power, Backlight and Safety
The board uses 12V DC input and provides panel-supply options by jumper. Backlight voltage is listed as 12V, which means the LED backlight architecture of the target panel must be checked. Some panels require different backlight current control, enable pins, PWM dimming, or external LED drivers. A safe integration review should identify whether the controller board directly supports the target backlight or whether an additional LED driver/harness is required.
Procurement Guidance
For LCDind review, send the panel model, resolution, panel voltage, LVDS connector photos, existing cable information, backlight connector details, desired input type, and intended quantity. If this is for a product rather than a repair, also define enclosure, EMI, power supply, button/IR board, OSD language, and packaging requirements. That information determines whether this MSTAR board is appropriate or whether a custom controller solution should be quoted.
Sample Validation Plan
Controller-board validation should be performed with the exact target panel and cable. Test the selected panel voltage, LVDS bit depth, JEIDA or VESA mapping, backlight control, input switching, audio if used, OSD behavior, remote or key-board control, and recovery after power loss. If the board will be used for repair inventory, create a compatibility list by panel model rather than assuming all 1080p LVDS panels behave the same way.
Production Risk Control
The most common risk is connecting a board to the wrong panel voltage or cable pinout. For production or service kits, label the jumper position, cable orientation, supported panel models, and power adapter requirement. If LCDind supplies the board as part of a matched display kit, the kit should include the approved cable and documented settings to reduce field installation errors.
Confirmed Product Specifications
| Product Type | LCD Monitor Controller Board |
| Core Processor | MSTAR Single-chip TV processing IC |
| Max Resolution | 1920 x 1080 |
| Screen Size Support | Designed for 32″ and below LCD/LED/Plasma |
| Video Inputs | VGA, DVI, High-Definition Signal, USB |
| Panel Output Interface | Dual 6/8/10-bit LVDS |
| Main Board Power Input | 12V DC |
| Panel Supply Voltage (Selectable) | 3.3V / 5V / 12V (Via Jumper) |
| Backlight Voltage | 12V |
| USB Video Decoding (1080p@30fps) | MPEG1/2/4, H.264, AVI, MP4, MKV, RM/RMVB, VC1 |
| Field / Line Frequency | 50~60Hz / 50~67.5KHz |
These values are preserved from the live product specification table. Any missing mechanical, electrical, optical, or compliance item should be confirmed through drawing, datasheet, sample approval, or LCDind engineering review before production use.
RFQ Checklist
- Target equipment type and application environment.
- Host board interface, voltage, cable direction, and connector requirement.
- Display orientation, active-area window, enclosure drawing, and mounting method.
- Touchscreen, cover lens, anti-glare, optical bonding, or protective glass requirement.
- Sample quantity, forecast annual volume, lifecycle expectation, and approved alternatives policy.
Engineering FAQ
Can this board drive any 1080p LVDS panel?
No. Resolution support is only one factor. LVDS mapping, bit depth, voltage, connector, cable, and backlight must match.
What should I send for compatibility checking?
Send the LCD panel label, datasheet if available, connector photos, original cable, backlight details, and required video input.
Is this a production controller or a test board?
It can support test, repair, and selected low-volume builds, but production use should include power, EMI, enclosure, cable, and reliability review.
Related Engineering Resources
Engineering Review Note
LCDind supports B2B display sourcing, sample validation, cable and controller review, touch integration, and long-term supply planning. For production projects, send drawings and host-board information with the inquiry so the display can be checked as part of the complete equipment system rather than as an isolated screen size.
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
|---|---|
| Resolution | 1920×1080 |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Touchscreen | No Touch |
Q: How do I select the correct voltage for my LCD panel?

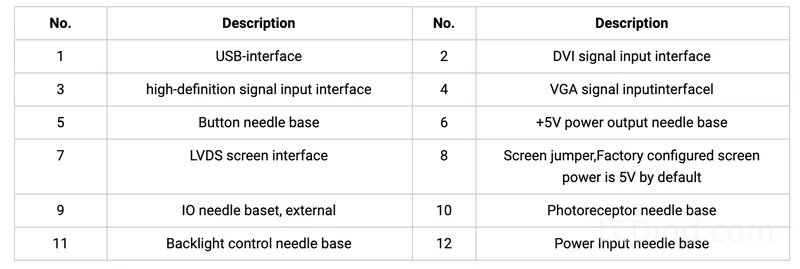

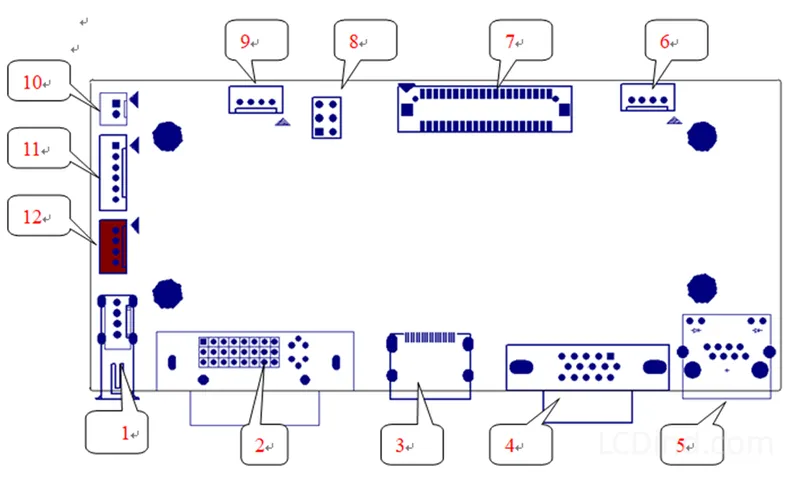

A: Setting the correct voltage is critical to avoid damaging your screen. The board features a physical "Screen jumper" block (Port #8 on the diagram). By default, it is configured for 5V. You must manually move the jumper cap to the 3.3V, 5V, or 12V pins corresponding to the voltage required by your specific LCD panel's datasheet before connecting the LVDS cable.
