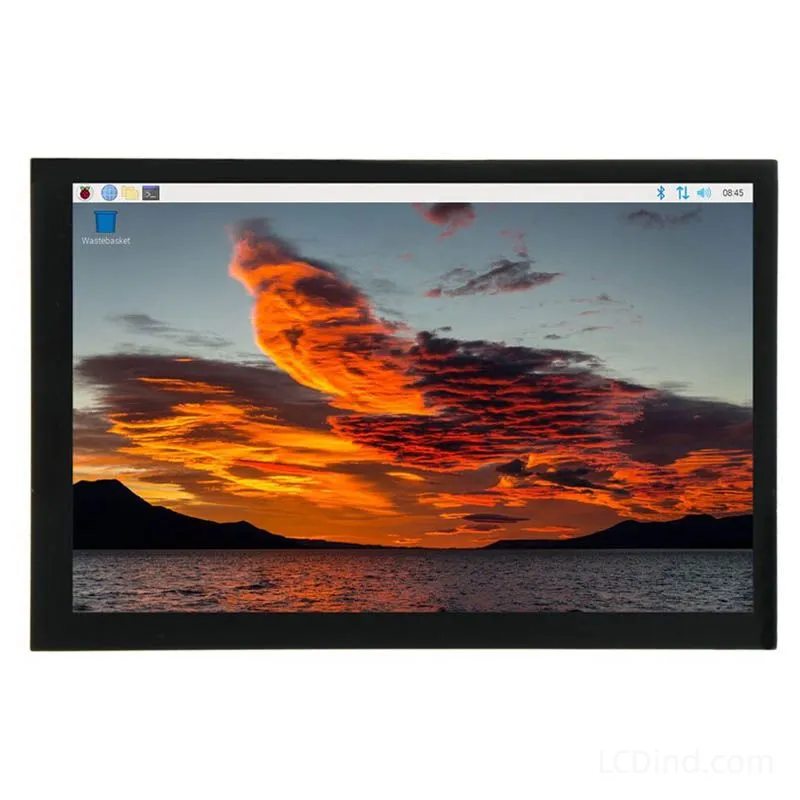

10.1 Inch IPS Touch Display for Equipment HMI Panels
This 10.1 inch IPS touch display is positioned for equipment HMI panels that require a medium-size touch interface in a production equipment program. The product attributes confirm 10.1 inch size, 1280×800 resolution, and capacitive touch. The technical table lists capacitive touch panel, 239.4 x 157.4 x 12.3 ±0.2 mm o
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 10.1 inchSpecify 10.1 inch industrial LCD modules by resolution, brightness, interface, touch, operating environment and annual quantity. 600-1200 nit options require application review. |
| Resolution | 1280×800 |
| Touchscreen | Capacitive Touch (PCAP) |
10.1 Inch IPS Touch Display for Equipment HMI Panels and Operator Interfaces
This 10.1 inch IPS touch display is positioned for equipment HMI panels that require a medium-size touch interface in a production equipment program. The product attributes confirm 10.1 inch size, 1280×800 resolution, and capacitive touch. The technical table lists capacitive touch panel, 239.4 x 157.4 x 12.3 ±0.2 mm outline dimension, 5.29W power, and LCDind model LCDind-DS20225. Interface, brightness, active area, operating temperature, and LED lifetime are blank in the current table, so the product should be quoted only after these items are confirmed for the target application.
Technical Specifications
| Size | 10.1 inch |
|---|---|
| Resolution | 1280×800 |
| Interface | |
| Brightness | |
| Touchscreen | Capacitive touch panel |
| Operating Temp | |

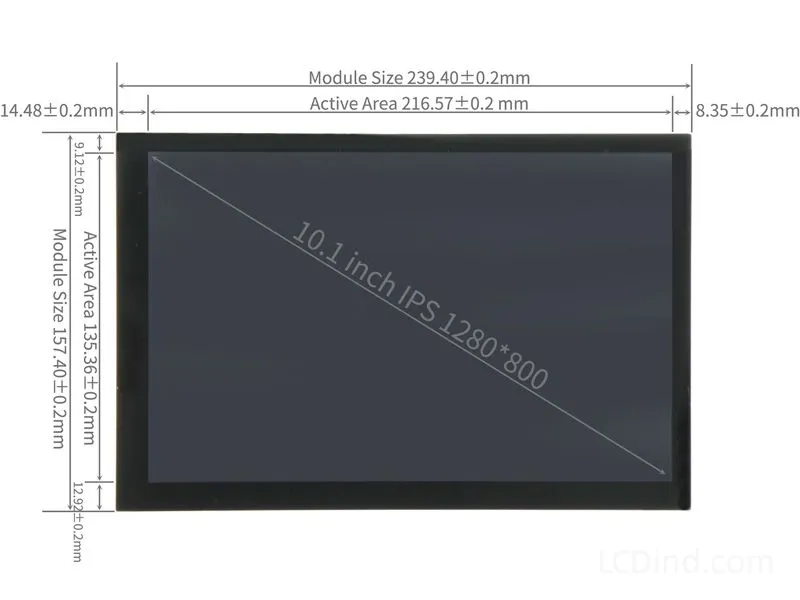

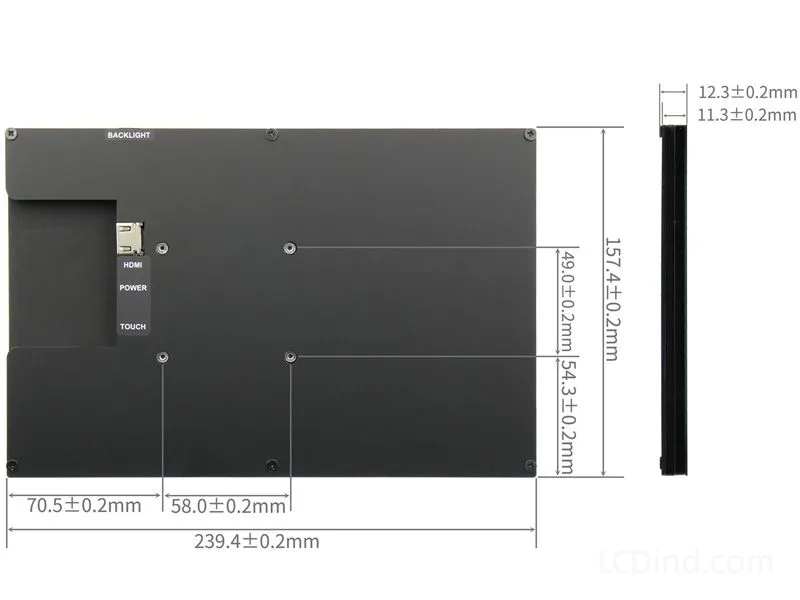

| Outline Dimension | 239.4 x 157.4 x 12.3 ±0.2 mm |
| Active Area | |
| Power Supply | 5.29W |
| LED Lifetime | |
| LCDind Model | LCDind-DS20225 |
HMI Panel Use Case

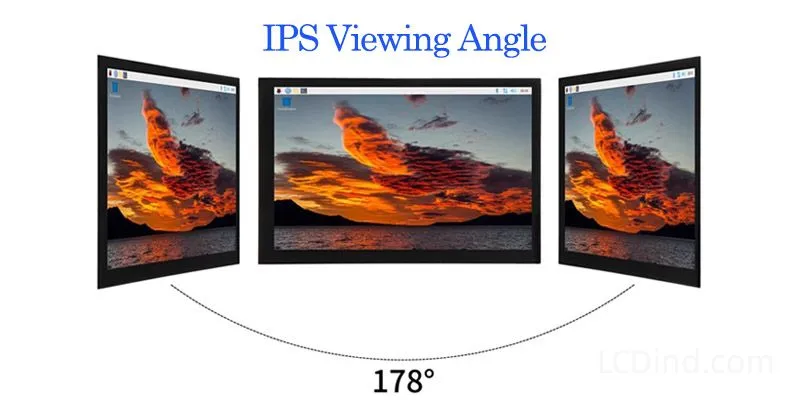

A 10.1 inch 1280×800 touch display gives equipment designers enough space for menus, recipes, alarm lists, trend views, and setup workflows without moving to a larger panel. The IPS direction supports wider viewing angles for operators standing at different positions. For HMI panels, the display must be judged together with the enclosure, controller, UI design, front glass, grounding, and expected operator environment.
Touch and Front Assembly
The confirmed capacitive touch panel should be tested in the actual equipment environment. Industrial HMIs may face gloves, moisture, dust, electrical noise, and repeated cleaning. If the equipment requires a printed cover lens, anti-glare treatment, optical bonding, or custom logo area, those requirements should be defined before samples. Touch performance on an open bench does not prove performance after enclosure assembly.
Missing Interface and Optical Data
Because interface and brightness are not filled in the current technical table, procurement should not assume HDMI, LVDS, RGB, or MIPI. The RFQ must state the host controller output and required brightness class. The same applies to active area, LED lifetime, and operating temperature. These blank fields are not a reason to reject the product, but they must be closed before production approval.
Application Fit
This module is suitable for equipment HMI panels, automation controllers, machine setup screens, smart equipment interfaces, service terminals, and commercial device dashboards where 1280×800 is enough for a clear UI. It is not the right choice for sunlight-heavy outdoor equipment unless brightness and cover-glass strategy are confirmed. For simple display-only systems, a no-touch LVDS module may be more cost-effective.
Procurement and Engineering Review
Use LCDind-DS20225 and the exact outline dimension when requesting quotation. Send the target application, UI orientation, host board, expected annual quantity, cover-glass requirement, touch environment, and any enclosure drawing. LCDind can then confirm interface, brightness, active area, power, thermal behavior, packaging, and customization route.
Sample Approval and Production Controls
Sample approval should close all currently blank engineering fields first: interface, brightness, active area, operating temperature, and LED lifetime. Then validate touch behavior, front-surface appearance, mechanical fit, UI readability, power consumption, and thermal behavior in the target HMI panel. For equipment manufacturers, the sample record should include approved drawings, host interface confirmation, touch tuning requirements, packaging method, and any custom cover-glass details.
How to Compare Alternatives
Compare this 1280×800 IPS touch display with 1024×600 HDMI terminals and 1920×1200 WUXGA panels by UI complexity, host interface, brightness requirement, and mechanical stack. It can be a practical middle option for HMIs that need a modern touch interface without WUXGA cost. However, because several specification fields are blank, it should not be approved against alternatives until interface and brightness are confirmed.
Project Risk Boundaries
The main risk is approving a sample before missing technical fields are closed. Interface, brightness, active area, operating temperature, and LED lifetime affect host-board design, front-panel artwork, thermal review, and lifecycle planning. This page should be used as a starting point for an HMI touch display RFQ, not as a complete approved specification until LCDind confirms the blank values for the specific project.
Information LCDind Needs for a Reliable Quote
For quotation, send the HMI enclosure drawing, host interface, UI orientation, required brightness, touch operating condition, expected cleaning method, quantity forecast, and any cover-glass or logo requirement. Specifically request confirmation of interface, brightness, active area, temperature range, and LED lifetime. The response should produce a project-specific specification rather than a generic 10.1 inch touch-screen offer. If the panel will be used in a machine family, include the variant list and expected common parts so LCDind can review whether one display configuration can support multiple operator interfaces. This also improves production approval traceability.
RFQ Checklist
- Product URL, model reference, and target application.
- Host interface, controller board, cable, firmware, and voltage requirements.
- Mechanical drawing, active area, outline, cover lens, mounting, and cable route.
- Brightness, touch, operating environment, thermal, and optical requirements.
- Sample schedule, annual quantity, packaging, inspection, and revision-control expectations.
Engineering FAQ
Is the interface confirmed?
No. The interface field is blank in the current table and must be confirmed during RFQ.
What is confirmed?
The page confirms 10.1 inch size, 1280×800 resolution, capacitive touch, outline dimension, 5.29W power, and LCDind-DS20225 model reference.
What makes it suitable for HMI panels?
The 10.1 inch size, 1280×800 resolution, IPS positioning, and capacitive touch support focused operator workflows.
Engineering Review Note
For quotation, send the product URL, target quantity, application background, host platform, interface requirement, and any existing drawing or replacement panel details. LCDind will review whether the standard configuration fits or whether cable, controller board, touch, cover glass, optical bonding, brightness, packaging, or lifecycle customization should be quoted.
| Brand | OEM / ODM |
|---|---|
| Size | 10.1 inchSpecify 10.1 inch industrial LCD modules by resolution, brightness, interface, touch, operating environment and annual quantity. 600-1200 nit options require application review. |
| Resolution | 1280×800 |
| Touchscreen | Capacitive Touch (PCAP) |
Q: What is this 10.1 inch IPS touch display best used for?
A: This 10.1 inch IPS touch display is intended for equipment HMI panels, embedded controllers, instrument panels, compact terminals, and OEM equipment programs that need stable display sourcing with 1280x800 resolution.
Q: Which interface details should engineers confirm before sampling?
A: Use the the host interface specified by the project as the starting point. Before sample approval, confirm pinout, signal timing, voltage, cable length, connector direction, firmware support, and EMC layout with the host board.
Q: Can LCDind customize touch, cover glass, or bonding for this display?
A: Yes. LCDind can review resistive touch, capacitive touch, cover lens thickness, logo printing, AG/AR/AF coating, optical bonding, and controller matching. Current touch note: Capacitive touch panel.
Q: How should brightness be selected for the final device?
A: The current brightness guidance is brightness should be confirmed against the lighting environment. Share indoor, vehicle, kiosk, outdoor shade, or sunlight-readable requirements so LCDind can review backlight, heat, bonding, and cover-glass options.
Q: What mechanical details matter before enclosure tooling?
A: Check outline 239.4 x 157.4 x 12.3 ±0.2 mm, power input 5.29W before releasing tooling. Buyers should confirm bezel opening, mounting stack, FPC bend radius, connector clearance, gasket pressure, and viewing area tolerance.
Q: What should be included in an RFQ for this 10.1 inch IPS touch display?
A: Send annual forecast, trial quantity, target schedule, host platform, interface requirement, mechanical drawing, brightness target, touch plan, operating environment, and any replacement display dimensions.
Q: Can this display be used for outdoor or high-ambient-light equipment?
A: It can be reviewed for outdoor equipment, but final approval depends on brightness, thermal design, sealing, UV exposure, cover glass, and viewing angle. For direct sunlight, request high-brightness or optical-bonding review.
Q: How does LCDind identify this product during engineering review?
A: Use LCDind internal model LCDind-DS20225 together with size, resolution, interface, and mechanical drawing. Supplier-only panel codes are not needed for public sourcing discussions.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
