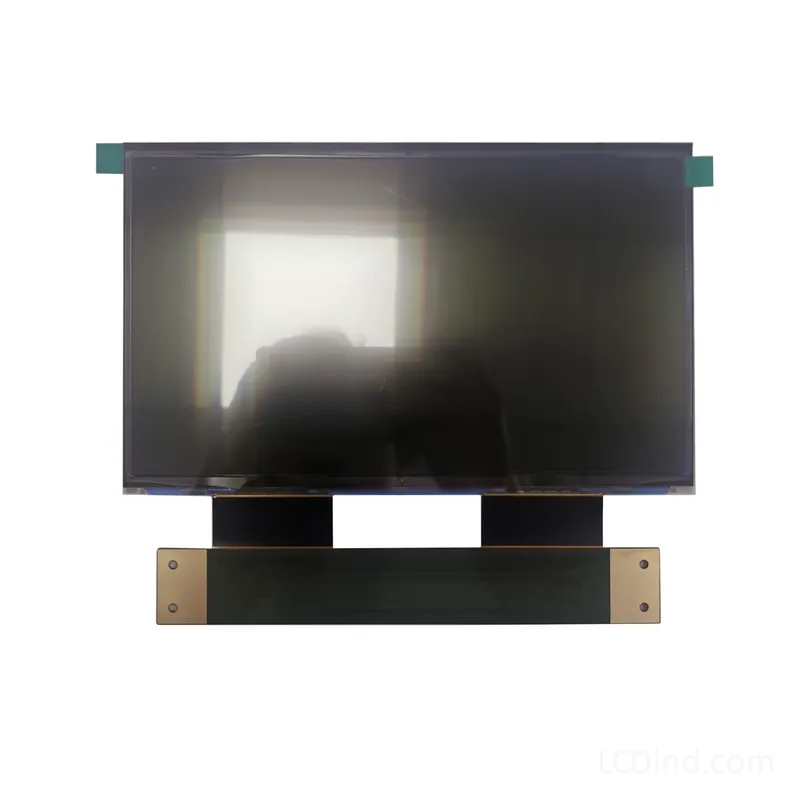

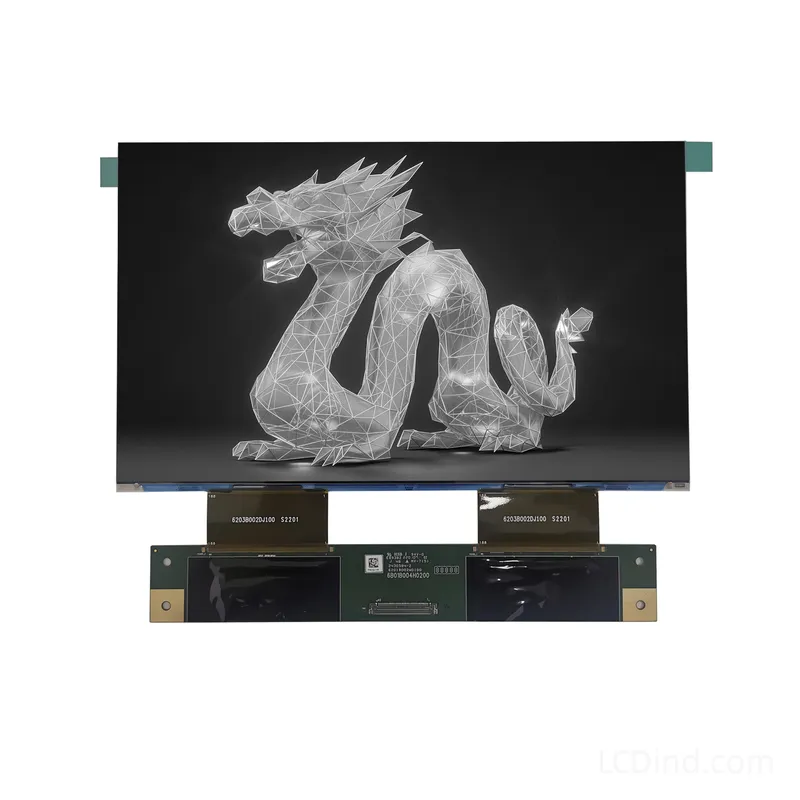

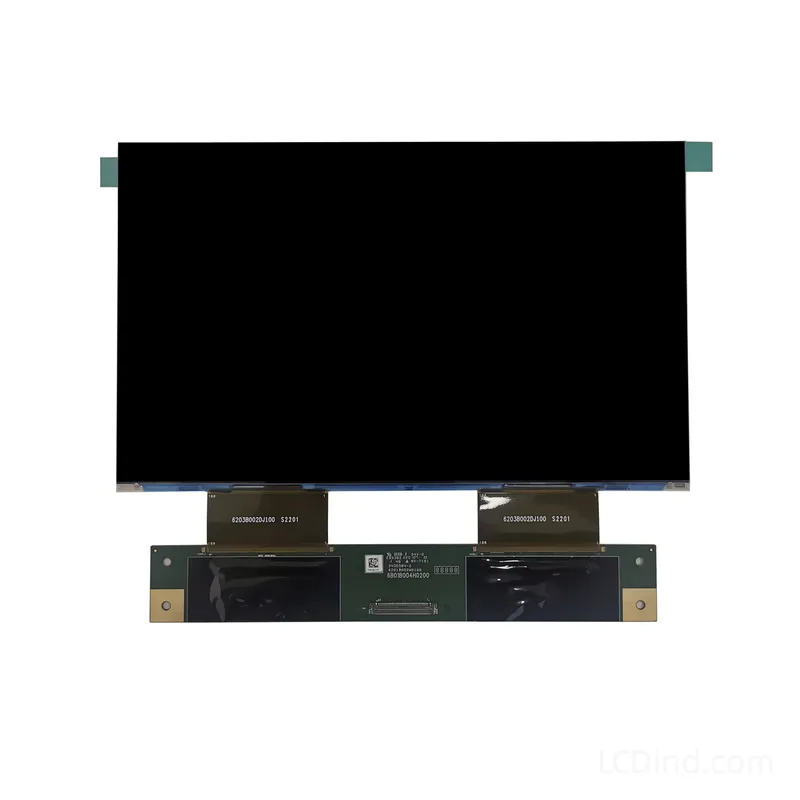

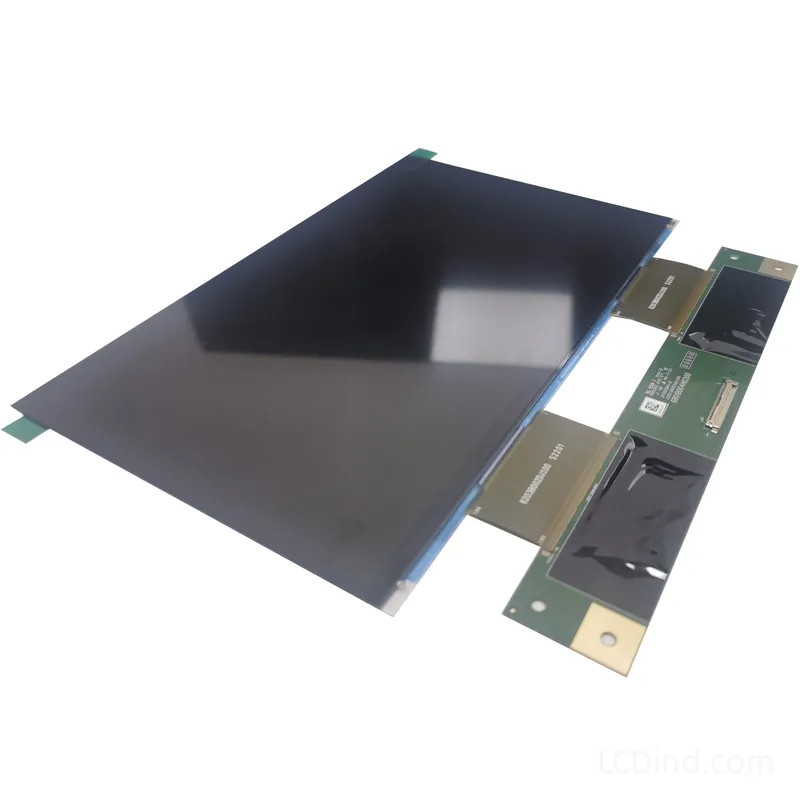

10.1 Inch 8K Mono LCD Screen for Elegoo Saturn 2 & Phrozen Mighty 8K 7680×4320 Replacement
The 10.1 Inch 8K Mono LCD is the ultimate high-precision replacement screen designed for flagship 3D printers. With a stunning 7680×4320 resolution and an ultra-fine 28.5um pixel pitch, this module is fully compatible with the Elegoo Saturn 2 8K, Elegoo Saturn 8K, and Phrozen Sonic Mighty 8K. Whether for intricate jewelry casting or dental modeling, this masking screen restores your machine’s factory-level detail and curing speed. Don’t compromise on precision. Click “Inquire Now” for stock availability and bulk discounts.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 7680×4320 |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |

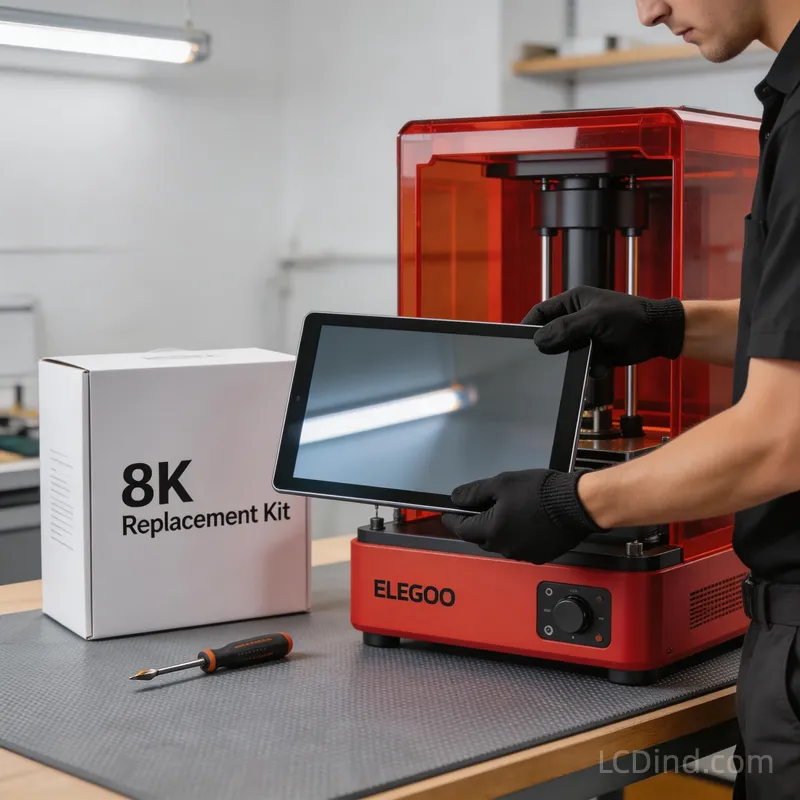

Revitalize Your 3D Printer: 10.1 Inch 8K Mono LCD
The 10.1 Inch 8K Mono LCD sets the standard for consumer MSLA printing. By packing 33 million pixels (7680 x 4320) into a 10.1-inch active area, it achieves a pixel density of 28.5 microns (um). This level of precision eliminates visible layer lines (anti-aliasing), resulting in exceptionally smooth surface finishes required for professional model making.

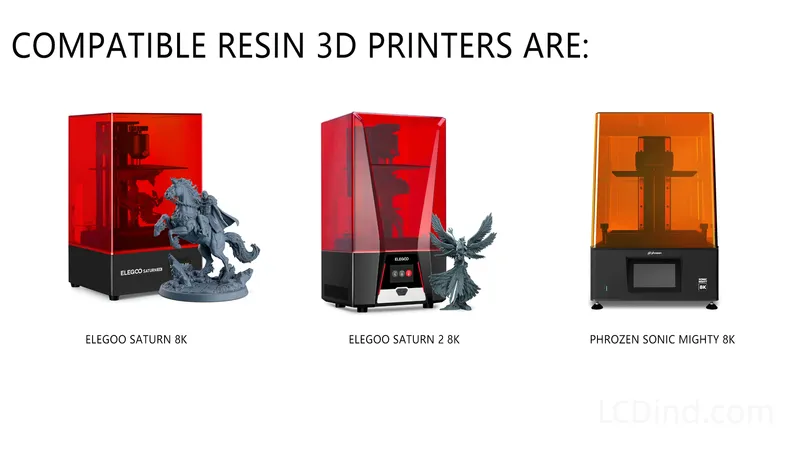

Wide Compatibility for Top Brands
Engineered to match the exact specifications of market-leading machines, this screen is the ideal replacement for:
- Elegoo Saturn 2 8K
- Elegoo Saturn 8K
- Phrozen Sonic Mighty 8K
It features the standard Active Area of 218.88 x 123.12 mm, ensuring it fits perfectly into your printer’s existing vat assembly.
Optimized for Resin Curing
As a specialized Monochrome LCD, this panel is designed for performance:
- High Transmittance: With a transmittance rate of 9.63%, it allows for rapid layer exposure (typically 1-2 seconds), speeding up your workflow.
- High Contrast: A contrast ratio of ≥400:1 blocks stray UV light, ensuring sharp details and clean negative spaces.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)

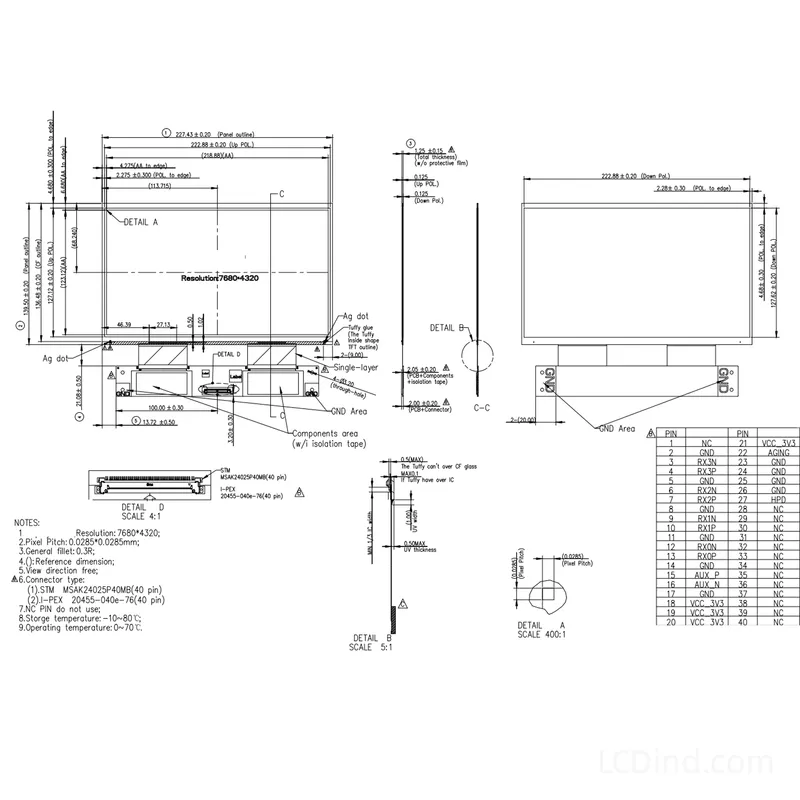

Technical Specifications
| Model Name | DBT101MONO |
| Display Size | 10.1 Inch |
| Resolution | 7680 x 4320 (8K) |
| Active Area | 218.88(W) x 123.12(H) mm |
| Outline Dimension | 227.43(W) x 139.50(H) mm |
| Pixel Pitch | 28.5 x 28.5 um (0.0285mm) |
| Interface | EDP 1.2 (20 Pins Connector) |
| Transmittance | 9.63% (Typ.) |
| Contrast Ratio | ≥400:1 |
| Operating Temp | 0°C ~ 70°C |
| Display Mode | Normally Black (IPS-like) |
| Compatible Printers | Elegoo Saturn 2 8K, Phrozen Mighty 8K, Saturn 8K |
Engineering FAQ
Q: Will this screen fit my Elegoo Saturn 2 8K?
A: Yes. The 10.1-inch 8K specifications (Resolution 7680×4320, Active Area 218.88×123.12mm) are a match for the Elegoo Saturn 2 8K and Saturn 8K series. Please double-check your original screen’s FPC cable connector to ensure it matches the image before purchasing.
Q: What is the pixel pitch of this 8K screen?
A: The pixel pitch is 28.5 microns (0.0285mm). This ultra-fine pitch allows for printing incredibly detailed miniatures and jewelry molds that look smooth to the naked eye.
Q: Does the package include the glass protector?
A: The LCD module comes with the polarizer attached. However, depending on the specific kit, a tempered glass protector may or may not be pre-installed. We recommend applying a new screen protector during replacement to prevent resin damage.
Q: Do I need to update firmware after replacing the screen?
A: If you are replacing an existing 8K screen with this identical 8K unit, no firmware update is usually required. It is a direct replacement.
