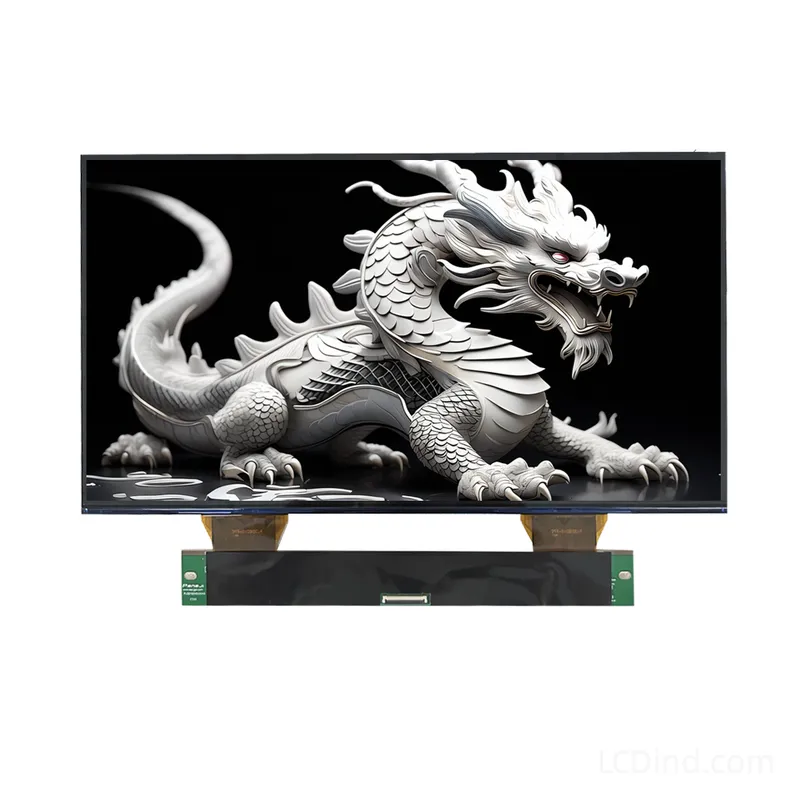

16 Inch 8K Mono LCD 3D Printer Screen | Large Format 7680×4320 Upgrade Kit
The 16 Inch 8K Mono LCD redefines the boundaries of large-format MSLA 3D printing. Delivering a colossal active area of 353.28 x 198.72 mm alongside a staggering 7680×4320 resolution, this panel allows you to print massive props and architectural prototypes without compromising on microscopic details. Maintaining a sharp 46um pixel pitch and an exceptional 8% UV transmittance, it cures massive layers rapidly while ensuring glass-smooth surfaces. Perfect for replacing screens in behemoth printers like the Peopoly Phenom Prime or engineering custom rigs via the high-speed 40-pin eDP interface. Expand your manufacturing capabilities today. Click “Inquire Now” for driver board compatibility and bulk shipping options.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 7680×4320 |
| Size | 16.0 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Unleash Colossal Prints: 16 Inch 8K Mono LCD for 3D Printer
Historically in resin 3D printing, increasing the build volume meant sacrificing pixel density and surface quality. The 16 Inch 8K Mono LCD shatters that compromise. By distributing 33 million pixels (7680 x 4320) across a massive 16-inch diagonal surface, it sustains a dense 46 x 46 um pixel pitch. This physical specification ensures that even when printing life-sized cosplay armor or full dental arch batches, every curve and edge remains impeccably sharp, virtually eliminating layer lines.
Engineered for Industrial Curing Efficiency
Large resin vats require intense UV power, which traditionally destroys RGB displays. This module is a dedicated transmissive, normally black monochrome panel (open cell, without backlight). It boasts a typical UV transmittance of 8% and a robust 400:1 contrast ratio. This high energy throughput allows 405nm UV light to rapidly cure massive cross-sections—reducing cycle times dramatically—while strictly blocking light in unexposed areas to prevent resin bleeding.
High-Bandwidth eDP Integration

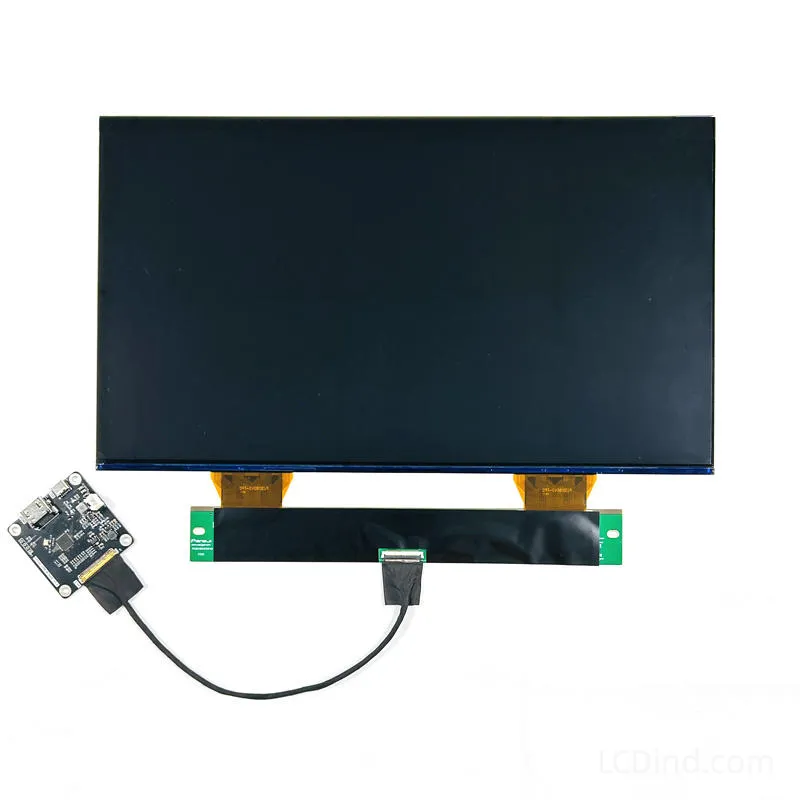

Driving an 8K resolution at 16 inches requires serious data bandwidth. Unlike smaller screens that rely on MIPI, this panel utilizes a robust 40-pin eDP (Embedded DisplayPort) interface. This industry-standard protocol ensures stable, artifact-free video signal transmission from your printer’s motherboard to the display. We offer complete integration kits, including specialized eDP driver boards and extended FPC cables, empowering hardware engineers to construct the next generation of large-format MSLA machines.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo silk-screening (Min. order: 1,000 pieces)
- Graphic and cover glass customization (Min. order: 1,000 pieces)
Technical Specifications
| Product Type | 8K Monochrome LCD for 3D Printer |
| Model Name | DBM160E8K01 |
| Display Size | 16 Inch |
| Resolution | 7680 x 4320 (8K) |

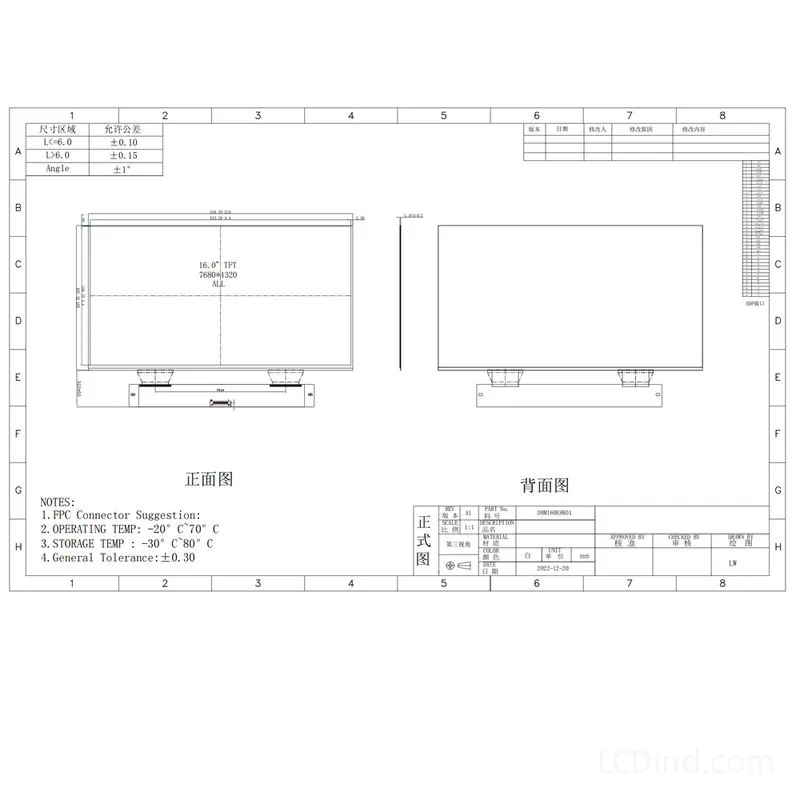

| Active Area | 353.28(W) x 198.72(H) mm |
| Outline Dimension | 358.28(W) x 207.42(H) x 1.16(D) mm |
| Pixel Pitch | 46 x 46 um |
| Signal Interface | 40 Pins eDP |
| UV Transmittance | Typ. 8% |
| Contrast Ratio | 400:1 (Typ.) |
| Display Mode | Normally Black, Transmissive |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Temp | -20°C ~ 70°C |
| Backlight | Without Backlight (Open Cell) |
Engineering FAQ
Q: Why does this 16-inch screen use an eDP interface instead of MIPI?
A: Pushing a massive 7680×4320 (8K) resolution to a 16-inch panel requires exceptionally high data bandwidth. The 40-pin eDP (Embedded DisplayPort) interface provides a more stable, high-speed connection for large-format displays compared to standard MIPI, preventing data loss or screen tearing during large print jobs.
Q: What does an 8% UV transmittance mean for my print settings?
A: A transmittance of 8% is remarkably high for an LCD masking screen. It means 8% of the 405nm UV light generated by your printer’s LED array successfully passes through the transparent pixels. In practical terms, this allows for very fast layer exposure times (often between 2 to 3 seconds depending on the resin), which is critical for reducing the overall print time of massive objects.
Q: Can I use this panel to upgrade a smaller 8K printer?
A: No. The physical dimensions of this 16-inch panel (358.28 x 207.42 mm) are massive. It will not physically fit into the chassis or resin vat assembly of standard 10-inch or 13-inch printers. It is intended specifically for large-format industrial resin printers or custom DIY mega-builds.
Q: Is the driver board included in the purchase?

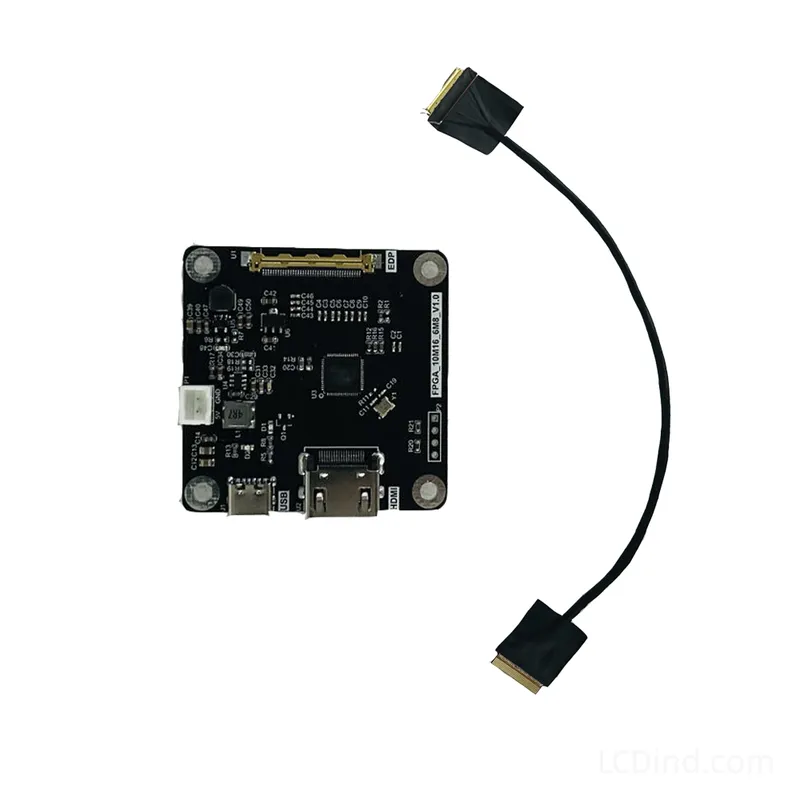

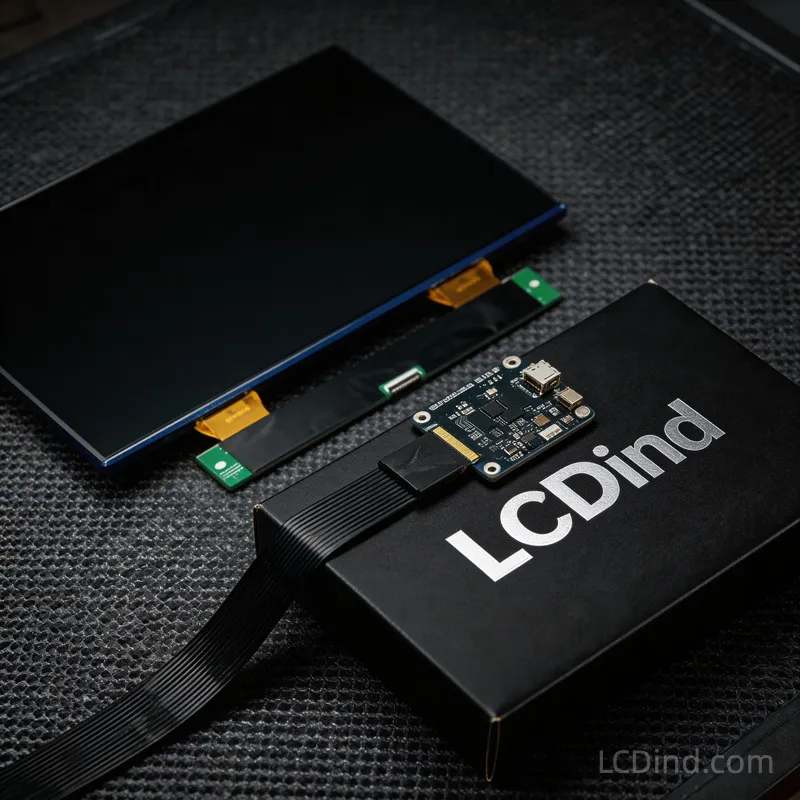

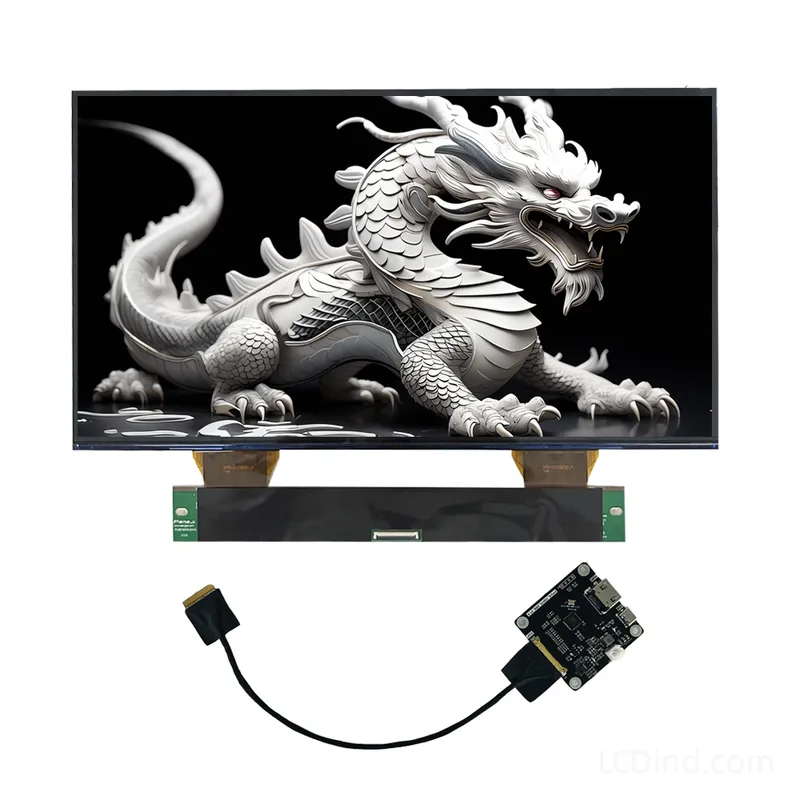

A: The 16-inch open-cell panel can be ordered as a standalone replacement part. However, we highly recommend purchasing the complete kit, which includes the compatible eDP driver board and necessary FPC cables, to ensure guaranteed signal compatibility for your custom projects.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 7680×4320 |
| Size | 16.0 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Q: Why does this 16-inch screen use an eDP interface instead of MIPI?
A: Pushing a massive 7680x4320 (8K) resolution to a 16-inch panel requires exceptionally high data bandwidth. The 40-pin eDP (Embedded DisplayPort) interface provides a more stable, high-speed connection for large-format displays compared to standard MIPI, preventing data loss or screen tearing during large print jobs.
Q: What does an 8% UV transmittance mean for my print settings?
A: A transmittance of 8% is remarkably high for an LCD masking screen. It means 8% of the 405nm UV light generated by your printer's LED array successfully passes through the transparent pixels. In practical terms, this allows for very fast layer exposure times (often between 2 to 3 seconds depending on the resin), which is critical for reducing the overall print time of massive objects.
Q: Can I use this panel to upgrade a smaller 8K printer?
A: No. The physical dimensions of this 16-inch panel (358.28 x 207.42 mm) are massive. It will not physically fit into the chassis or resin vat assembly of standard 10-inch or 13-inch printers. It is intended specifically for large-format industrial resin printers or custom DIY mega-builds.
Q: Is the driver board included in the purchase?
A: The 16-inch open-cell panel can be ordered as a standalone replacement part. However, we highly recommend purchasing the complete kit, which includes the compatible eDP driver board and necessary FPC cables, to ensure guaranteed signal compatibility for your custom projects.
