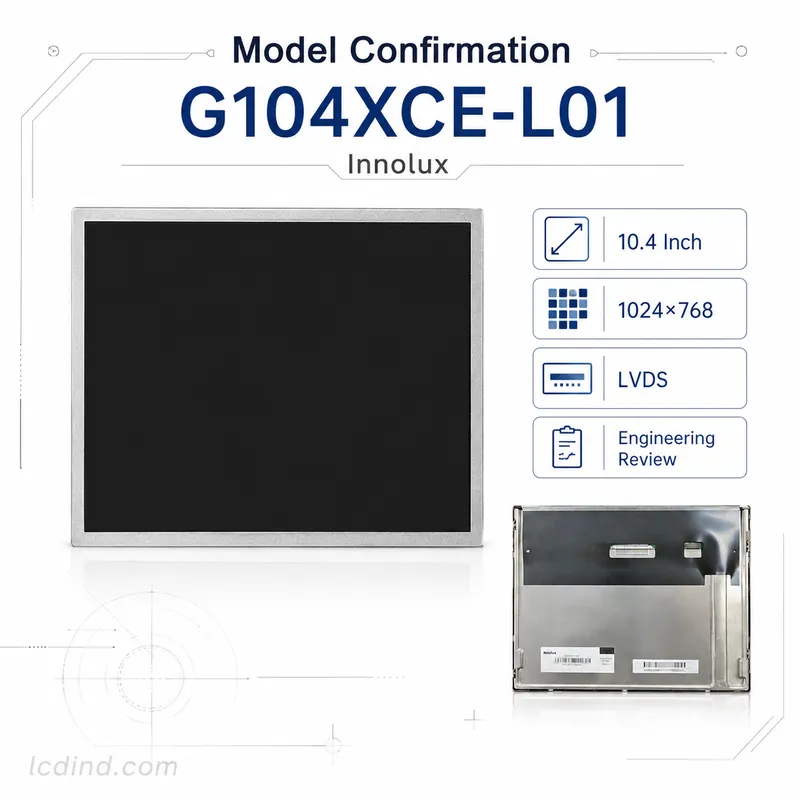

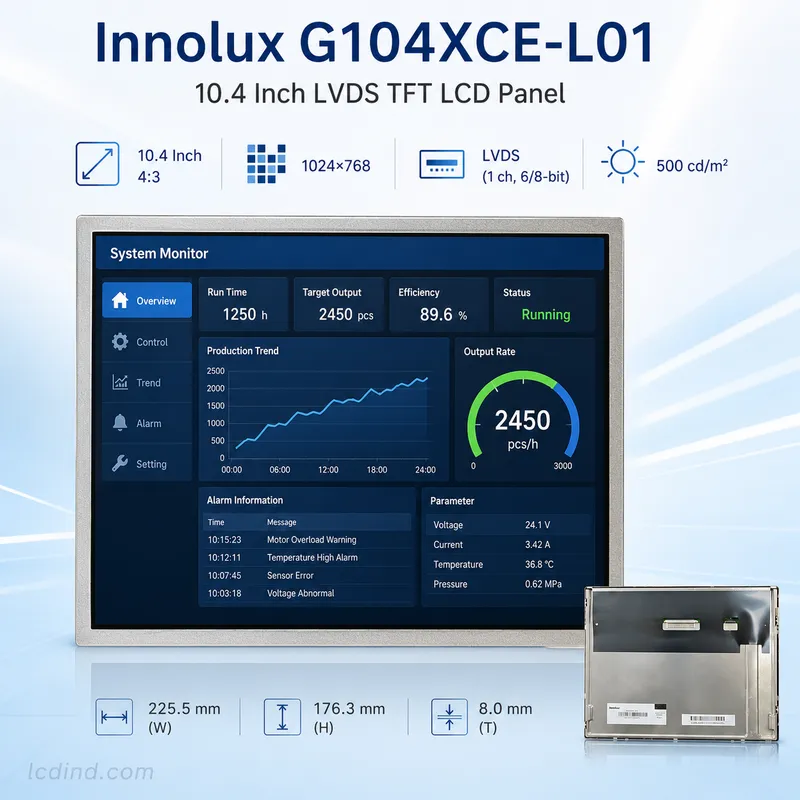

Innolux G104XCE-L01 10.4 Inch 1024×768 LVDS TFT LCD Panel
Innolux G104XCE-L01 LCD panel is prepared for industrial display replacement and OEM integration, with 1024×768, LVDS and 500 cd/m². Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Innolux LCD Panels |
|---|---|
| Size | 10.4 inch |
| Resolution | 1024×768 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
| Panel Type | IPS |
Innolux G104XCE-L01 LCD panel Overview
This Innolux TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: G104XCE-L01
- Diagonal size: 10.4 Inch
- Resolution: 1024×768
- Interface: LVDS
- Brightness: 500 cd/m²
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 1024X768 |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 500 cd/m² |
| Display Size | 10.4” |
| Operating Temperature | -30 ~ 85 °C |
| Screen Size | 10.4 Inch |
| Communication Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |

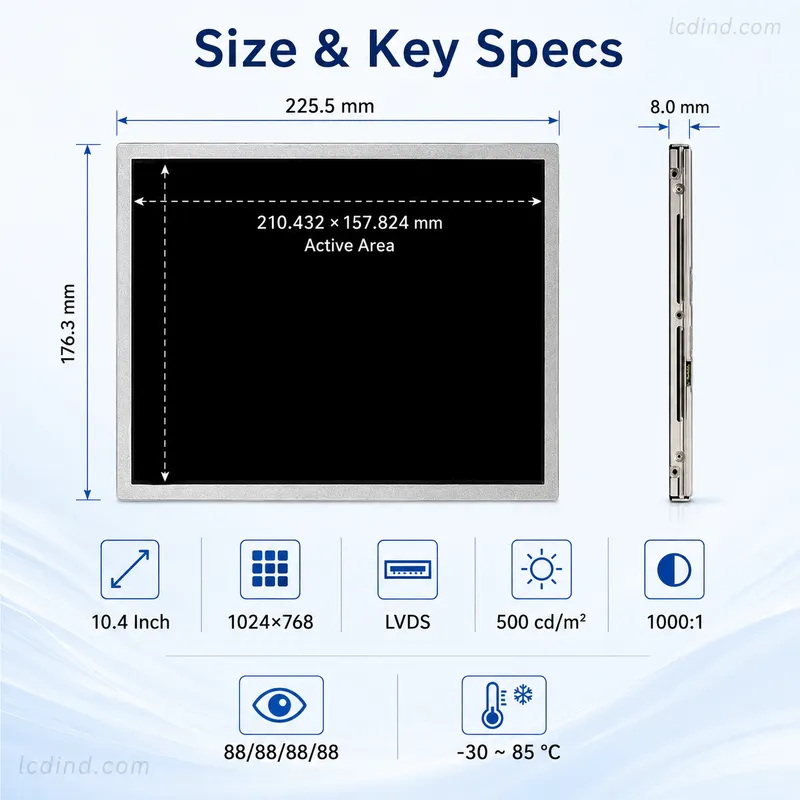

| Active Area | 210.432*157.824 mm |
| Outline Dimension | 225.5*176.3*8.0 mm |
| View angle | 88/88/88/88 (Typ.) |
| Contrast Ratio | 1000:1 |
| Backlight | WLED, 50k hours, with LED driver |
| Response time | 13/12ms |
| Surface | Antiglare |
| Display Colors | 262K/16.2M 72% NTSC |
| Display Mode | AAS, Normally Black, Transmissive |
| Total Consumption | 7.7W |
| Selling Units | Single item |
| Single package size | 35X25X10 cm |
| Single gross weight | 0.5 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of G104XCE-L01?
The captured supplier evidence states 1024×768. Confirm the exact model revision and current datasheet before design-in.
Which host interface does G104XCE-L01 use?
The captured supplier evidence indicates LVDS. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering G104XCE-L01?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
| Brand | Innolux LCD Panels |
|---|---|
| Size | 10.4 inch |
| Resolution | 1024×768 |
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
| Panel Type | IPS |
What is the resolution of G104XCE-L01?
The captured supplier evidence states 1024x768. Confirm the exact model revision and current datasheet before design-in.
Which host interface does G104XCE-L01 use?
The captured supplier evidence indicates LVDS. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering G104XCE-L01?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
