Innolux AT070TN92 7 Inch 800×480 RGB / TTL TFT LCD Panel
Innolux AT070TN92 LCD panel is prepared for industrial display replacement and OEM integration, with 800×480, RGB / TTL and 250 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Innolux LCD Panels |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Brightness | Standard (200-450 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
| Panel Type | TN |
Innolux AT070TN92 LCD panel Overview
This Innolux TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: AT070TN92
- Diagonal size: 7 Inch
- Resolution: 800×480
- Interface: RGB / TTL
- Brightness: 250 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 800×480, WVGA 134PPI |
| Display Type | TFT |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 250 cd/m² (Typ.) |
| Display Size | 7 inch |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 7.0″ |
| Communication Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |

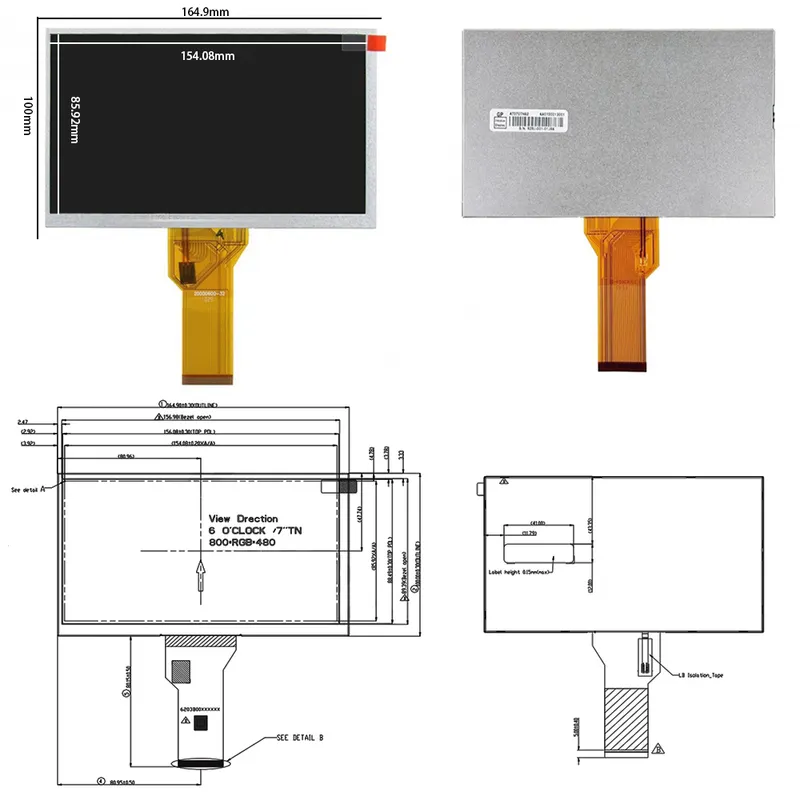

| Active Area | 154.08(W)x85.92(H) mm |
| Outline Size | 164.9(W)x100(H) x 5.7(D) mm |
| Viewing angle | 70/70/50/70 |
| Contrast Ratio | 500:1 |
| Backlight | WLED, 20k hours , without driver |
| Operating Mode | TN, Normally White, Transmissive |
| Response time | 10/15ms |
| Power Consumption | 1.90W (Typ.) |
| Support Color | 262K/16.7M 50% NTSC |
| Selling Units | Single item |
| Single package size | 30X20X10 cm |
| Single gross weight | 0.3 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of AT070TN92?
The captured supplier evidence states 800×480. Confirm the exact model revision and current datasheet before design-in.
Which host interface does AT070TN92 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering AT070TN92?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
