BOE DV320FHM-NN0 32 Inch 1920×1080 TFT LCD Panel
DV320FHM-NN0 is a BOE TFT LCD panel listed with 1920×1080, FHD 69PPI and an interface requiring confirmation. Send the exact model, quantity and host requirements for compatibility review and quotation.
Product Attributes
| Brand | BOE |
|---|---|
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Standard (0°C ~ +50/60°C) |
DV320FHM-NN0 Product Overview
DV320FHM-NN0 is a BOE TFT LCD panel prepared as a sourcing reference for OEM equipment and display-integration projects. The exact panel revision, mechanical fit and host compatibility should be confirmed before ordering.
Key Features
- Resolution: 1920×1080, FHD 69PPI
- Brightness: 400 cd/m² (Typ.)
- Operating temperature: 0 ~ 50 °C
Key Attributes and Technical Specifications
| Type | IPS |
|---|---|
| Resolution | 1920×1080, FHD 69PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 400 cd/m² (Typ.) |
| Brand | BOE |
| Display Size | 32 inch |
| Place of Origin | Beijing, China |
| Supplier Type | Original Factory Agent |
| Brand Name | BOE |
| Operating Temperature | 0 ~ 50 °C |
| Screen Size | 32.0″ |
| Communication Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Viewing Angle | 89/89/89/89 |
| Contrast Ratio | 1200:1 |
| Backlight | WLED , 30K hours , With LED Driver |
| Response time | 8ms |
| Total Consumption | 40W |
| Operating Mode | ADSDS, Normally Black, Transmissive |
| Weight | 4.1Kgs |
| Support Color | 16.7M 72% NTSC |
| Selling Units | Single item |
| Single package size | 82X52X10 cm |
| Single gross weight | 4.1 kg |
Integration and Compatibility Review
Confirm the connector position, pin definition, timing, power requirements, mounting method and host-board compatibility against the current datasheet or sample.

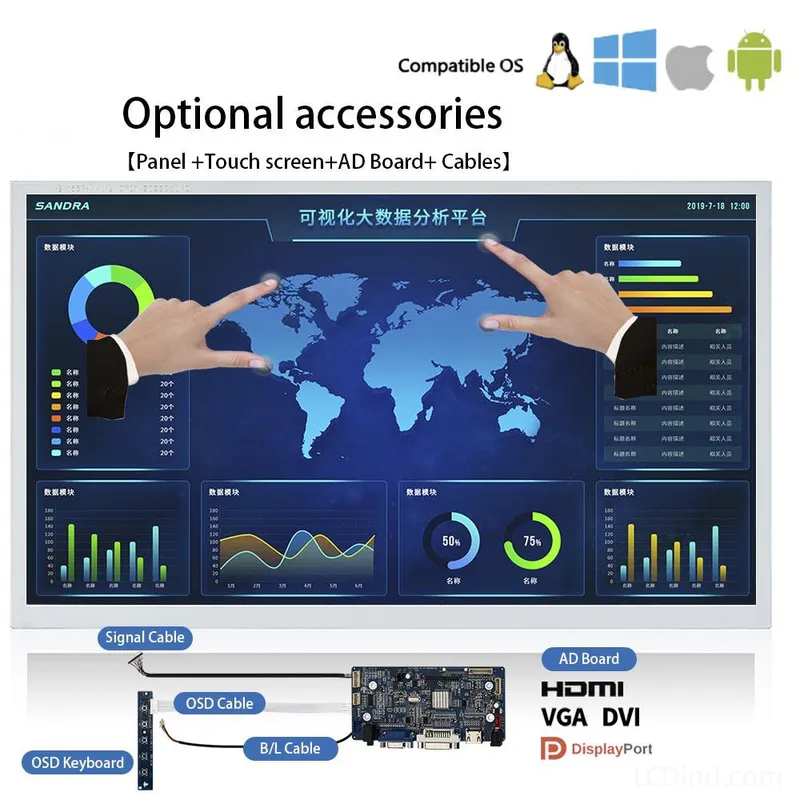

Customization and Project Options
Touchscreen, cable, controller-board and mechanical requirements depend on the selected configuration and must be confirmed for the project.
MOQ and Quotation
The supplier listing MOQ is Min. Order: 6 pieces. Send the required quantity and exact configuration for a project quotation.
Packaging and Delivery
Confirm packaging method, delivery schedule, freight terms and inspection requirements before ordering.
RFQ Checklist
- Exact panel model and revision
- Required quantity
- Host interface and timing
- Mechanical drawing and mounting constraints
- Touchscreen, cable or controller requirements
- Target application and operating environment
Engineering FAQ
What is the resolution of DV320FHM-NN0?
The supplier listing states 1920×1080, FHD 69PPI.
Which interface does DV320FHM-NN0 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 6 pieces.
Request a Quote
Send your datasheet, quantity and integration requirements for compatibility review and quotation.
