AUO G070VAN01.1 7 Inch 800×480 LVDS TFT LCD Panel
AUO G070VAN01.1 LCD panel is prepared for industrial display replacement and OEM integration, with 800×480, LVDS and 200 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | AUO |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Brightness | Standard (200-450 nits) |
| Interface | LVDS |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
AUO G070VAN01.1 LCD panel Overview
This AUO TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: G070VAN01.1
- Diagonal size: 7 Inch
- Resolution: 800×480
- Interface: LVDS
- Brightness: 200 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 800×480, WVGA 133PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 200 cd/m² (Typ.) |
| Display Size | 7.0″ |
| Operating Temperature | -20 ~ 70 ° |
| Screen Size | 7 inch |
| Communication Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |

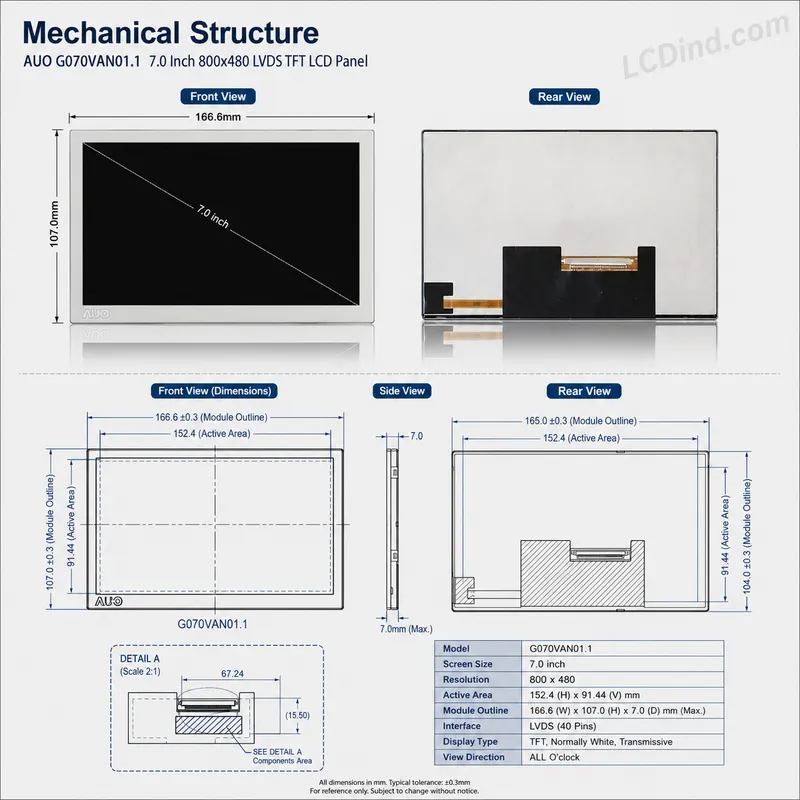

| Active Area | 152.4(W)*91.44(H) mm |

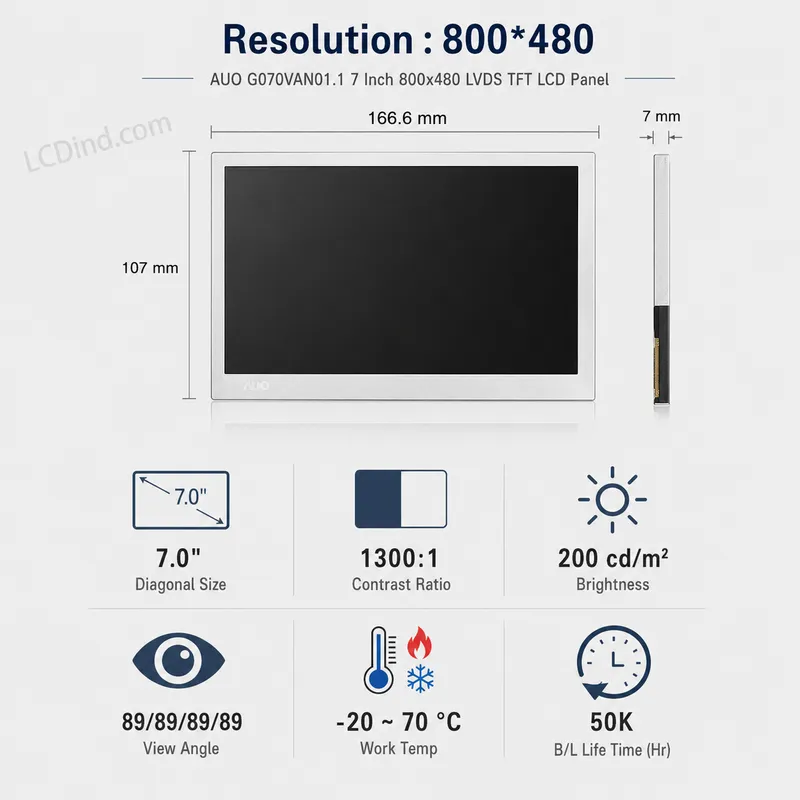

| Outline Size | 166.6(W)*107(H)*7(D) mm |
| View angle | 85/85/85/85 (Typ.) |
| Contrast ratio | 1300:1 |
| Backlight | 7S2P WLED , 30K hours , Without Driver |
| Response Time | 11/19 (Max.)(Tr/Td) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Total Consumption | 1.4W (Max.) |
| Display Colors | 262K/16.7M 60% NTSC |
| Selling Units | Single item |
| Single package size | 30X20X10 cm |
| Single gross weight | 0.38 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
Is G070VAN01.1 a drop-in replacement?
Match the exact model and revision, outline drawing, connector position, pin definition, voltage and timing against the current datasheet before replacement.
Which host interface does G070VAN01.1 use?
The captured supplier evidence indicates LVDS. Confirm channel count, bit depth, connector and pin assignment before board design.

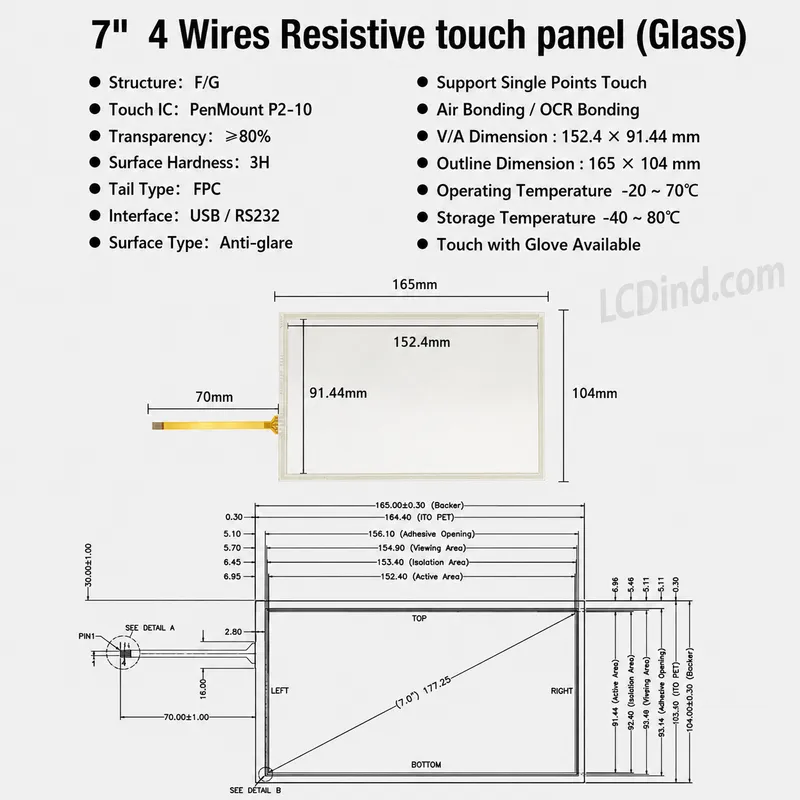

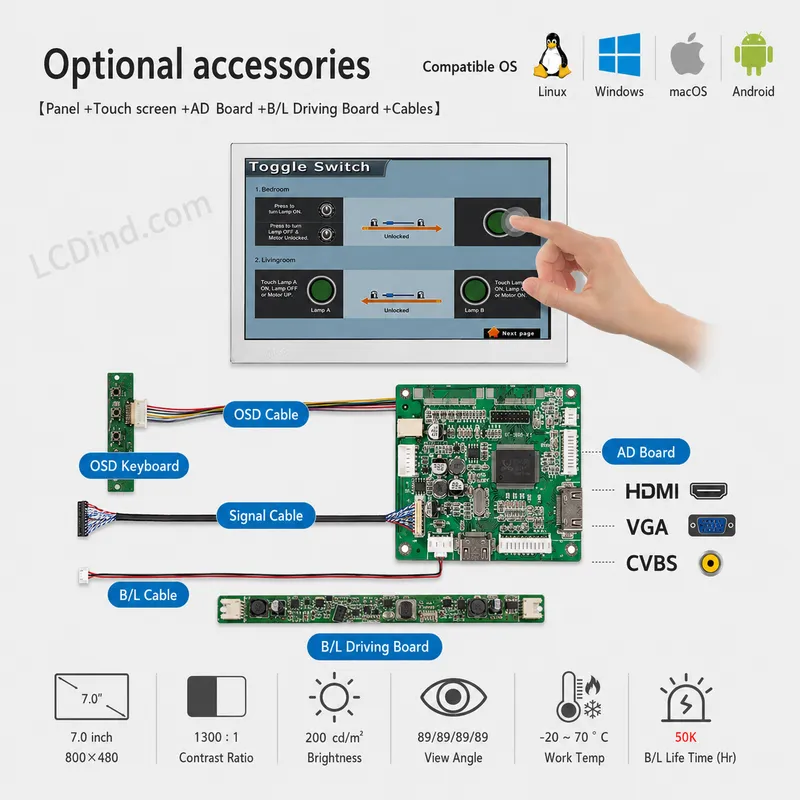

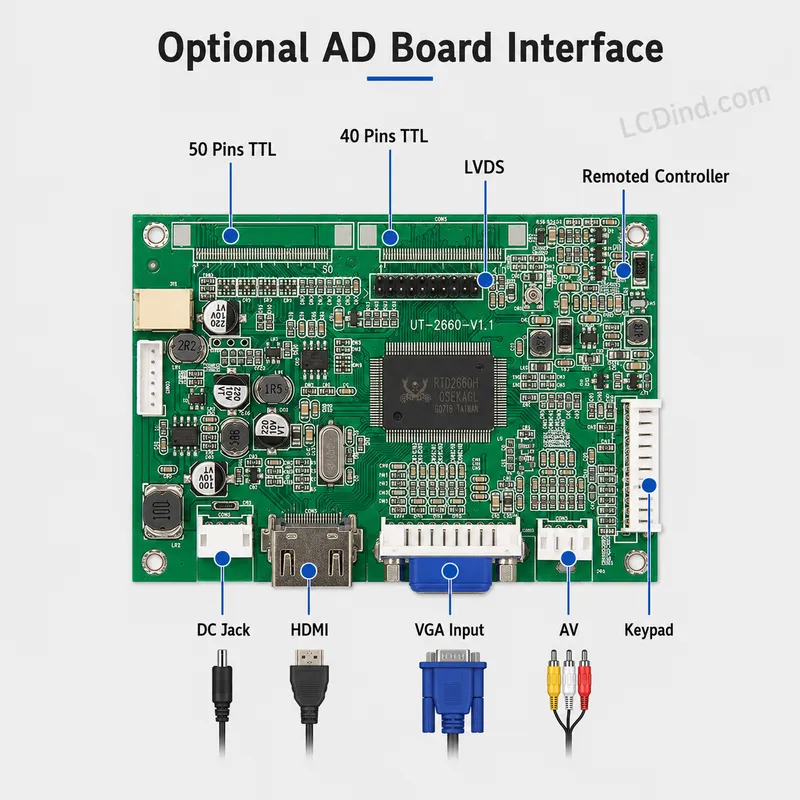

Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What operating environment should engineers verify?
The supplier attributes state -20 ~ 70 °. Also verify storage limits, backlight life, vibration, humidity and enclosure thermal conditions.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
| Brand | AUO |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Brightness | Standard (200-450 nits) |
| Interface | LVDS |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
What is the resolution of G070VAN01.1?
The captured supplier evidence states 800x480. Confirm the exact model revision and current datasheet before design-in.
Which host interface does G070VAN01.1 use?
The captured supplier evidence indicates LVDS. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering G070VAN01.1?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
