7 Inch TFT LCD Module for Equipment HMI | RGB 800×480, 350 Nits

7 Inch 800×480 RGB TFT LCD Module for Equipment HMI with 350-Nit Brightness

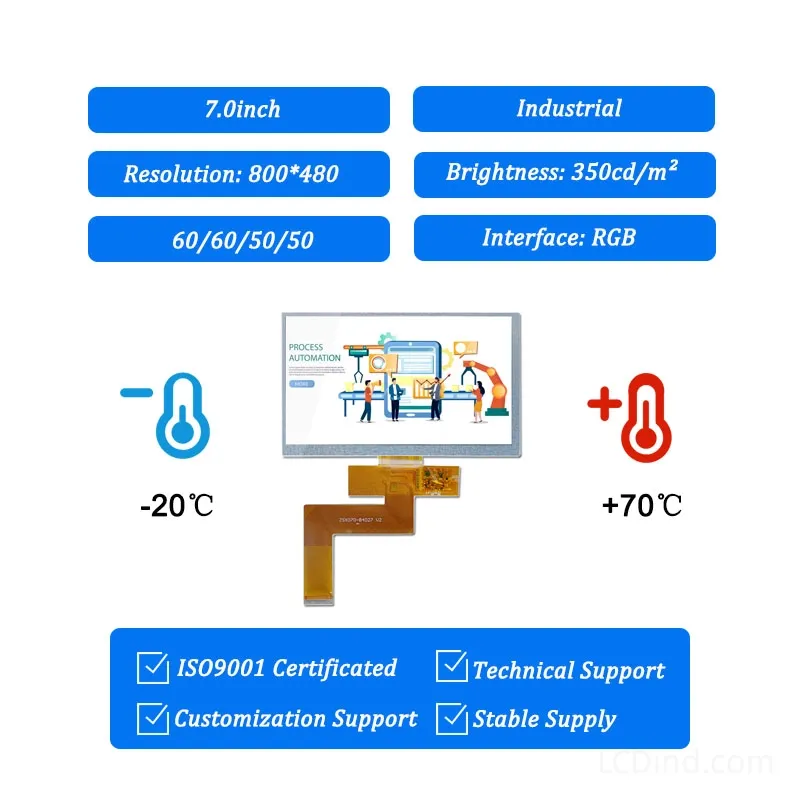

This 7 inch TFT LCD module is a cost-controlled equipment HMI candidate for OEM display programs that need a common 800×480 landscape interface and standard brightness. The current public attributes confirm 7.0 inch size, 800×480 resolution, standard 200 to 450 nit brightness class with 350-nit positioning in the title, industrial -20 ℃ to +70 ℃ operating range and no-touch configuration. The interface field is blank in the attribute table even though the title indicates RGB, so the exact RGB pinout, timing and connector should be confirmed before production selection.

Confirmed Product Specifications

Equipment HMI Fit

This module is relevant for machine panels, appliance controls, service terminals, test fixtures, access equipment and cabinet displays where a 7 inch 800×480 UI is sufficient. It is best for status pages, menus, alarm lists and setup screens rather than high-density dashboards. The value is practical availability and common size, not premium outdoor readability.

Interface Confirmation

The product title refers to RGB, but the public attribute table leaves interface blank. Treat the interface as an RFQ confirmation item. Ask LCDind to confirm pinout, voltage, timing, FPC direction, connector and backlight circuit. If the host uses HDMI, LVDS or MIPI, this page may not be the correct direct-fit product.

Brightness Boundary

The 350-nit positioning is appropriate for normal indoor or controlled industrial environments. It should not be selected for direct sunlight or bright outdoor kiosks without reviewing high-brightness alternatives. If the display sits behind tinted glass, a thick lens or a sealed cover, test the final optical stack.

No-Touch Design

The public attributes list no touch. This is suitable for devices using buttons, keypads, membrane switches, encoders or external controls. If touch is required, define technology, cover glass, controller, ESD, bonding and UI target size separately. Adding touch to a standard-brightness display may reduce effective readability.

Mechanical Planning

The public data shown for this page is attribute-level rather than a detailed drawing table. Before tooling, request outline, active area, thickness, FPC position and mounting information. Designing a bezel from size alone can cause active-area misalignment or cable clearance issues.

Procurement Positioning

This page should serve buyers who need a standard 7 inch equipment HMI and are prepared to confirm missing details. It is not a final approval datasheet by itself. The RFQ should collect application, host interface, enclosure drawing, brightness environment, touch plan and forecast so LCDind can confirm suitability.

Production Control

Once approved, record the confirmed model, drawing, RGB configuration if applicable, brightness, no-touch status and inspection criteria. If a lower-cost substitute is proposed, compare interface, active area, outline, brightness and temperature before approval. The URL and headline should not be used as the only product definition.

Missing Detail Closure

Because this page has only attribute-level public data, the RFQ must close the gaps before any production decision. Interface, drawing, active area, outline, FPC direction, LED lifetime and exact model should be confirmed by LCDind. The public URL should be treated as a selection lead, not a complete datasheet.

Standard HMI Validation

For a 350-nit standard display, validation should focus on indoor readability, UI contrast, front-lens loss, cable fit and long-duration operation. It is a practical option for equipment panels, but not an outdoor sunlight display. The buyer should compare high-brightness pages if the equipment may be used near windows or outdoors.

Procurement Decision Point

Choose this page when the buyer needs a standard 7 inch 800×480 equipment HMI and wants OEM configuration support. If the project has strict interface, touch or brightness requirements, collect those details in the RFQ first so LCDind can confirm whether this module or another 7 inch family is the better match.

Sample Acceptance Evidence

Once LCDind confirms the missing data, the buyer should keep the confirmed model, drawing, interface, active area, powered sample photos and inspection limit in the sourcing file. Without those records, the page remains too generic for repeat production and future substitute review.

Common Misuse Risk

The main risk is treating the attribute table as a full specification. For this page, the missing drawing and interface details are the decision points. The buyer should not cut a front lens, design the PCB or approve a purchase order until those values are confirmed.

RFQ Checklist

• Confirm display interface, RGB pinout if applicable, voltage, timing, connector, FPC direction and backlight control.
• Mechanical drawing, active area, outline, thickness, front window and cable route.
• Brightness environment, no-touch or touch requirement, operating temperature and duty cycle.
• Sample quantity, annual forecast, target cost, inspection standard and approved substitute policy.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, touch or no-touch requirement, operating environment, controller-board scope, supply quantity and inspection criteria. This keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is the interface confirmed in the table?

No. The title indicates RGB, but the public attribute table leaves interface blank, so RFQ confirmation is required.

Is touch included?

No. The public attributes list no touch.

What type of application fits this module?

Standard indoor or controlled equipment HMI pages with 800×480 resolution and moderate brightness.
