7 Inch 800×480 TFT LCD Module for Operator Panels with 350-Nit Class Brightness

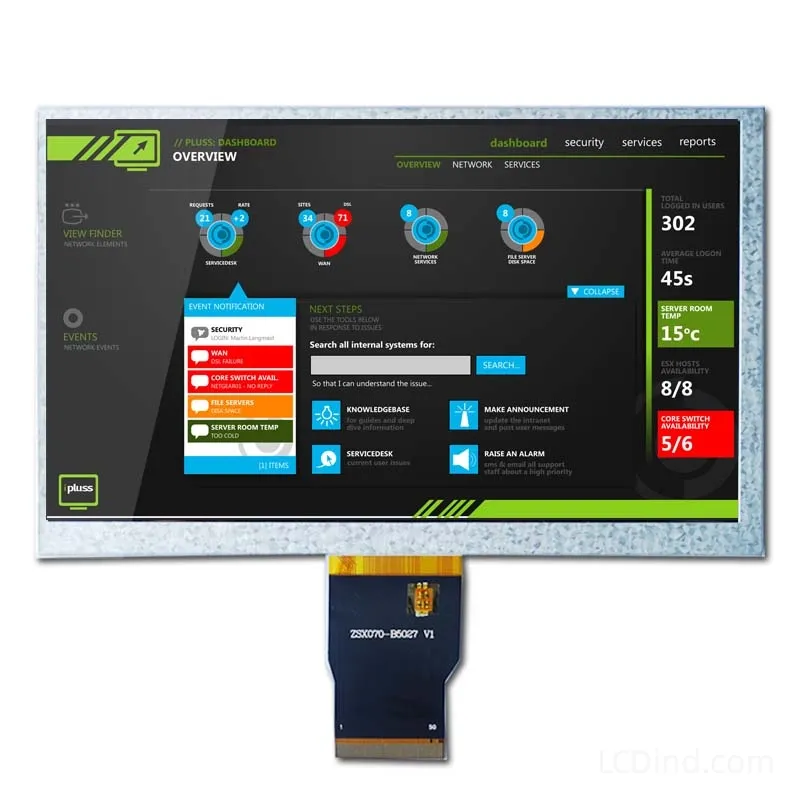

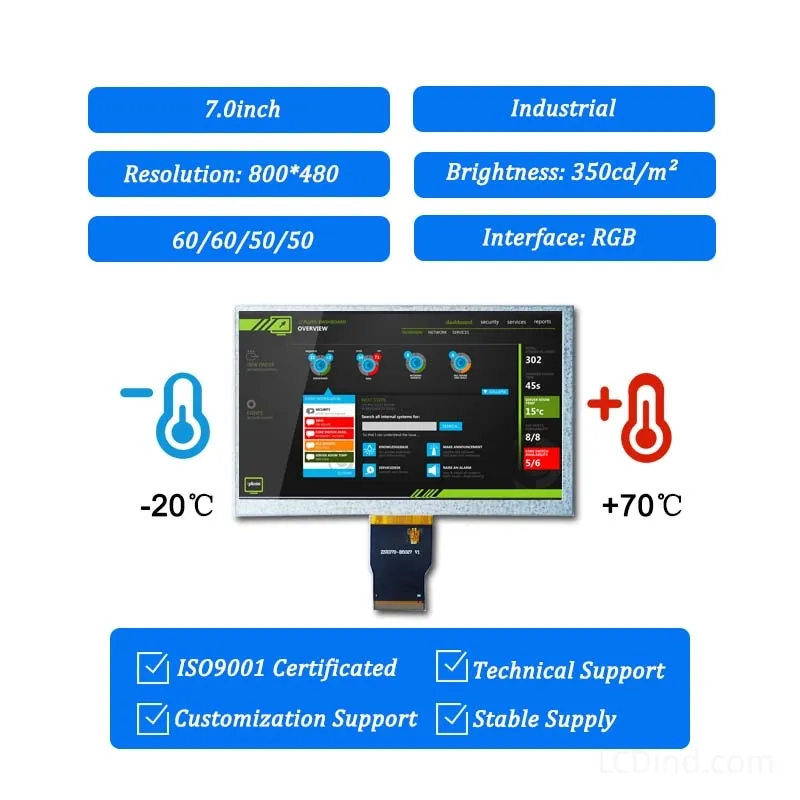

This 7 inch TFT LCD module is a standard operator-panel display candidate for equipment HMIs, service panels, control boxes and OEM terminals that need a common 800×480 landscape layout. The current public attributes confirm 7.0 inch size, 800×480 resolution, standard 200 to 450 nit brightness class with 350-nit positioning in the title, industrial -20 ℃ to +70 ℃ operating range and no-touch configuration. The public table leaves interface and viewing direction blank, while the title indicates RGB, so the exact interface, pinout, active area and drawing should be confirmed before production approval.

Confirmed Product Specifications

Operator Panel Fit

This module is appropriate for simple machine operation pages, numeric settings, warning messages, maintenance menus and local equipment status displays. The 800×480 resolution is common enough for embedded HMIs and lower-cost controller boards, but the UI should use clear text and practical spacing rather than dense dashboards.

Interface Confirmation

Because the table does not fill the interface field, the RFQ must confirm whether the module is RGB and what pinout, voltage, FPC direction, timing and backlight circuit are required. A title-level RGB reference is not enough for PCB design, replacement matching or controller-board selection.

Brightness Boundary

The 350-nit class is suitable for indoor or controlled factory environments. It is not intended for sunlight-readable outdoor terminals. If the equipment is installed near windows, in vehicles or under strong overhead lighting, compare high-brightness 500 or 1000-nit options before lens tooling.

No-Touch Configuration

The product is listed as no touch. That works for panels with keypads, membrane switches, encoders or physical buttons. If a buyer later wants capacitive or resistive touch, LCDind should review cover glass, touch controller, bonding, ESD, grounding and final optical loss as a separate stack.

Mechanical Information Required

This page has limited public mechanical data. Before cutting a window or ordering a sample for tooling, request outline dimension, active area, thickness, FPC exit and mounting guidance. A 7 inch label alone is not enough to design the front panel.

Sample Acceptance Evidence

After LCDind confirms the missing details, keep the drawing, confirmed interface, powered sample photos, brightness check and final UI review in the approval file. This turns a generic operator-panel page into a controlled sourcing item that can be repeated safely.

Common Misuse Risk

The main risk is treating this page as a complete datasheet. It is better used as a selection starting point. Interface, model, drawing and optical data must be closed before PCB layout, lens design or volume purchase.

Where This 7 Inch Module Is Usually Evaluated

For a procurement engineer, this page is most useful when the project already has a 7 inch window size, a moderate indoor brightness requirement and a host platform that can support a raw TFT module rather than a finished monitor. Typical evaluation points include whether the controller board is already defined, whether the display must start reliably after power cycling, whether the backlight dimming range matches the operator environment and whether the no-touch configuration is intentional. These points should be closed before sample comparison because two 7 inch 800×480 modules can still differ in pinout, thickness, FPC direction, color tuning and backlight current.

Procurement and Engineering Decision Path

If the buyer is replacing an existing display, the original drawing and FPC photo are more important than the general size name. If the buyer is designing new equipment, the electrical team should confirm RGB timing and the mechanical team should confirm window tolerance before choosing a supplier. If long-term production is expected, the purchasing team should also ask whether LCDind can support controlled alternatives when the exact panel changes. This reduces the risk of redesign after tooling and gives the RFQ enough information for a realistic quotation instead of a broad catalog answer.

Acceptance Checks Before Volume Use

A practical sample check should include boot stability, backlight uniformity, color readability under the real UI, viewing angle from the operator position, hot and cold start behavior, EMI impact from nearby motors or relays and connector retention after vibration. These checks do not replace a full qualification plan, but they help decide whether this 350-nit class no-touch module is suitable for the equipment. Any change from no-touch to touch, or from indoor to high ambient light, should be treated as a different display stack and requoted.

RFQ Checklist

• Confirm RGB or other interface, pinout, voltage, timing, connector, FPC direction and backlight control.
• Request outline, active area, thickness, drawing, front-window size and cable route.
• State no-touch or touch requirement, brightness environment, operating temperature and duty cycle.
• Provide sample quantity, annual forecast, target cost, inspection criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is the interface fully confirmed?

No. The public table leaves interface blank, so RFQ confirmation is required.

Is touch included?

No. The public attributes list no touch.

Where does this module fit best?

Indoor or controlled operator-panel HMIs that need a standard 7 inch 800×480 display.
