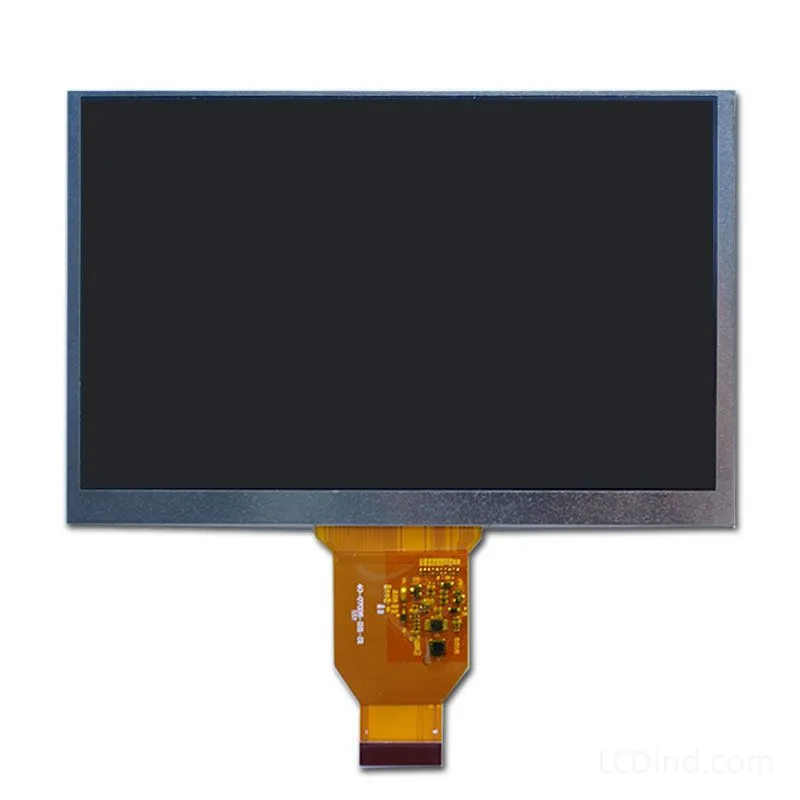

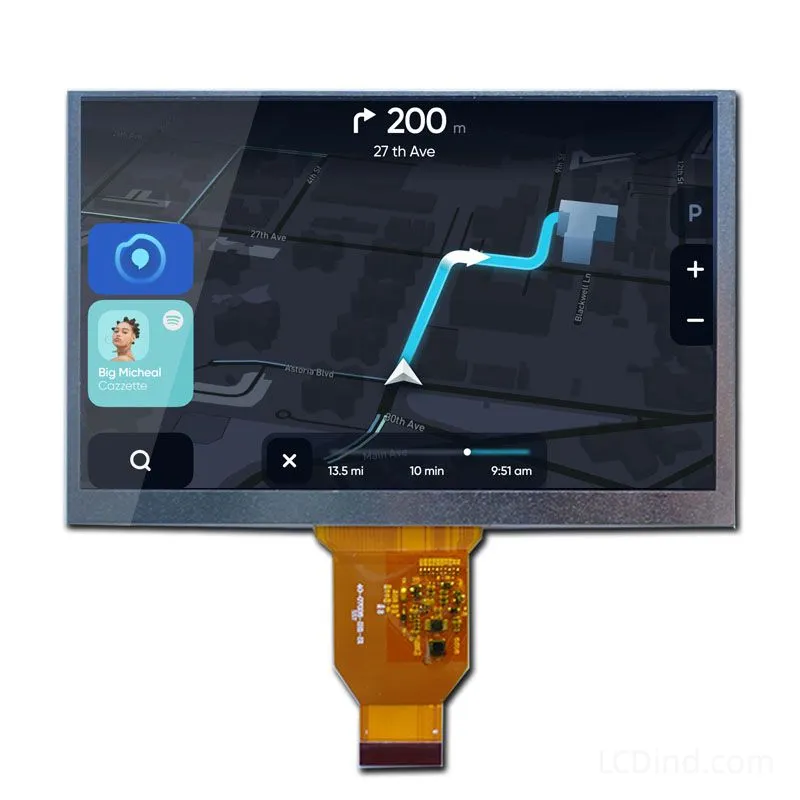

7 Inch TFT Display for Machine Control Panels RGB Interface
7 Inch TFT Display for factory-direct OEM/ODM display programs with 7 inch, RGB, 500 nits, No touch panel in standard configuration. Designed for touch terminals, access control panels, service consoles, and interactive machine interfaces, with LCDind support for samples, customization, and repeat production.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Interface | |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Direction |
7 Inch TFT Display for Factory Direct OEM/ODM Programs
7 Inch TFT Display from LCDind is prepared for engineering teams and procurement managers that need a production-ready display source for commercial equipment programs with 7 inch, 800×480, RGB, 500 nits. It is built for OEM/ODM programs that need factory-direct LCD sourcing, engineering confirmation, customization options, and repeatable delivery for commercial products. Before sample approval, LCDind helps confirm the display size, host interface, brightness target, touch stack, operating temperature, and repeat-supply plan.

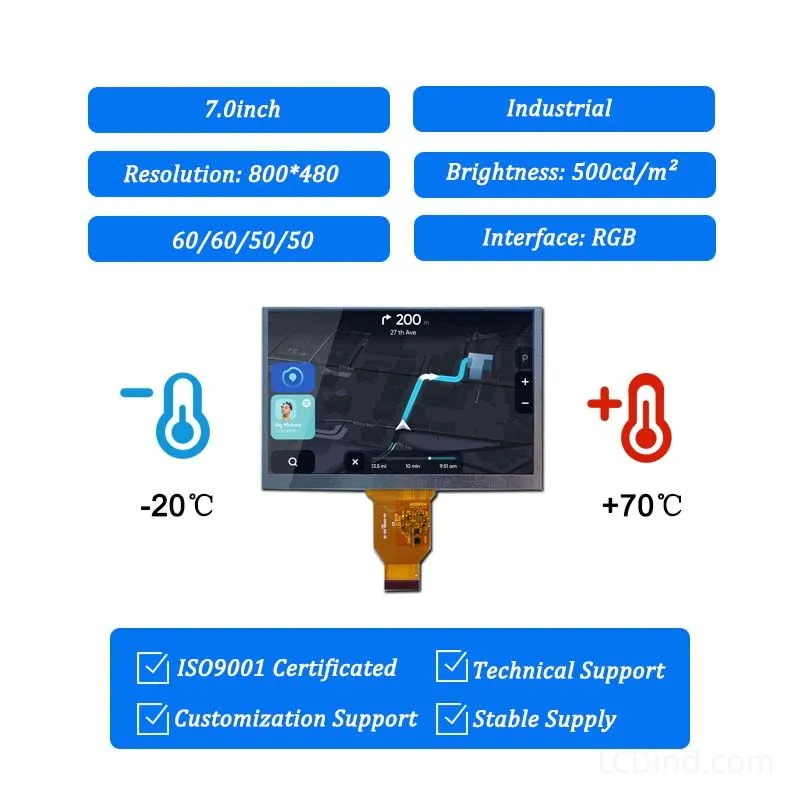

Key Specifications
| Size | 7 inch |
|---|---|
| Resolution | 800×480 |
| Interface | RGB |
| Brightness | 500 nits |
| Viewing Direction | 6 o’clock |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | -20 to +70°C |
| Storage Temp | -30 to +80°C |
| Outline Dimension | 163.2*104*3.4 mm |
| Active Area | 152.4*91.44 mm |
| Contrast Ratio | 500:1 |
| Power Supply | 3.3V |
| LED Lifetime | 20000 hours |
| Panel Model | 90-07026-IH1 |
Size, Interface, Brightness & Touch Fit
The 7 inch active format gives OEM teams a practical display area for operator panels, service terminals, control boxes, and portable industrial equipment. The RGB/TTL interface works well with MCU and embedded controller designs that need direct parallel display control and stable timing validation. The 500 nits brightness level is suitable for bright indoor equipment and controlled-light terminals, with optional upgrades available when the project needs stronger daylight readability. The standard configuration is supplied without a touch panel, which is useful for display-only devices or projects that plan a separate keypad, cover lens, or custom touch stack.

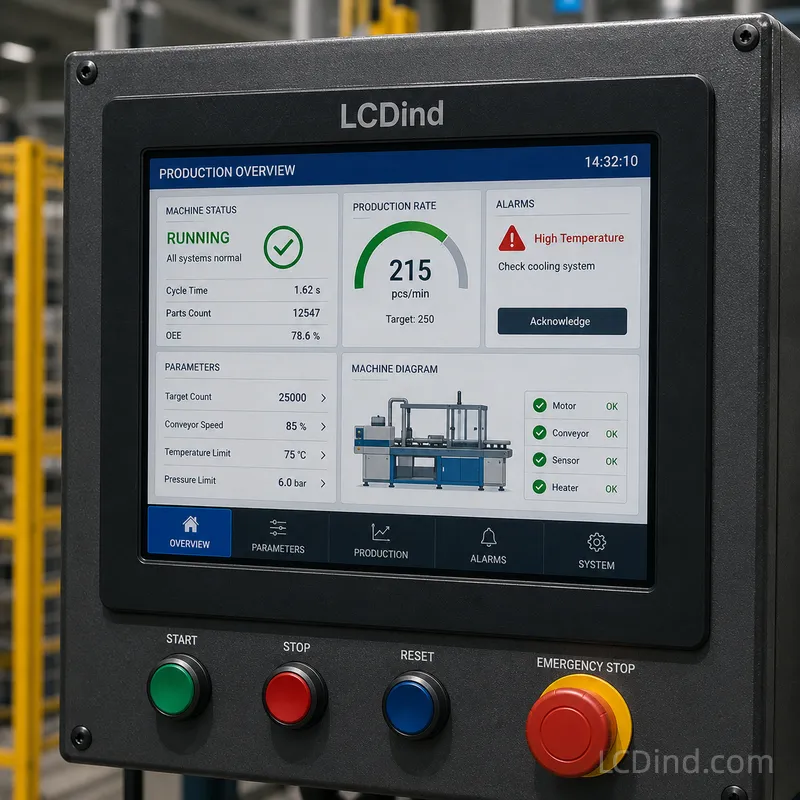

Application Fit
This 7 inch TFT display is a good candidate for touch terminals, access control panels, service consoles, and interactive machine interfaces. LCDind can support project review for enclosure constraints, target annual quantity, interface compatibility, backlight lifetime, cover glass, touch integration, and production schedule.
Factory Customization & Procurement Support
For OEM/ODM projects, LCDind factory support may include brightness adjustment, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, controller-board matching, and lifecycle review. Share the application, forecast quantity, target price range, schedule, host platform, and any existing panel model when requesting a quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Interface | |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Direction |
Q: What type of equipment project is this 7 inch TFT LCD Module 800x480 RGB suitable for?
A: This 7 inch TFT display is best considered for touch terminals, access control panels, service consoles, and interactive machine interfaces. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The RGB/TTL interface works well with MCU and embedded controller designs that need direct parallel display control and stable timing validation. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The 500 nits brightness level is suitable for bright indoor equipment and controlled-light terminals, with optional upgrades available when the project needs stronger daylight readability. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: The standard configuration is supplied without a touch panel, which is useful for display-only devices or projects that plan a separate keypad, cover lens, or custom touch stack. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature -20 to +70°C, certification needs, delivery schedule, and whether pre-production samples are required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
