7 Inch Capacitive Touch Display for Equipment Control Terminals

7 Inch 800×480 Capacitive Touch Display for Equipment Control Terminals

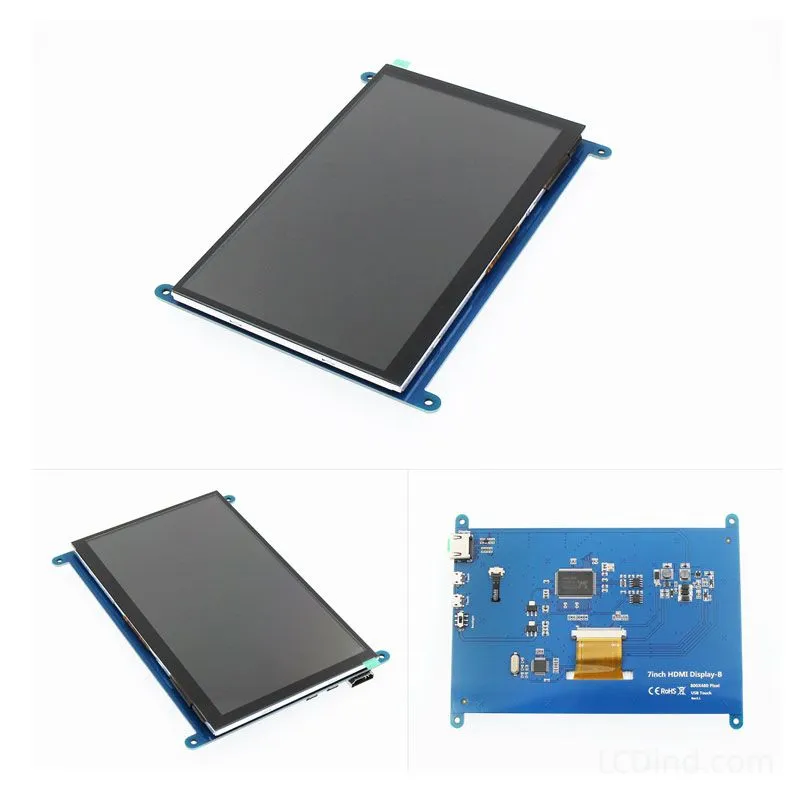

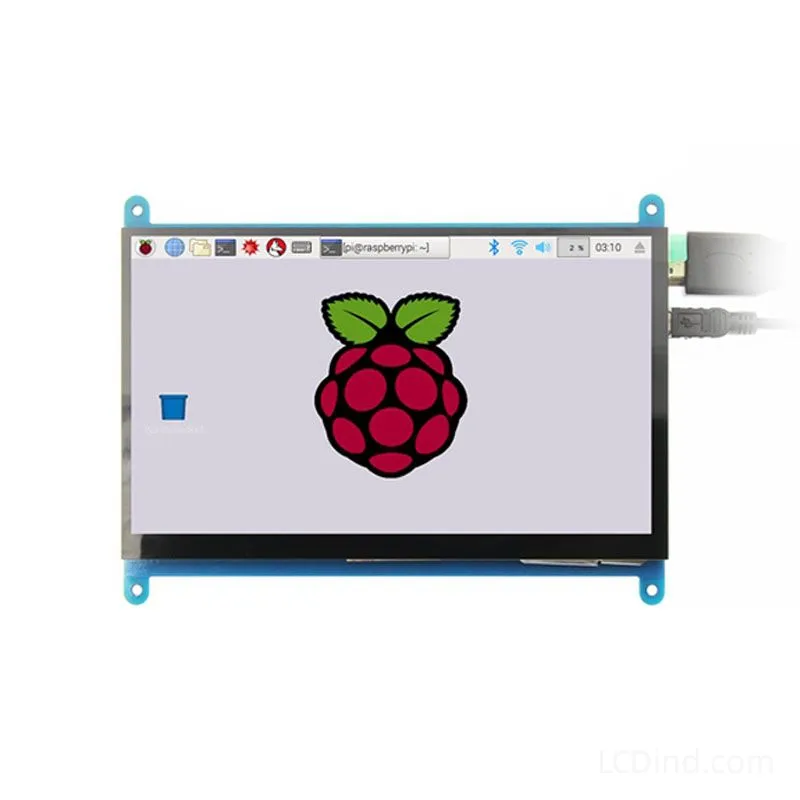

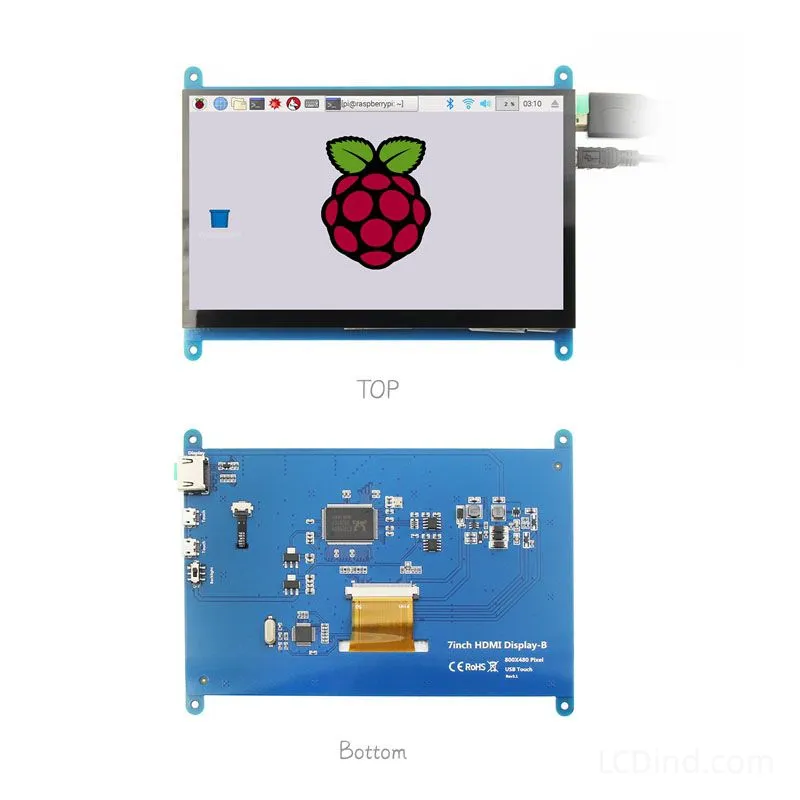

This 7 inch capacitive touch display is positioned for equipment control terminals and OEM control-panel programs that need a 7 inch touch interface. The confirmed public data lists 7 inch size, 800×480 resolution, capacitive touch panel, 164.9×124.27 mm outline dimension, 153.84×85.63 mm active area, 0.74A×5V power data, and LCDind model LCDind-DS20196. The public table does not confirm display interface, brightness, operating temperature or LED lifetime, so those values should be requested before production selection.

Confirmed Product Specifications

Control Terminal Fit

This display is relevant for machine controllers, gateway panels, test equipment, small industrial terminals, building-control devices and embedded HMIs where operators interact directly with a 7 inch screen. The 800×480 resolution supports practical control pages, numeric values, alarm lists, setup menus and basic graphics without the cost and processing load of higher-resolution panels.

Capacitive Touch Integration

The confirmed capacitive touch panel provides a glass-style input surface suitable for finger operation. Engineers should confirm touch controller interface, driver support, ESD target, grounding, cover-glass thickness, glove requirement and wet-touch behavior. PCAP touch should be tested after enclosure assembly because grounding and front lens can change touch stability.

Missing Interface and Brightness

The public table leaves interface and brightness blank. These are critical RFQ items, not minor omissions. The buyer should state whether the host expects HDMI, RGB, LVDS, MIPI, USB touch, I2C touch or another path. LCDind should confirm the display driving method and optical value before the buyer finalizes the PCB or front window.

Power and System Review

The table lists 0.74A×5V. Confirm whether this value includes display, backlight and touch electronics. Equipment terminals often run continuously, so power supply stability, heat rise, boot recovery and cable retention should be tested. If the product is installed in a cabinet, thermal and noise behavior should be checked with the real power system.

Mechanical Fit

The outline is 164.9×124.27 mm and active area is 153.84×85.63 mm. The front panel should be designed around the active area, touch border, connector clearance, gasket and mounting method. Capacitive touch stacks can be sensitive to pressure and grounding, so mechanical validation should happen with the final enclosure.

Procurement Boundary

Choose this page when the project needs a 7 inch capacitive-touch control surface and is ready to confirm the missing electrical and optical data. If the buyer needs a plug-and-play HDMI touch display, compare the HDMI touch page. If the buyer needs raw panel integration, ask LCDind to confirm the exact display interface first.

Production Acceptance

Sample approval should include display interface confirmation, touch driver, edge touch response, ESD/grounding, brightness confirmation, long-duration operation, power measurement, cable strain and front-lens fit. Missing public fields should be filled from datasheet before pilot build.

Interface Closure

This page has useful mechanical and touch data, but the display interface is blank publicly. The first engineering step is to close that gap. Ask LCDind to confirm whether the product is HDMI, RGB, LVDS, MIPI or another display path, and whether touch output is USB, I2C or another controller interface. This determines host compatibility.

PCAP Reliability Checks

Capacitive touch should be validated with the final front lens, grounding path and enclosure material. Test edge touch, long press, ESD recovery, power cycling and operation near motors or power supplies if those conditions apply. A PCAP module can feel stable on a desk but become noisy after installation in industrial equipment.

Control-Terminal Acceptance

Sample acceptance should use the actual control UI, not only a touch test page. Check button sizes, alarm acknowledgement, numeric entry, screen wake-up and operator flow. If the terminal will be cleaned or used with gloves, define those conditions before selecting the cover stack and touch controller setting.

Procurement Decision Point

This product is appropriate when the buyer wants a 7 inch capacitive touch surface and can close the missing display-interface and optical data through RFQ. It should not be released to tooling from the public page alone. The buyer should request the drawing, interface confirmation, brightness, temperature range and touch controller details before pilot build.

Handling Missing Parameters

Where the public table is blank, the page should guide the buyer to ask the right questions instead of guessing. Interface, brightness, temperature and LED lifetime determine whether this display fits the host board, front panel and operating environment. Recording those answers in the quotation file prevents later disagreement between sourcing, engineering and production teams.

RFQ Checklist

• Host interface requirement, operating system, touch controller path, driver support and cable length.
• Brightness, operating temperature, LED lifetime and power-scope confirmation because these fields are blank publicly.
• Mechanical drawing, cover lens, active-area window, grounding, ESD, gasket and connector clearance.
• LCDind-DS20196 matching need, sample quantity, annual forecast, inspection standard and customization scope.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review interface compatibility, drawing, optical stack, touch requirement, operating environment, controller-board scope, supply quantity and inspection criteria. This keeps the existing product URL intact while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is the display interface confirmed?

No. The public table leaves interface blank, so RFQ confirmation is required.

Is touch included?

Yes. The table confirms a capacitive touch panel.

What must be confirmed before production?

Interface, brightness, operating temperature, touch controller, power scope and mechanical drawing.
