6 Inch 2K Mono LCD 50-Pin | Creality LD-002H Replacement Screen

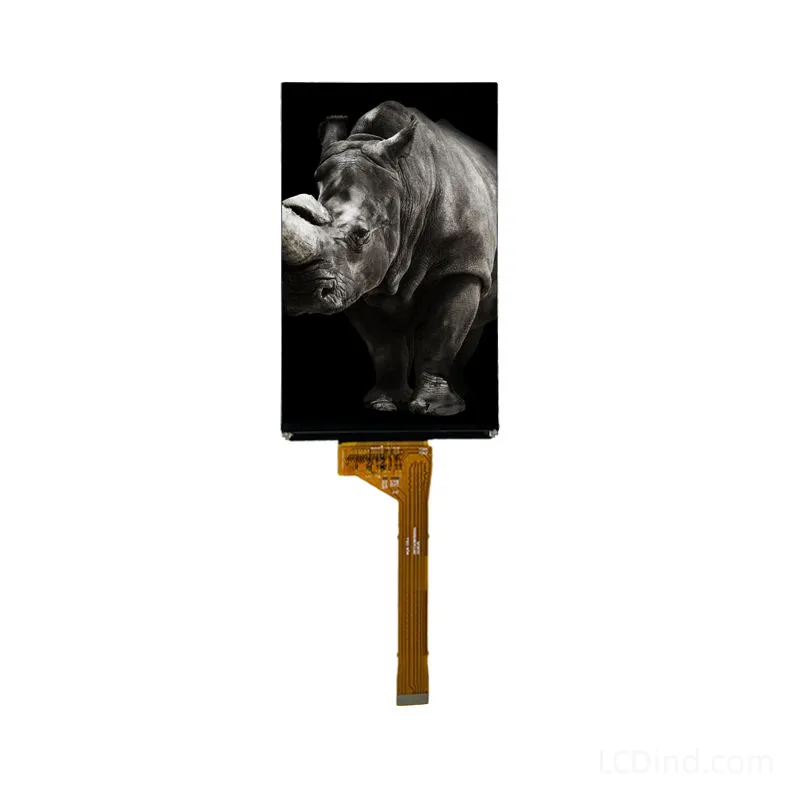

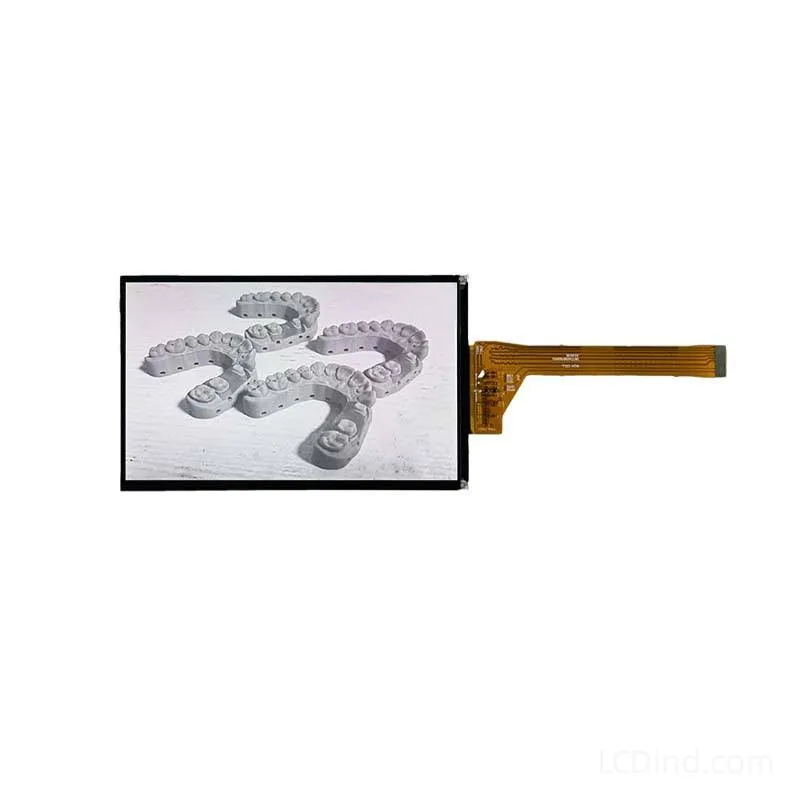

6 inch 2K mono LCD replacement screen with LCD060M2K01 model, 1620×2560 resolution, 50-pin MIPI interface, 81×128 mm active area and open-cell no-backlight structure.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPISpecify MIPI DSI displays by TFT or mono path, resolution, lane count, driver IC, command or video mode, initialization, pinout, touch and annual quantity. |
| Panel Type | IPS |
| Resolution | 1620×2560 |
| Size | 6.0 inch |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Touchscreen | No Touch, Optional Touchscreen |
6 Inch 2K Mono LCD 50-Pin Replacement Screen for Creality LD-002H Review
This 6 inch 2K mono LCD is a 50-pin MIPI replacement-screen candidate for MSLA 3D printer programs, including Creality LD-002H compatibility review. The confirmed public table lists product type IPS TFT mono LCD for 3D printer, model LCD060M2K01, 6 inch screen size, 1620×2560 2K resolution, 81×128 mm active area, 84.6×135.85×1.1 mm outline, 50×50 µm pixel pitch, 50-pin MIPI interface, 4% to 5% UV transmission, 400:1 contrast ratio, 80/80/80/80 minimum viewing angle, normally black display mode, 0 to 70°C operating temperature, and open-cell structure without backlight.
Confirmed Product Specifications
| Product Type | IPS TFT Mono LCD (For 3D Printer) |
| Model Name | LCD060M2K01 |
| Screen Size | 6 Inch |
| Resolution | 1620 x 2560 (2K) |
| Active Area | 81(H) x 128(V) mm |
| Outline Dimension | 84.6(H) x 135.85(V) x 1.1(D) mm |
| Pixel Pitch | 50(H) x 50(V) um |
| Interface | 50 Pins MIPI |
| UV Transmission | 4% ~ 5% |
| Contrast Ratio | 400:1 |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | Normally Black |
| Operating Temp | 0 ~ 70°C |
| Backlight | Without Backlight (Original Open Cell) |
50-Pin Replacement Fit
This product should be considered when the printer platform uses a 6 inch 2K mono LCD with 50-pin MIPI connection. It is not interchangeable with 30-pin versions without engineering review. For Creality LD-002H or any repair program, LCDind should check original screen label, FPC pinout, connector location, mainboard revision, and firmware before confirming supply.
Open-Cell No-Backlight Structure
The table states that the screen is open cell without backlight. That is expected for MSLA printers because the printer provides the UV light engine. Buyers should not evaluate it like a normal display module. The important checks are UV transmission, mask image behavior, glass integrity, active-area fit, heat control and exposure uniformity.
UV Transmission and Exposure
The listed UV transmission is 4% to 5%. That value influences exposure time and resin curing performance. If a printer was originally calibrated for a different screen, test exposure settings, grayscale mask behavior if applicable, and print results before volume ordering. UV intensity, resin type, layer height and screen temperature all affect the final result.
Mechanical and FPC Fit

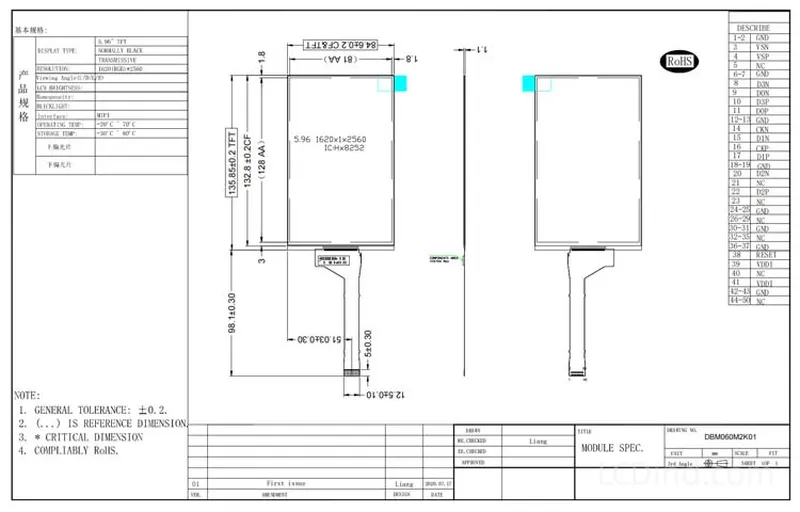

The active area is 81×128 mm and the outline is 84.6×135.85×1.1 mm. These values should match the vat opening, build-area mask, gasket, glass support and cable path. The 50-pin FPC position must be confirmed from photos and drawing because a wrong cable exit can prevent installation even when the glass size is close.
Repair Distributor Controls
For distributors supplying replacement screens, create a compatibility matrix by printer model, mainboard revision, connector type and screen model. Include packaging method, anti-static handling, protective film, installation guidance and claims process. This reduces returns caused by users ordering the wrong 30-pin or 50-pin screen.
OEM Review
For OEM printer development, the screen should be qualified with the UV engine, cooling method, firmware, mechanical stack and expected print profile. Do not rely only on the headline resolution. LCDind can help compare screen alternatives, but each alternative should be checked for interface, active area, UV transmission, contrast and outline.
Decision Boundary
Choose LCD060M2K01 when the project specifically requires a 50-pin MIPI 6 inch 2K mono open-cell screen. Choose the 30-pin page when the hardware uses a 30-pin MIPI path. If the customer is unsure, request photos before quoting.
50-Pin Identification
Before quoting, confirm the 50-pin interface visually. The customer should provide close photos of the FPC tail and mainboard connector, not only the printer model. If the service team cannot confirm the connector, LCDind should treat compatibility as pending. This avoids shipping a correct-resolution screen that cannot connect to the printer.
Replacement Test Procedure
A practical acceptance test should include boot recognition, full-screen mask image, exposure grid, edge uniformity, several sample prints, and inspection after heating from repeated layers. Because this open-cell screen has no backlight, normal display brightness tests are irrelevant; UV mask behavior and mechanical fit are the meaningful checks.
Distributor Notes
Repair distributors should list compatible printer revisions, excluded versions, connector photos and installation warnings in their internal notes. LCDind can support supply, but the distributor still needs a clear compatibility rule for customers. This reduces returns caused by confusion between LD-002H variants and visually similar 6 inch mono screens.
Approval Evidence
Keep the sample approval evidence with the order file: screen label photo, FPC photo, powered mask test, connector confirmation and print-test result. These records make repeat purchasing safer and help LCDind identify whether a later compatibility issue is caused by printer revision, installation damage or screen mismatch.
RFQ Checklist
- Printer model, original LCD model, 50-pin connector confirmation, FPC photos, mainboard revision and firmware.
- UV light source, resin process, exposure settings, cooling, active-area fit and protective glass requirement.
- Dead-pixel and cosmetic criteria, packaging, sample quantity, annual forecast and compatibility matrix needs.
- LCD060M2K01 matching requirement and whether the order is repair distribution or OEM production.
Engineering Review Note
The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review interface compatibility, drawing, optical stack, touch requirement, operating environment, controller-board scope, supply quantity and inspection criteria. This keeps the existing product URL intact while making the page more useful for B2B engineering and sourcing decisions.
Engineering FAQ
Is this the same as the 30-pin 6 inch 2K mono screen?
No. This page lists a 50-pin MIPI interface and should be matched only to compatible hardware.
Does it include backlight?
No. The table states open cell without backlight, which is typical for MSLA printer exposure screens.
What is the UV transmission?
The public table lists 4% to 5% UV transmission.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPISpecify MIPI DSI displays by TFT or mono path, resolution, lane count, driver IC, command or video mode, initialization, pinout, touch and annual quantity. |
| Panel Type | IPS |
| Resolution | 1620×2560 |
| Size | 6.0 inch |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Touchscreen | No Touch, Optional Touchscreen |
Q: How do I know if I need this 50-Pin screen or the 30-Pin version?
A: The interface pin count is determined by your 3D printer's motherboard. Even if two screens are 6 inches and 2K resolution (1620x2560), the connectors may differ. This 50-Pin MIPI version is specifically required for printers like the Creality LD-002H. Always count the pins or check the shape of your original golden FPC ribbon cable before purchasing.
Q: Does this screen arrive with a backlight module?
A: No. This display is explicitly categorized as "Without backlight, original open cell". It is engineered strictly for resin 3D printing, where it acts as a digital UV mask and sits directly on top of your printer's powerful built-in UV LED array.
Q: Will a 400:1 contrast ratio improve my dental prints?
A: Absolutely. A high contrast ratio of 400:1 means the "black" pixels block stray UV light far more effectively than standard screens. For intricate items like dental models that require perfectly sharp margins and clean gaps, preventing light bleed is essential to maintaining dimensional accuracy.
