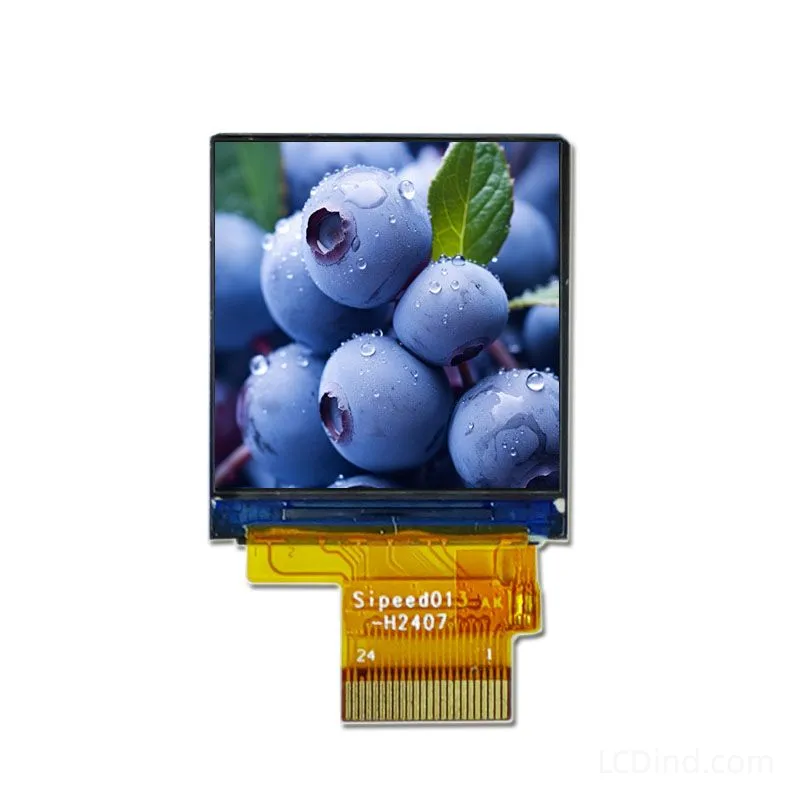

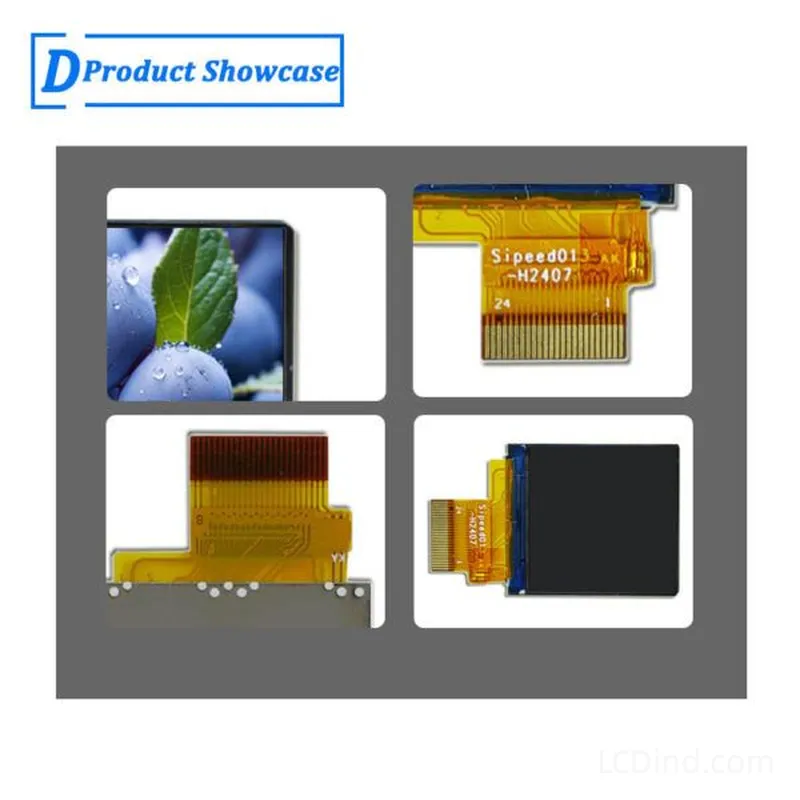

1.3 Inch TFT LCD Module for Compact Square Displays
1.3 inch TFT LCD module for compact square displays, with 240×240 resolution, MCU interface, 300 nits brightness, and OEM customization support.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 1.3 inch |
| Resolution | 240×240 |
| Interface | MCU |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Direction |
1.3 inch TFT LCD module is prepared for compact square displays, compact instruments, embedded controllers, and OEM equipment where screen fit, interface planning, and repeat supply matter. The confirmed configuration includes 1.3 inch size, 240×240 resolution, MCU interface, 300 nits brightness, No touch panel in standard configuration, -20 to +70 C operating range, 3.3V power supply, 20000 LED lifetime. LCDind can support drawing review, display matching, sample evaluation, and repeat production planning before the product moves into tooling or pilot run.
Technical Specifications

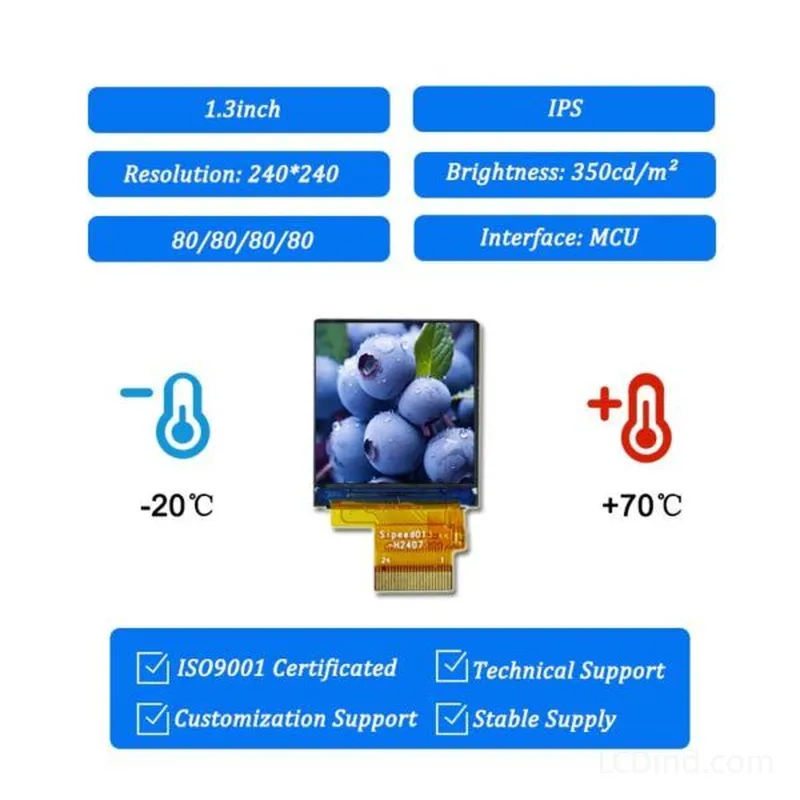

| Size | 1.3 inch |
|---|---|
| Resolution | 240×240 |
| Interface | MCU |
| Brightness | 300 nits |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | -20 to +70 C |
| Outline Dimension | 26.2 x 29.2 x 1.85 mm |
| Active Area | 23.4 x 23.4 mm |
| Power Supply | 3.3V |
| LED Lifetime | 20000 |
| Panel Model |
Mechanical Fit

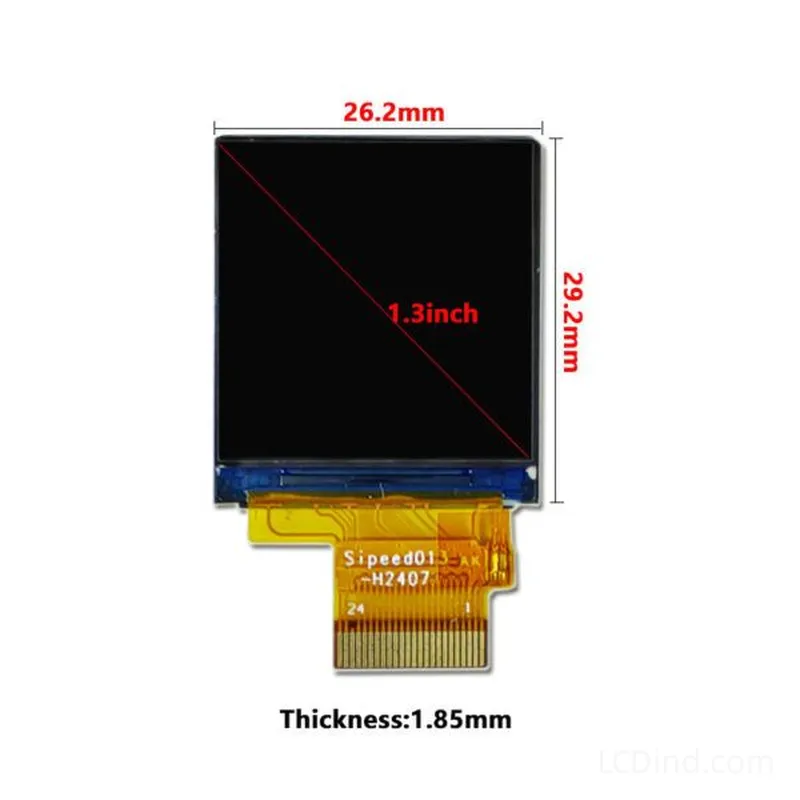

The module outline is 26.2 x 29.2 x 1.85 mm and the active area is 23.4 x 23.4 mm. Check the bezel window, gasket margin, FPC bend radius, connector clearance, screw posts, and cover lens stack before sample approval. These details reduce redesign risk when the enclosure is already fixed.
MCU Interface Planning
The MCU interface should be reviewed against the host board, timing, pin assignment, voltage, cable route, and EMC target. This 1.3 inch TFT LCD module works best when display timing, FPC direction, firmware support, and future customization needs are confirmed early.
Customization Options
LCDind supports OEM and ODM customization for this 1.3 inch TFT LCD module, including backlight brightness adjustment, FPC length, connector direction, cover glass, resistive or capacitive touch, logo printing, anti-glare treatment, optical bonding review, packaging, and inspection standards for production batches.
Typical Applications
This module is suitable for compact square displays, industrial instruments, compact control panels, handheld devices, smart terminals, sensor displays, test equipment, and embedded products where procurement teams need stable supply instead of a one-time hobby screen.
RFQ Checklist
For quotation, send target quantity, annual forecast, enclosure drawing, required interface, brightness target, touch or cover lens plan, operating environment, logo requirement, and any existing panel that must be matched. These details help LCDind confirm whether this 1.3 inch TFT LCD module is ready for sampling or needs customization first.
FAQ
Can this 1.3 inch TFT LCD module be supplied with a touch screen?
The standard listing is No touch panel in standard configuration. LCDind can review resistive touch, capacitive touch, cover lens, bonding, and controller matching when the finished device needs operator input.
What customization options are available for this display?
Common custom work includes brightness tuning, FPC length, connector direction, cover glass, logo placement, touch integration, bonding, packaging, and production inspection requirements.
How should the MCU interface be confirmed?
Confirm timing, pinout, voltage, cable direction, firmware support, and EMC layout with the host board before sample approval. LCDind can review drawings and interface notes before production.
Can the brightness be adjusted for a different environment?
The confirmed brightness is 300 nits. If the display is used behind cover glass or in stronger ambient light, share the target environment so LCDind can review backlight and thermal options.
What information should buyers send for an RFQ?
Send quantity, forecast, interface, mechanical drawing, brightness target, touch requirement, operating temperature, logo needs, and any current panel model or datasheet.
Is this display suitable for outdoor equipment?
This module is mainly for compact equipment and controlled-light use. For outdoor or direct-sunlight projects, LCDind should review brightness, cover glass, bonding, thermal design, and sealing requirements first.
| Brand | OEM / ODM |
|---|---|
| Size | 1.3 inch |
| Resolution | 240×240 |
| Interface | MCU |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Direction |
Q: Can this 1.3 inch TFT LCD module be supplied with a touch screen?
A: The standard listing is No touch panel in standard configuration. LCDind can review resistive touch, capacitive touch, cover lens, bonding, and controller matching when the finished device needs operator input.
Q: What customization options are available for this display?
A: Common custom work includes brightness tuning, FPC length, connector direction, cover glass, logo placement, touch integration, bonding, packaging, and production inspection requirements.
Q: How should the MCU interface be confirmed?
A: Confirm timing, pinout, voltage, cable direction, firmware support, and EMC layout with the host board before sample approval. LCDind can review drawings and interface notes before production.
Q: Can the brightness be adjusted for a different environment?
A: The confirmed brightness is 300 nits. If the display is used behind cover glass or in stronger ambient light, share the target environment so LCDind can review backlight and thermal options.
Q: What information should buyers send for an RFQ?
A: Send quantity, forecast, interface, mechanical drawing, brightness target, touch requirement, operating temperature, logo needs, and any current panel model or datasheet.
Q: Is this display suitable for outdoor equipment?
A: This module is mainly for compact equipment and controlled-light use. For outdoor or direct-sunlight projects, LCDind should review brightness, cover glass, bonding, thermal design, and sealing requirements first.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
