1.8-Inch SPI TFT Display for Control Status Panels

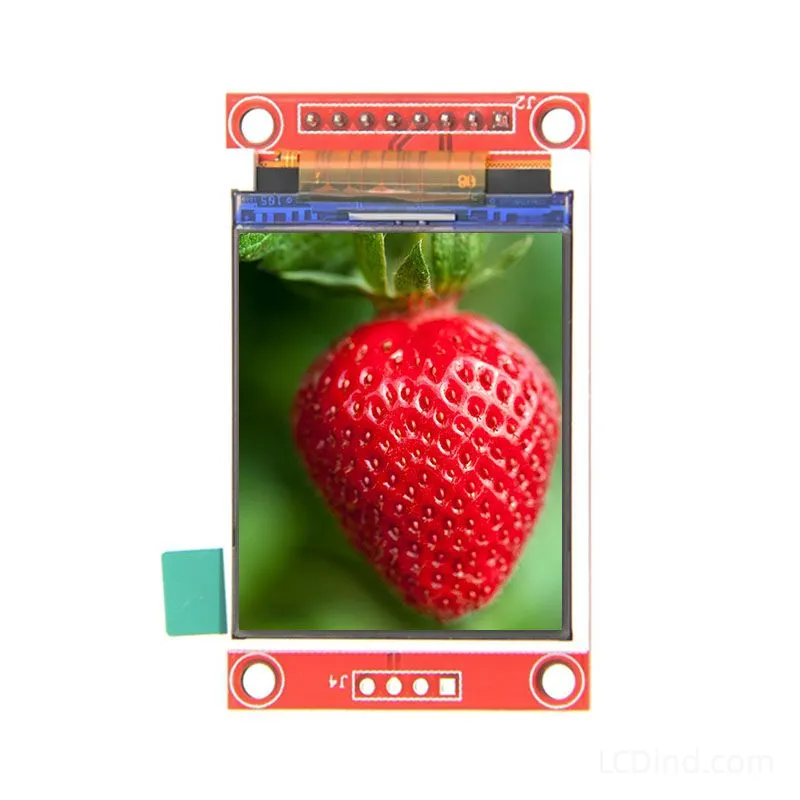

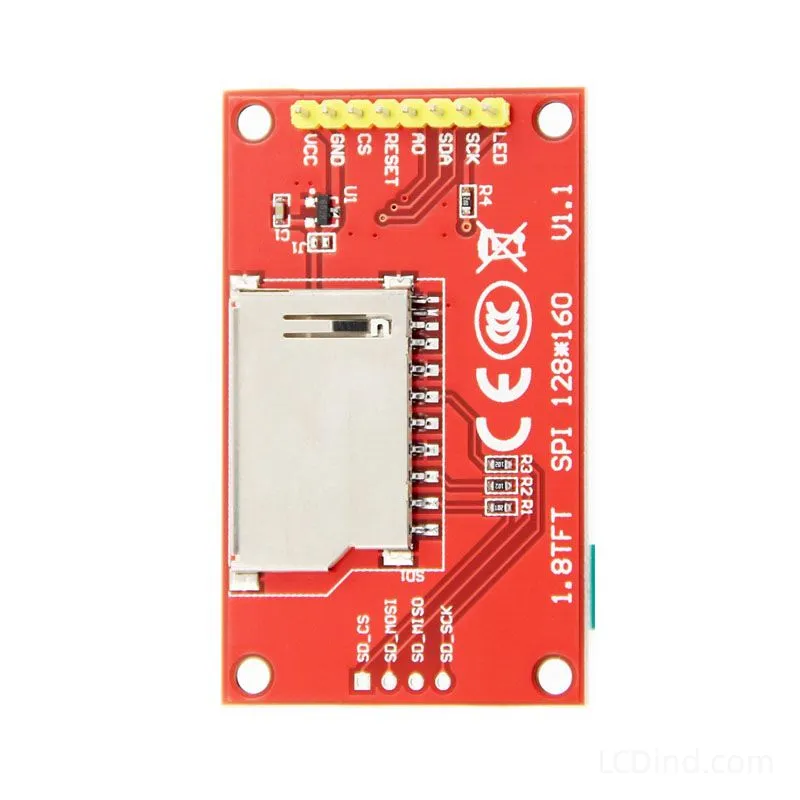

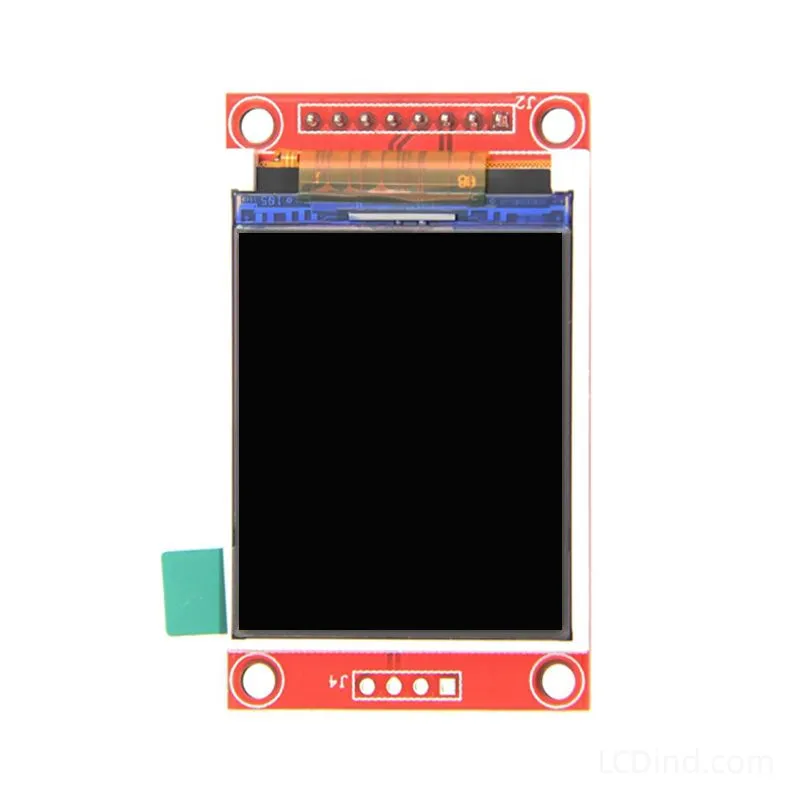

This 1.8 inch SPI TFT display is prepared for control status panels where an OEM needs a compact color screen to replace simple LEDs, labels, or small segmented indicators. The confirmed table data includes 1.8 inch size, 128×160 resolution, 4-wire SPI interface, -20 C~60 C operating range, 34.5 x 58.0 mm outline dimension, 28.03 x 35.04 mm active area, 3.3V power supply, and LCDind model LCDind-DS20207. The page should be evaluated as a B2B equipment component for repeat production, not as a generic small display module.

Technical Specifications

Control Panel Use Case

A control status panel usually needs clear state communication: run, stop, warning, fault, maintenance, mode, and setpoint information. This display gives the product team more flexibility than fixed printed labels because firmware can adjust languages, icons, and product variants without changing the mechanical panel. The 128×160 resolution is enough for a focused screen if the UI uses large values, high-contrast icons, and short labels.

Mechanical Fit

The 34.5 x 58.0 mm outline should be reviewed against the front panel cutout, PCB position, fasteners, gaskets, and connector direction. The 28.03 x 35.04 mm active area should drive the visible window and artwork layout. If the screen sits behind an overlay or protective window, check display alignment and readability through the final material before approving tooling.

Interface and Firmware

The 4-wire SPI interface is suitable for status screens that do not need high data bandwidth. Engineers should validate SPI timing, display rotation, initialization sequence, and alarm-state refresh behavior. For control panels, the most important requirement is dependable state display after power cycling, relay switching, communication loss, or low-voltage events.

Industrial Reliability Review

The listed -20 C~60 C operating range supports many control-panel environments, but the final equipment may still need thermal review if mounted in a sealed cabinet or near power electronics. The host board should confirm 3.3V power, backlight control, and signal integrity. If the display is near motors, relays, or long cable harnesses, EMC layout should be reviewed during sample testing.

Procurement Guidance

Use LCDind-DS20207 as the product reference. Procurement should request drawing confirmation, sample lead time, annual volume support, packaging standard, and inspection criteria. For status panels, buyers should define acceptable pixel defects, color consistency, alignment, and startup behavior because the display is directly tied to operator trust.

Customization Options

LCDind can review FPC changes, connector direction, cover glass, membrane overlay, brightness target, bonding, and packaging. If the final panel has a fixed opening, include the panel CAD and UI mockup in the RFQ so the display can be checked as part of the complete control assembly.

How to Use 128×160 Resolution Effectively

The 128×160 resolution should be treated as a focused operator-information space. It works best when the screen shows one major value or state at a time, supported by a small number of icons and short labels. It should not be overloaded with dense tables, long multilingual instructions, or miniature trend charts. For control panels, the goal is reliable operator recognition, not decorative UI. A practical layout may use large status colors, a clear fault symbol, and a short line of text that can be read quickly from the normal operating position.

Panel-Level Design Considerations

Control panels often use overlays, gaskets, bezels, or acrylic windows. These materials can reduce contrast, create reflections, or shift the apparent active area. The display should be tested after it is mounted behind the final panel material. If the product has a sealed front, avoid applying pressure directly to the display glass. Mounting method, screw positions, adhesive thickness, and cable strain relief should be reviewed as part of the display decision rather than treated as later assembly details.

Electrical Noise and Field Reliability

Many control panels sit near relays, motors, solenoids, power supplies, or long cable harnesses. Even with a simple 4-wire SPI interface, the final design should validate stable display behavior during switching events, brownouts, and startup sequences. A status display that freezes or shows an old fault state can create operator confusion. The engineering review should include reset behavior and safe display states, especially for equipment used in production lines or service panels.

B2B RFQ Decision Points

For quotation, state whether the display is used for a new control panel, a replacement of a segmented indicator, or a product-family upgrade. Include the panel drawing, mounting method, required operating temperature, and any regulatory or inspection requirement. If the equipment has multiple models, explain whether the same display will be used across the family. This helps LCDind evaluate long-term supply, packaging, and revision-control needs for the production program.

Operator-Trust Detail

For status-panel products, the display is often the operator’s first confirmation that the machine is safe or in fault. Use consistent color states, avoid tiny text, and define what the screen must show if the controller restarts or loses communication.

RFQ Checklist

• Target quantity, annual forecast, and sample schedule.
• Mechanical drawing with active area, outline, mounting, and cable route.
• Host board, interface timing, voltage rails, and controller-board requirement.
• Brightness, lens, bonding, touch, and operating-environment requirements.
• Inspection standard, packaging requirement, and revision-control expectation.

Engineering FAQ

Is this display suitable for full HMI screens?

It is better for control status panels, compact menus, and local indication. Larger displays are more appropriate for full operator workflows.

What should be validated first?

Validate the visible window, SPI initialization, alarm-state rendering, and readability through the final panel material.

Can the interface be changed?

Interface customization may be reviewed, but the confirmed table interface for this product is 4-wire SPI.

What RFQ information is required?

Send target quantity, panel drawing, host board voltage, SPI requirement, operating environment, and any cover or brightness requirement.

Engineering Review Note

For quotation, send the product URL, target application, required quantity, and any existing drawing or replacement panel details. LCDind will review whether the standard configuration fits or whether interface, backlight, FPC, cover glass, touch, bonding, or controller-board customization should be quoted.
