1.69 Inch SPI TFT Display for Portable Industrial Devices

1.69-Inch SPI TFT Display for Portable Industrial Devices

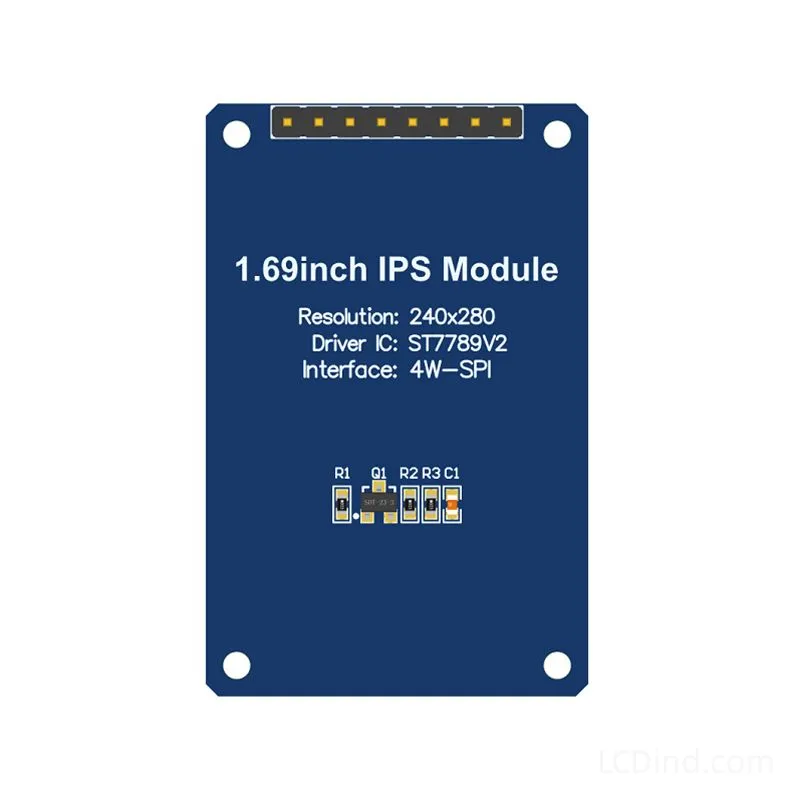

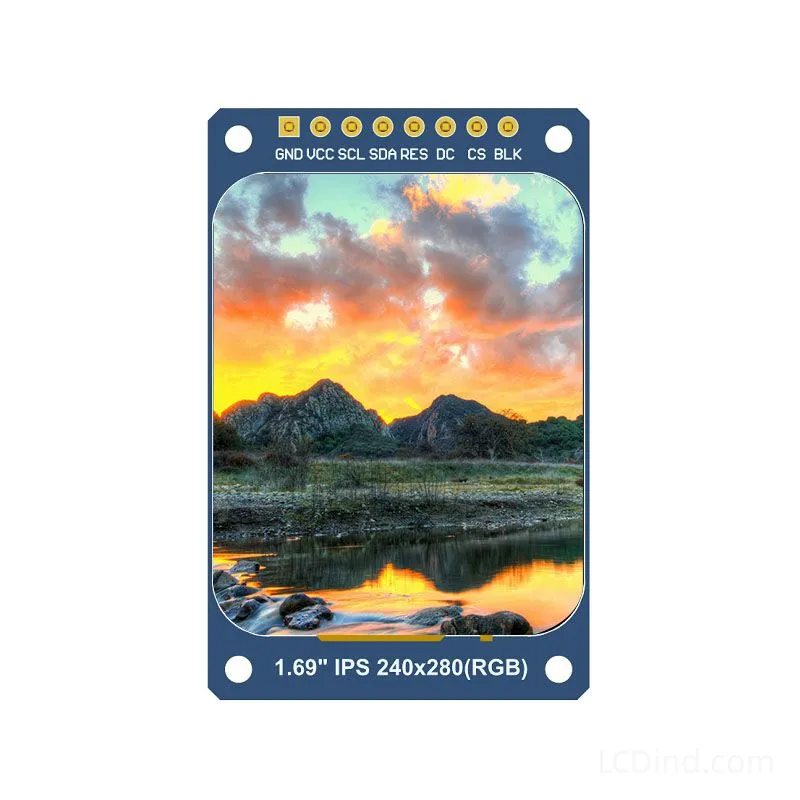

This 1.69 inch SPI TFT display is intended for portable industrial devices that need a slim portrait-style color screen for values, alarms, menus, and service prompts. The confirmed data includes 1.69 inch size, 240×280 resolution, 4-line SPI interface, -10 C~60 C operating range, 31.00 x 48.00 mm outline dimension, 27.972 x 32.634 mm active area, 3.3V power supply, and LCDind model LCDind-DS20206. Brightness, touch, and LED lifetime are not listed in the current table, so they should be confirmed during RFQ rather than inferred from similar products.

Technical Specifications

Portable Device Fit

Portable industrial devices have tighter constraints than fixed control panels. The display must share internal space with batteries, wireless modules, sensor boards, buttons, seals, and protective housings. The 31.00 x 48.00 mm outline should be checked against the actual enclosure rather than only the visible window. The 27.972 x 32.634 mm active area is suitable for compact status screens, short menus, and larger numeric values when the UI is designed for quick reading in the field.

Mechanical and Assembly Checks

Before sample approval, confirm the FPC exit, connector clearance, board-to-cover distance, gasket pressure, and how the display will be handled during assembly. Portable products are often dropped, carried, or used with one hand, so the display stack should avoid pressure points and unsupported corners. If a front lens is added, test the screen through the final lens material and color rather than judging brightness from the bare module.

SPI Integration

The 4-line SPI interface is useful for microcontroller-based products that need a compact display without a wide parallel bus. Engineers should check SPI speed, initialization code, screen orientation, and whether the device can update menus or warning states without visible lag. For battery-powered equipment, backlight control, sleep behavior, and startup recovery should be tested on the final host board.

Application Scenarios

This display can be used in portable testers, inspection tools, compact calibration devices, handheld sensor terminals, field-service products, small data loggers, and industrial accessories. The 240×280 resolution gives more usable UI space than very small 128×128 screens while keeping the display compact. It is a practical choice when the product needs a professional local interface but cannot allocate space for a larger 2.4 inch or 3.5 inch module.

Procurement and Risk Control

Use LCDind-DS20206 as the engineering reference. Procurement should request confirmation for blank brightness, touch, and LED lifetime values, plus sample schedule, revision control, packaging, and annual demand. If the equipment will be sold for several years, discuss long-term availability and replacement strategy before the display is locked into the enclosure.

Customization Scope

LCDind can review FPC length, connector direction, cover lens, surface treatment, brightness target, bonding, packaging, and inspection standard. For portable industrial devices, also provide information about operating environment, sealing, drop exposure, and battery power behavior. These details help determine whether the standard module is sufficient or whether a customized stack should be quoted.

Why This Page Uses a Portable-Device Positioning

The 1.69 inch 240×280 format gives a different design opportunity from the 1.8 inch and 1.9 inch products in this batch. It provides enough vertical and horizontal room for a compact dashboard without forcing a large housing. For portable equipment, this can support a main reading, a mode label, a warning symbol, and a small menu footer. The value is not only diagonal size; it is the balance between active area, outline dimension, and simple 4-line SPI integration in a 3.3V embedded design.

Readability and Power Questions to Resolve

Because the current table does not confirm brightness or LED lifetime, the buyer should not assume the same optical performance as another similar-looking small TFT. For battery-powered or field-carried products, the backlight target and duty cycle should be confirmed early. A bright display improves usability, but it can also affect battery runtime and internal temperature. If the device has a sleep mode, wake screen, or low-power service mode, the display behavior should be tested in the final firmware rather than only on a bench demo.

Commercial Fit for OEM Programs

This module is most useful for OEM programs that need a repeatable display component and engineering support during integration. It is less suitable for one-time repair purchases where the buyer cannot provide a drawing or validate the interface. For B2B sourcing, the RFQ should state whether the product is a new design, a replacement, or a redesign of an existing portable device. LCDind can then review whether the standard LCDind-DS20206 configuration is a direct fit or whether mechanical and optical customization should be discussed.

Sample Review Criteria

During sample review, check UI legibility, color consistency, backlight level, display sleep recovery, FPC bending, connector retention, and enclosure pressure. The 31.00 x 48.00 mm outline should be verified with tolerance in mind, especially if the display is mounted close to a battery or plastic ribs. If the finished device will be used with gloves, buttons, or membrane keys, confirm that the display area and control positions work together as one operator interface.

RFQ Checklist

• Target quantity, annual forecast, and sample schedule.
• Mechanical drawing with active area, outline, mounting, and cable route.
• Host board, interface timing, voltage rails, and controller-board requirement.
• Brightness, lens, bonding, touch, and operating-environment requirements.
• Inspection standard, packaging requirement, and revision-control expectation.

Engineering FAQ

Can this display be used outdoors?

It can be reviewed for outdoor or field use, but brightness is not listed in the current table. Outdoor readability should be confirmed with the target lens, ambient light, and thermal conditions.

Is touch included?

The touchscreen field is blank, so touch should be treated as a separate RFQ requirement.

What does the 240×280 resolution support?

It supports compact menus, values, icons, alarms, and short status pages in a portable device UI.

What should be sent for quotation?

Send the enclosure drawing, host board details, SPI requirement, target quantity, operating environment, and any lens or brightness requirement.

Engineering Review Note

For quotation, send the product URL, target application, required quantity, and any existing drawing or replacement panel details. LCDind will review whether the standard configuration fits or whether interface, backlight, FPC, cover glass, touch, bonding, or controller-board customization should be quoted.
