Are all products in this category automotive qualified?

No. The category groups modules relevant to dashboard and transport projects. Qualification, temperature, vibration, documentation and lifecycle must be verified for the exact model and program.

Is FPD-Link included with every automotive LCD?

No. Many panels expose LVDS, eDP or MIPI directly. A serializer/deserializer board and cable may be a separate system requirement.

What temperature range should be specified?

Use the component location and real thermal profile, not only ambient temperature. Panel surface temperature can rise under solar load, while cold-start behavior may set a separate limit.

Automotive LCD Display Modules | 7–15.6 Inch, LVDS & Touch

LCDind sourcing guide

Automotive LCD Module Selection & RFQ Guide

An automotive display shortlist must start from the installation position, host architecture, optical target, temperature profile, vibration environment, touch stack, lifecycle plan, and validation responsibility. For dashboards and instrument clusters, compare the exact resolution and outline, LVDS or selected FPD-Link implementation, connector and timing, sunlight readability, cold-start behavior, In-Cell or PCAP integration, and model-specific qualification evidence.

Display formats

Available options include 7 to 15.6 inch modules, 10.25 and 12.3 inch wide formats, and 1920x720 resolutions for clusters and center displays.

Signal and touch

Compare LVDS and selected FPD-Link solutions with In-Cell or PCAP touch; confirm connector, pin definition, host compatibility, and touch-controller requirements.

Environment and validation

Selected models support up to 1000 nits and -30°C to +85°C. Verify the exact datasheet, qualification scope, lifecycle, vibration context, and sample test plan before design-in.

Engineering Specification Matrix
Size / mechanics	Common catalog options span 7–15.6 inch, including wide 10.25 and 12.3 inch formats; verify the exact drawing.
Resolution	1920×720 is common for wide clusters, while other native formats depend on display position and host design.
Interface	LVDS and selected FPD-Link solutions require exact serializer, mapping, connector, timing and EMC review.
Brightness	Selected models reach 1000 nits; sunlight readability still depends on reflection, contrast, dimming and thermal control.
Temperature	Model-specific limits may reach −30℃ to +85℃; define cold start, solar load, soak and cycling conditions.
Touch	In-Cell or PCAP options require controller, cover stack, glove/water behavior and display-host integration review.
Lifecycle / sourcing	Confirm qualification scope, change notification, traceability, model status, forecast and approved alternative process.

Procurement Inputs to Confirm

Size, active area, outline dimension, and installation space
Resolution, interface, pin count, and host/controller compatibility
Brightness target, viewing angle, touch requirement, cover glass, and bonding
Operating temperature, lifecycle risk, sample need, target price, and annual quantity

Temperature & Vibration Requirements High Brightness LCD Modules Custom TFT LCD Manufacturer Send Drawing / Request Datasheet Panel Brand Sourcing

Showing 25–25 of 25 results

Show sidebar

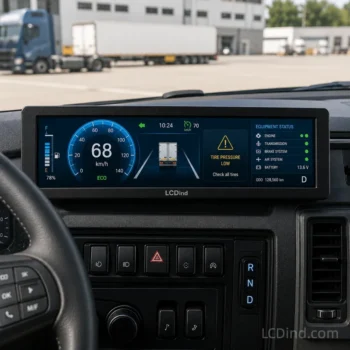

11.6 inch Bar Type LCD Display 1768x828 LVDS front LCD module product view
