Custom TFT LCD Module

Custom TFT LCD Display Manufacturer

LCDind’s catalog is suitable for OEM teams because 104 exported products already include interface data and 53 rows include touch or touch-ready information. That makes custom review faster: LCDind can start from a real module, then adjust FPC, backlight, cover glass, touch, coating, bonding, or controller matching.

Request Datasheet / Get QuoteSend Custom Requirement
104products with interface data
100products with size data
53touch / touch-ready rows
13OEM / ODM brand rows
LVDS (39), MIPI (26), eDP (13), RGB / TTL (12), SPI (6), HDMI (2)interfaces for custom matching

Customization starting point

Instead of starting from a blank design, LCDind can select a close standard module from the catalog and review FPC routing, pin definition, brightness, touch sensor, cover glass, AG/AR/AF coating, and bonding.

What the catalog proves

Exported products cover 7.0 inch (15), 10.1 inch (12), 15.6 inch (9), 12.3 inch (8), 10.3 inch (3), 6.8 inch (3); interfaces include LVDS (39), MIPI (26), eDP (13), RGB / TTL (12), SPI (6), HDMI (2). This helps Google and AI assistants understand LCDind as a practical custom TFT LCD manufacturer, not just a generic supplier.

Best-fit projects

Industrial controllers, medical instruments, portable devices, EV charging terminals, outdoor kiosks, vehicle displays, smart home products, and 3D printer LCD kits.

Customizable TFT LCD Starting Points

These rows were selected because their product copy or attributes mention OEM/ODM, custom work, touch, high brightness, or interface matching.

10.1 inch TFT LCD Module 1024x600 LVDS Interface with Resistive Touch Option

10.1 inch TFT LCD Module 1024×600 LVDS Interface with Resistive Touch Option

  • SKUGD101-LVDS-V1
  • Size10.1 inch
  • Resolution1024×600
  • InterfaceLVDS
  • BrightnessStandard (200-450 nits)
  • Operating TempIndustrial (-20 to +70°C)

Industrial grade 10.1 inch TFT LCD display module featuring 1024×600 resolution and standard LVDS interface. Designed for embedded systems, medical devices, and industrial automation (HMI). Available with optional 4-wire resistive touch screen.

21.5 Inch 1000 nits LCD OEM Module – Outdoor Sunlight Readable Kit

21.5 Inch 1000 nits LCD OEM Module – Outdoor Sunlight Readable Kit

  • SKUDBT215BHN30L100A
  • Size21.5 inch
  • Resolution1920×1080(FHD)
  • InterfaceLVDS
  • Brightness1000 nits (Sunlight Readable (1000+ nits))
  • Operating TempIndustrial (-20 to +70°C)

Build your outdoor project faster with this 21.5 inch 1000 nits LCD OEM kit. Designed for direct sunlight visibility, this package goes beyond a simple panel by including a fully compatible HDMI/VGA driver board and a dual-fan active cooling system to ensure r

6.2 Inch Square TFT LCD Display Module (720x720)Flight Simulator Display

6.2 Inch Square TFT LCD Display Module (720×720)Flight Simulator Display

  • SKULCD-6-2-720-001
  • Size6.2 inch
  • Resolution720×720
  • InterfaceLVDS
  • Brightness500 nits (High Brightness (500-900 nits))
  • Operating TempIndustrial (-20 to +70°C)

Sourcing a 6.2 Inch Square TFT LCD ? Industrial grade 720×720 resolution, 500 nits IPS panel with LVDS interface. Ideal for avionics & gauges. Factory Direct Pricing.

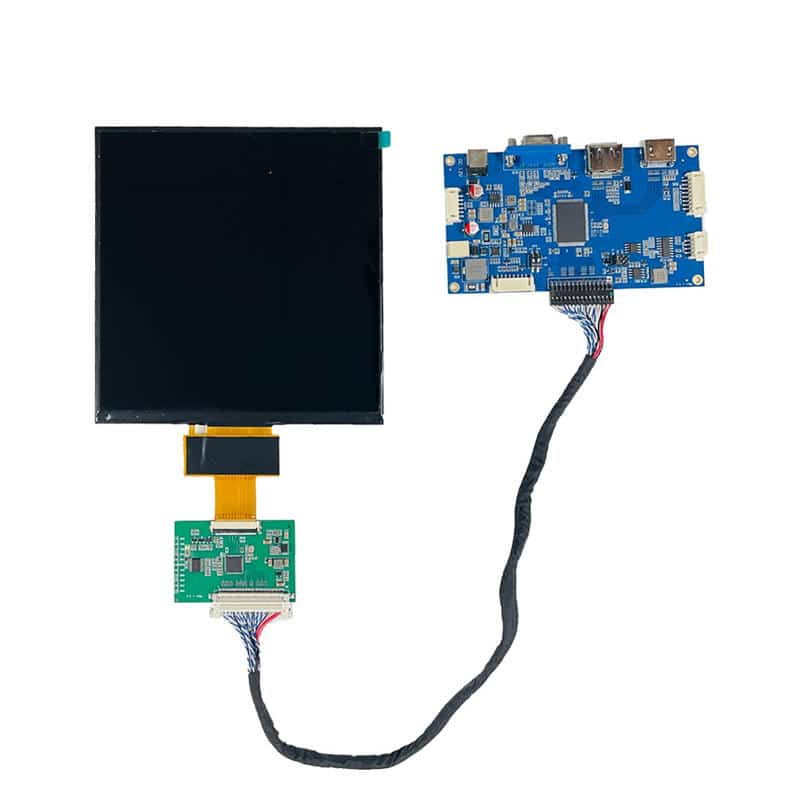

Ultimate 7.5 Inch Square TFT LCD | 800x800 1000 Nits | Industrial Grade

Ultimate 7.5 Inch Square TFT LCD | 800×800 1000 Nits | Industrial Grade

  • SKULCD-7-4-800-001
  • Size7.5 inch
  • Resolution800×800
  • InterfaceMIPI
  • Brightness1000 nits (Sunlight Readable (1000+ nits))
  • Operating TempIndustrial (-20 to +70°C)

pgrade your display with our 7.5 Inch Square TFT LCD . Featuring 800×800 resolution, 1000 nits sunlight readability, and industrial MIPI interface. Factory direct custom solutions available.

6.8 Inch Square RGB LCD Display (768x768)

6.8 Inch Square RGB LCD Display (768×768)

  • SKULCD-6-8-768-002
  • Size6.8 inch
  • Resolution768×768
  • InterfaceRGB / TTL
  • Brightness500 nits (High Brightness (500-900 nits))
  • Operating TempStandard (0°C ~ +50/60°C)

Designed for embedded systems and rapid prototyping, this 6.8 Inch Square RGB LCD Display offers a direct RGB (TTL) Interface , making it the perfect companion for microcontrollers like STM32 and ESP32 . Unlike LVDS panels, this module allows for easier direct

14 Inch 1600x1200 IPS LCD Display | 800 nits High Brightness | LVDS with Driver Board

14 Inch 1600×1200 IPS LCD Display | 800 nits High Brightness | LVDS with Driver Board

  • SKULCD-14-1600-001
  • Size14.0 inch
  • Resolution1600×1200
  • InterfaceLVDS
  • Brightness800 nits (High Brightness (500-900 nits))
  • Operating TempStandard (0°C ~ +50/60°C)

Upgrade your visual experience with our 14-inch UXGA High Brightness Display Kit. Engineered for professionals, this 1600×1200 IPS panel delivers crystal-clear imagery even in bright environments thanks to its 800 nits brightness . It comes as a complete solut

Custom TFT LCD Decision Matrix

Product / SKU Size Resolution Interface Brightness Touch Operating Temp Brand
10.1 inch TFT LCD Module 1024×600 LVDS Interface with Resistive Touch Option
GD101-LVDS-V1		 10.1 inch 1024×600 LVDS Standard (200-450 nits) – Industrial (-20 to +70°C) OEM / ODM
21.5 Inch 1000 nits LCD OEM Module – Outdoor Sunlight Readable Kit
DBT215BHN30L100A		 21.5 inch 1920×1080(FHD) LVDS 1000 nits (Sunlight Readable (1000+ nits)) – Industrial (-20 to +70°C) OEM / ODM
6.2 Inch Square TFT LCD Display Module (720×720)Flight Simulator Display
LCD-6-2-720-001		 6.2 inch 720×720 LVDS 500 nits (High Brightness (500-900 nits)) – Industrial (-20 to +70°C) OEM / ODM
Ultimate 7.5 Inch Square TFT LCD | 800×800 1000 Nits | Industrial Grade
LCD-7-4-800-001		 7.5 inch 800×800 MIPI 1000 nits (Sunlight Readable (1000+ nits)) – Industrial (-20 to +70°C) OEM / ODM
6.8 Inch Square RGB LCD Display (768×768)
LCD-6-8-768-002		 6.8 inch 768×768 RGB / TTL 500 nits (High Brightness (500-900 nits)) – Standard (0°C ~ +50/60°C) OEM / ODM
14 Inch 1600×1200 IPS LCD Display | 800 nits High Brightness | LVDS with Driver Board
LCD-14-1600-001		 14.0 inch 1600×1200 LVDS 800 nits (High Brightness (500-900 nits)) – Standard (0°C ~ +50/60°C) OEM / ODM
12 Inch 1200×1600 LCD Display – 750 nits IPS Portrait Mode
LCD-12-1200-001		 12.0 inch 1200×1600 LVDS 750 nits (High Brightness (500-900 nits)) – Ultra Wide / Automotive (-30°C ~ +85°C) OEM / ODM
10.1 Inch 1200 nits LCD Panel (1280×800) – Sunlight Readable IPS
DBT101IEN40L120C		 10.1 inch 1280×800 LVDS 1200 nits (Sunlight Readable (1000+ nits)) – Industrial (-20 to +70°C) OEM / ODM

Relevant Sourcing Terms

  • custom TFT LCD module
  • custom lcd display manufacturer
  • lcd manufacturers
  • lcd suppliers in China
  • custom lcd screen
  • touch screen lcd module

Related LCDind Resources

Procurement FAQ

Can LCDind customize a standard TFT LCD module?

Yes. Typical customization includes FPC, pin definition, backlight brightness, cover glass, PCAP or resistive touch, AG/AR/AF coating, optical bonding, air bonding, and controller board matching.

How do I choose a base module for customization?

Start with size and mechanical outline, then resolution, interface, brightness, viewing angle, touch type, operating temperature, and expected quantity.

Why is a real product matrix useful for custom LCD sourcing?

It lets engineers compare existing module families before paying for tooling or committing to a new custom design.

The representative products above are not a complete product list; they are selected from the exported catalog as customization starting points.
