TFT 3.5 Inch Display for Compact Instruments 450 nits RGB Interface

3.5 Inch 320×480 RGB TFT for Compact Instrument Panels

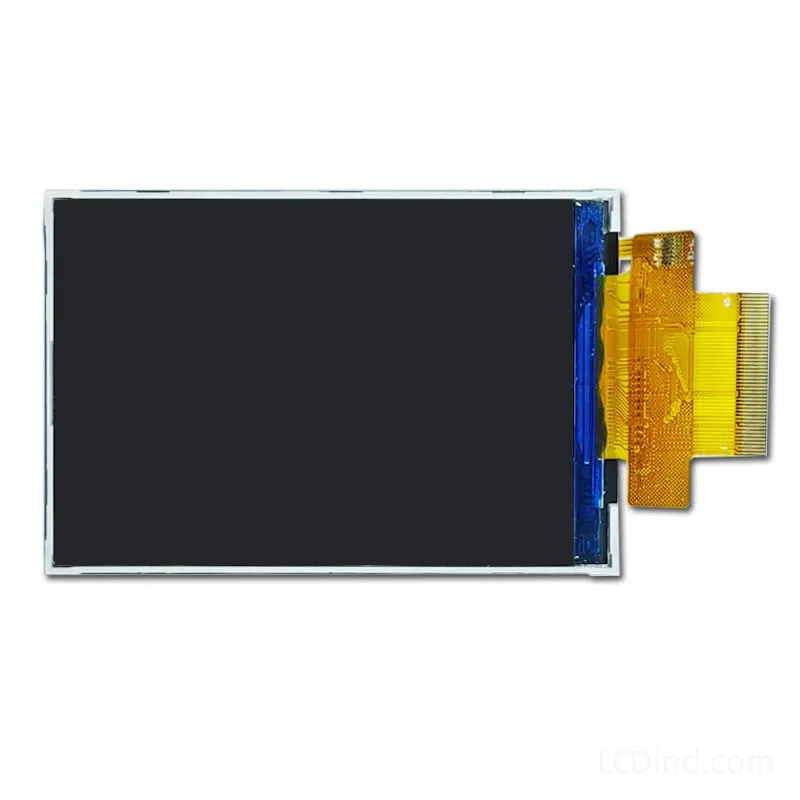

This 3.5 inch TFT display is a compact RGB-interface module for instruments and embedded equipment that need a portrait 320×480 screen with moderate brightness and simple visual information hierarchy. The public data lists 3.5 inch size, 320×480 resolution, RGB interface, 450 nits brightness, 12 o’clock viewing direction, no touch in the standard configuration, -20 to 70 °C operation, -30 to 80 °C storage, 54.5×83×2.25 mm outline, 48.96×73.44 mm active area, 500:1 contrast, 3.3V power supply, 20000-hour LED lifetime and panel model 90-03528-001. These facts make it relevant for handheld controllers, small factory equipment, medical instruments, service tools and industrial panels that already have physical controls.

The main selection question is whether the host electronics can provide the correct RGB timing and enough display bandwidth. RGB modules are practical when the controller has a direct LCD interface or a bridge solution, but they are not plug-and-play with HDMI, USB or a generic MCU GPIO connection. The buyer should confirm pixel clock, sync polarity, color data width, voltage level, pin assignment, connector and initialization requirements. If the product is a replacement program, LCDind should receive the existing display model, connector photographs and timing reference before recommending substitution.

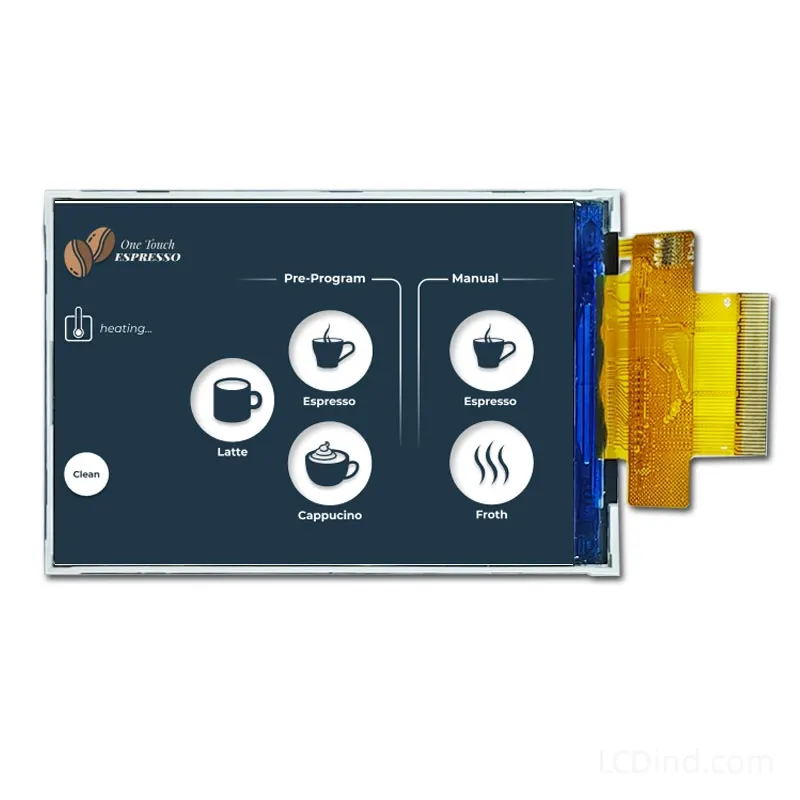

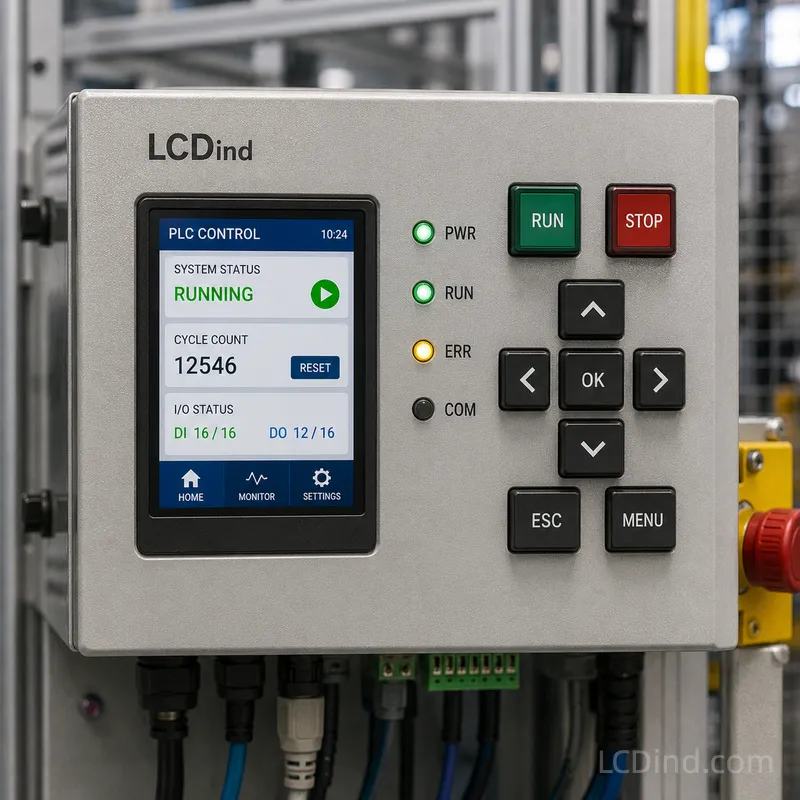

The 320×480 portrait format supports a clear instrument layout: a main value, state icon, alarm line, small chart, parameter list or simple setup menu. At this size, the UI should prioritize legibility over decorative elements. A 450-nit backlight gives more margin than a 250 or 300-nit module in many indoor equipment environments, but the front overlay can still reduce apparent brightness. The production sample should be viewed behind the final lens, printed mask or gasket, especially if the product uses a dark front panel or is used under overhead factory lighting.

The 12 o’clock viewing direction needs attention during mechanical orientation. If the device is handheld, wall-mounted or angled on a bench, the viewing direction should match the normal operator position. Rotating the display in firmware may not solve optical viewing behavior. The design team should test contrast and color shift at the actual viewing angle, not only from a straight-on bench position. If all-direction viewing is required, a different IPS or wide-viewing option may be a better engineering target.

The standard no-touch configuration is useful where the equipment relies on buttons, keypad, encoder, membrane switch or host-controlled operation. It avoids the extra thickness, controller interface and optical losses of a touch stack. If the buyer wants touch, the RFQ must define capacitive or resistive type, cover lens, bonding method, FPC direction, controller interface, glove or wet behavior and expected front-panel thickness. A touch version should be sampled and qualified as a different assembly.

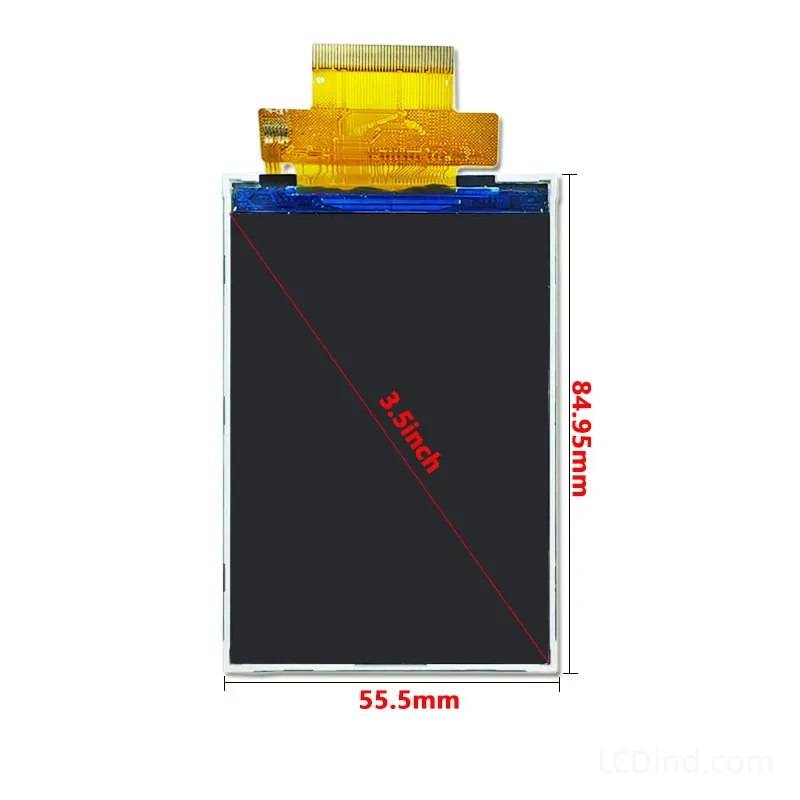

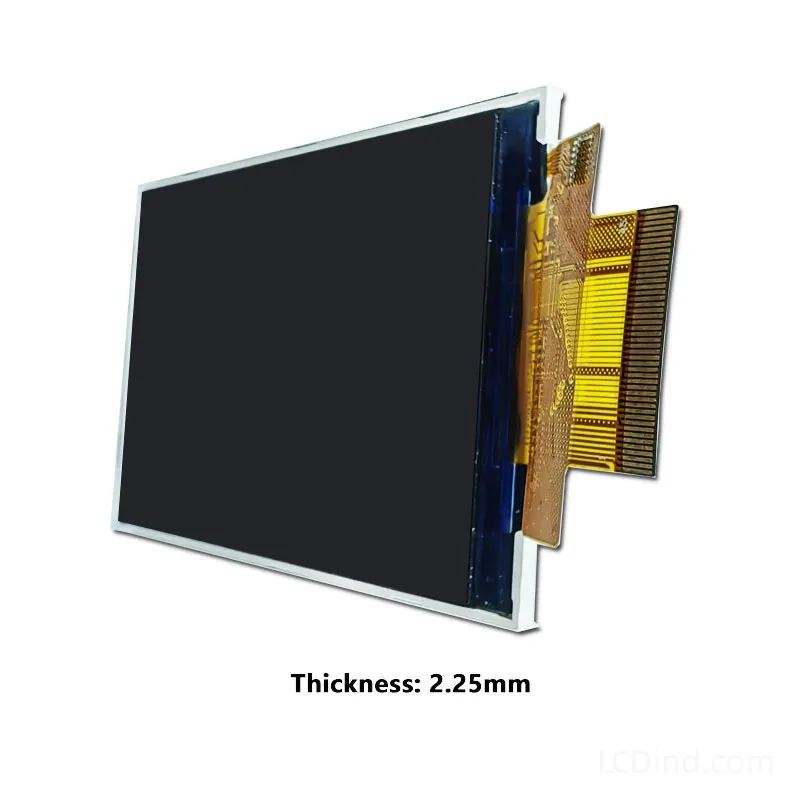

Mechanically, the 48.96×73.44 mm active area and 54.5×83×2.25 mm outline should both be used in the enclosure review. The visible window must align with the active area, while the product housing must reserve space for the full module, connector, FPC bend radius and any pressure-sensitive regions. A thin outline can help compact products, but the real stack height also includes the cover lens, adhesive, PCB, connector and enclosure ribs. Drawing review before tooling is more reliable than checking a loose sample after tooling has started.

RFQ Checklist

• Host processor or display controller and confirmed RGB timing requirements.
• Mechanical drawing showing active-area window, module pocket, connector and cable route.
• Expected viewing orientation and whether the 12 o’clock direction is acceptable.
• Front lens, overlay, required brightness after assembly and ambient-light condition.
• Input method, including no touch, buttons, encoder or requested touch customization.
• Prototype quantity, forecast, project schedule and replacement reference if applicable.

Engineering FAQ

Is this module suitable for direct MCU control? Only if the MCU or display controller supports the required RGB timing, voltage and data bus. Interface compatibility must be confirmed from the current documentation.

Does 450 nits make it sunlight readable? No. It improves indoor readability margin, but direct-sunlight use needs a separate optical and thermal review.

Can the display be rotated? The image may be rotated by the host, but the optical viewing direction remains a panel characteristic. Test it in the actual mounting orientation.

Is touch included? No touch panel is listed for the standard configuration. Touch requires a defined assembly change.

What controls production consistency? Use the approved drawing, model number, timing, sample, inspection criteria and purchasing record as the controlled reference.

Engineering Review Note

This 3.5 inch RGB TFT is a good candidate when the equipment needs a compact portrait screen, direct RGB interface and higher indoor brightness. Send LCDind the host timing, enclosure drawing, viewing orientation and touch requirement so the sample and quote match the real integration path.

Prototype Validation and Replacement Review

For a compact instrument, the sample should be tested with the real host controller and production-intent cable. Confirm stable RGB timing, correct color order, screen orientation, backlight enable, reset recovery and no visible flicker during normal operation. If the display replaces an older module, compare not only size and resolution but also interface timing, connector, outline thickness, active-area offset, FPC position and viewing direction. A 3.5 inch 320×480 panel can still be incompatible if any of those details differ.

For production control, keep one approved sample with the matching controller configuration and enclosure parts. Incoming inspection can then check the visible image, connector, mechanical dimensions, brightness class, cosmetic limits and packing condition against the approved reference. If an annual program needs stable long-term supply, tell LCDind the forecast and expected production life so second-source or customization options can be discussed before a supply gap occurs.
