BOE EV156FHM-N11 15.6 Inch 1920×1080 TFT LCD Panel

BOE EV156FHM-N11 15.6 Inch FHD LVDS IPS Panel for Industrial Equipment

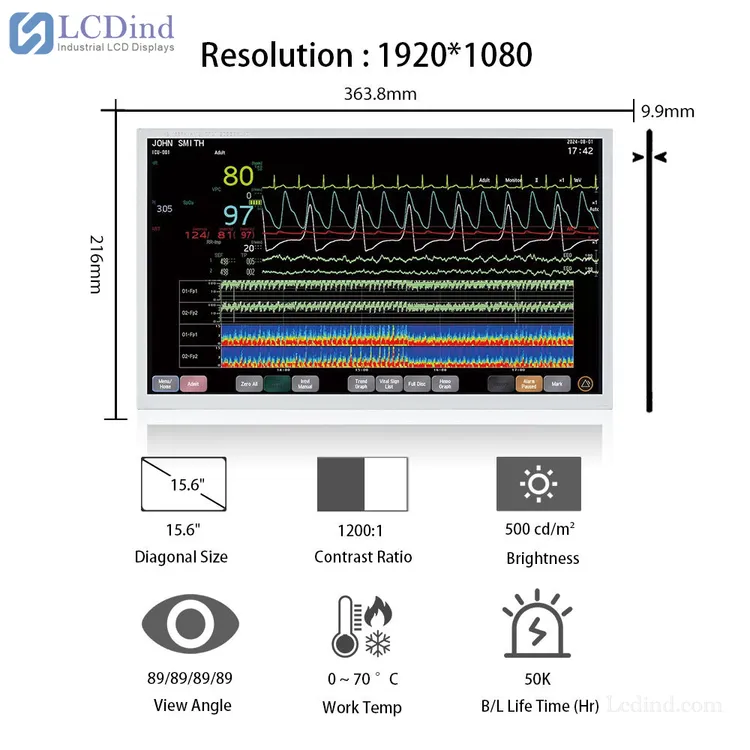

BOE EV156FHM-N11 is a 15.6 inch FHD TFT LCD panel for industrial equipment displays, replacement sourcing and OEM monitor integration. The public specification confirms 1920×1080 FHD resolution at 141 PPI, IPS/ADS normally black transmissive mode, 500 cd/m² typical brightness, 1200:1 contrast ratio, 89/89/89/89 typical viewing angle, LVDS 2-channel 8-bit communication interface with 40-pin connector, WLED backlight with LED driver rated 50K hours, 25 ms response time, 13.3W power consumption, 16.7M colors, 78% NTSC, 1 kg weight and 0 to 70 °C operating temperature.

Confirmed Product Specifications

15.6 Inch FHD Industrial Fit

This panel is useful for embedded displays, industrial PCs, diagnostic equipment, transport terminals and production machines that need a 15.6 inch FHD screen with brighter-than-standard 500 cd/m² output. The 1920×1080 format supports dense HMI layouts, alarm lists, camera windows and service menus while remaining compatible with many industrial software interfaces.

LVDS Interface Clarification

The summary says interface requiring confirmation, while the specification table lists LVDS 2-channel 8-bit with a 40-pin connector. Treat LVDS as the public table value but confirm exact connector, mapping, voltage and cable before ordering. If the host requires HDMI, eDP or embedded PC input, a controller board or monitor assembly should be specified.

Brightness and Cover Stack

The 500 cd/m² typical brightness is appropriate for bright indoor panels and protected equipment. If a PCAP touch sensor, protective glass or anti-vandal lens is added, final brightness can drop. Engineers should test readability in the actual enclosure, especially if the equipment is used near windows, under strong lights or in mobile machinery.

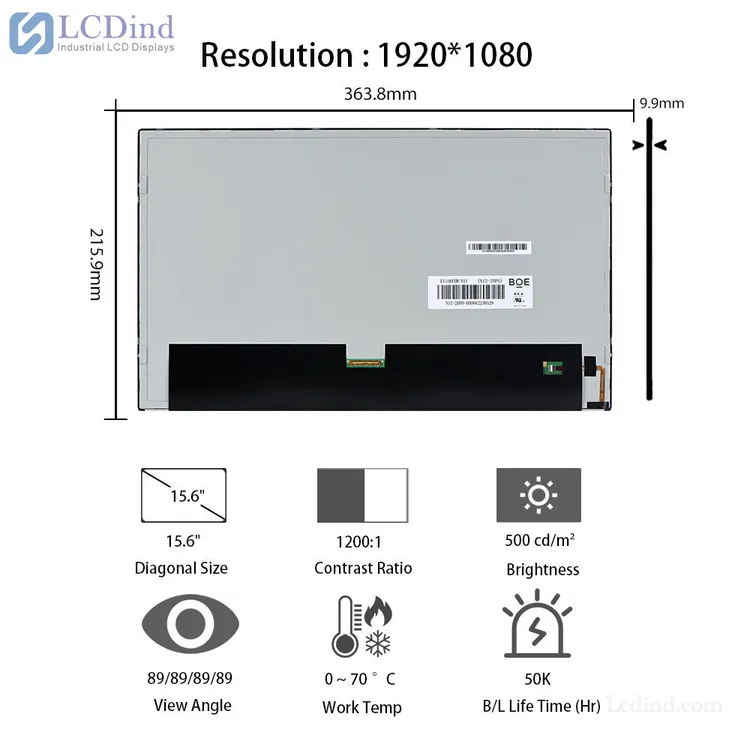

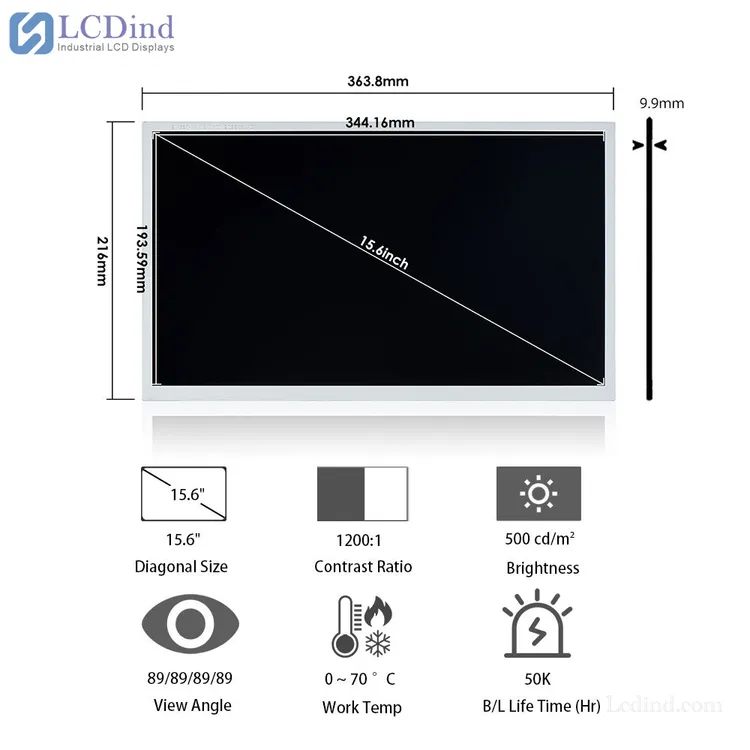

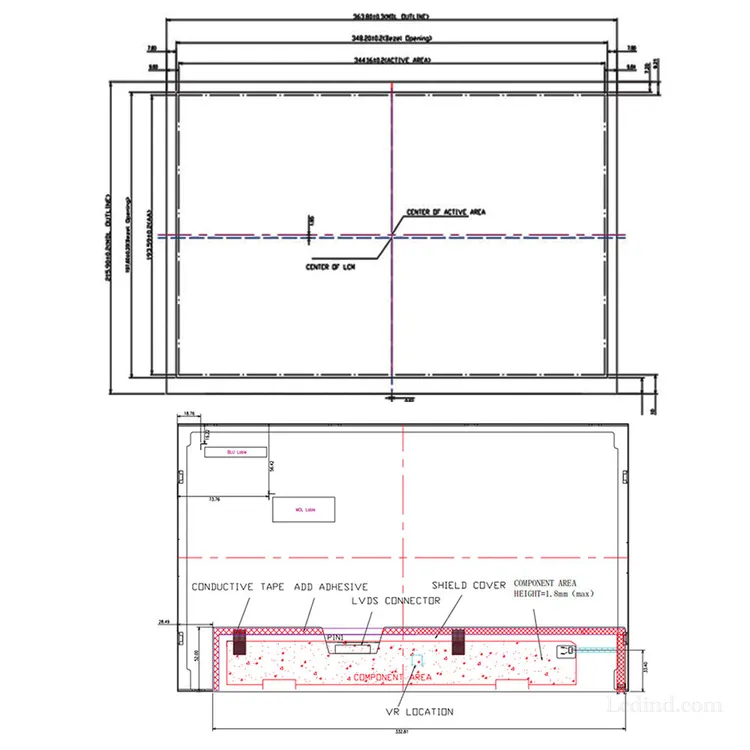

Mechanical and Replacement Review

Replacement buyers should provide original display labels, connector photos and housing details. New OEM designs should confirm outline, active area, cable exit, mounting points, touch stack if used and back-cover clearance. A 15.6 inch FHD label alone does not define mechanical compatibility.

Thermal and Duty-Cycle Review

The 13.3W power consumption and 0 to 70 °C operation should be reviewed with the enclosure thermal plan. Sealed industrial terminals may run hotter than ambient. Test backlight heat, controller board temperature, dimming behavior and long-duration operation before volume approval.

Procurement Scope

The RFQ should define whether LCDind supplies the BOE panel only, cable, controller board, touch assembly or complete monitor module. This prevents a panel-only quotation from being compared with an assembly quote. For repeat orders, exact revision and substitute approval should be controlled.

Sample Acceptance

Sample tests should include LVDS lock, full-screen pattern, brightness uniformity, color and gray-scale review, pixel defects, cable retention, power cycling, hot operation and UI scaling. If the display is used in field equipment, test in the real housing with the selected cables and power supply.

Buyer Decision Boundary

Choose this model when the project needs a 15.6 inch BOE FHD LVDS panel with 500-nit class brightness. If the use is outdoor sunlight, cold storage, vehicle cabin or touch-heavy terminal, define the additional environmental and front-stack requirements before quotation.

Interface and Controller Decision

Because the product summary says interface requires confirmation while the detailed table lists LVDS, buyers should close the interface question early. If the project is a panel replacement, send the original label and cable photos. If it is a new device, define the host output and whether LCDind should supply a controller board. This prevents delays caused by ordering a panel that the host cannot drive.

500-Nit Industrial Use Boundary

The 500 cd/m² brightness makes this BOE panel useful for brighter indoor equipment and protected terminals. It still requires evaluation if the device uses thick glass, touch, waterproof sealing or direct sunlight exposure. If the customer needs continuous full-brightness operation, thermal testing and backlight lifetime expectations should be part of the approval process, together with documented controller settings.

RFQ Checklist

• Confirm exact BOE EV156FHM-N11 revision, LVDS 40-pin mapping, voltage, cable and controller-board requirement.
• Provide host interface, enclosure drawing, touch/cover-glass requirement, brightness environment and operating temperature.
• Define panel-only or assembly scope, sample quantity, annual forecast and inspection criteria.
• State packaging, replacement requirement and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

What interface should be confirmed?

The table lists LVDS 2-channel 8-bit with a 40-pin connector; exact mapping still needs RFQ confirmation.

Is it brighter than standard 300-nit panels?

Yes. The public brightness is 500 cd/m² typical.

Does it include touch?

Touch is not confirmed in the public attributes for this product.
