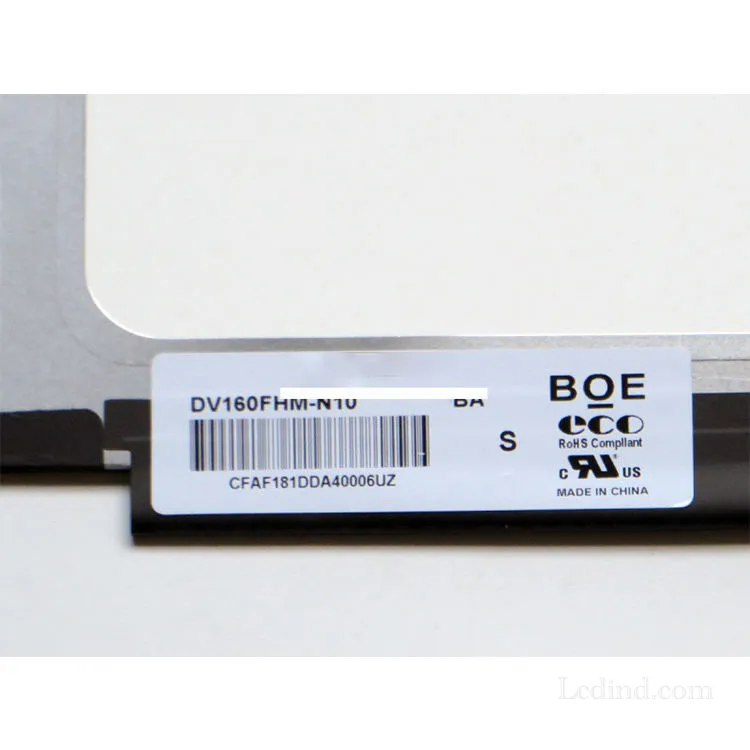

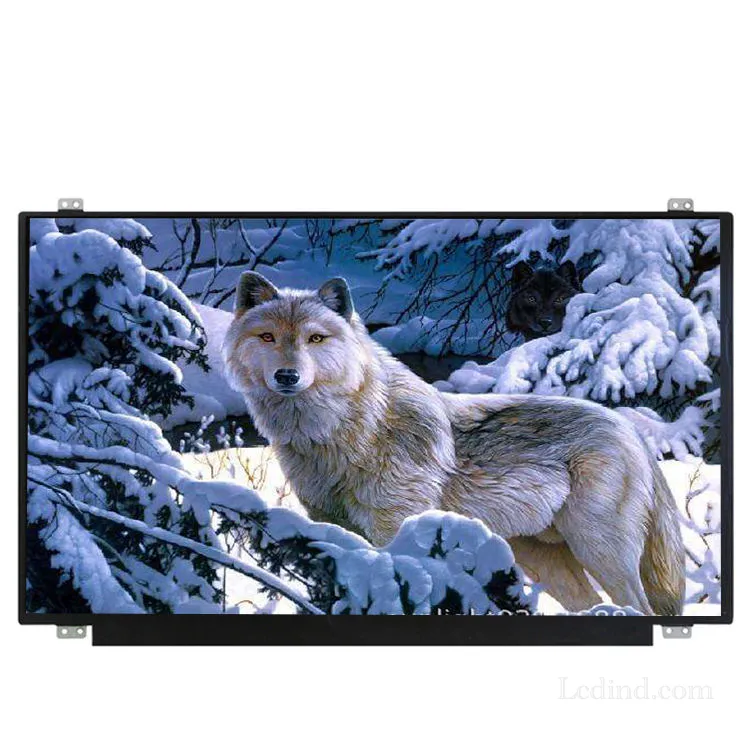

BOE DV160FHM-N10 16 Inch FHD eDP TFT LCD Panel
BOE DV160FHM-N10 is a 16 inch FHD eDP TFT LCD panel with 220 cd/m² brightness, a 30-pin interface, and a 0 to +50°C operating range. It is suitable for OEM equipment projects that require exact model sourcing and engineering compatibility review. LCDind supports optional touchscreen, controller-board, cable, and packaging requirements. Send your quantity, host interface, mechanical drawing, and target application to request a quotation.
Product Attributes
| Brand | BOE |
|---|---|
| Size | 16.0 inch |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | Wide Viewing |
BOE DV160FHM-N10 LCD Panel Overview
BOE DV160FHM-N10 is a 16 inch FHD eDP TFT LCD panel prepared for OEM equipment sourcing and engineering integration. The confirmed data includes 1920(RGB)x1080 resolution, 220 cd/m² brightness, a 30-pin eDP interface, and a 0 to +50°C operating range. LCDind can review the host interface, mechanical fit, optional touch solution, and controller requirements before quotation.
Key Features
- 1920(RGB)x1080 FHD resolution
- 220 cd/m² brightness
- eDP (2 lanes), eDP1.2, HBR1, 30-pin interface
- 85/85/85/85 (Typ.) viewing angle
- 0 to +50°C operating-temperature range
Key Attributes and Technical Specifications
| Type | TFT |
|---|---|
| Display Size | 16 inch |
| Place of Origin | Beijing, China |
| Supplier Type | manufacturer |
| Brand Name | BOE |
| Size | 16 inch |
| Resolution | 1920(RGB)x1080 , FHD |
| View angle | 85/85/85/85 (Typ.) |
| Brightness | 220 cd/m² |
| Contrast Ratio | 800:1 |
| Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins |
| Backlight | WLED, 15K hours, with LED driver |
| Operate temperature | 0 ~ +50 (°C) |
| Weight | 400g |
| Display mode | ADS , Normally Black , Transmissive |
Integration and Compatibility Review
Confirm the mechanical outline, active area, connector position, pin definition, eDP timing, mounting method, and host-board compatibility before design approval. The panel mode is recorded as ADS, Normally Black, Transmissive; any separate IPS description should be confirmed against the complete datasheet.
Customization and Project Options

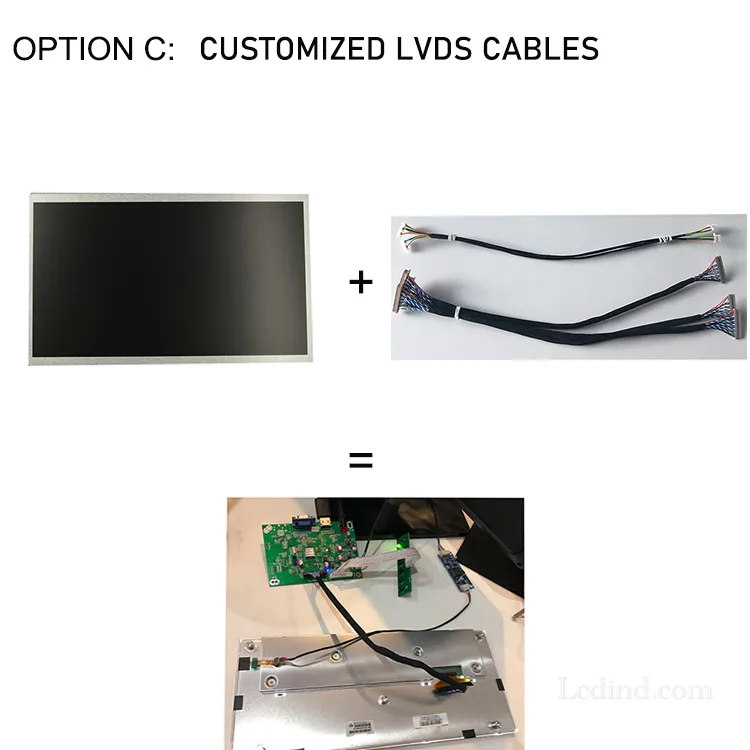

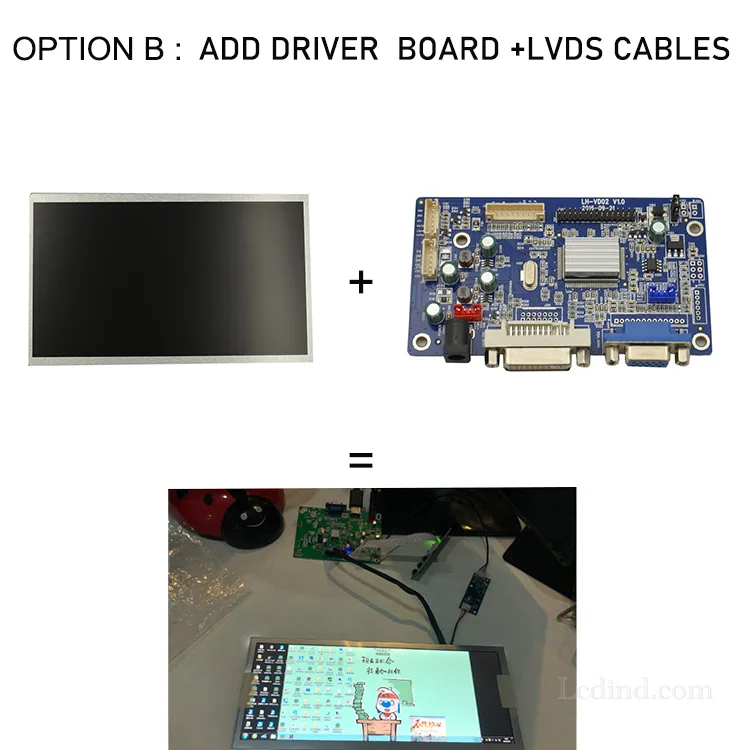

Optional touchscreen, controller-board, cable, and customized packaging requirements can be reviewed for project orders. The current configuration is treated as one simple product because no separate variation SKU, stock, or approved option price was confirmed. Cable compatibility requires special review because the panel interface is eDP.
MOQ and Quotation
The recorded product MOQ is 35 pieces. Custom-option MOQs may differ. Send the required quantity, destination, interface requirements, and customization scope so LCDind can prepare a project quotation.
Packaging and Delivery
The recorded selling unit is one item, with a package size of 40X26X6 cm and a gross weight of 0.6 kg. Confirm final packaging, shipping method, and lead time with the quotation.
RFQ Checklist
- Required model and annual quantity
- Host interface and timing requirements
- Mechanical drawing and connector position
- Touchscreen or controller-board requirements
- Operating environment and target application
- Packaging, destination country, and required delivery date
Engineering FAQ
What is the resolution of the BOE DV160FHM-N10?
The confirmed resolution is 1920(RGB)x1080, FHD.
Which interface does this LCD panel use?
The recorded interface is eDP with 2 lanes, eDP1.2, HBR1 at 2.7G per lane, and a 30-pin connector.
Is a touchscreen included with the panel?
A touchscreen is not confirmed as part of the base panel. It is available as a project option and requires mechanical, electrical, and MOQ confirmation.

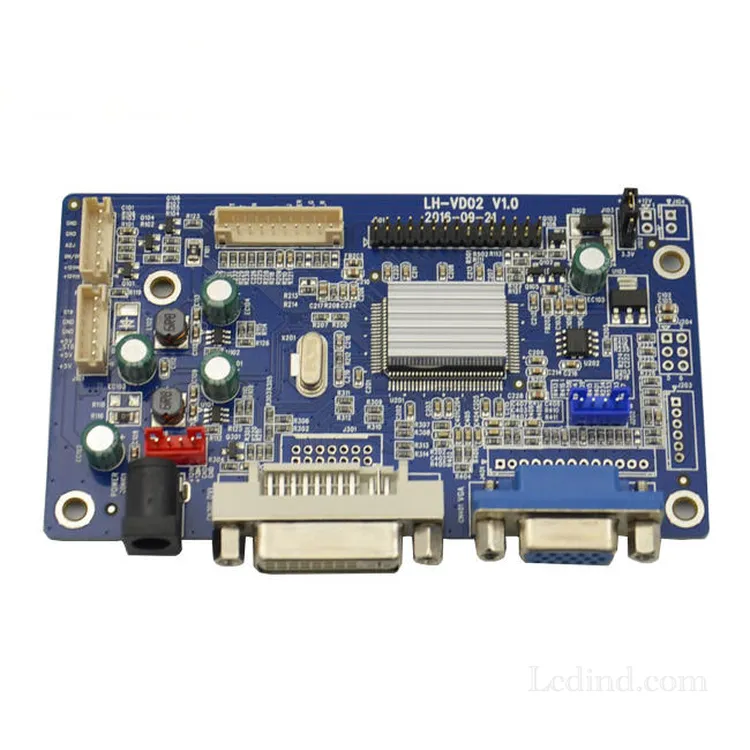

Can LCDind provide a controller board or cable?
Controller-board and cable requirements can be reviewed for project orders. Compatibility must be confirmed from the host input, panel timing, connector, and power requirements.
What information is needed for a quotation?
Send the model, quantity, host interface, mechanical drawing, target application, destination country, and any touchscreen, controller, cable, or packaging requirements.
Request a Quote
Contact LCDind with your project specifications and expected quantity to request engineering review, availability confirmation, and a quotation for the BOE DV160FHM-N10.
