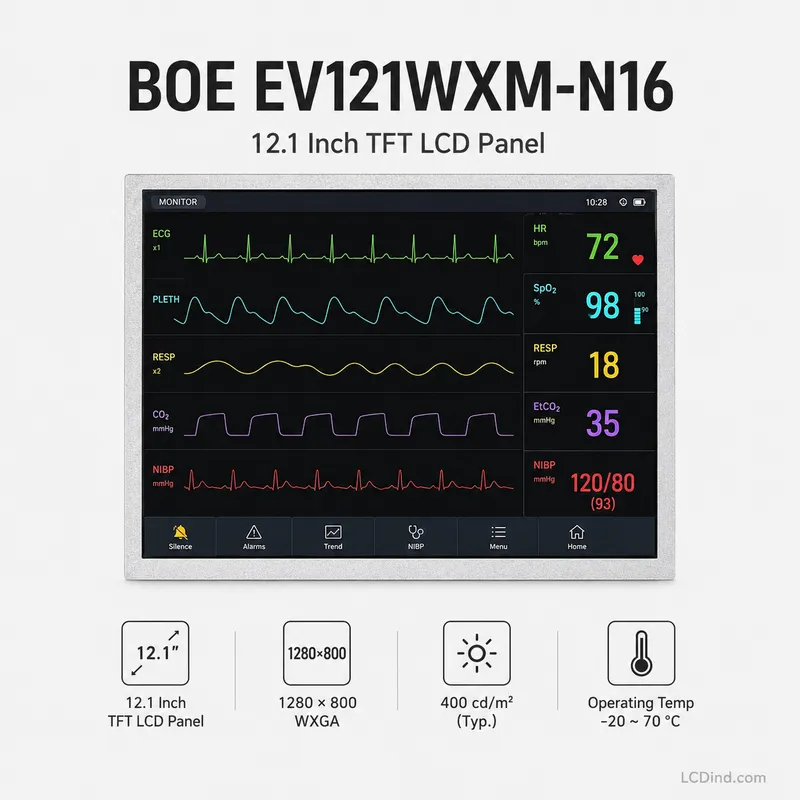

BOE EV121WXM-N16 12.1 Inch 1280×800 TFT LCD Panel
EV121WXM-N16 is a BOE TFT LCD panel listed with 1280×800, WXGA 124PPI and an interface requiring confirmation. Send the exact model, quantity and host requirements for compatibility review and quotation.
Product Attributes
| Brand | BOE |
|---|---|
| Size | 12.1 inch |
| Resolution | 1280×800 |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
EV121WXM-N16 Product Overview
EV121WXM-N16 is a BOE TFT LCD panel prepared as a sourcing reference for OEM equipment and display-integration projects. The exact panel revision, mechanical fit and host compatibility should be confirmed before ordering.
Key Features
- Resolution: 1280×800, WXGA 124PPI
- Brightness: 400 cd/m² (Typ.)
- Operating temperature: -20 ~ 70 °C
Key Attributes and Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 1280×800, WXGA 124PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 400 cd/m² (Typ.) |
| Brand | BOE |
| Display Size | 12.1 inch |
| Place of Origin | Zhejiang, China |
| Supplier Type | Original Factory Agent |
| Brand Name | BOE |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 12.1″ |
| Communication Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |

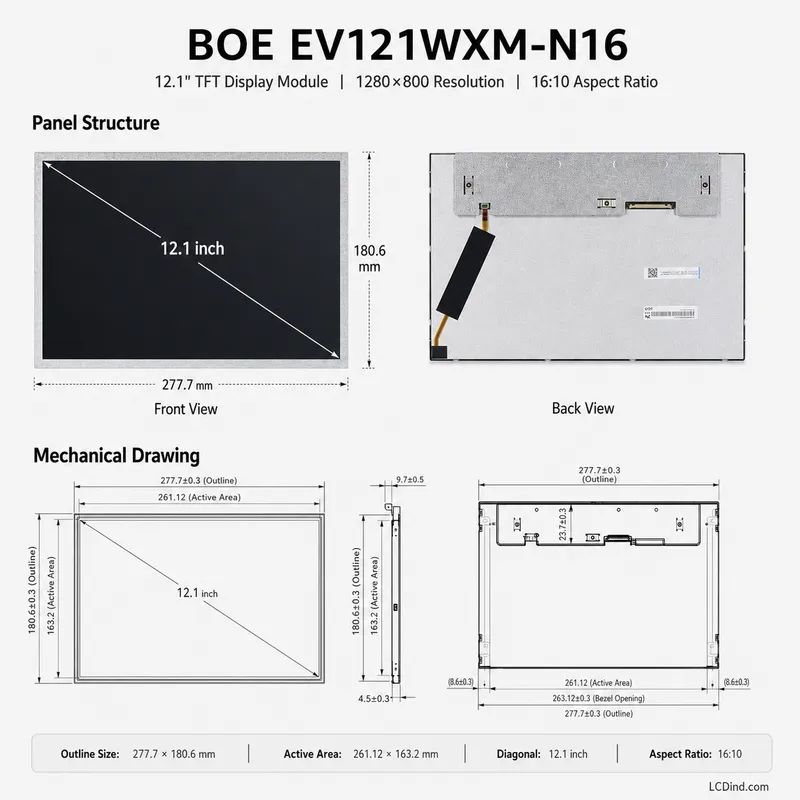

| Active Area | 261.12*163.2mm |

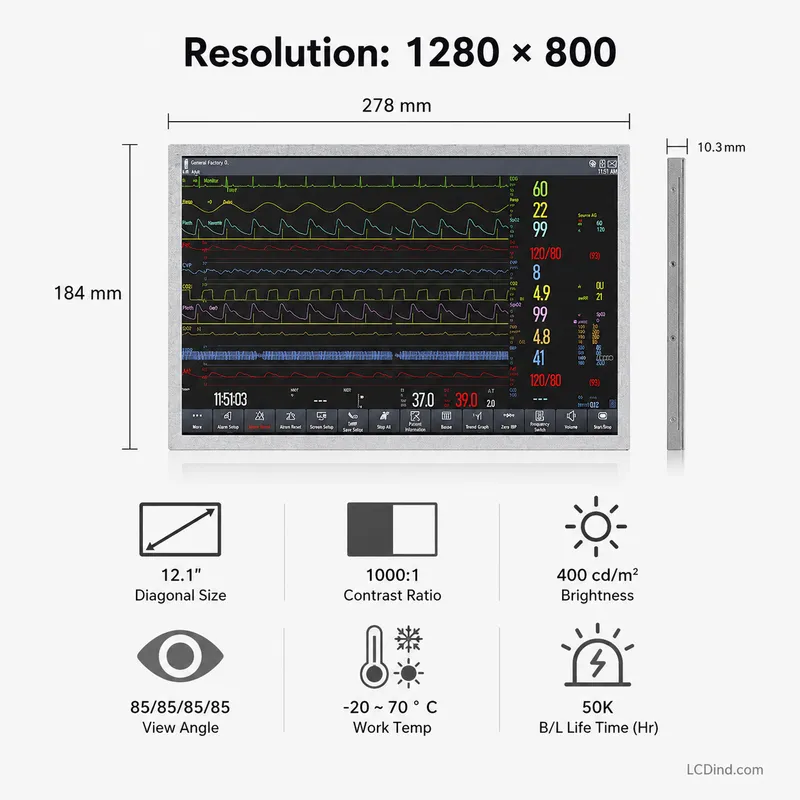

| Outline Dimension | 278*184mm |
| Outline Depth (mm) | 6.95/10.3 (Typ./Max.) |
| Viewing Angle | R/L/U/D 89/89/89/89(Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Backlight | WLED , 50K hours , With LED Driver |
| Display mode | ADS, Normally Black, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Color Depth | 262K/16.7M 97% sRGB |
| Total Consumption | 6.38W |
| Selling Units | Single item |
| Single package size | 40X35X6 cm |
| Single gross weight | 1.000 kg |
Integration and Compatibility Review
Confirm the connector position, pin definition, timing, power requirements, mounting method and host-board compatibility against the current datasheet or sample.
Customization and Project Options

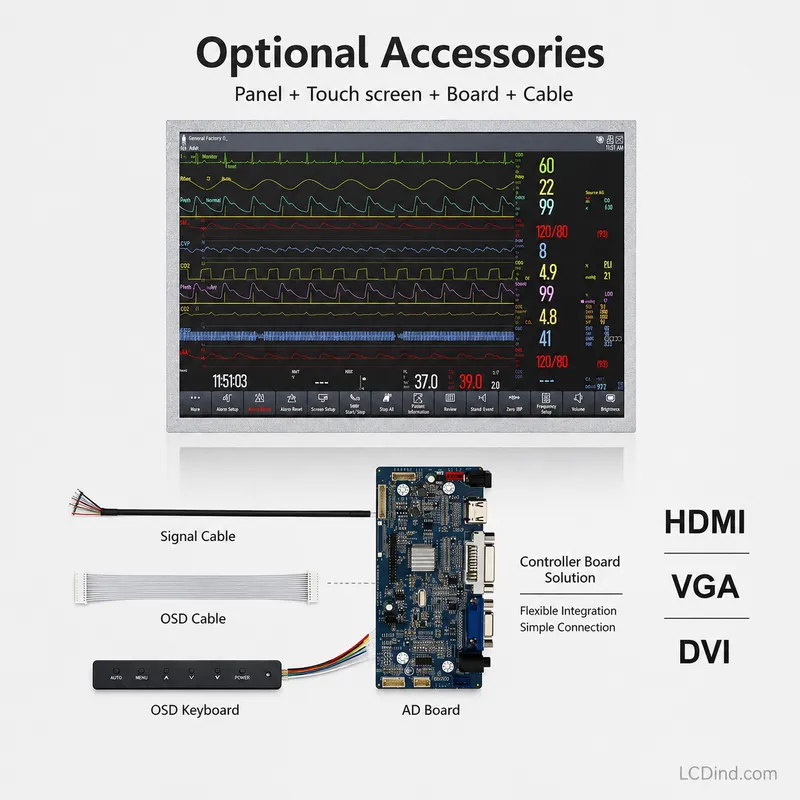

Touchscreen, cable, controller-board and mechanical requirements depend on the selected configuration and must be confirmed for the project.
MOQ and Quotation
The supplier listing MOQ is Min. Order: 1 piece. Send the required quantity and exact configuration for a project quotation.
Packaging and Delivery
Confirm packaging method, delivery schedule, freight terms and inspection requirements before ordering.
RFQ Checklist
- Exact panel model and revision
- Required quantity
- Host interface and timing
- Mechanical drawing and mounting constraints
- Touchscreen, cable or controller requirements
- Target application and operating environment
Engineering FAQ
What is the resolution of EV121WXM-N16?
The supplier listing states 1280×800, WXGA 124PPI.
Which interface does EV121WXM-N16 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?

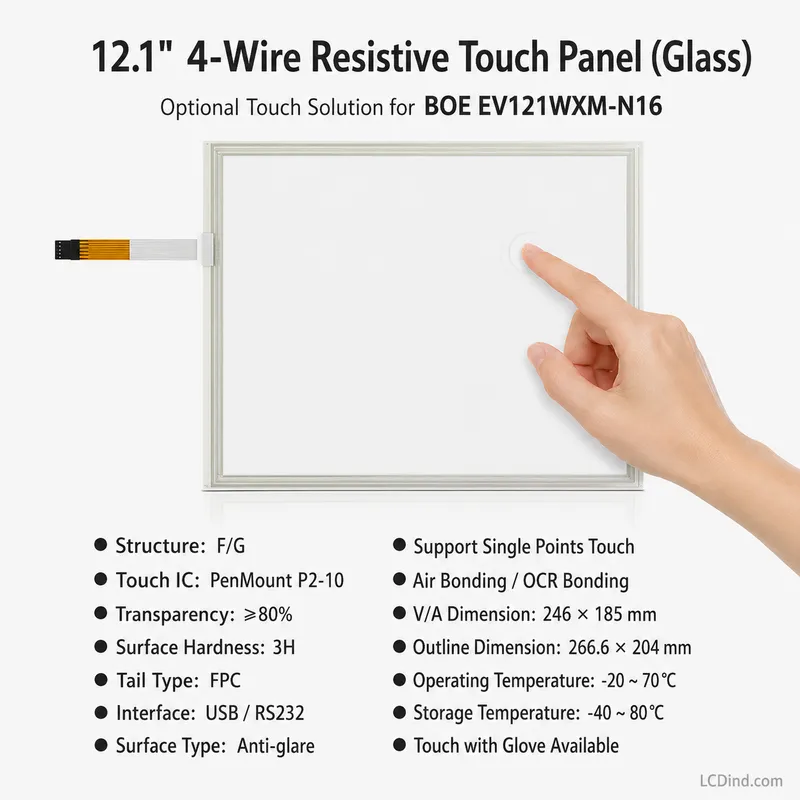

Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 1 piece.
Request a Quote
Send your datasheet, quantity and integration requirements for compatibility review and quotation.
| Brand | BOE |
|---|---|
| Size | 12.1 inch |
| Resolution | 1280×800 |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
What is the resolution of EV121WXM-N16?
The supplier listing states 1280x800, WXGA 124PPI.
Which interface does EV121WXM-N16 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 1 piece.
