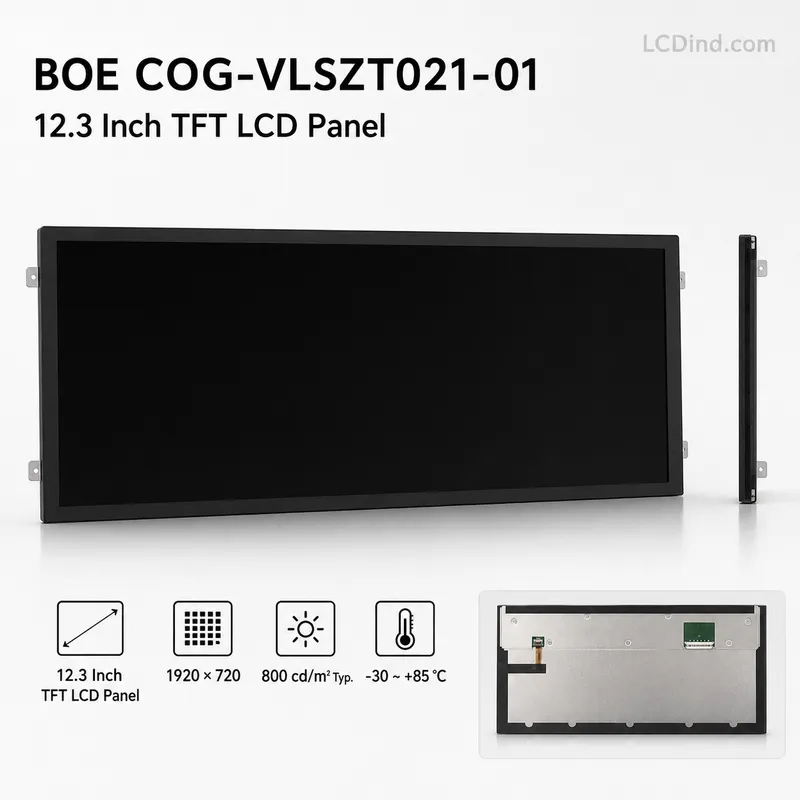

BOE COG-VLSZT021-01 12.3 Inch 1920×720 TFT LCD Panel
COG-VLSZT021-01 is a BOE TFT LCD panel listed with 1920×720 and an interface requiring confirmation. Send the exact model, quantity and host requirements for compatibility review and quotation.
Product Attributes
| Brand | BOE |
|---|---|
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Resolution | 1920×720 |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
COG-VLSZT021-01 Product Overview
COG-VLSZT021-01 is a BOE TFT LCD panel prepared as a sourcing reference for OEM equipment and display-integration projects. The exact panel revision, mechanical fit and host compatibility should be confirmed before ordering.
Key Features
- Resolution: 1920×720
- Brightness: 800 cd/m² (Typ.)
- Operating temperature: -30 ~ +85 (℃)
Key Attributes and Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 1920×720 |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 800 cd/m² (Typ.) |
| Brand | BOE |
| Display Size | 12.3 inch |
| Place of Origin | Jiangsu, China |
| Supplier Type | Manufacturer |
| Brand Name | BOE |
| Operating Temperature | -30 ~ +85 (℃) |
| Screen Size | 12.3″ |
| Communication Interface | LVDS (2 ch, 8-bit) , 60 pins Connector |

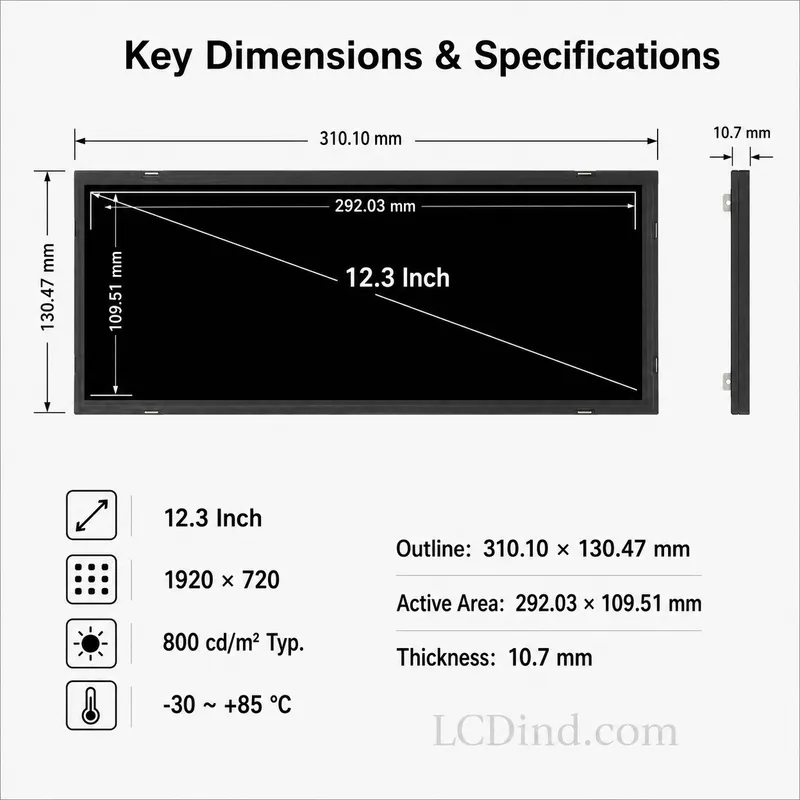

| Active Area | 292.03(H) x 109.51(V)mm |
| Outline Dimension | 310.10 x 130.47 mm |
| Outline Depth | 7.2/10.7 (Typ./Max.) mm |
| Viewing angle | 80/80/80/80 |
| Contrast Ratio | 1000:1 |
| Backlight | 30K hours |
| Support Color | 16.7M 70% NTSC |
| Display mode | IPS , Normally black |
| Total Consumption | 10.88w |
| Response Time | 30ms |
| Selling Units | Single item |
| Single package size | 42X35X12 cm |
| Single gross weight | 0.590 kg |
Integration and Compatibility Review

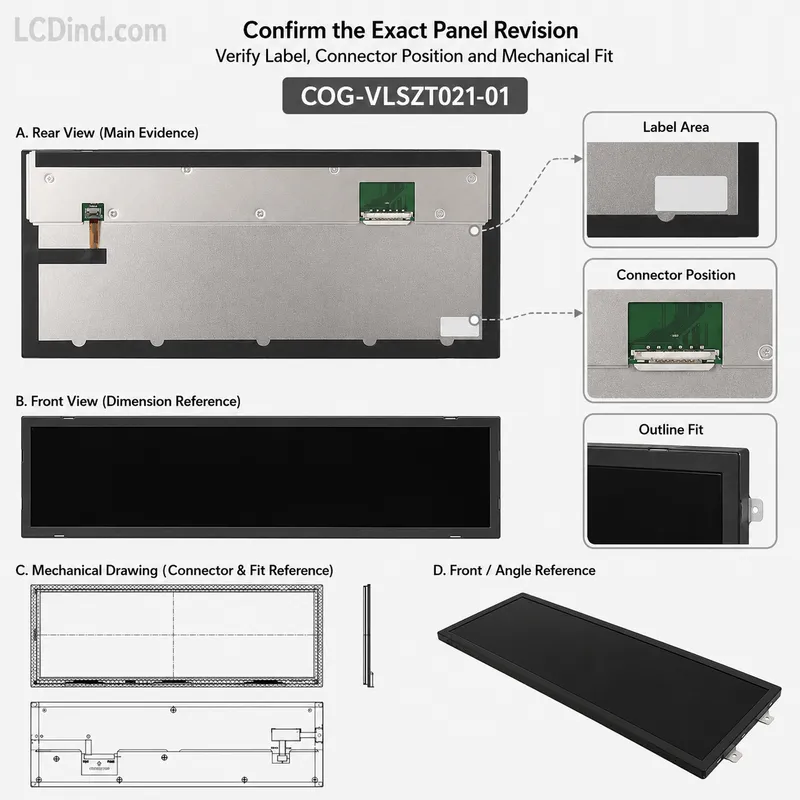

Confirm the connector position, pin definition, timing, power requirements, mounting method and host-board compatibility against the current datasheet or sample.
Customization and Project Options
Touchscreen, cable, controller-board and mechanical requirements depend on the selected configuration and must be confirmed for the project.
MOQ and Quotation
The supplier listing MOQ is Min. Order: 20 pieces. Send the required quantity and exact configuration for a project quotation.
Packaging and Delivery
Confirm packaging method, delivery schedule, freight terms and inspection requirements before ordering.
RFQ Checklist
- Exact panel model and revision
- Required quantity
- Host interface and timing
- Mechanical drawing and mounting constraints
- Touchscreen, cable or controller requirements
- Target application and operating environment
Engineering FAQ
What is the resolution of COG-VLSZT021-01?
The supplier listing states 1920×720.
Which interface does COG-VLSZT021-01 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 20 pieces.
Request a Quote
Send your datasheet, quantity and integration requirements for compatibility review and quotation.
| Brand | BOE |
|---|---|
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Resolution | 1920×720 |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
What is the resolution of COG-VLSZT021-01?
The supplier listing states 1920x720.
Which interface does COG-VLSZT021-01 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 20 pieces.
