AUO G170EG01 V1 17 Inch 1280×1024 LVDS TFT LCD Panel

AUO G170EG01 V1 17 Inch SXGA LVDS TFT Panel for Industrial Cabinets

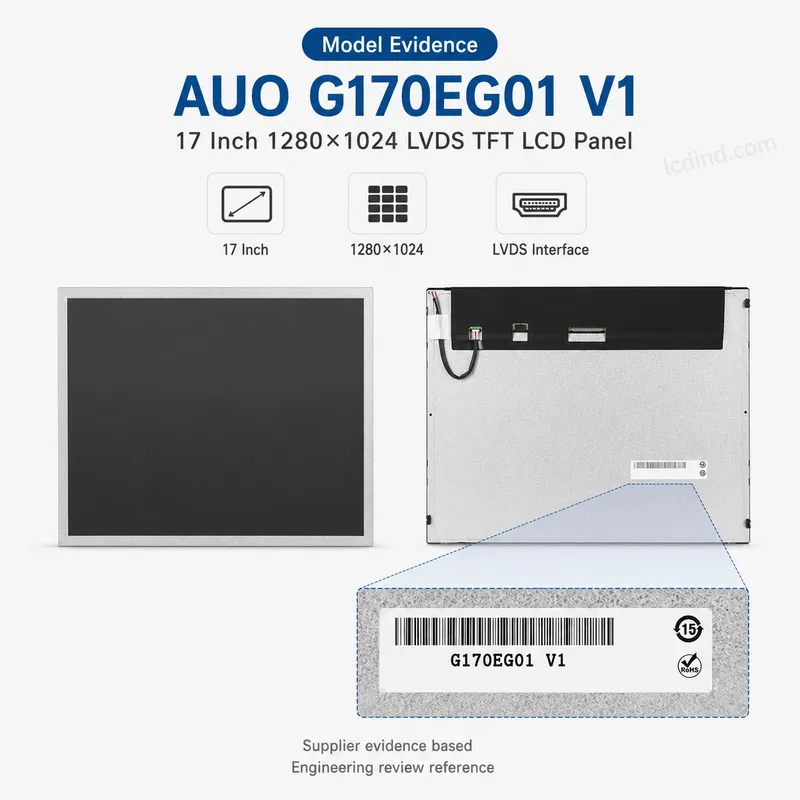

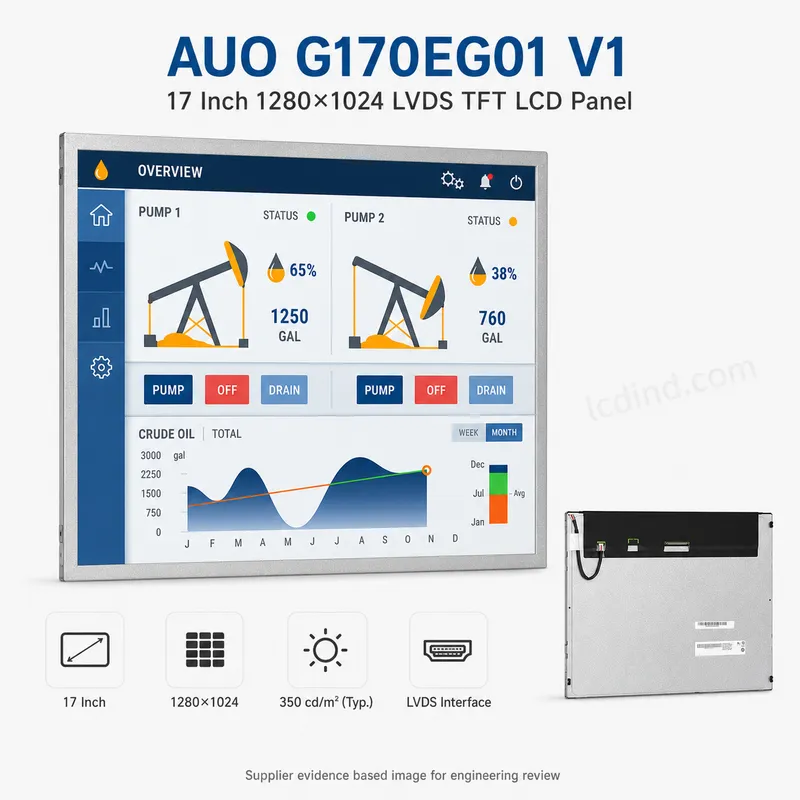

AUO G170EG01 V1 is a 17 inch SXGA TFT LCD panel for industrial monitors, machine cabinets and replacement sourcing where 1280×1024 remains the target resolution. The public page confirms 1280×1024 SXGA resolution at 96 PPI, 350 cd/m² typical brightness, 800:1 contrast, 30-pin 2-channel 8-bit LVDS interface, 17.0 inch screen size, WLED backlight with LED driver, 50K-hour backlight, 80/80/60/80 viewing angle, TN normally white transmissive display mode, 20/10 ms typical response, anti-glare hard coating 3H, 16.7M colors, 72% NTSC and 0 to 50 °C operation.

Confirmed Product Specifications

SXGA Industrial Replacement Fit

17 inch 1280×1024 panels remain common in industrial monitors, CNC equipment, inspection machines, medical carts, security consoles and older control cabinets. In many replacement projects, keeping SXGA is more practical than upgrading resolution because the host system, UI scaling, mounting frame and controller board were designed around 5:4 geometry. This product page should help buyers confirm whether they need a 17 inch LVDS replacement rather than a modern widescreen panel.

LVDS Controller Matching

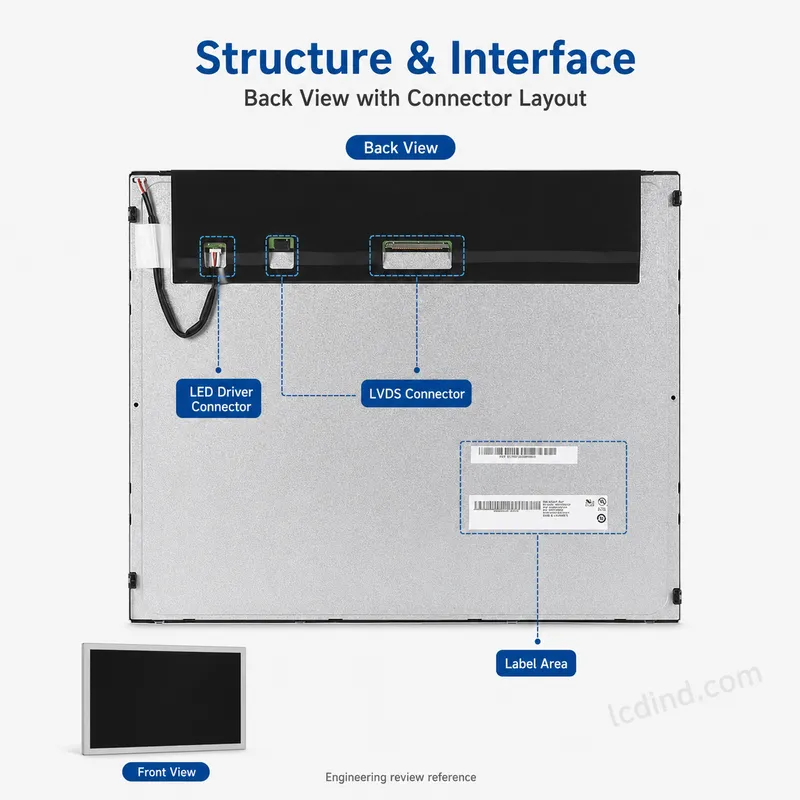

The confirmed interface is 2-channel 8-bit LVDS with a 30-pin connector. Replacement buyers should compare the existing controller board output, LVDS cable, voltage, backlight connection and power sequence. New projects should verify whether the host can drive SXGA LVDS directly or needs a controller board. A panel can show the correct resolution but still fail if mapping, connector pinout or backlight control differs.

Viewing and Optical Limits

The public table lists TN normally white mode and 80/80/60/80 viewing angle, while the attribute table marks standard viewing. This makes operator position important. If the screen is mounted above or below eye level, the buyer should test contrast from the real viewing direction. The anti-glare hard coating is useful for industrial cabinets, but it does not replace brightness or contrast validation through the final front window.

Mechanical Fit for Cabinet Monitors

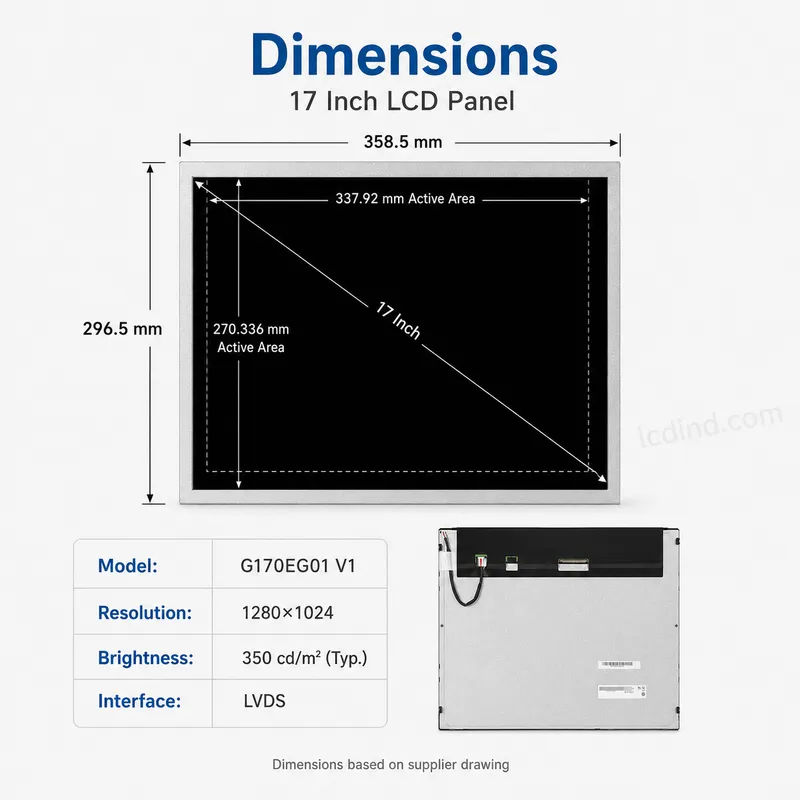

For cabinet replacement, mechanical details are often the deciding factor. The buyer should provide the original monitor model, panel label, rear photo, connector location and mounting frame dimensions. Even among 17 inch SXGA panels, bracket structure, thickness, cable position and active-area alignment can differ. If the display is part of a sealed front panel, gasket compression and bezel opening should be reviewed before sample approval.

Brightness and Operating Environment

The 350 cd/m² brightness and 0 to 50 °C operation are suitable for controlled indoor equipment. If the cabinet is installed near furnaces, outdoors, in vehicles or in cold environments, a different wide-temperature or high-brightness panel may be needed. For continuous operation, check backlight dimming, heat buildup and required maintenance interval.

Supply Continuity and Substitution

Industrial repair programs should define whether LCDind is supplying exact AUO G170EG01 V1, an equivalent replacement or a full monitor solution. Substitutes must be checked for LVDS timing, optical mode, viewing direction, outline and connector placement. This is especially important for older 5:4 equipment because modern substitutes may require controller or mechanical changes.

Acceptance Testing

A practical test includes LVDS image stability, gray-scale display, contrast from the real operator angle, pixel inspection, backlight uniformity, hot start, cable movement and UI scaling. If the panel is used with legacy software, verify the application starts at 1280×1024 without scaling errors or clipped controls.

Why 5:4 Geometry Still Matters

Many industrial applications still use 5:4 screens because the machine software was designed for fixed-position controls and alarm windows. Switching to a widescreen display can create UI scaling problems, empty areas or hidden buttons. This panel remains relevant when the buyer needs to preserve the original cabinet interface. The RFQ should state whether the goal is exact replacement, compatible panel sourcing or a complete monitor retrofit.

Documentation for Repair Integrators

Repair integrators should collect the original monitor label, panel label, controller-board model, LVDS cable photo and front-frame dimensions before requesting a quote. If multiple machine versions are supported, separate the records by machine revision. This prevents one accepted sample from being incorrectly used across equipment that shares the same 17 inch size but has different controller or mechanical details.

RFQ Checklist

• Confirm exact AUO G170EG01 V1 revision, LVDS mapping, connector, voltage and backlight requirement.
• Provide original panel label, monitor model, rear photo, mounting frame and cable route for replacement projects.
• State operator viewing position, front-window material, operating environment and continuous-use requirement.
• Define quantity, forecast, inspection criteria, packaging and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Why choose 1280×1024 instead of FHD?

Many older industrial systems and cabinet monitors were designed for SXGA 5:4 geometry.

Is the interface LVDS?

Yes. The public specification lists 2-channel 8-bit LVDS with a 30-pin connector.

Is this for outdoor high-brightness use?

No. The listed brightness is 350 cd/m² and operation is 0 to 50 °C.
