AUO G156HAN03.0 15.6 Inch 1920×1080 eDP TFT LCD Panel

AUO G156HAN03.0 15.6 Inch FHD eDP IPS Panel for Embedded Displays

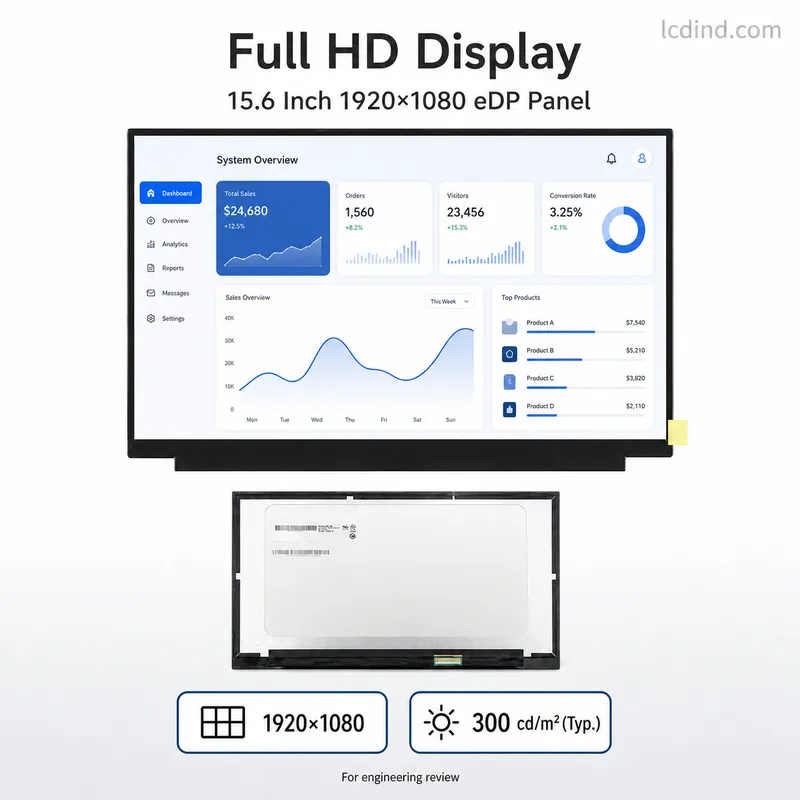

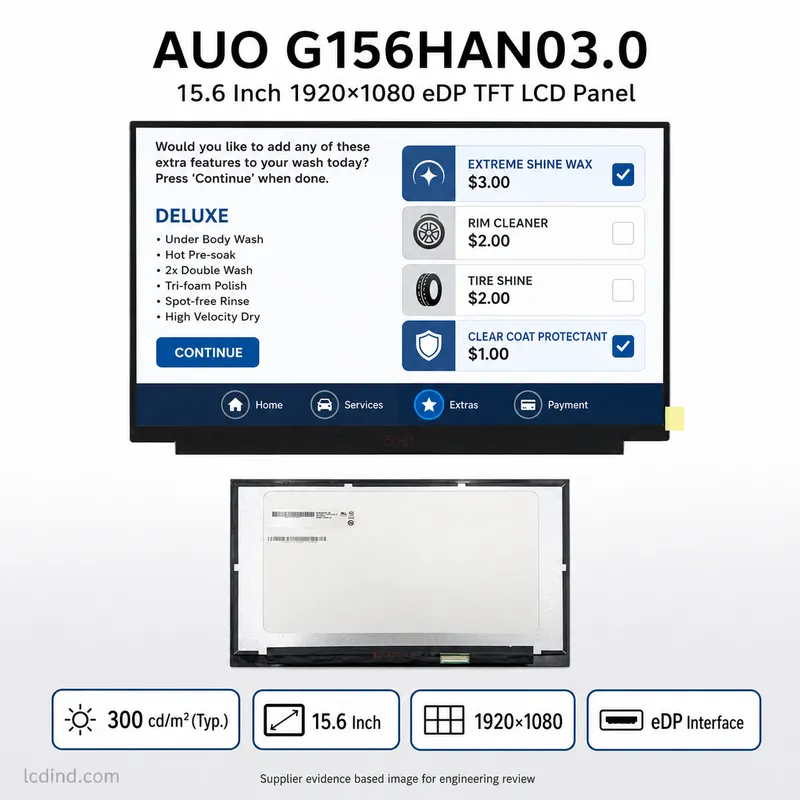

AUO G156HAN03.0 is a 15.6 inch FHD TFT LCD panel for embedded display systems, equipment monitors and replacement sourcing projects. The public specification confirms 1920×1080 FHD resolution at 141 PPI, AHVA/IPS normally black transmissive mode, 300 cd/m² typical brightness, 1000:1 contrast ratio, 89/89/89/89 typical viewing angle, eDP 1.2 2-lane interface with 30-pin connector, WLED backlight with LED driver, 30k-hour backlight, 25 ms response time, 16.2M colors, 45% NTSC, 370 g maximum weight and 0 to 50 °C operating temperature.

Confirmed Product Specifications

Embedded FHD Display Fit

This panel fits indoor embedded displays, industrial PCs, diagnostic equipment, test benches, automation terminals and panel-mount systems that require 15.6 inch FHD resolution but do not need high-brightness outdoor performance. The 1920×1080 layout supports detailed status screens, trend views, operator menus and service interfaces where a smaller WXGA display would be cramped.

eDP Interface Review

The confirmed interface is eDP 1.2 with 2 lanes and a 30-pin connector. eDP integration must confirm lane count, pinout, voltage, AUX behavior, EDID, backlight control and cable quality. If the buyer is replacing an LVDS panel or connecting to a controller board that only supports HDMI, a direct panel-only purchase will not solve the project. The controller path should be specified before quotation.

Brightness and Environment Boundary

The 300 cd/m² brightness and 0 to 50 °C operating range position this panel for standard indoor equipment. It is not the right first choice for sunlit outdoor cabinets, vehicle cabins, cold storage or hot sealed enclosures. If the final device uses a cover lens, protective glass or touch stack, readability and heat should be tested in the actual enclosure before approving production.

Mechanical Replacement Checks

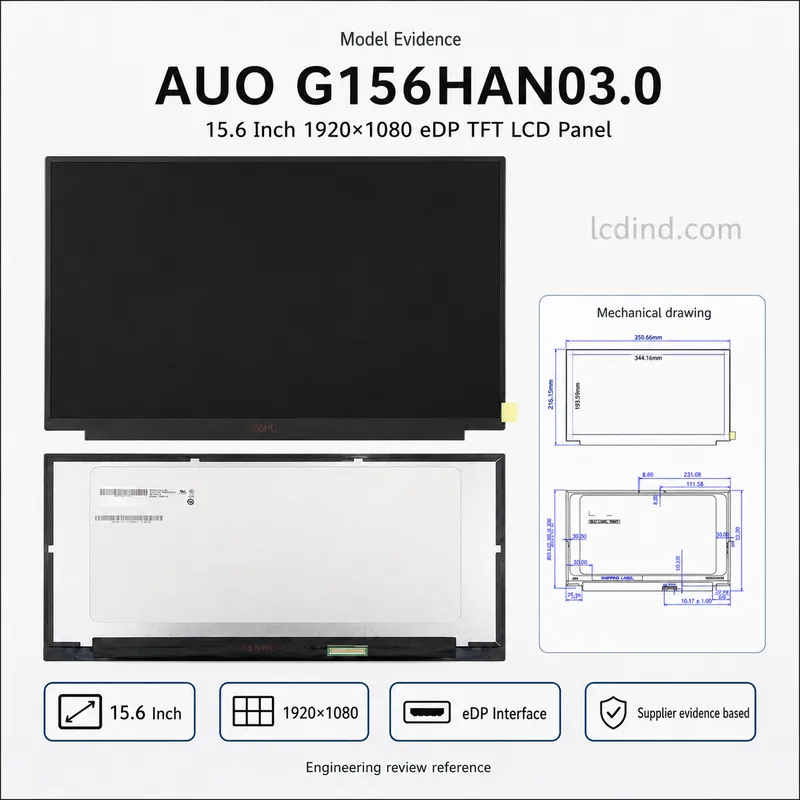

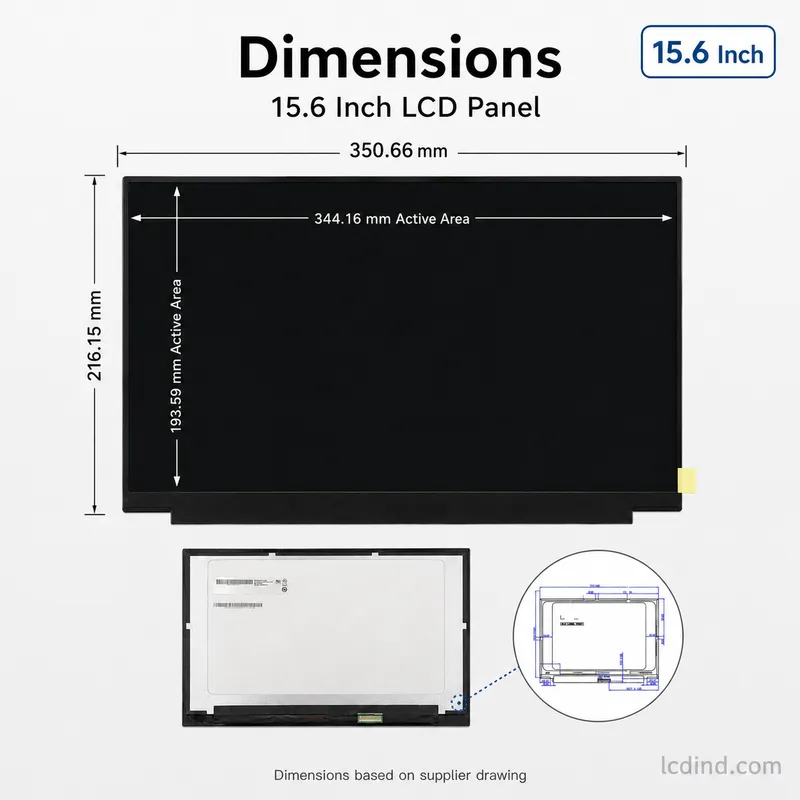

15.6 inch panels often look similar but can differ in connector location, thickness, bracket area, active area, screw reference and cable exit. Replacement buyers should provide the original AUO label, rear photo, connector photo and device model. New-product engineers should compare display outline, bezel opening, back cover clearance and cable bending radius before committing to tooling.

Touch and Front Stack Options

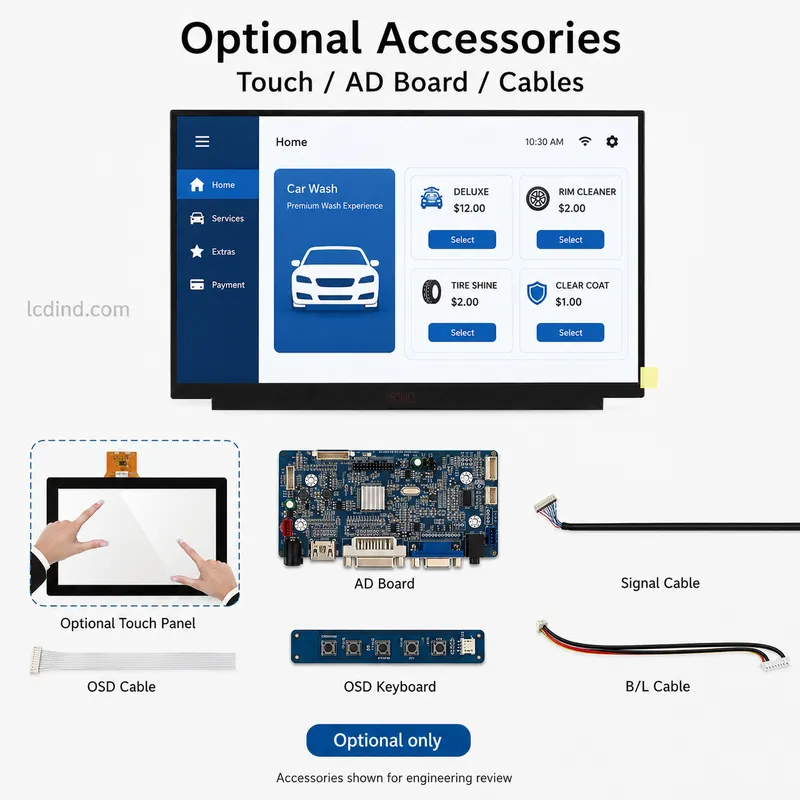

The current attributes list no touch. If the project needs touch, LCDind should review whether the buyer needs a separate capacitive sensor, cover glass, optical bonding, USB or I2C touch controller and ESD design. Adding touch changes thickness, reflection, brightness loss and mechanical tolerances. It should be specified as a display assembly requirement, not assumed from the panel page.

Procurement Use of This Page

For B2B sourcing, this page should help decide whether the buyer needs a standard indoor 15.6 inch eDP FHD panel. It is not a final compatibility certificate. Procurement should ask LCDind to confirm exact G156HAN03.0 revision, availability, acceptable substitutes, lead-time range and packaging before quoting production equipment or service inventory.

Sample Approval Method

Sample evaluation should include eDP image lock, color and brightness check, black-screen leakage, viewing angle, backlight dimming, hot start, cable movement test and UI readability. If the display will run continuously, include a burn-in or long-duration power test. These checks give engineering evidence before the purchasing team commits to larger quantities.

Why eDP Scope Matters for Purchasing

Many 15.6 inch FHD panels look interchangeable, but eDP details can vary by lane count, connector, firmware behavior and backlight control. Purchasing should not approve this item until engineering confirms that the host board supports the exact eDP requirement. If the buyer needs a monitor-style input, LCDind should quote a controller board or complete assembly. Separating panel-only and assembly scope prevents a common B2B issue where the purchased panel cannot connect to the customer's existing hardware.

Indoor Equipment Acceptance Criteria

Because this is a standard-brightness indoor panel, acceptance should focus on stable eDP display, pixel defects, brightness uniformity, backlight dimming, color readability, mechanical fit and UI scaling. If the equipment has long daily operating hours, the 30k-hour backlight should be considered in the maintenance plan. For public-facing terminals or harsh factory areas, evaluate protective glass, touch option and environmental limits before choosing this model.

RFQ Checklist

• Exact AUO model/revision, eDP 1.2 2-lane mapping, 30-pin connector and cable requirement.
• Host controller, enclosure drawing, touch or cover-glass requirement and indoor operating condition.
• Replacement evidence such as original label photos, connector photos and failed device model if applicable.
• Sample quantity, forecast, packaging, inspection criteria and substitute approval process.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is this a sunlight-readable panel?

No. The public brightness is 300 cd/m², suitable for standard indoor use.

What interface is confirmed?

eDP 1.2 with 2 lanes and a 30-pin connector.

Does it include touch?

No. The attributes list no touch.
