AUO G057QAN01.1 5.7 Inch 320×240 RGB / TTL TFT LCD Panel
AUO G057QAN01.1 LCD panel is prepared for industrial display replacement and OEM integration, with 320×240, RGB / TTL and 800 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | AUO |
|---|---|
| Size | 5.7 inch |
| Resolution | 320×240 |
| Brightness | High Brightness (500-900 nits) |
| Interface | RGB / TTL |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |

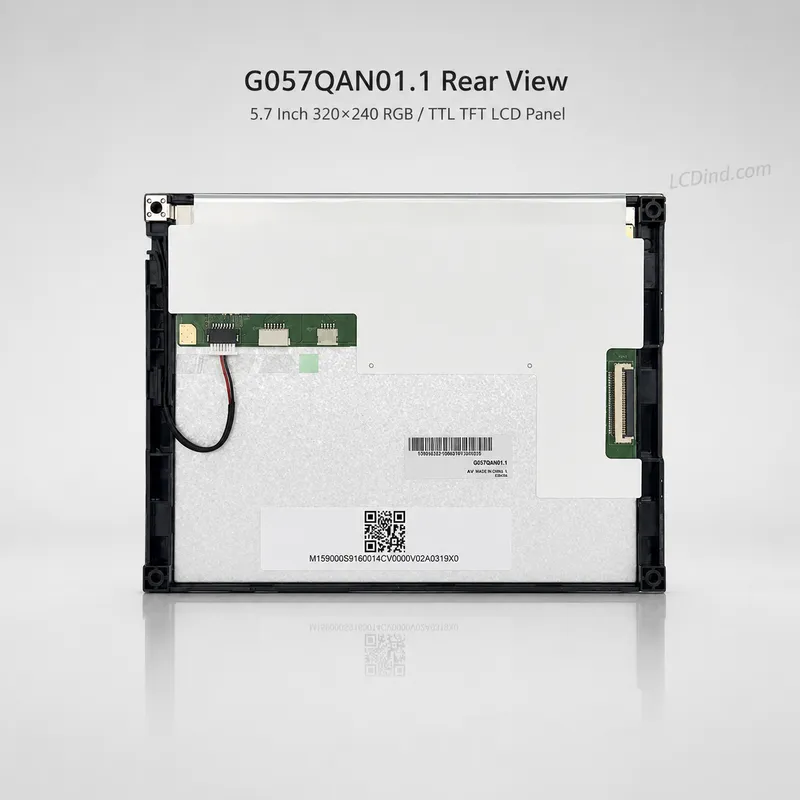

AUO G057QAN01.1 LCD panel Overview
This AUO TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: G057QAN01.1
- Diagonal size: 5.7 Inch
- Resolution: 320×240
- Interface: RGB / TTL
- Brightness: 800 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 320×240, QVGA 70PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 800 cd/m² (Typ.) |
| Display Size | 5.7 inch |
| Operating Temperature | -30 ~ 85 °C |
| Screen Size | 5.7″ |
| Communication Interface | CMOS (1 ch, 6-bit) , 33 pins Connector |

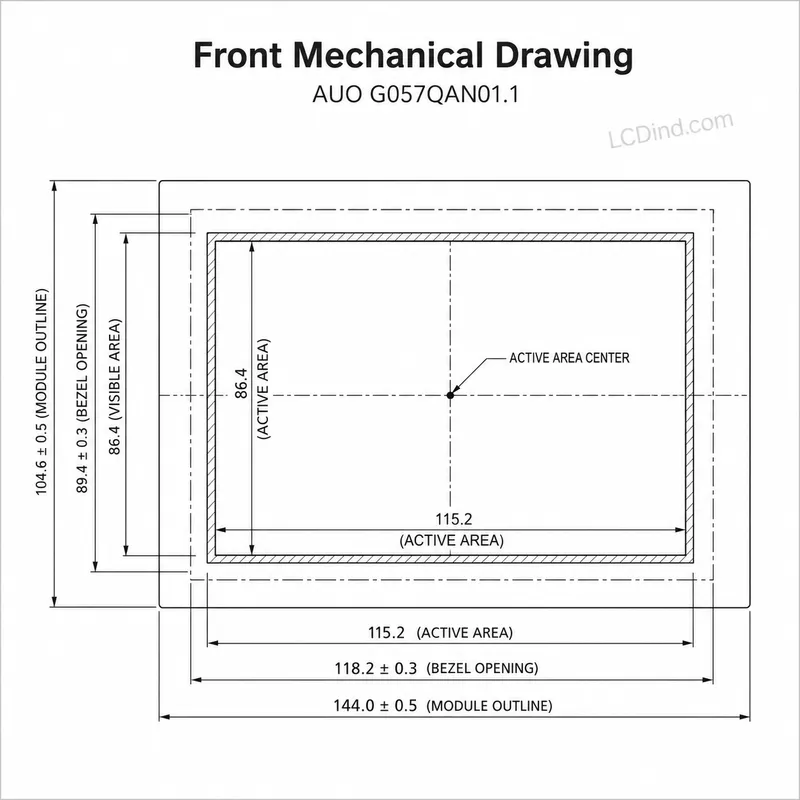

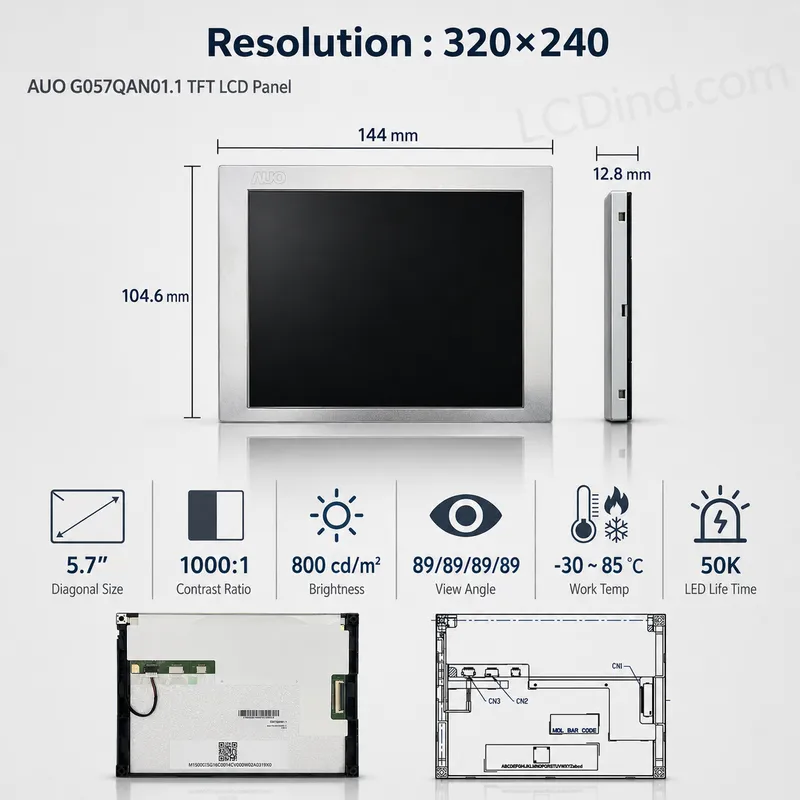

| Active Area | 115.2(W)*86.4(H) mm |

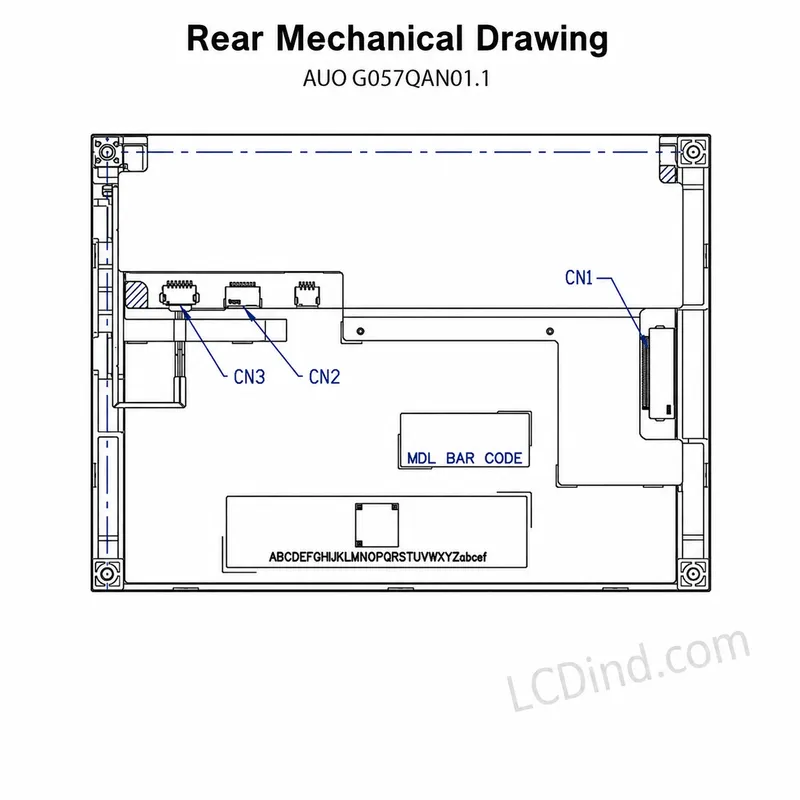

| Outline Size | 144(W)*104.6(H) *12.3(D) mm |
| View angle | 89/89/89/89 |
| Contrast ratio | 1000:1 (Typ.) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Backlight | WLED , 50K hours , With LED Driver |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Total Consumption | 2.21W (Typ.) |
| Selling Units | Single item |
| Single package size | 30X20X10 cm |
| Single gross weight | 0.3 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
Is G057QAN01.1 a drop-in replacement?
Match the exact model and revision, outline drawing, connector position, pin definition, voltage and timing against the current datasheet before replacement.
Which host interface does G057QAN01.1 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What operating environment should engineers verify?
The supplier attributes state -30 ~ 85 °C. Also verify storage limits, backlight life, vibration, humidity and enclosure thermal conditions.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
| Brand | AUO |
|---|---|
| Size | 5.7 inch |
| Resolution | 320×240 |
| Brightness | High Brightness (500-900 nits) |
| Interface | RGB / TTL |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
What is the resolution of G057QAN01.1?
The captured supplier evidence states 320x240. Confirm the exact model revision and current datasheet before design-in.
Which host interface does G057QAN01.1 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering G057QAN01.1?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
