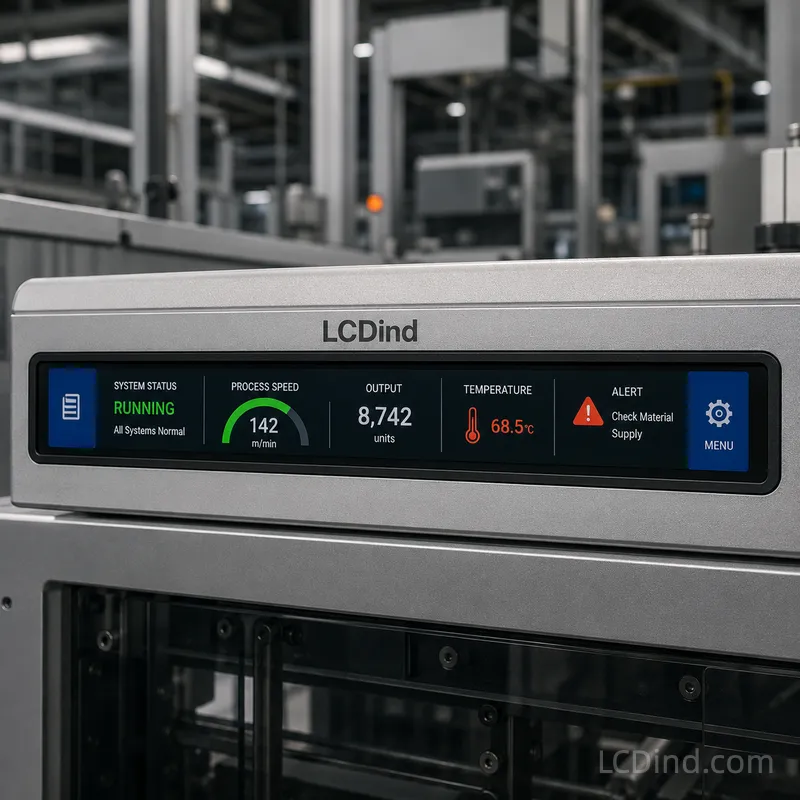

How to Use an 8.88 inch Bar LCD Panel for Slim Equipment Dashboards
Bar LCD Panel projects are rarely selected by size alone. For SKU DS20123, LCDind starts with a confirmed 8.88 inch module using 480×1920 resolution, MIPI interface, and 600 nits brightness, then reviews whether the display fits the target equipment. OEM teams also need to confirm the mechanical window, host interface, brightness target, touch plan, thermal design, and repeat-supply path before pilot production. This guide uses confirmed LCDind product data and avoids unverified claims.
Confirmed Product Specification
| Panel Model | 91-08901-HS1 |
|---|---|
| Size | 8.88 inch |
| Resolution | 480×1920 |
| Interface | MIPI |
| Brightness | 600 nits |
| Viewing Direction | All viewing directions |
| Touchscreen | Capacitive touch |
| Operating Temp | -20 to +70°C |
| Storage Temp | -30 to +80°C |
| Outline Dimension | 64.3*231.3*4.8 mm |
| Active Area | 54.72*218.88 mm |
| Contrast Ratio | 800:1 |
| Power Supply | 3.3V |
| LED Lifetime | 30000 hours |
The confirmed configuration is 8.88 inch with 480×1920 resolution, MIPI interface, 600 nits brightness, -20 to +70°C operating temperature, and Capacitive touch.
What OEM Buyers Should Confirm
The 8.88 inch active format gives OEM teams a practical display area for industrial HMIs, touch terminals, medical carts, automation panels, and smart equipment consoles. The MIPI interface fits compact embedded platforms that need high-density signaling, low cable count, and careful confirmation of lane count, connector direction, and initialization code. The 600 nits brightness level is suitable for bright indoor equipment and controlled-light terminals, with optional upgrades available when the project needs stronger daylight readability. The touch configuration is listed as Capacitive touch, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production.
Best-Fit and Poor-Fit Use Cases
This section helps procurement and engineering teams avoid forcing a display into the wrong project envelope.
Good fit
- OEM equipment that needs a 8.88 inch bar LCD panel for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces.
- Projects where the host platform can support MIPI and the connector, pin assignment, voltage, and timing can be confirmed before sample approval.
- Commercial devices where 600 nits brightness and -20 to +70°C match the expected lighting and temperature environment.
Use caution or choose another module
- Projects that need a confirmed touch stack but do not yet have cover glass, bonding, or controller requirements defined.
- Outdoor direct-sunlight equipment when the brightness, cover glass, thermal design, and backlight lifetime have not been reviewed.
- Mechanical designs where the outline dimension, active area, FPC direction, or mounting space has not been checked against the enclosure drawing.
OEM Procurement Checklist
Before moving from sample evaluation to batch sourcing, LCDind recommends confirming these points with the engineering and purchasing teams:
- Confirm the final enclosure drawing, viewing window, active area, FPC direction, connector position, and installation tolerance.
- Confirm host interface timing, voltage, cable length, connector model, initialization requirements, and whether a controller board is needed.
- Confirm brightness target, cover glass stack, surface treatment, thermal path, and backlight lifetime for the real operating environment.
- Confirm whether the standard no-touch or touch configuration fits the product, or whether PCAP, resistive touch, optical bonding, or custom cover glass is required.
- Confirm annual forecast, first order quantity, pilot schedule, certification needs, target price range, and lifecycle expectations before locking the BOM.
Integration Notes for Repeat Supply
- Use panel model 91-08901-HS1 as the internal reference when discussing drawings, samples, and repeat orders.
- Compare the 64.3*231.3*4.8 mm outline dimension and 54.72*218.88 mm active area with the enclosure window before tooling.
- Review the 30000 hours LED lifetime against the expected duty cycle and service schedule.
- Keep the approved sample, drawing version, cable direction, and display initialization settings under revision control.
Best-Fit Applications
For procurement teams, this bar LCD panel should be evaluated for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces. Before quotation, share the target equipment, expected annual quantity, mechanical drawing, host platform, cable direction, cover glass requirement, and schedule. LCDind can then review whether the standard configuration is enough or whether brightness, bonding, cable, touch, or controller-board work is needed.
Product Details & Quotation
View product details: Bar LCD Panel 8.88 Inch for Slim Equipment Dashboards MIPI. Use the product page to review the module details and send LCDind your project requirements for datasheet confirmation or quotation.
Recommended Internal Links
- Product details and inquiry: Bar LCD Panel 8.88 Inch for Slim Equipment Dashboards MIPI
- Relevant category: LCDind display category
- Related sourcing page: LCDind display sourcing guide
Engineering FAQ
Q: What type of equipment project is this 8.88 inch TFT LCD Module 480×1920 MIPI suitable for?
A: This bar LCD panel is best considered for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The MIPI interface fits compact embedded platforms that need high-density signaling, low cable count, and careful confirmation of lane count, connector direction, and initialization code. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The 600 nits brightness level is suitable for bright indoor equipment and controlled-light terminals, with optional upgrades available when the project needs stronger daylight readability. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: The touch configuration is listed as Capacitive touch, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature -20 to +70°C, certification needs, delivery schedule, and whether pre-production samples are required.
