7 Inch TFT Display for Outdoor Equipment 1000 nits Digital
7 Inch TFT Display for OEM/ODM production programs. LCDind supports factory-direct sourcing, with resolution 800×480, interface Digital, brightness 1000 nits, viewing direction 6 o’clock, operating temperature -30 to +85°C. Recommended for industrial controllers, outdoor equipment, transport terminals, rugged handhelds, cold-chain devices, and temperature-sensitive embedded products.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Interface | Digital |
| Brightness | Sunlight Readable (1000+ nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Direction |

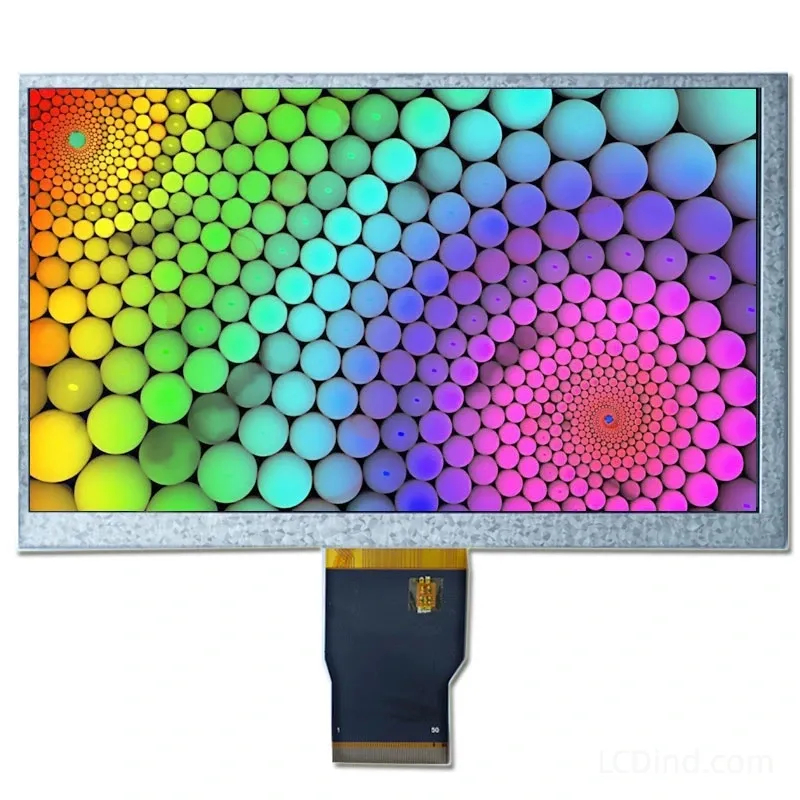

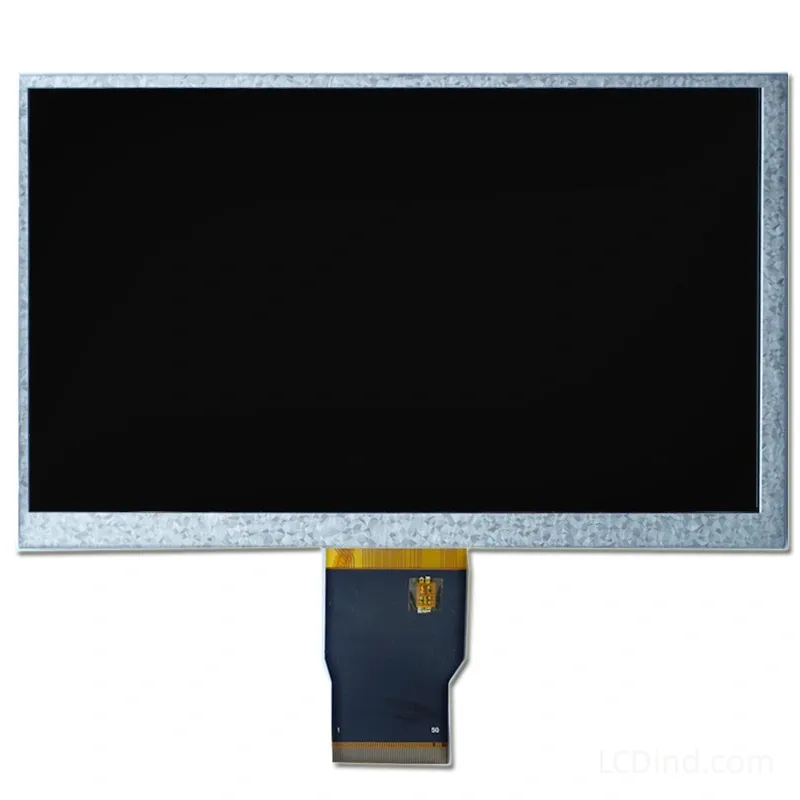

7 Inch TFT Display for OEM/ODM Production
7 Inch TFT Display is supplied by LCDind for OEM engineering teams and procurement managers that need a production-ready display source for commercial equipment programs. This model is intended for OEM/ODM programs that need factory-direct LCD sourcing, engineering confirmation, customization options, and repeatable delivery for commercial products. Engineering teams evaluating this 7 inch TFT display can review mechanical fit, host interface, brightness, touch stack, and operating environment before sample approval and batch procurement.
Key Specifications
| Size | 7 inch |
|---|---|
| Resolution | 800×480 |
| Interface | Digital |
| Brightness | 1000 nits |
| Viewing Direction | 6 o’clock |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | -30 to +85°C |
| Storage Temp | -30 to +85°C |
| Outline Dimension | 164.9*100.0*5.7 mm |
| Active Area | 154.08*85.92 mm |
| Contrast Ratio | 1000:1 |
| Power Supply | 3.3V |
| LED Lifetime | 20000 hours |
| Panel Model | ZDX070TNCP50-DB10 |
Application Fit

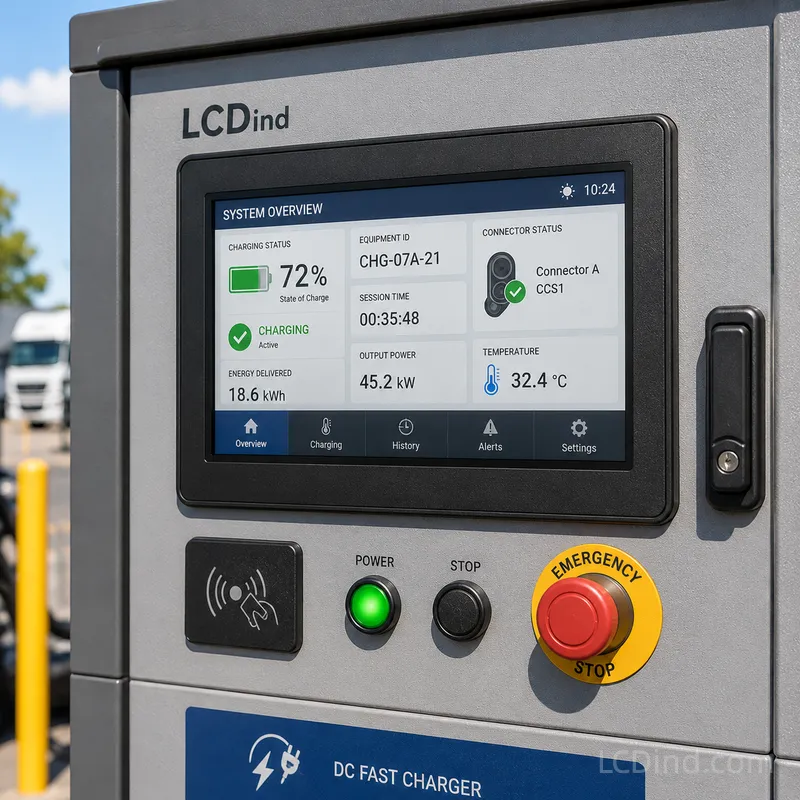

This 7 inch TFT display is suitable for industrial controllers, outdoor equipment, transport terminals, rugged handhelds, cold-chain devices, and temperature-sensitive embedded products. LCDind can support project review for enclosure constraints, target annual quantity, interface compatibility, backlight lifetime, cover glass, touch integration, and production schedule.
Factory Customization & Procurement Support
For OEM/ODM projects, available factory support may include brightness adjustment, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, controller-board matching, and lifecycle review. Share the application, forecast quantity, target price range, schedule, host platform, and any existing panel model when requesting a quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 7 inch |
| Resolution | 800×480 |
| Interface | Digital |
| Brightness | Sunlight Readable (1000+ nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Direction |
Q: What type of equipment project is this 7 inch TFT LCD Module 800x480 Digital 1000 nits suitable for?
A: This 7 inch TFT display is best considered for industrial controllers, outdoor equipment, transport terminals, rugged handhelds, cold-chain devices, and temperature-sensitive embedded products. For enterprise procurement, LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: This model is configured around Digital. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The listed brightness is 1000 nits. For outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: Touch support is listed as No touch panel in standard configuration. For OEM/ODM programs, LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature -30 to +85°C, certification needs, delivery schedule, and whether pre-production samples are required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
