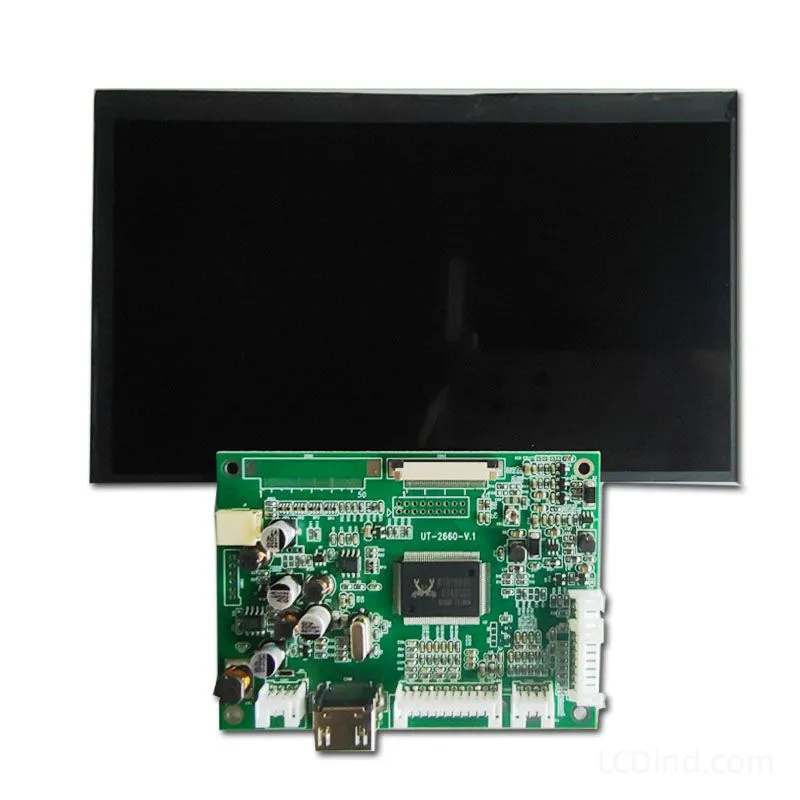

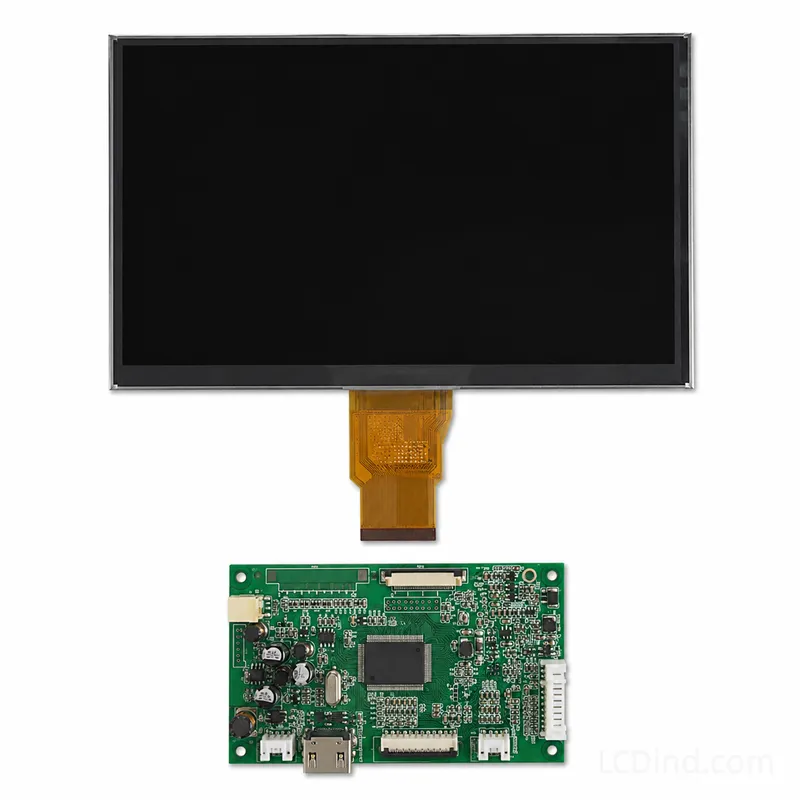

7.0 inch HDMI TFT LCD Display Kit 1024×600 HDMI
7.0 inch HDMI TFT LCD display for OEM display projects, with resolution 1024×600, interface HDMI, brightness 600 nits, viewing angle 80/80 /80/80, viewing direction ALL, operating temperature -20℃~70℃. Suitable for embedded HMI prototypes, instrument panels, test equipment, and controller-board display kits.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 1024×600 |
| Interface | HDMI |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | All View / IPS |
| Viewing Direction |
7.0 inch HDMI TFT LCD Display Kit 1024×600 HDMI for OEM Display Integration
This 7.0 inch HDMI TFT LCD display is prepared for LCDind buyers who need a verified TFT LCD module or display kit for production-oriented embedded devices. The core selection data comes from the supplier specification table, so engineering teams can quickly compare size, resolution, interface, brightness, touch support, and temperature range before requesting a datasheet.
Key Specifications
| Size | 7.0(Diagonal) |
|---|---|
| Resolution | 1024×600 Pixels |
| Interface | HDMI |
| Brightness | 600cd/m2 |
| Viewing Angle | 80/80 /80/80 |
| Viewing Direction | ALL |
| Touchscreen | Yes |
| Operating Temp | -20℃~70℃ |
| Storage Temp | -30℃~80℃ |
| Outline Dimension | 165(W)x100(H)X5.5(T)mm |
| Active Area | 154.21(W)x85.92(H)mm |
| Contrast Ratio | 800 |
| Connection | Plug-in FPC |
| Driver IC | – |
Recommended Applications
Best-fit applications include embedded HMI prototypes, instrument panels, test equipment, and controller-board display kits. LCDind can help check interface compatibility, touch integration, cover glass, backlight changes, cable length, and controller-board matching before sample ordering.
Customization Support
Available project checks may include brightness tuning, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, and lifecycle review. Share the target quantity, enclosure limits, host interface, operating temperature, and any current panel model when requesting a quote.
| Brand | OEM / ODM |
|---|---|
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | 1024×600 |
| Interface | HDMI |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Angle | All View / IPS |
| Viewing Direction |
Q: What is the main use case for this 7.0 inch HDMI TFT LCD Display Kit 1024x600 HDMI?
A: This model is best considered for embedded HMI prototypes, instrument panels, test equipment, and controller-board display kits. Final suitability should be confirmed against the host interface, mechanical outline, brightness target, and operating environment.
Q: What interface should the mainboard support?
A: The specification table lists HDMI. Please confirm pin assignment, connector type, voltage, and timing before sample approval.
Q: Is this display suitable for high-brightness or outdoor projects?
A: The listed brightness is 600 nits. For outdoor or sunlight-readable designs, LCDind should review target nits, anti-glare or AR cover glass, thermal design, and backlight lifetime.
Q: Can LCDind support touch or cover-glass customization?
A: The available table lists touch support as Yes. Depending on the project, LCDind can help evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, and coating options.
Q: What information is needed before quotation?
A: Please share annual quantity, target application, host interface, mechanical drawing, brightness requirement, operating temperature -20℃~70℃, and whether a datasheet or sample is required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
