4.3 Inch Capacitive Touch Display for Industrial Touch HMI

4.3-Inch 800×480 Capacitive Touch Display for Industrial HMI

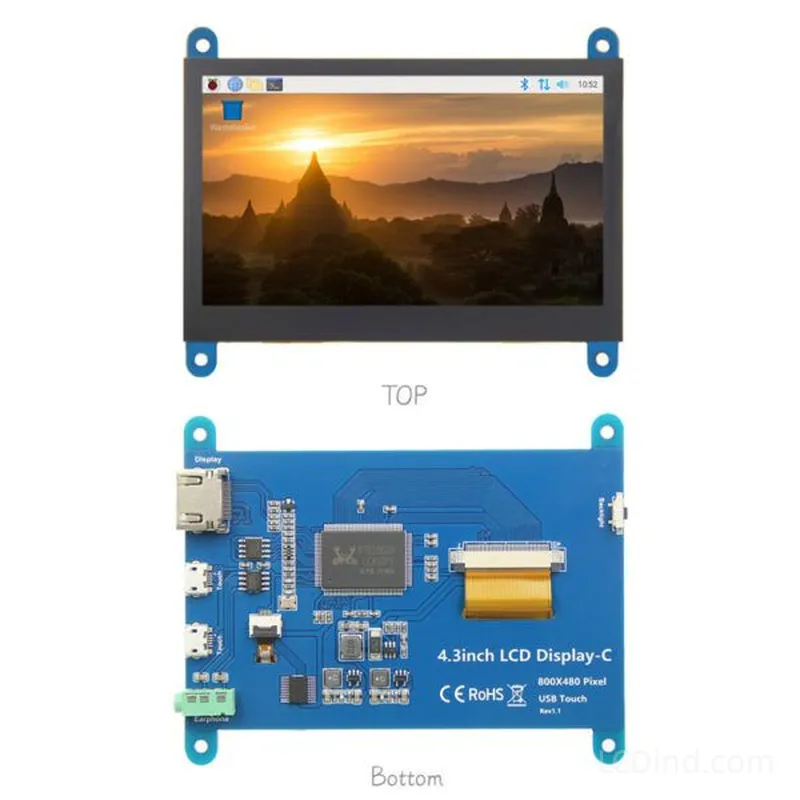

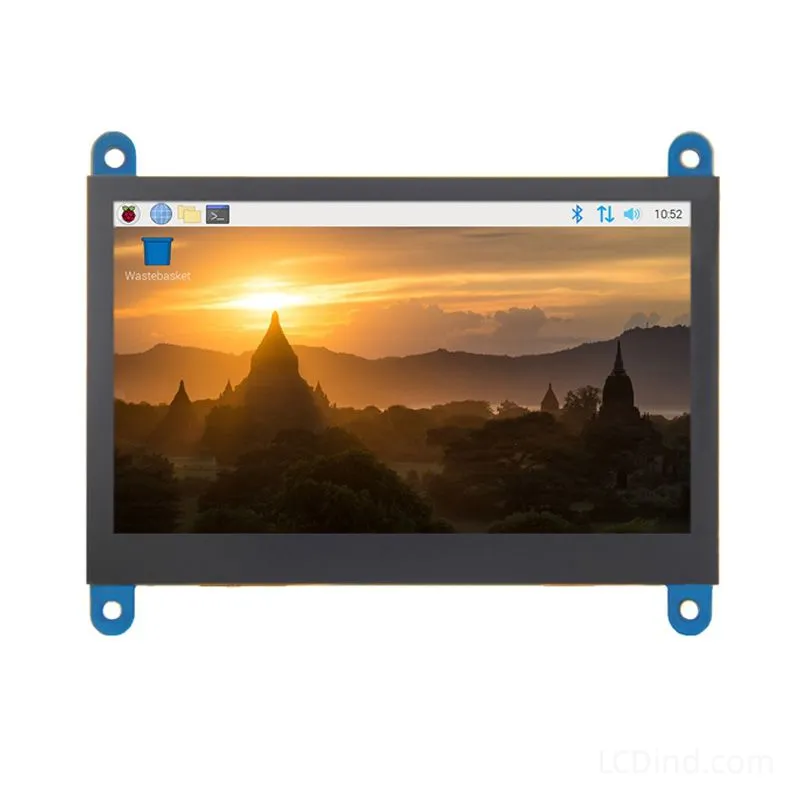

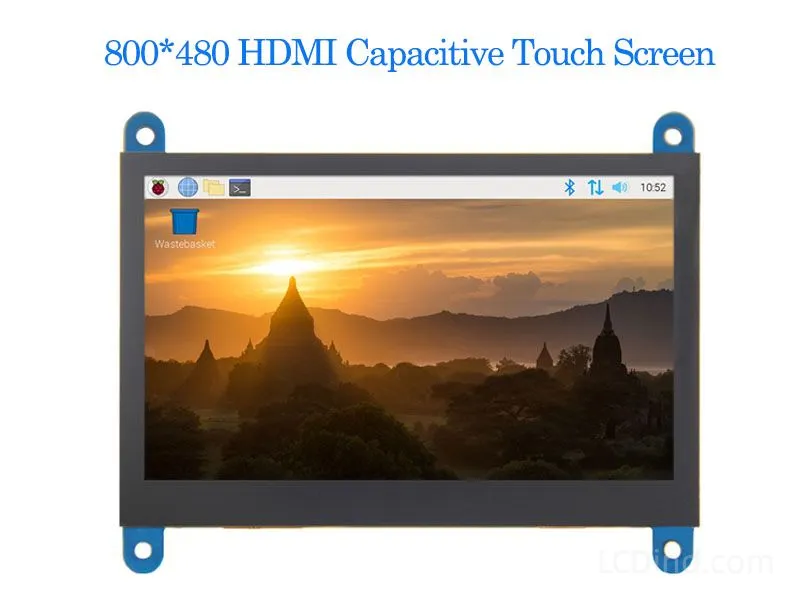

This 4.3-inch capacitive touch display is intended for industrial touch HMI projects that need a compact 800×480 screen with PCAP input and a production-oriented review process. Confirmed public data includes 4.3 inch size, 800×480 resolution, capacitive touch panel, 106.00 x 85.31 mm outline dimension, 95.04 x 53.86 mm active area, 2.17W power input, and LCDind model LCDind-DS20227. Interface, brightness, operating temperature, and LED lifetime are not completed in the current product data, so those values should be confirmed during RFQ rather than assumed.

This page is written for OEM equipment teams, not for one-off development-board purchases. A 4.3-inch PCAP HMI may look simple, but the finished product depends on the host interface, touch controller, front cover, grounding, enclosure, cable route, software, and production inspection. The display should be approved as an assembly inside the target equipment, not only as a powered-on module on a desk.

Confirmed Product Data

Industrial Touch HMI Fit

This module is suitable for embedded operator panels, equipment settings screens, compact control stations, smart equipment terminals, instrument panels, and production machines that need direct touch input. The 800×480 format gives more horizontal UI space than small portrait screens, making it useful for status bars, mode selection, warning dialogs, parameter pages, and simple dashboard views. It is large enough for finger touch targets while still compact enough for a small enclosure.

Capacitive touch is appropriate when the product needs a clean front surface, gesture-style interaction, or a sealed cover-lens design. It should be reviewed carefully if the equipment is used with gloves, wet hands, heavy electrical noise, or thick protective glass. Touch performance depends on the controller, grounding, cover lens, bonding method, firmware settings, and enclosure material. Buyers should not evaluate touch behavior only from an open sample.

Mechanical and Front-Stack Review

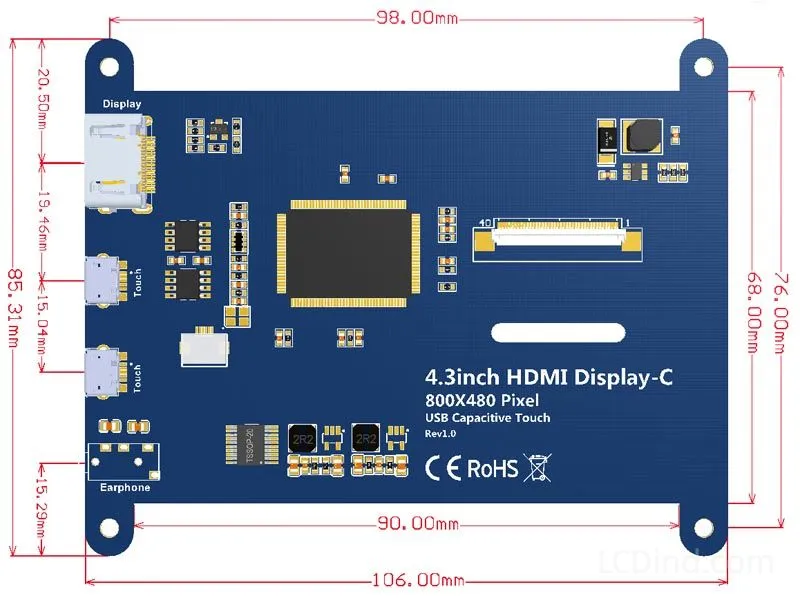

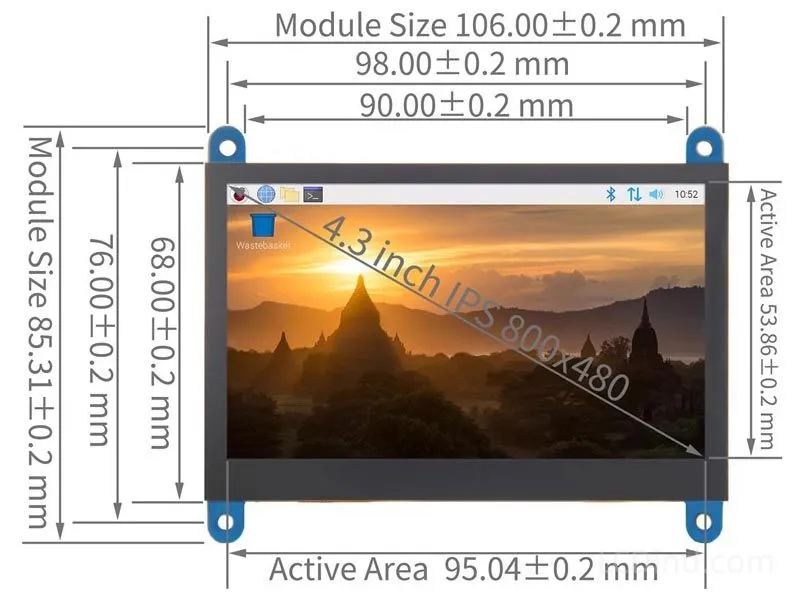

The outline dimension is 106.00 x 85.31 mm, and the active area is 95.04 x 53.86 mm. The enclosure should expose the active display area cleanly while protecting the border and touch region. Review bezel overlap, cover-lens thickness, gasket pressure, mounting support, cable path, and connector clearance before releasing tooling. PCAP assemblies can be sensitive to mechanical pressure and grounding changes, so the front stack should be validated as part of the HMI design.

The listed power input is 2.17W. For compact equipment, review power budget, heat dissipation, always-on screen behavior, dimming strategy, and standby state. If the HMI is mounted in a sealed panel, internal temperature can differ from room temperature. Because brightness and operating temperature are not filled in the public data, request confirmation based on the actual lighting and environmental requirements.

Interface and Host Questions

The current listing does not publish a fixed interface value. During RFQ, provide the host board, processor, expected display interface, touch interface, cable length, connector direction, operating system, and any controller-board requirement. LCDind can then review whether the display should be supplied with an adapter, controller board, custom cable, cover lens, or other integration support. If the target system is Linux, Android, or a dedicated embedded controller, driver and touch support should be checked before pilot production.

Touch Validation in Real Equipment

For PCAP HMI projects, sample approval should include operation with the final front lens, grounding design, enclosure material, and power supply. Test touch response with the expected finger condition, glove condition if relevant, and the actual UI button size. Also check behavior during power-up, standby resume, and nearby electrical switching. These checks are important because capacitive touch behavior can change when the display moves from an open bench to a grounded metal panel or sealed plastic enclosure.

Production Configuration Control

Before pilot production, record the approved display drawing, touch-controller settings, cover-lens material, bonding method, cable length, connector direction, and inspection criteria. If the same HMI family has several versions, define which version uses LCDind-DS20227 and which options are allowed to change. This avoids later purchasing mistakes where a display with the same size and resolution is treated as equivalent even though the touch stack or mechanical structure is different.

RFQ and Approval Boundary

For quotation, send the application, drawing, target annual quantity, host platform, power budget, display interface requirement, touch use condition, cover-lens plan, operating environment, sample schedule, and any replacement display dimensions. If the HMI requires brightness tuning, optical bonding, AG/AR/AF coating, logo printing, customized cable, or stricter inspection criteria, identify those requirements before sample purchase. The approved configuration should be recorded so later production orders do not mix display, lens, cable, or controller variants.

Quality Review Before Volume Orders

For volume orders, define what quality checks matter for the finished equipment: display power-on behavior, touch response, visual defects, cover-lens alignment, cable fit, packing method, and any inspection photos required by the buyer. If the equipment will be serviced in the field, also confirm whether the display is replaceable and how the cable can be accessed without damaging the touch assembly. These practical requirements should be included in the purchasing discussion, not left until after the pilot build.

When comparing alternatives, do not treat every 4.3-inch 800×480 PCAP display as interchangeable. The outline, active area, touch structure, power input, controller support, and supplier change-control policy all affect the production result. LCDind should review the exact drawing and project conditions before confirming a substitute.

FAQ for 4.3-Inch Industrial Touch HMI

Does this display include capacitive touch?
Yes. The confirmed touch data is capacitive touch panel, also shown as PCAP in the product attributes.

Can the missing interface or brightness data be confirmed?
Yes. Those values should be confirmed during RFQ with the host board, drawing, and operating environment.

What should be checked before enclosure tooling?
Check outline, active area, cover lens, bezel pressure, cable route, connector clearance, touch grounding, and mounting support.

Is this suitable for outdoor HMI?
Outdoor use needs separate review for brightness, bonding, cover treatment, sealing, thermal load, and touch behavior.
