3.97 Inch TFT LCD Display for Smart Equipment Terminals

3.97 Inch 480×800 RGB TFT LCD Display for Smart Equipment Terminals

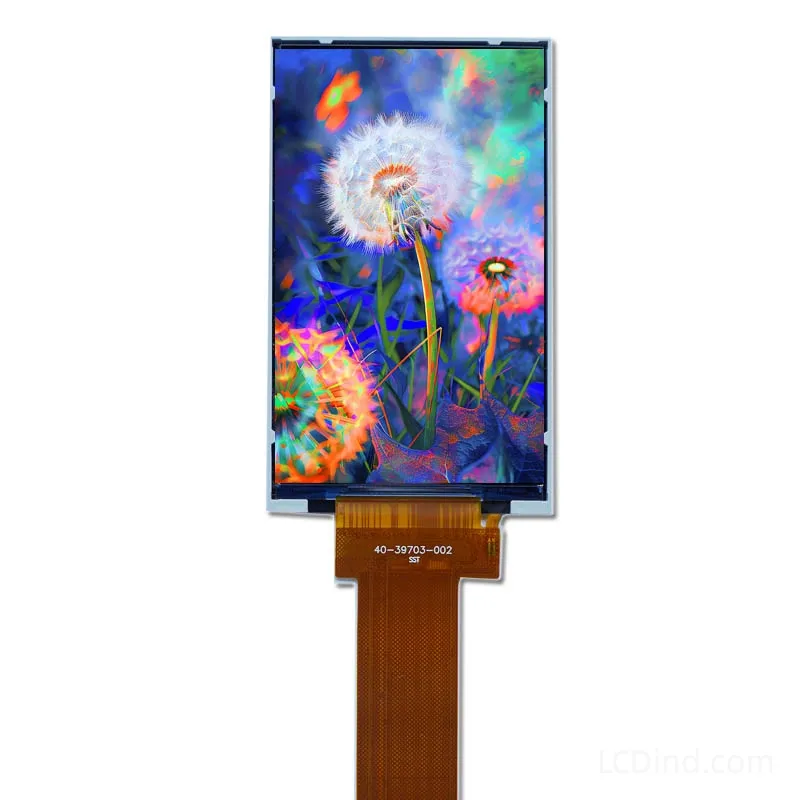

This 3.97 inch TFT LCD display is a portrait RGB module for smart equipment terminals and compact embedded devices. The confirmed specification lists 3.97 inch size, 480×800 resolution, RGB interface, 400 nits brightness, no touch panel in standard configuration, -20 to +70 C operating range, 57.14 x 96.85 x 2.2 mm outline dimension, 51.84 x 86.4 mm active area, 3.3V power supply, and 20000 LED lifetime. The panel model field is blank, so production control should rely on the approved drawing and full specification.

Confirmed Product Specifications

Smart Terminal Fit

The 480×800 portrait format is useful for compact smart terminals, device dashboards, instrument panels, access equipment, service controllers, and industrial handheld designs that need more detail than 320×480 screens. It can support icons, lists, setup pages, warning panels, and multi-line status information.

RGB Host Requirement

The confirmed RGB interface means the host must supply display timing and data. Engineers should verify pixel clock, sync, voltage, connector, FPC route, initialization, and display rotation. If the host platform uses MIPI, HDMI, SPI, or MCU output, a different panel or controller strategy may be required.

No-Touch Standard Configuration

The standard version has no touch panel. This works for devices with buttons, keypads, encoders, or separate input hardware. If the terminal requires touch, cover lens and controller planning should be included in the RFQ. Adding touch later can change thickness, optical performance, and firmware requirements.

Brightness and Use Environment

The 400-nit brightness is positioned for indoor or protected smart equipment. It provides more margin than 300 or 350-nit modules but is not a sunlight-readable specification. Test the display through the real lens and with the final UI colors before approving production.

Mechanical Integration

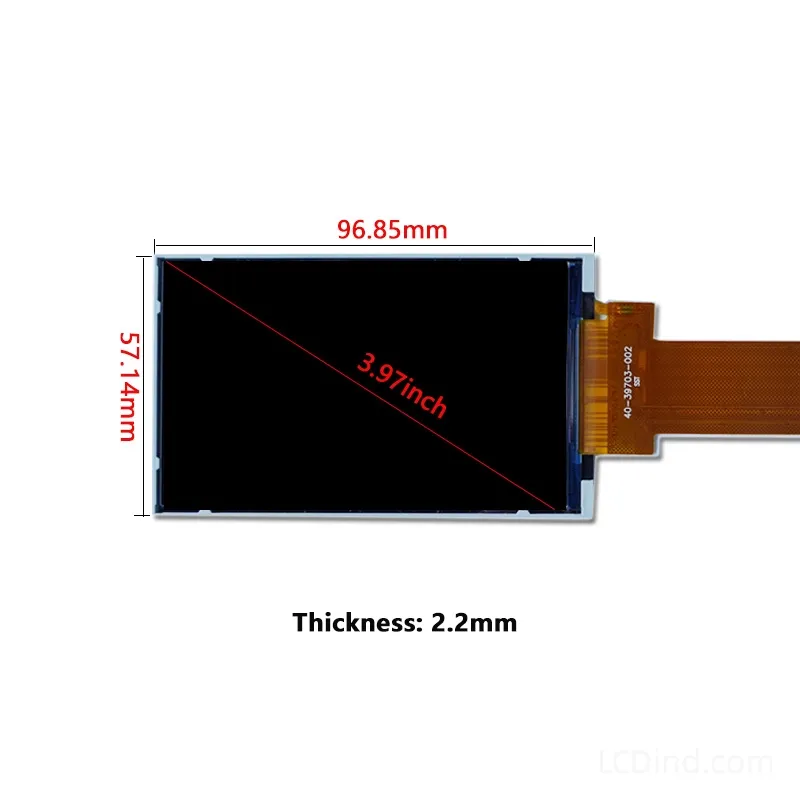

The 57.14 x 96.85 x 2.2 mm outline and 51.84 x 86.4 mm active area are appropriate for slim terminal designs, but the long portrait shape requires careful FPC routing and bezel alignment. If the display sits near batteries, antennas, speakers, or keypads, review the complete internal layout.

Selection Boundary

Choose this product when a compact terminal needs 480×800 RGB graphics without standard touch. Use a lower-resolution display when firmware or cost is more constrained. Use a touch-ready or MIPI module when the terminal is closer to a smartphone-style interface.

Procurement Decision Summary

This display is a good candidate when a smart equipment terminal needs a compact 480×800 RGB screen but will use physical controls or a separate input method. It provides more UI detail than 320×480 modules while staying thinner than many complete HMI assemblies. If the terminal needs touch, MIPI, or a smartphone-like front stack, those requirements should be specified before sample selection.

Common Mismatch Risks

The main risk is assuming a 480×800 display will work with any smart terminal board. RGB timing, connector, voltage, FPC route, and driver support must be confirmed. Another risk is underestimating the UI design effort: higher resolution enables more information, but a crowded layout can reduce readability on a small screen. The final content should be reviewed on the real module.

Production Acceptance Tests

Test RGB signal stability, boot sequence, color screens, UI pages, brightness through the cover lens, long-duration operation, and thermal behavior in the terminal enclosure. If the terminal includes wireless modules, speakers, batteries, or keypads, verify that the display routing and FPC do not conflict with the rest of the assembly. Record the approved drawing because the panel model is not listed publicly.

RFQ Interpretation

For this display, the RFQ should make clear whether the buyer wants a bare RGB LCD module or a display assembly with cover lens and touch development. Smart terminal projects often change during enclosure design, so it is better to confirm active area, connector route, and host board position early. If the product has several SKUs, ask whether the same RGB display can support all versions or whether a touch/MIPI variant will be needed later.

Alternative Selection Boundary

Use this 3.97 inch RGB module when the terminal needs 480×800 detail but does not require touch as standard. Use 3.5 inch modules when the UI is simpler and enclosure space is tighter. Use MIPI or touch-integrated modules when the product needs smartphone-style interaction. The correct choice depends on host interface first, then screen size.

RFQ Checklist

• Host RGB timing, connector, voltage, FPC direction, driver support, and display orientation.
• Terminal enclosure drawing, active-area window, keypad or input method, cover lens, and internal clearance.
• Brightness target, operating environment, thermal limits, and whether touch customization is required.
• Sample quantity, annual forecast, packaging standard, and approved-drawing control requirements.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, operating environment, accessory requirement, and quantity plan. This avoids selecting a display that matches the headline but fails the enclosure, firmware, brightness, thermal, or supply requirements of the finished equipment.

Engineering FAQ

Is this a MIPI display?

No. The confirmed interface is RGB.

Is touch included?

No. The standard configuration lists no touch panel.

Why is 480×800 useful?

It gives compact terminals more room for detailed lists, icons, and multi-line interface pages than lower-resolution modules.
