3.5 Inch TFT LCD Module for Industrial Handheld Terminals

3.5 Inch 500-Nit MCU TFT Module for Industrial Handheld Terminals

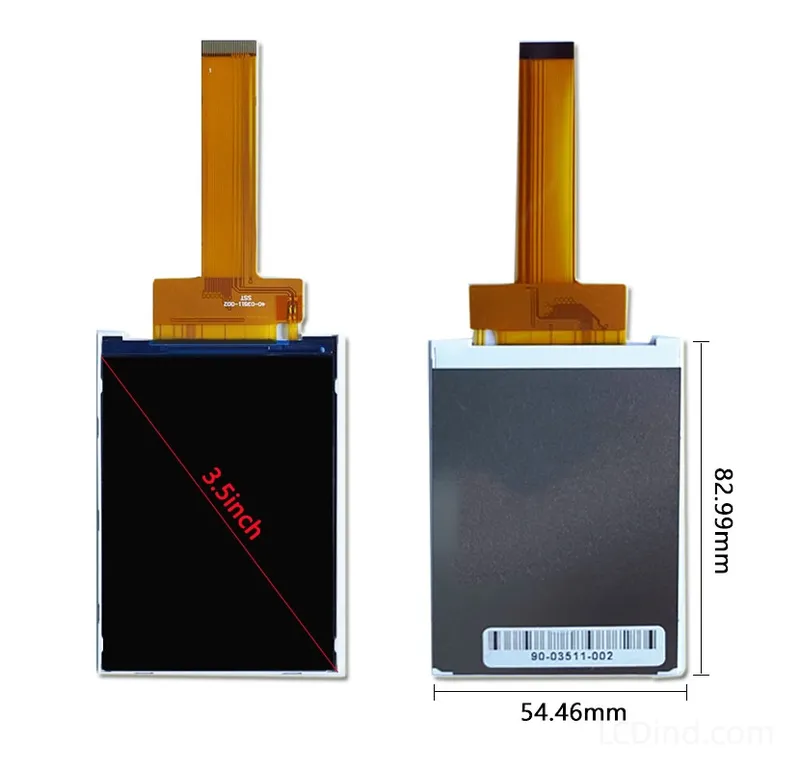

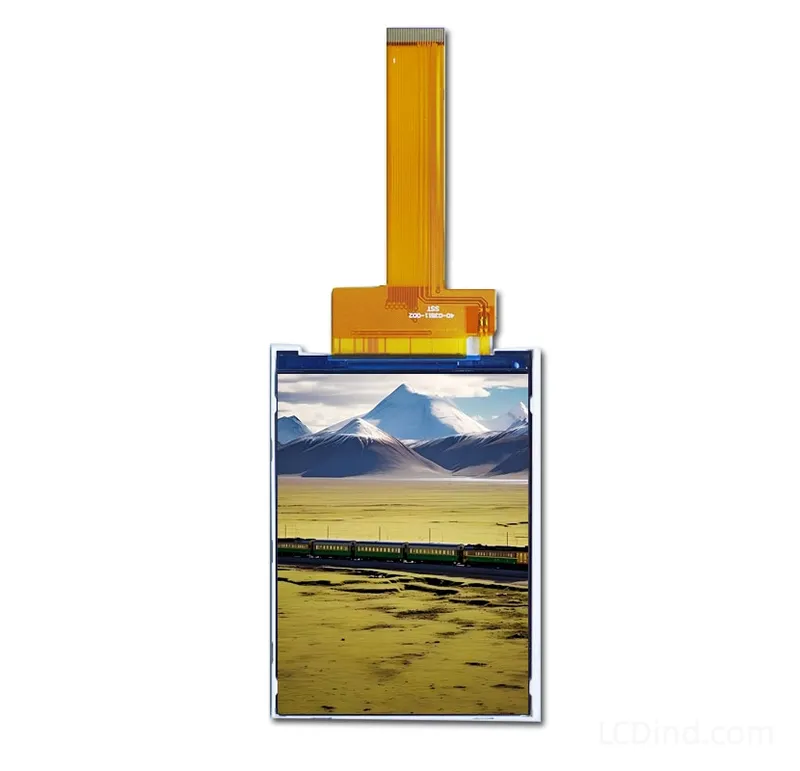

This 3.5 inch TFT LCD module is intended for industrial handheld terminals that need a brighter compact display while keeping MCU interface control. The public facts list 320×480 resolution, MCU interface, 500 nits brightness, 3.3V supply, -20°C to +70°C operation, 54.46×82.99×2.15 mm outline, 48.96×73.44 mm active area, 20000-hour LED lifetime and no touch panel in the standard configuration. It is relevant for portable service terminals, handheld diagnostics, field controllers and industrial data devices where 300 or 350 nits may not provide enough readability margin.

The 500-nit brightness is the main differentiator from other 3.5 inch MCU modules in this batch. It can improve visibility in bright indoor environments, workshops, service vehicles and shaded field use. It should not be treated as a direct-sunlight guarantee. The final cover lens, UI contrast, brightness setting and battery budget decide the real result. If the device must run all day on battery, test display current and thermal behavior at the intended brightness.

MCU interface selection should be checked against UI update requirements. Handheld terminals often show lists, scan results, status values, menus and alerts. If the UI uses static pages and partial updates, MCU control may be practical. If the product requires fast scrolling, maps, camera preview or animation, host bandwidth and memory should be tested. The RFQ should include processor, interface timing, reset sequence and expected refresh behavior.

No touch is listed for the standard module. For industrial handheld terminals, no-touch can be acceptable where the device uses buttons, keypad, trigger or scanner controls. It can also improve durability under gloves, dust and moisture. If touch is required, define touch type, cover lens, bonding, controller, glove behavior and ESD early. A touch stack can reduce brightness and change the 2.15 mm outline advantage.

Mechanical validation should use the final handheld housing with battery, PCB and cable installed. Check drop shock, FPC bend radius, connector retention, front-window pressure and readability from the user’s hand position. For production, record the approved brightness setting, host firmware, cable route, drawing and inspection criteria.

RFQ Checklist

• Handheld terminal type, battery system, charger and operating duty cycle.
• Host MCU, timing, reset, voltage and connector details.
• Brightness target, cover lens, outdoor-adjacent use and dimming plan.
• No-touch baseline or defined touch/cover assembly.
• Housing drawing, FPC route, drop/shock requirement and service access.
• Sample quantity, forecast and qualification schedule.

Engineering FAQ

Is this brighter than standard 3.5 inch MCU modules? Yes, the public facts list 500 nits.

Is it sunlight readable? Not automatically; final readability depends on the complete optical and thermal design.

Is touch included? No touch panel is listed for the standard configuration.

What should be tested with battery products? Test brightness, run time, heat and display stability during charging and low-battery operation.

What should be frozen for production? Freeze drawing, host timing, brightness profile, cable route and sample appearance.

Engineering Review Note

Use this 500-nit MCU module for industrial handheld terminals where higher brightness is needed but touch is not part of the baseline. LCDind should review host, battery and enclosure details before sample approval.

Prototype Validation and High-Brightness Handheld Approval

For this 500-nit handheld-terminal module, sample approval should include brightness and power testing. Measure whether the device can sustain the target brightness without overheating or reducing battery life below the product requirement. Test normal brightness, maximum brightness and any dimmed night mode. If the product is used near windows, outdoors under shade or in service vehicles, review the display through the final cover lens under those conditions.

Handheld terminals often include scanners, radios, batteries and keypads. Test display stability during wireless communication, charging, scanning or other high-current events. Cable routing and grounding can affect display behavior in a small enclosure. If the display has no touch baseline, check that the physical input method can operate every required function.

For production, freeze the host initialization, brightness profile, drawing, cable, front lens and sample appearance. If the customer asks for a touch version, quote it separately and retest brightness, thickness, ESD and glove behavior. Do not assume the 500-nit bare module will remain 500-nit visible after a touch and cover-glass stack.

For incoming inspection, high-brightness handheld displays should be checked for backlight uniformity, polarizer scratches, FPC damage and visible marks after the front lens is installed. If the display is part of a rugged terminal, also check vibration and drop effects on the connector. The sample approval should include both a bare display view and a finished-device view.

For long-term supply, tell LCDind whether the 500-nit brightness is mandatory or whether a lower-brightness equivalent could be accepted in a future shortage. That decision affects alternate sourcing and should be made before there is an urgent production need.

If the terminal is used for scanning, wireless communication or field diagnostics, test the display while those functions are active. Electrical noise, processor load and battery current can affect the complete device. The display approval should therefore include normal operating modes, not only idle screen behavior.

The 500 nits brightness gives this 3.5 inch module more headroom than lower-brightness handheld displays, but the final readability still depends on the cover lens, anti-glare treatment, UI contrast and operating environment. For field terminals, evaluate it with the real enclosure, not as a bare module on the bench. If the device is used by gloved operators or service technicians, review font size, alarm colors and key workflow screens during the same sample approval.

Confirm expected cable length before quotation.
