1.44-Inch SPI TFT Display for Instrument Control Panels

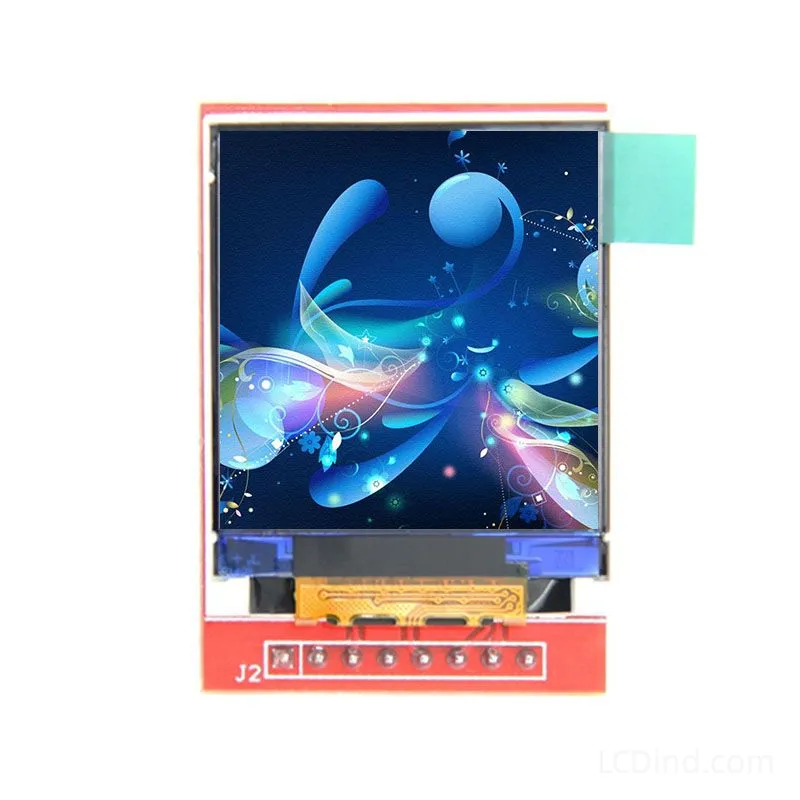

This 1.44 inch SPI TFT display is prepared for instrument control panels, small equipment interfaces, and embedded products that need a compact square color display. The confirmed data includes 1.44 inch size, 128×128 resolution, 4-wire SPI interface, -20 C~60 C operating range, 31.49 x 43.95 mm outline dimension, 26.2 x 27.2 mm active area, 5V/3.3V power supply, and LCDind model LCDind-DS20204. Brightness, touchscreen, and LED lifetime are blank in the current table and should be confirmed during RFQ.

Technical Specifications

Panel and Enclosure Fit

The 1.44 inch size is useful when a product needs a small square display on a crowded instrument panel. The 31.49 x 43.95 mm outline must be checked against buttons, LEDs, membrane overlays, connectors, and mounting hardware. The active area of 26.2 x 27.2 mm should be used for UI artwork and visible window planning. If the display sits behind a printed overlay, confirm that text and icons remain readable after the front material is added.

Instrument panels often have fixed cutouts and strict internal space. Before sample approval, verify FPC bend radius, connector direction, board mounting, gasket pressure, and whether the display can be replaced or serviced during assembly. Because power is listed as 5V/3.3V, the hardware team should confirm which supply rail will be used and whether level shifting is required.

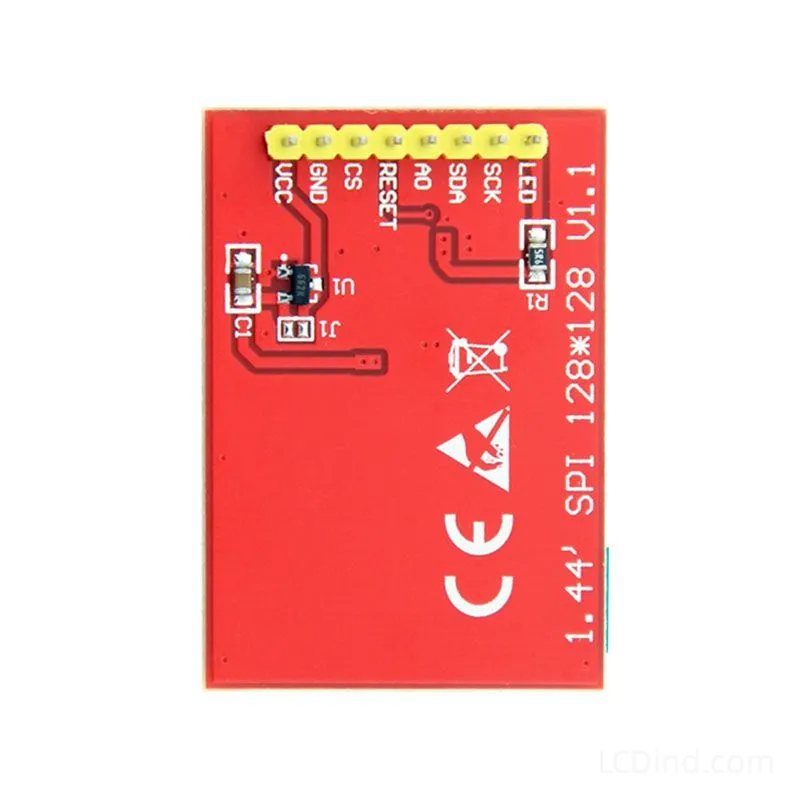

4-Wire SPI for Compact Instruments

The 4-wire SPI interface is suitable for instruments that display values, status icons, menus, limits, and alarm states. Engineers should validate the display controller initialization, update frequency, color format, and font readability. A 128×128 screen works best when the UI is designed deliberately with short labels and large numeric values rather than trying to reproduce a large HMI layout.

The operating temperature is listed as -20 C~60 C, which supports many industrial indoor and field instruments. If the equipment is installed outdoors, near heat sources, or inside sealed cabinets, thermal and optical review should be included. Brightness is not listed, so sample testing should include the actual lighting environment and cover material.

Instrument Control Applications

This module can be used in digital meters, power controllers, sensor displays, laboratory devices, handheld testers, compact automation accessories, and maintenance instruments. The 128×128 resolution is suitable for single-value display, trend arrows, icon states, mode selection, and simple setup menus. It can replace printed labels and LED clusters when the product needs more flexible status communication.

For equipment manufacturers, a small SPI display can reduce front-panel variants because language, units, and feature sets can be controlled by firmware. That benefit depends on stable supply and consistent optical appearance. Procurement and engineering should therefore treat the display as a production component with drawing approval, not as a generic development-board screen.

Procurement and Production Control

Use LCDind-DS20204 as the engineering reference. Confirm the exact 4-wire SPI interface, power plan, mechanical stack, operating environment, and blank brightness or LED lifetime fields. If the display is used in a certified instrument, ask for revision management and replacement planning before final approval.

Quality criteria should cover backlight uniformity, dead pixels, FPC handling, connector reliability, display alignment, packaging, and cosmetic limits. A small instrument panel display is often read at close range, so minor defects are more visible. Define acceptance criteria before the first production batch.

Customization and Integration Support

LCDind can review FPC direction, connector changes, cover glass, surface treatment, brightness target, bonding, and packaging. If the panel uses a membrane overlay or protective lens, share the material and thickness so readability and touch feasibility can be evaluated properly.

Touch is not confirmed in the current table. Many 1.44 inch instrument panels work better with physical buttons or an encoder beside the display. If touch is still required, provide the cover-lens stack and expected operation method so LCDind can review feasibility.

RFQ and Engineering Review Checklist

• Instrument type, display function, and UI mockup.
• Mechanical drawing with visible window, overlay, mounting, and FPC route.
• Host board, 4-wire SPI timing, 5V/3.3V power plan, and orientation.
• Brightness target and real lighting environment because brightness is blank.
• Touch, cover lens, or membrane overlay requirements if any.
• Annual demand, sample approval plan, and quality inspection standard.

Engineering FAQ

What UI content fits 128×128 resolution?

It fits short labels, numeric values, icons, alarm states, and simple menus. Avoid dense text or complex diagrams that require a larger display.

Is the display confirmed as touch-enabled?

No. The touchscreen field is blank, so touch should be treated as a separate RFQ requirement.

Can this be used in industrial instruments?

Yes, provided the -20 C~60 C operating condition, interface, brightness requirement, and mechanical fit are confirmed with samples.

What should purchasing include in the RFQ?

Include LCDind-DS20204, target quantity, application, host interface, power supply, drawing, brightness target, and any cover-lens or overlay requirement.

Project Notes for Sourcing Teams

This display is a practical compact panel option when the UI is simple and the mechanical stack is reviewed early. Use the exact table values and drawing package for engineering confirmation before production sourcing.

Design Guidance for Small Control Panels

A 1.44 inch display works best when the user interface is deliberately simplified. Use high-contrast numbers, short labels, clear status icons, and consistent alarm colors. Avoid long menu names or dense diagnostic screens that would force small fonts. If the product needs several operating modes, design each page around one primary value and one secondary instruction. This approach makes the display more useful for technicians and operators who may read it quickly during setup or maintenance.

When this module replaces LED indicators, confirm that the firmware communicates fault states clearly even if the device is partially failed. For example, low-voltage, sensor fault, communication error, and calibration mode should be readable without requiring a complex menu. That type of practical UI planning can improve product support and reduce service calls.
