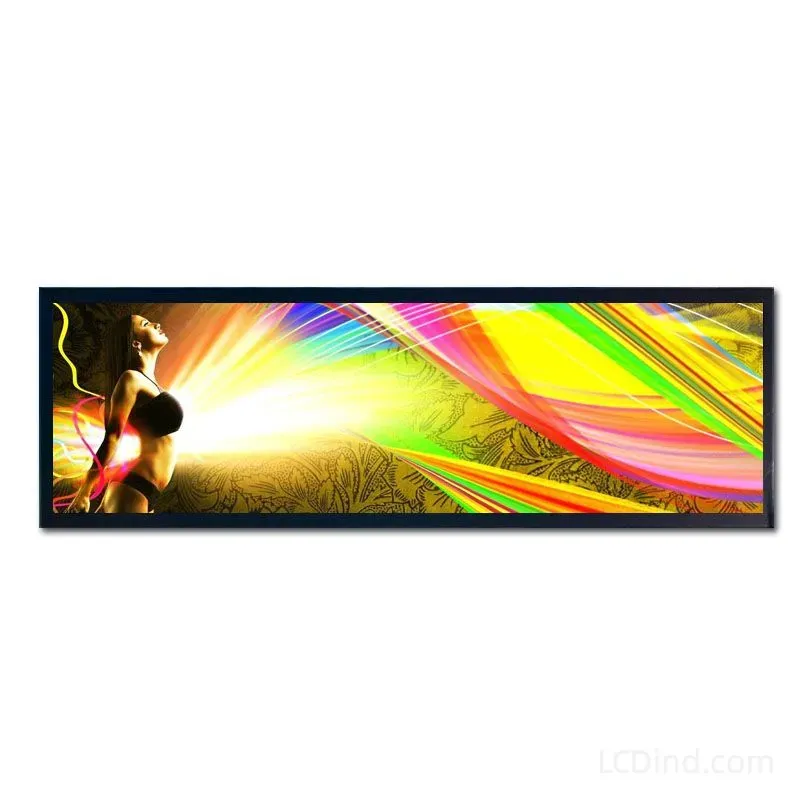

Stretched Bar LCD Display 28.6 inch 1920×540 LVDS 51
Stretched Bar LCD Display for OEM/ODM production programs. LCDind supports factory-direct sourcing, with resolution 1920×540, interface LVDS 51, brightness 500 nits, viewing angle 89/89/89/89, viewing direction All viewing directions, operating temperature 0 to +50°C. Recommended for retail shelf-edge systems, transportation signage, elevator panels, industrial dashboards, machine status displays, and narrow enclosure HMIs.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 28.6 inch |
| Resolution | 1920×540 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Viewing Angle | All View / IPS |
| Viewing Direction |
Stretched Bar LCD Display for OEM/ODM Production
Stretched Bar LCD Display is supplied by LCDind for OEM engineering teams and procurement managers that need a production-ready display source for commercial equipment programs. This model is suited to equipment programs where a narrow display format must fit a fixed mechanical window while still supporting controlled production and lifecycle review. Engineering teams evaluating this stretched bar LCD display can review mechanical fit, host interface, brightness, touch stack, and operating environment before sample approval and batch procurement.

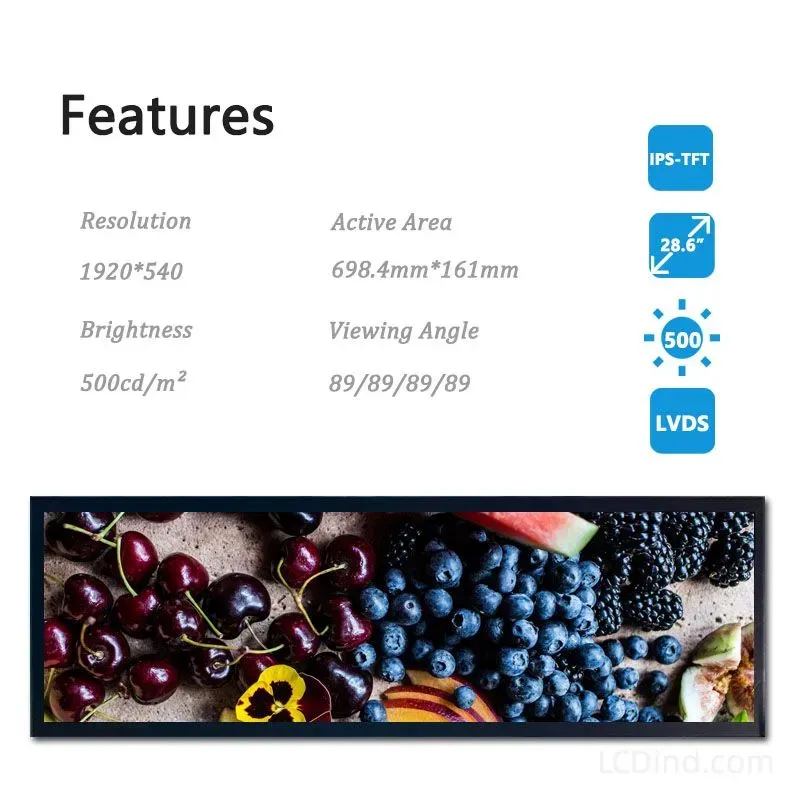

Key Specifications
| Size | 28.6 inch |
|---|---|
| Resolution | 1920×540 |
| Interface | LVDS 51 |
| Brightness | 500 nits |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | All viewing directions |
| Operating Temp | 0 to +50°C |
| Storage Temp | -20 to +60°C |

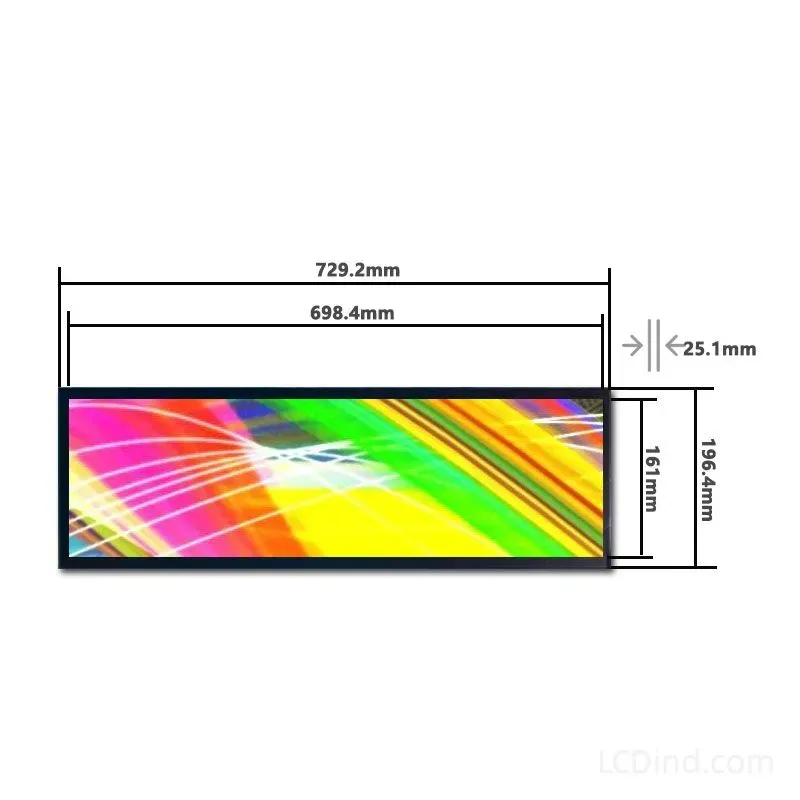

| Outline Dimension | 729.2*196.4*25.1 mm |
| Active Area | 698.4*161 mm |
| LED Lifetime | 50k |
| Surface Treatment | Anti-glare |
| Surface Hardness | 3H |
Application Fit

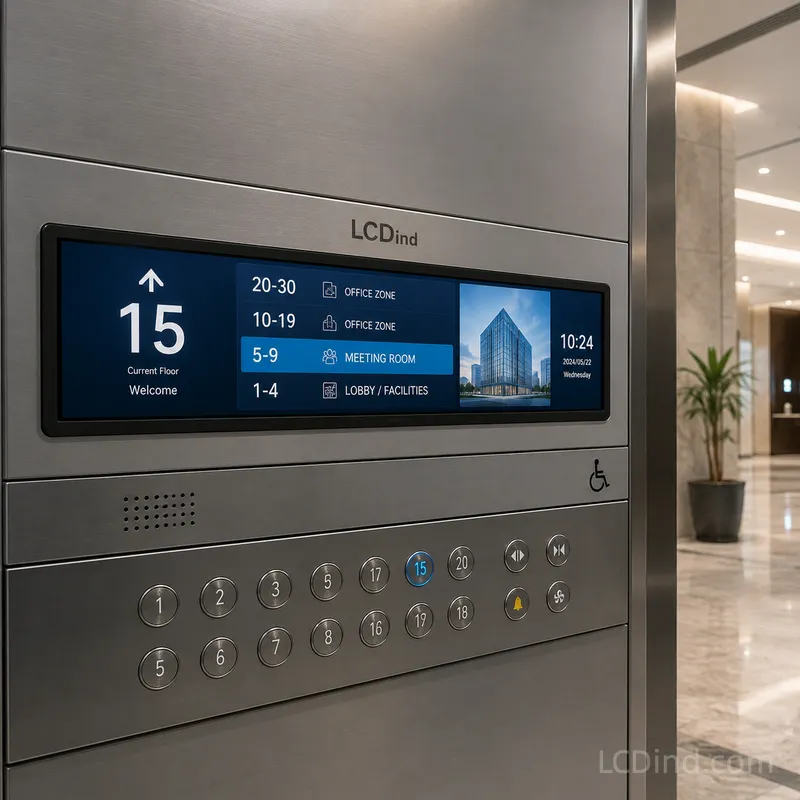

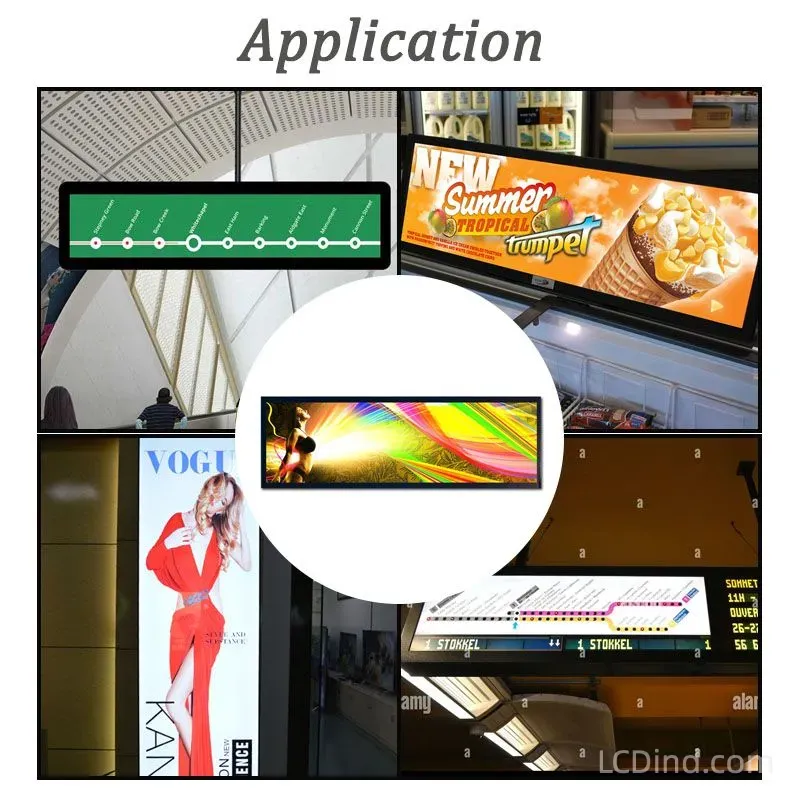

This stretched bar LCD display is suitable for retail shelf-edge systems, transportation signage, elevator panels, industrial dashboards, machine status displays, and narrow enclosure HMIs. LCDind can support project review for enclosure constraints, target annual quantity, interface compatibility, backlight lifetime, cover glass, touch integration, and production schedule.
Factory Customization & Procurement Support
For OEM/ODM projects, available factory support may include brightness adjustment, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, controller-board matching, and lifecycle review. Share the application, forecast quantity, target price range, schedule, host platform, and any existing panel model when requesting a quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 28.6 inch |
| Resolution | 1920×540 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Viewing Angle | All View / IPS |
| Viewing Direction |
Q: What type of equipment project is this 28.6 inch Bar Type LCD Display 1920x540 LVDS 51 suitable for?
A: This stretched bar LCD display is best considered for retail shelf-edge systems, transportation signage, elevator panels, industrial dashboards, machine status displays, and narrow enclosure HMIs. For enterprise procurement, LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: This model is configured around LVDS 51. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The listed brightness is 500 nits. For outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: Touch support is listed as project-dependent. For OEM/ODM programs, LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature 0 to +50°C, certification needs, delivery schedule, and whether pre-production samples are required.
