Bar LCD Panel Ultra Wide 38.5 inch 700 nits LVDS
38.5-inch ultra-wide bar LCD panel with 1920×540 resolution, LVDS interface, 700-nit brightness, 89/89/89/89 viewing angle, anti-glare surface, and 0 to +50°C operating temperature. Share the LVDS pin definition, enclosure drawing, installation conditions, and forecast quantity for engineering review.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 38.5 inch |
| Resolution | 1920×540 |
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Viewing Angle | All View / IPS |

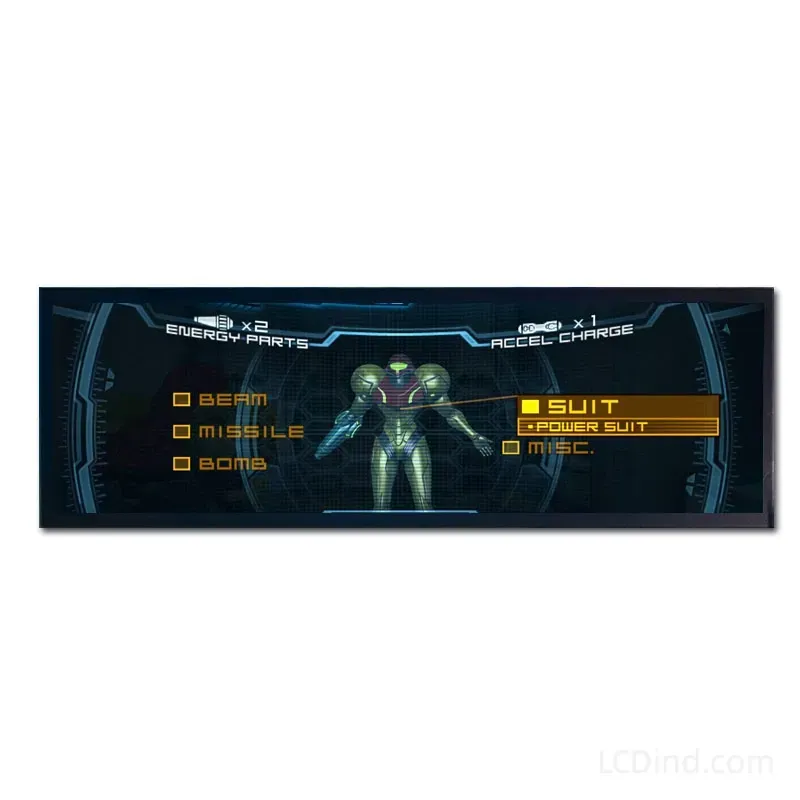

38.5-Inch 1920×540 Bar LCD Panel for Long-Format Equipment Windows
This 38.5-inch bar LCD uses a 1920×540 landscape format for equipment that needs a long information area without the height of a conventional 16:9 panel. The 941.18*264.71 mm active area can support route information, process status, charging instructions, warning zones, or other horizontally arranged content within a fixed mechanical opening.

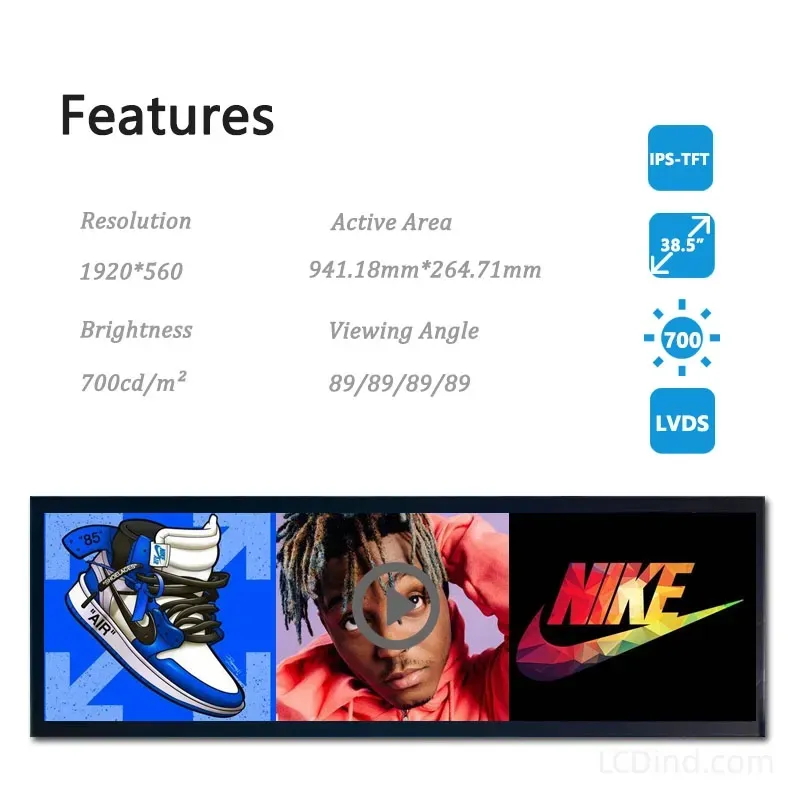

Verified Standard Configuration
| Size | 38.5 inch |
|---|---|
| Resolution | 1920×540 |
| Interface | LVDS |
| Brightness | 700 nits |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | All viewing directions |
| Operating Temp | 0 to +50°C |
| Storage Temp | -20 to +60°C |
| Outline Dimension | 975.6*299*14.6 mm |
| Active Area | 941.18*264.71 mm |
| LED Lifetime | 50k |
| Surface Treatment | Anti-glare |
| Surface Hardness | 3H |
Optical and Mechanical Review
The 700-nit backlight and anti-glare surface support installations with stronger ambient light than a standard indoor panel. They do not by themselves confirm direct-sunlight performance; the enclosure, cover material, reflections, thermal conditions, and viewing distance must be reviewed together. The 89/89/89/89 viewing-angle specification is useful where information must remain visible from different standing positions.
Before selecting a sample, compare the 975.6*299*14.6 mm outline and 941.18*264.71 mm active area with the actual bezel opening. The host design must also match the LVDS timing, connector, pin assignment, signal mapping, cable route, and backlight-control requirements.
Project Fit and RFQ Inputs

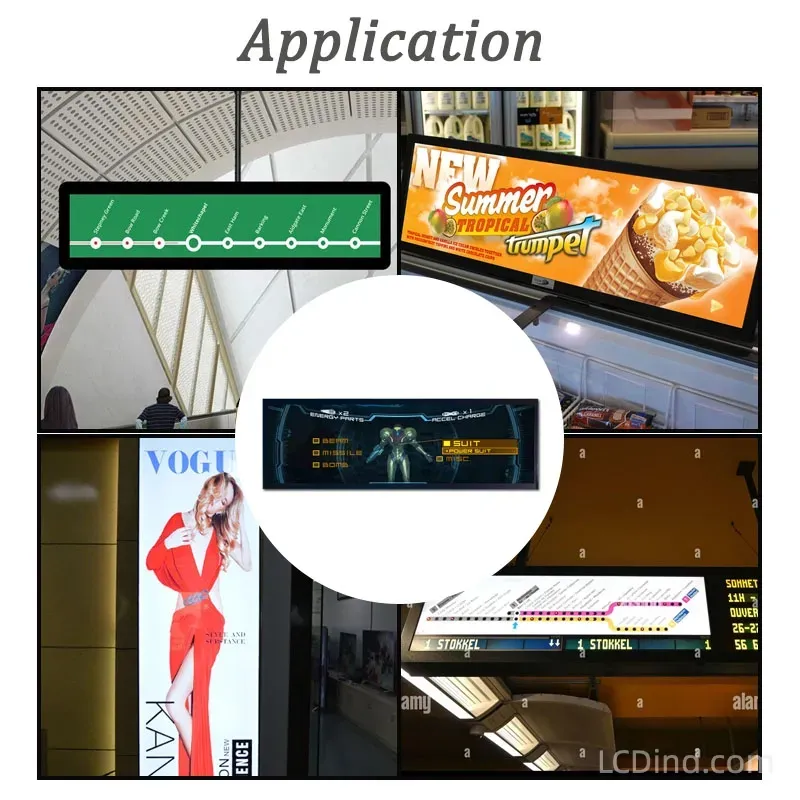

This format can be evaluated for EV charging equipment, transport information terminals, machine-side status panels, and long-format kiosk interfaces. Final suitability depends on the mounting environment and system design.
- Host board and LVDS pin definition
- Mechanical drawing and visible-window dimensions
- Indoor, semi-outdoor, or sheltered installation conditions
- Required orientation, viewing distance, and operating schedule
- Prototype quantity, annual forecast, and project timeline
Provide these details with any existing panel reference so LCDind can review compatibility before quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 38.5 inch |
| Resolution | 1920×540 |
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Viewing Angle | All View / IPS |
Q: What type of equipment project is this 38.5 inch Bar Type LCD Display 1920x540 LVDS 700 nits suitable for?
A: This bar LCD panel is best considered for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The LVDS interface is suited to industrial mainboards and controller boards where cable length, pin assignment, voltage, and timing need to be locked before pilot production. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The 700 nits backlight supports bright indoor, semi-outdoor, and sheltered outdoor equipment where readability and backlight lifetime both need engineering review. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: Touch requirements should be confirmed early, including PCAP or resistive touch, cover glass thickness, bonding, coating, and controller compatibility. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature 0 to +50°C, certification needs, delivery schedule, and whether pre-production samples are required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
