7 Inch TFT Display Sunlight Readable 500 nits MIPI

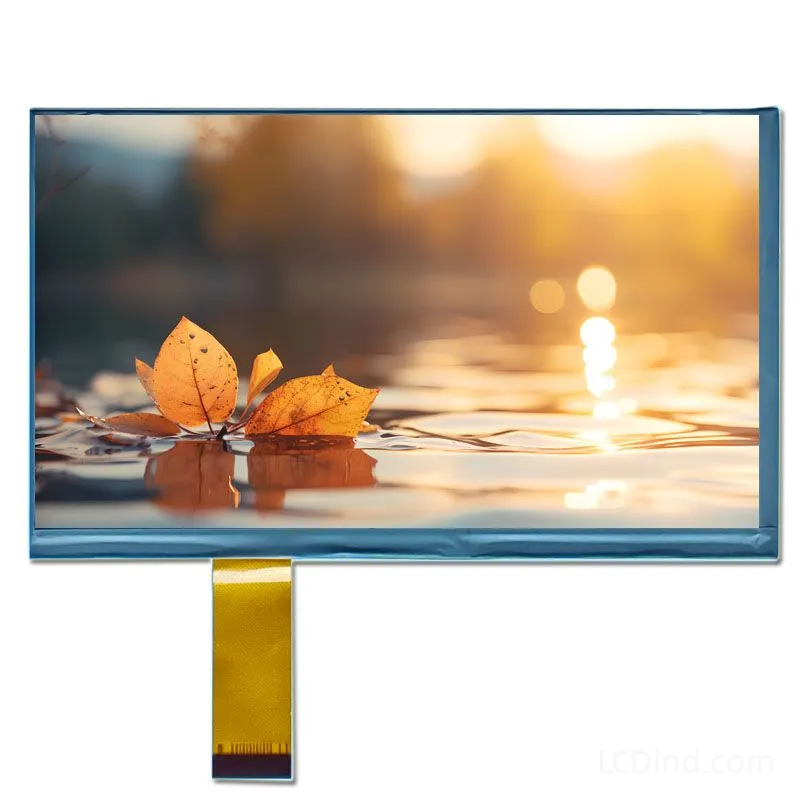

7 Inch 1024×600 MIPI TFT Display with Slim 2.3 mm Outline and 500 Nits Brightness

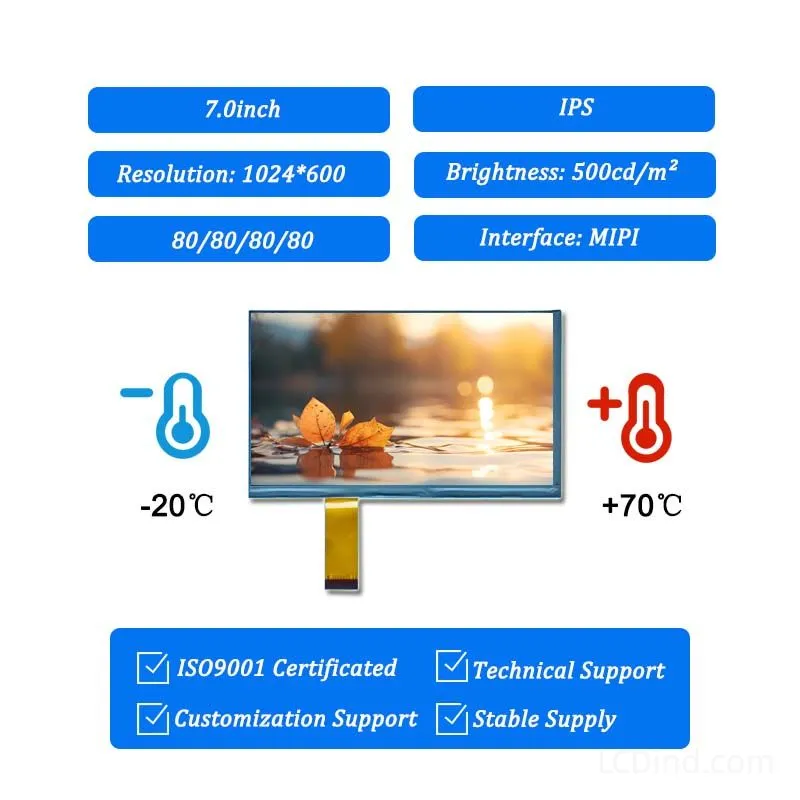

This 7 inch TFT display is a MIPI module for factory-direct OEM/ODM programs that need a 1024×600 high-brightness display in a slimmer mechanical envelope. The confirmed public data lists 7 inch size, 1024×600 resolution, MIPI interface, 500 nits brightness, all viewing directions, no touch panel in standard configuration, -20 to +70°C operating temperature, -30 to +80°C storage temperature, 163.8×96.8×2.3 mm outline, 154.08×85.92 mm active area, 800:1 contrast ratio, 3.3V power supply, 20000-hour LED lifetime and panel model 90-07007-001.

Confirmed Product Specifications

Slim Equipment Fit

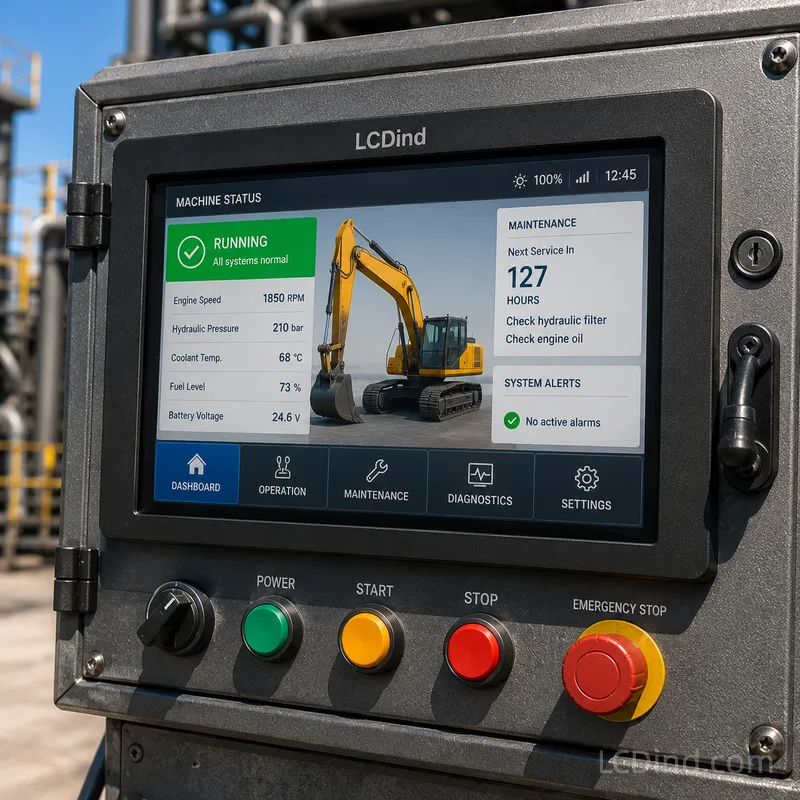

This module fits outdoor service terminals, EV charger interfaces, marine panels and equipment boxes where the mechanical stack is thinner than typical 7 inch modules. The 2.3 mm outline depth is a key differentiator, but it also means handling, support and FPC bend control should be reviewed carefully during assembly.

Difference from Similar 7 Inch MIPI Pages

This page is similar in resolution and brightness to other 7 inch 1024×600 MIPI products, but the outline and model are different. Model 90-07007-001 has a 163.8×96.8×2.3 mm outline and 154.08×85.92 mm active area. It should not be substituted for 90-07003-001 without drawing and FPC comparison.

MIPI Host Review

MIPI integration depends on lane count, command or video mode, initialization sequence, driver IC behavior, power rails and reset timing. The buyer should provide the host processor and OS or firmware environment. If this is a replacement project, provide the original display model and initialization data for comparison.

Brightness and Optical Stack

The 500-nit brightness supports bright indoor or protected outdoor use. If the product will face direct sun, confirm whether this brightness is enough after cover lens, touch stack or anti-glare treatment. Thin modules can be paired with custom cover glass, but optical loss and mechanical pressure need validation.

No-Touch Standard Scope

No touch panel is listed in standard configuration. If the project needs a touch terminal, define PCAP or resistive touch, cover lens, bonding, ESD, grounding and controller interface. Adding touch can remove some of the mechanical advantage of a slim module, so it should be planned early.

Mechanical and Assembly Control

The slim outline should be supported evenly. Avoid twisting the display, over-compressing the edge or bending the FPC sharply. Incoming inspection should record label, FPC direction, active-area alignment and cosmetic condition. Small handling errors are more visible on thin display modules.

Production Decision

Choose this model when the project needs a slim 7 inch 1024×600 MIPI display and the host can support its specific initialization and pinout. If the application prioritizes rugged depth, brighter backlight or complete HDMI connection, another 7 inch product may be more appropriate.

Slim Module Validation

The 2.3 mm outline helps slim products, but thin modules require better mechanical support. Validate front-lens pressure, FPC bend, adhesive, frame stiffness and cable routing. During pilot build, check whether the display remains flat and whether any pressure marks appear after assembly or temperature cycling.

Software and Driver Record

For MIPI projects, record the exact initialization sequence, lane configuration, reset timing, power sequence and host driver version. These records prevent future confusion when a similar 7 inch MIPI module is proposed. The product should not be approved only from resolution and brightness.

Procurement Decision Point

Choose model 90-07007-001 when slim thickness is important and the project accepts 500-nit protected-outdoor brightness. If the equipment needs stronger sunlight performance, integrated touch, or a more rugged mechanical frame, ask LCDind to compare alternatives before locking the enclosure.

Sample Acceptance Evidence

Approval should include drawing revision, powered photos, FPC route, adhesive or frame support, lens stack and initialization file. Because this page is close to another 7 inch 500-nit MIPI model, the evidence should clearly identify why the slim 90-07007-001 version was chosen.

Common Misuse Risk

The main risk is selecting the slim module for thickness and then adding a touch stack, thick cover lens or heavy frame that removes the mechanical advantage. If touch or protective glass is likely, review the total display stack before choosing this model.

RFQ Checklist

• Host MIPI lane count, initialization support, connector, voltage, FPC direction and power sequence.
• Slim enclosure drawing, active-area window, cover lens, touch plan and assembly method.
• Brightness environment, duty cycle, operating temperature and optical-stack requirement.
• Model 90-07007-001 matching requirement, sample quantity, annual forecast and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, touch or no-touch requirement, operating environment, controller-board scope, supply quantity and inspection criteria. This keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

How is this different from the other 7 inch 500-nit MIPI page?

This model lists a slimmer 163.8×96.8×2.3 mm outline and model 90-07007-001.

Is touch included?

No. The standard configuration lists no touch panel.

Is 500 nits enough for direct sunlight?

It may be suitable for bright or protected environments, but direct sunlight requires optical-stack testing and may need higher brightness.
