How to Source a inch LCD Round Display for Large Circular Industrial HMI Projects
LCD Round Display projects are rarely selected by size alone. OEM teams also need to confirm the mechanical window, host interface, brightness target, touch plan, thermal design, and repeat-supply path before pilot production. This guide uses the confirmed LCDind specification for SKU DS50298 and avoids unverified claims.

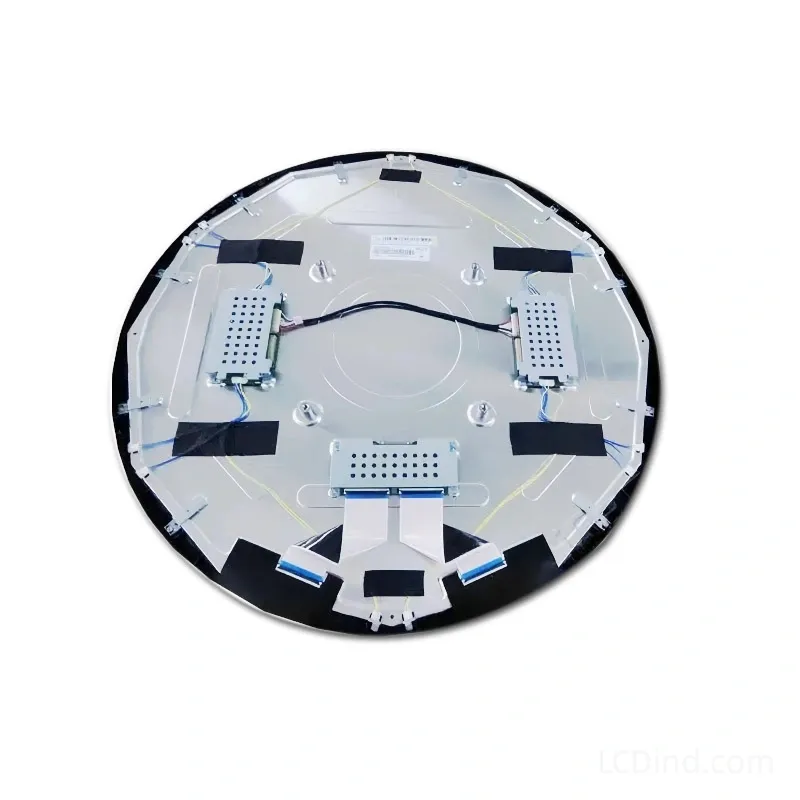

Confirmed Product Specification
| Panel Model | DV236FBM-N00 |
|---|---|
| Size | 23.6 inch |
| Resolution | 1280×1280 |
| Interface | LVDS 30 |
| Brightness | 1500 nits |
| Viewing Direction | IPS wide viewing |
| Touchscreen | No touch panel in standard configuration |
| Operating Temp | 0 to +50°C |
| Storage Temp | -20 to +60°C |
| Outline Dimension | 657*657*29.15 mm |
| Active Area | 599.424*599.424 mm |
| Contrast Ratio | 1000:1 |
| Power Supply | 12V |
| LED Lifetime | 30000 hours |
The confirmed configuration is 23.6 inch with 1280×1280 resolution, LVDS 30 interface, 1500 nits brightness, 0 to +50°C operating temperature, and No touch panel in standard configuration.
What OEM Buyers Should Confirm
The 23.6 inch active format gives OEM teams a practical display area for large-format embedded systems, dashboard installations, and equipment control interfaces. The LVDS interface is suited to industrial mainboards and controller boards where cable length, pin assignment, voltage, and timing need to be locked before pilot production. With 1500 nits brightness, this module is a strong fit for sunlight-readable or high-ambient-light equipment when paired with proper thermal design, AG/AR cover glass, and enclosure review. The standard configuration is supplied without a touch panel, which is useful for display-only devices or projects that plan a separate keypad, cover lens, or custom touch stack.
Best-Fit Applications
For procurement teams, this lcd round display should be evaluated for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls. Before quotation, share the target equipment, expected annual quantity, mechanical drawing, host platform, cable direction, cover glass requirement, and schedule. LCDind can then review whether the standard configuration is enough or whether brightness, bonding, cable, touch, or controller-board work is needed.
Product Details & Quotation
View product details: LCD Round Display Circular Module 23.6 inch 1500 nits. Use the product page to review the module details and send LCDind your project requirements for datasheet confirmation or quotation.
Recommended Internal Links
- Product details and inquiry: LCD Round Display Circular Module 23.6 inch 1500 nits
- Relevant category: LCDind display category
- Related sourcing page: LCDind display sourcing guide
Engineering FAQ
Q: What type of equipment project is this 23.6 inch Round TFT LCD Display 1280×1280 LVDS 30 1500 nits suitable for?
A: This lcd round display is best considered for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The LVDS interface is suited to industrial mainboards and controller boards where cable length, pin assignment, voltage, and timing need to be locked before pilot production. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: With 1500 nits brightness, this module is a strong fit for sunlight-readable or high-ambient-light equipment when paired with proper thermal design, AG/AR cover glass, and enclosure review. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: The standard configuration is supplied without a touch panel, which is useful for display-only devices or projects that plan a separate keypad, cover lens, or custom touch stack. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature 0 to +50°C, certification needs, delivery schedule, and whether pre-production samples are required.
