Bar Type LCD
Stretched Bar LCD Display
The export contains 32 bar-type or stretched LCD products. This page organizes those SKUs by size, resolution, interface, brightness, and application so buyers can quickly compare shelf-edge, dashboard, signage, and industrial-strip display options.
1920×720common automotive bar signal
3840×720large ultra-wide signal
LVDS / MIPI / eDPmain bar interfaces
46high-brightness rows across catalog
Where bar LCDs win
Use bar displays when a standard 16:9 panel cannot fit: retail shelves, vehicle dashboards, POS strips, appliance interfaces, elevators, metro route displays, and industrial status panels.
Integration checks
Confirm outline dimension, active area, interface lane count, mounting direction, viewing angle, touch or cover glass, brightness, and controller-board availability.
SEO/GEO angle
Ads showed commercial intent for stretch LCD display and bar LCD panel queries; this page now supports those terms with actual product rows instead of generic text.
Representative Stretched Bar LCD Products
These rows were selected from Bar Type LCD Display categories or titles containing bar, stretched, or ultra-wide display signals.
8.88 Inch Bar Type LCD Display Module 480×1920 IPS MIPI Interface Stretched Bar Screen 600 nits
- SKUDBC088HVN40M060A
- Size8.8 inch
- Resolution480×1920
- InterfaceMIPI
- Brightness600 nits (High Brightness (500-900 nits))
- Operating TempIndustrial (-20 to +70°C)
8.88" IPS Stretched Bar LCD Module (480×1920). Features MIPI Interface , 600 nits Brightness , and -20°C~70°C Wide Temp. Ideal for Smart Mirrors.

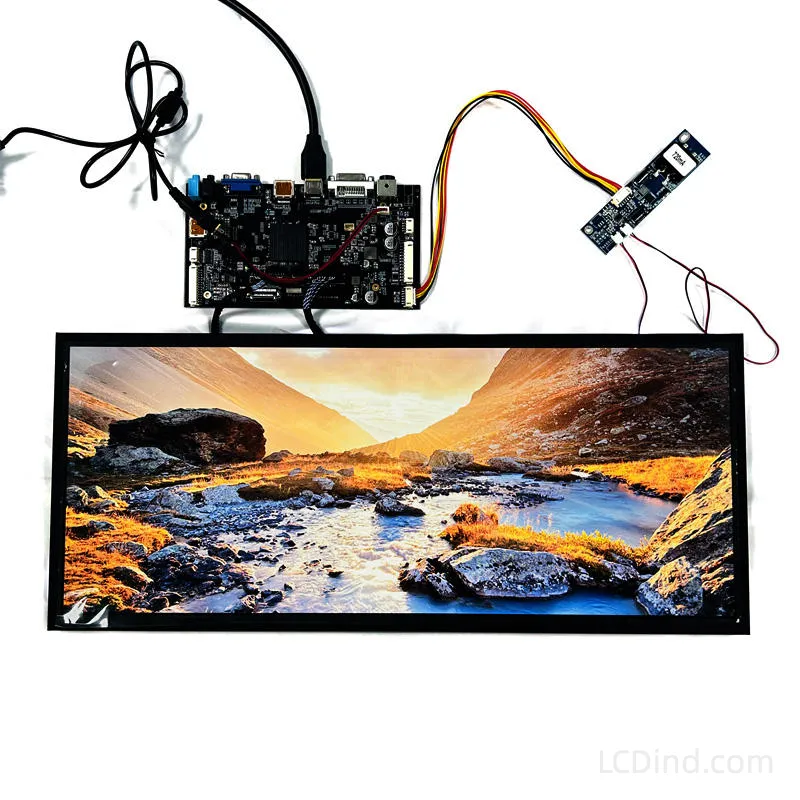

22 Inch Bar Type LCD (2560×1024) – 1000 nits Stretched Display
- SKUDBC220AZN40-30L100A
- Size22.0 inch
- Resolution2560×1024
- InterfaceLVDS
- Brightness1000 nits (Sunlight Readable (1000+ nits))
- Operating TempStandard (0°C ~ +50/60°C)
Capture attention with this 22 inch Bar Type LCD. Featuring a unique stretched aspect ratio and a crisp 2560×1024 QHD resolution, this module is engineered for casino gaming headers, shelf-edge digital signage, and industrial ultra-wide dashboards. With 1000 n
11.26 Inch Bar Type LCD Module 440×1920 IPS MIPI Interface Rectangular Stretched Screen ICNL9707 Driver
- SKUDHC112BVN40M035A
- Size11.2 inch
- Resolution440×1920
- InterfaceMIPI
- BrightnessStandard (200-450 nits)
- Operating TempIndustrial (-20 to +70°C)
11.26" IPS Stretched Bar LCD Module (440×1920). Features MIPI Interface , ICNL9707 Driver , and -20°C~70°C Wide Temp. Designed for Smart Mirrors & Signage.
AUO 12.3 Inch Automotive LCD Display (1920×720) In-Cell Touch
- SKUC123HAX04.G
- Size12.3 inch
- Resolution1920×720
- InterfaceLVDS
- Brightness1000 nits (Sunlight Readable (1000+ nits))
- Operating TempUltra Wide / Automotive (-30°C ~ +85°C)
This AUO 12.3 Inch Automotive LCD Display (Model: C123HAX04.G ) represents the pinnacle of integrated display technology. By utilizing In-Cell Touch with TDDI IC , it combines the touch sensor and display driver into a single chip, resulting in an ultra-slim p
12.3 Inch IPS LCD Display Module (1920×720) In-Cell Touch
- SKUAPS-C123HAX04.G
- Size12.3 inch
- Resolution1920×720
- InterfaceLVDS
- BrightnessSunlight Readable (1000+ nits)
- Operating TempUltra Wide / Automotive (-30°C ~ +85°C)
This 12.3 Inch IPS LCD Display Module is engineered for seamless automotive front mounting . Featuring a panoramic 8:3 aspect ratio and 1920×720 resolution , it provides a crisp, wide canvas for instrument clusters and infotainment systems. Utilizing In-Cell T
10.25 Inch Automotive LCD Display (1920×720) 1000 nits
- SKULCD-12-5-1920×720-001
- Size10.2 inch, 10.3 inch
- Resolution1920×720
- InterfaceLVDS
- Brightness1000 nits (Sunlight Readable (1000+ nits))
- Operating TempUltra Wide / Automotive (-30°C ~ +85°C)
Experience the Future of HMI with In-Cell Technology. Unlike traditional bulky displays, this 10.25 Inch Automotive LCD Display utilizes cutting-edge In-Cell Touch technology , integrating the touch sensor directly into the LCD structure. The result is a thinn
Relevant Sourcing Terms
- stretch lcd display
- stretched bar LCD display
- bar lcd panel
- bar lcd screen
- ultra wide TFT LCD
- automotive bar LCD
Related LCDind Resources
Procurement FAQ
What information is needed for a stretched bar LCD quote?
Send target active area or outline size, resolution, viewing direction, interface, brightness, touch or cover glass requirement, installation space, and annual quantity.
Can bar LCDs be made sunlight readable?
Some bar LCD projects can use high brightness backlights, but feasibility depends on panel size, power, thermal path, cover glass, and backlight lifetime.
Are automotive bar LCDs different from retail bar LCDs?
Automotive projects usually need wider temperature, vibration review, longer lifecycle, and stricter optical requirements than indoor retail shelf-edge displays.
The bar LCD product matrix is generated from products whose category or title contains bar-type, stretched, or ultra-wide display signals.
