How to Select Brightness for an Outdoor LCD Display

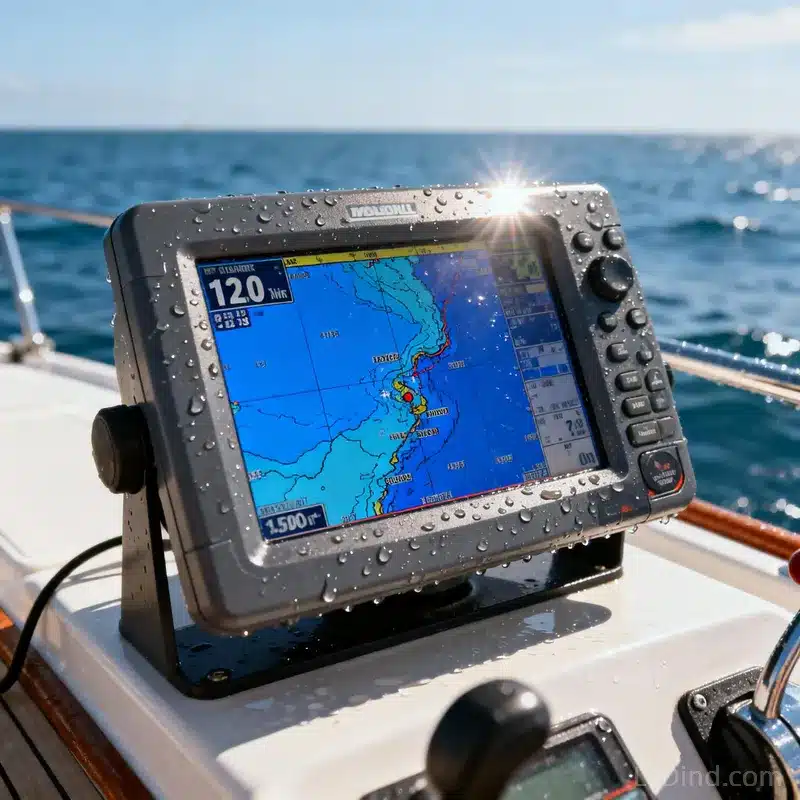

A sunlight readable LCD is a complete display system designed to remain legible in strong ambient light. Backlight brightness matters, but reflection control, optical bonding, cover glass, temperature, power, touch integration, and enclosure design can be equally important.
Sunlight Readable Is More Than High Brightness
High brightness describes the luminance produced by the display. Sunlight readability describes whether the displayed information can still be read in the real installation. A module with a higher nit rating can still perform poorly if the front surface creates strong reflections, the optical stack contains multiple air gaps, or the enclosure allows the display to overheat.
Define the viewing environment first: indoor high ambient light, shaded outdoor use, intermittent direct sun, or continuous direct-sun exposure. Also identify viewing distance, text size, viewing angle, use duration, and whether the display sits behind an additional protective window.
A Four-Step Outdoor LCD Brightness Selection Method
- Classify the actual viewing environment. Separate bright indoor or near-window use, shaded outdoor use, intermittent direct sun, and continuous exposed direct sun. Record the display orientation, viewing angle, protective window, content type and daily duty cycle.
- Define the final optical stack. Identify the LCD, touch sensor, adhesive or air gap, cover glass, AG/AR treatment and any enclosure window. Request typical and minimum luminance and determine whether the supplier value is measured at the bare panel or through the completed stack.
- Select a sample range, not a guaranteed threshold. Use the lowest practical backlight output that can maintain the required contrast after reflection and transmission losses. Compare 500-800, 800-1000, 1000-1500 and higher-nit options only as engineering screening bands; installation conditions can move a project between bands.
- Validate contrast and temperature in the equipment. Test representative content through the production-intent cover stack at required angles and ambient-light conditions. Repeat the check after thermal soak because solar loading and backlight heat can change panel behavior, dimming and service life.
| Bright indoor / near window | Start by controlling reflections and checking whether a moderate high-brightness module meets final-stack contrast without excessive power. |
|---|---|
| Shaded outdoor | Evaluate high-brightness samples with the final cover and touch stack; open-sky reflection can matter even without direct solar exposure. |
| Intermittent direct sun | Compare selected 1000-nit and higher options together with AG/AR, bonding, thermal path and automatic dimming. |
| Continuous exposed sun | Require an optical and thermal system review, high-temperature margin and real installation testing; do not approve by nit rating alone. |
Optical Stack and Reflection Control
Optical Bonding
Bonding the touch panel or cover glass to the LCD removes an internal air gap, which can reduce internal reflections and improve contrast. It can also improve mechanical stability and reduce the risk of internal condensation.
For the optical mechanism, adhesive choices and validation limits, review how optical bonding affects sunlight readability.
AG and AR Treatments
Anti-glare treatment diffuses reflected light, while anti-reflective treatment is intended to reduce surface reflection. Selection should consider image sharpness, surface durability, fingerprints, cleaning, and the real viewing angle.
Cover-Glass Transmission
Printed borders, glass thickness, coatings, touch sensors, adhesive, and protective windows all influence final optical transmission. Evaluate the completed stack rather than the bare LCD alone.
Polarizer and Viewing Direction
Polarizer selection and viewing angle affect contrast under strong light and when users wear polarized sunglasses. Confirm portrait or landscape installation and the primary viewing direction.
Thermal Design and High-Temperature Operation
A stronger backlight increases power consumption and heat. Direct sun can also raise the panel and enclosure temperature above the surrounding air temperature. The LCD, LED backlight, driver electronics, touch controller, adhesive, and cover-lens stack must be reviewed together.
For sustained outdoor operation, confirm operating and storage temperature, solar loading, ventilation or conduction paths, LED current, dimming strategy, enclosure color, and the risk of temporary image degradation at elevated panel temperature. A high-Tni LCD option may be required, but it does not replace proper thermal design.
Touch, Weather and Mechanical Integration
Outdoor touch systems may need glove operation, wet-finger behavior, water rejection, thicker cover glass, impact resistance, UV-aware materials, sealing, and a suitable touch controller. These requirements should be reviewed before the cover lens and sensor are finalized.
Provide the enclosure opening, bezel overlap, mounting method, cover-glass drawing, cable direction, component keep-out zones, and any IP or impact requirement. Sealing is normally an enclosure-level responsibility, not a property of the bare LCD module.
Interface, Power and Dimming
LVDS, eDP, MIPI DSI, RGB, MCU, and HDMI-based systems require different host electronics and timing checks. Brightness upgrades can also change backlight voltage, current, connector, PWM dimming behavior, EMI performance, and power-supply requirements.
If the project replaces an existing display, send the old datasheet, host-board information, cable drawing, backlight circuit, and available mechanical space. Matching only size and resolution is not enough.
Outdoor LCD Engineering Checklist
| Viewing environment | Indoor high ambient, shaded outdoor, intermittent sun, or continuous direct sun |
|---|---|
| Optical target | Required luminance, contrast priority, viewing angle, sunglasses use, and final-stack transmission |
| Display format | Size, resolution, active area, orientation, outline, and mounting limits |
| Interface | LVDS, eDP, MIPI, RGB, MCU, or controller-board requirement; pinout and voltage |
| Touch and cover | PCAP or RTP, cover-glass drawing, coating, bonding, glove/water behavior, and impact needs |
| Environment | Operating/storage temperature, solar exposure, humidity, vibration, sealing, and UV conditions |
| Power and heat | Backlight power, dimming, thermal path, enclosure temperature, and duty cycle |
| Commercial inputs | Prototype quantity, estimated annual usage, validation schedule, and expected lifecycle |
Test Conditions and Engineering Evidence
Brightness selection should be traceable to the exact panel datasheet and measurements from the production-intent assembly. A useful approval record states the panel model and revision, LED current and dimming state, warm-up time, panel temperature, measurement point, viewing angle, displayed pattern, ambient-light condition and every optical layer in front of the LCD.
| Bare-panel baseline | Record typical and minimum luminance, contrast, viewing direction, backlight electrical conditions and specified measurement temperature from the exact datasheet. |
|---|---|
| Final-stack measurement | Measure through the intended touch sensor, bonding or air gap, cover glass, coating and enclosure window after thermal stabilization. |
| Ambient-light validation | Record illuminance at the display plane, sun or shade orientation, viewing angle and representative UI content. Compare apparent contrast rather than luminance alone. |
| Thermal validation | Repeat at project-defined hot and cold conditions while monitoring panel temperature, backlight current, dimming, image quality and touch operation. |
| Review control | LCDind engineering content review: August 2026. Re-check the page when product ranges, optical processes or cited technical evidence changes. |
Technical basis: Texas Instruments describes luminance contrast ratio as a function of display light plus ambient light transmitted and reflected by the display. 3M technical data for anti-glare filters documents the role of diffusing specular reflections in bright-light readability. Project approval must still use the selected LCD datasheet and LCDind sample results. Sources: TI luminance contrast ratio overview and 3M Anti-Glare Filter technical data.
Guide Page vs High Brightness LCD Product Category
Use this guide to define the engineering requirement and understand the trade-offs behind outdoor readability. When the target size, resolution, interface, and brightness range are known, continue to the High Brightness LCD Modules category to review available product options.
Product specifications are starting points. Final suitability should be confirmed against the complete optical, electrical, thermal, touch, mechanical, and lifecycle requirement.
Outdoor LCD Brightness FAQ
How should an initial brightness range be selected for an outdoor LCD?
Classify the installation as bright indoor, shaded outdoor, intermittent direct sun or continuous direct sun. Then review front-surface reflection, final-stack transmission, viewing angle, content contrast, thermal limits and power before selecting a sample brightness range.
Is a 1000-nit LCD always sunlight readable?
No. A 1000-nit specification can be a useful starting point, but the result depends on ambient light, surface reflection, the completed optical stack, viewing direction and the real installation environment.
Should LCD luminance be evaluated before or after touch and cover glass?
Use bare-panel data for initial screening, but approve the project using measurements through the production-intent touch sensor, adhesive or air gap, cover glass, coating and any external protective window.
Does optical bonding increase LCD brightness?
Optical bonding does not replace backlight output. Its main value is reducing internal reflections and improving the apparent contrast of the completed display stack.
What information is needed for an outdoor display quotation?
Send the size, resolution, interface, viewing environment, ambient-light condition, brightness target, temperature range, touch and cover-glass requirement, drawings, duty cycle, quantity and expected lifecycle.
